54-Port Layer 2+ Gigabit Ethernet Managed Switch with PoE
ES0154P
Управляем L2+ комутатор с 48 гигабитови порта и 6 SFP28 uplink порта до 25 Gbps. Захранва устройства по PoE и работи plug-and-play с KE и VE89 сериите за Over-IP инсталации.
Характеристики

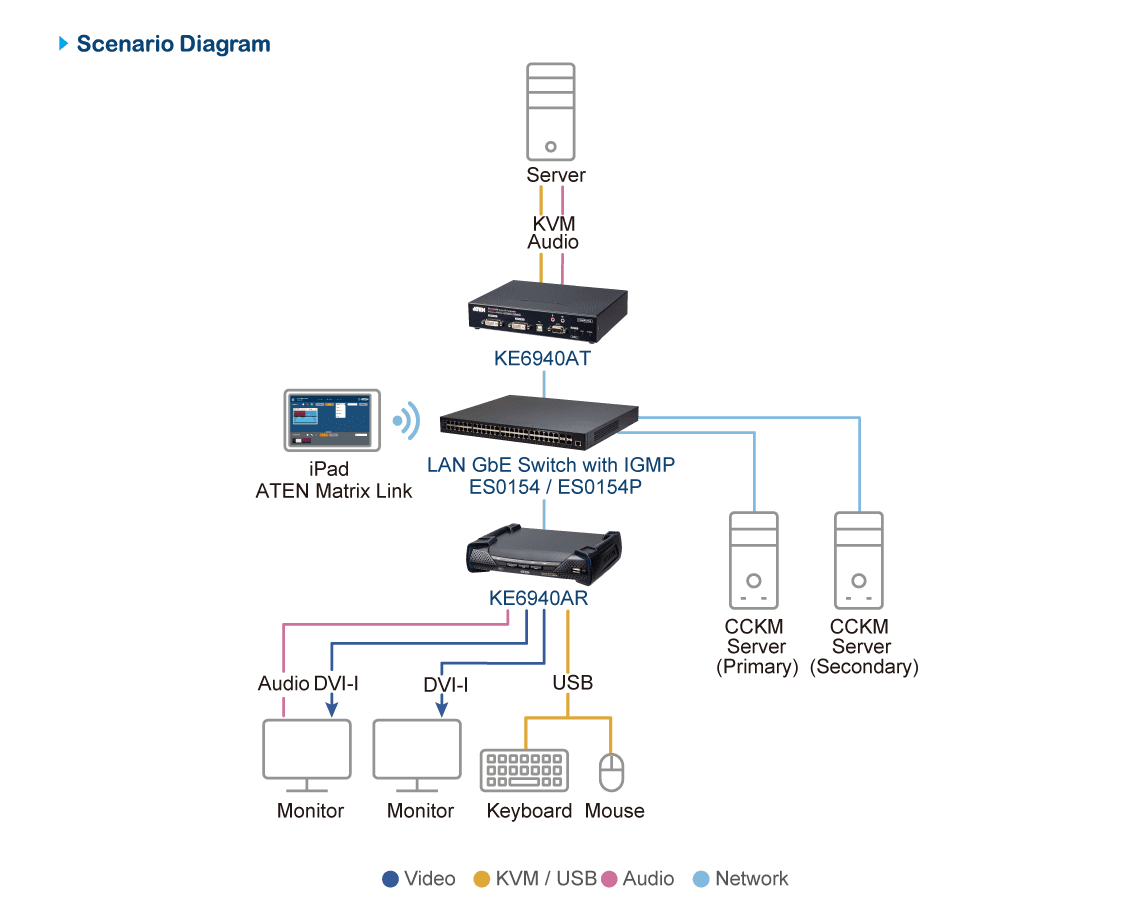

- Supports plug-and-play with KE, VE89 series devices
- Supports 48 Gigabit Ethernet ports and 6 SFP28 uplink ports (up to 25Gbps)
- High-performance Gigabit Ethernet L2+ access switch with 396 Gbps switching capacity – significantly improve the responsiveness of applications and file transfer times
- 802.3af PoE / 802.3at PoE+ / 802.3bt PoE++ (41-48 ports only) port configuration and scheduling
- Supports IGMP v1/v2/v3 Snooping and IGMP v1/v2 Querier
- Supports IGMP Snooping Fast Leave
- Supports Flow Control
- Comprehensive QoS – allowing the marking, classification, and scheduling of up to four traffic types across the network
- Enhanced Security – Port Security limits the total number of devices using a switch port and protects against MAC flooding attacks
- Supports IEEE 802.1w Rapid Spanning Tree Protocol – ensuring a faster recovery from failed links and enhancing overall network stability and reliability
- Supports IPv4, IPv6
Конектори
- RJ-45 10/100/1000 портове
- 48
- SFP28 uplink портове
- 6
- Конзолни портове
- 1 x RJ45
- Отдалечена конзола
- 1 X RJ45
- USB порт
- 1
Производителност
- Комутационен капацитет
- 396 Gbps
- Скорост на препращане
- 295 Mpps
- Flash памет
- 256 MB
- DRAM
- 1GB
- Размер на MAC таблицата
- 32K
- Jumbo Frames
- 10 KB
- Auto-negotiation
- Yes
- Макс. входна мощност
- 100-240V AC,50-60Hz
- Консумация
- 835W (MAX) 2BTU/h 849BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Power over Ethernet (PoE)
- Съответствие със стандарти
- 802.3af PoE / 802.3at PoE+ / 802.3bt PoE++ (41-48 ports only)
- Брой портове с PoE/PoE+
- 48 ports
- Обща PoE мощност
- 740W
- Макс. PoE мощност на порт
- PoE : 15.4W/ PoE+: 30W / PoE++: 90W(41-48 ports only)
Работна среда
- Работна температура
- -5–45°C
- Температура на съхранение
- -40–70°C
- Влажност
- 5%–95% RH, Non-condensing
Физически характеристики
- Rack пространство
- 19"
- Корпус
- Metal
- Тегло
- 5.42 kg ( 11.94 lb )
- Размери (Д x Ш x В)
- 44.20 x 42.00 x 4.36 cm (17.4 x 16.54 x 1.72 in.)
- Брой в кашон
- 1 pc
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
