All-digital KVM over IP комутатор с 32 RJ-45 порта в 1U и 2 SFP+ uplink слота. Пренася 3840 x 2160 @ 30 Hz до 100 m по Cat 5e/6, с до 32 независими отдалечени сесии.
Характеристики
- High port density – RJ-45 connectors and Cat 5e / 6 cable for up to 32 ports in 1U housing
- All-digital KVM over IP optimum transmission – offers reliable transmission over long distances with noise immunity, signal quality preservation, and efficient compression and storage
- Extends 3840 x 2160 @ 30 Hz resolutions up to 100m via Cat 5e/6 without signal interference and close-to-zero latency (video resolution varies depending on the DigiProcessor)

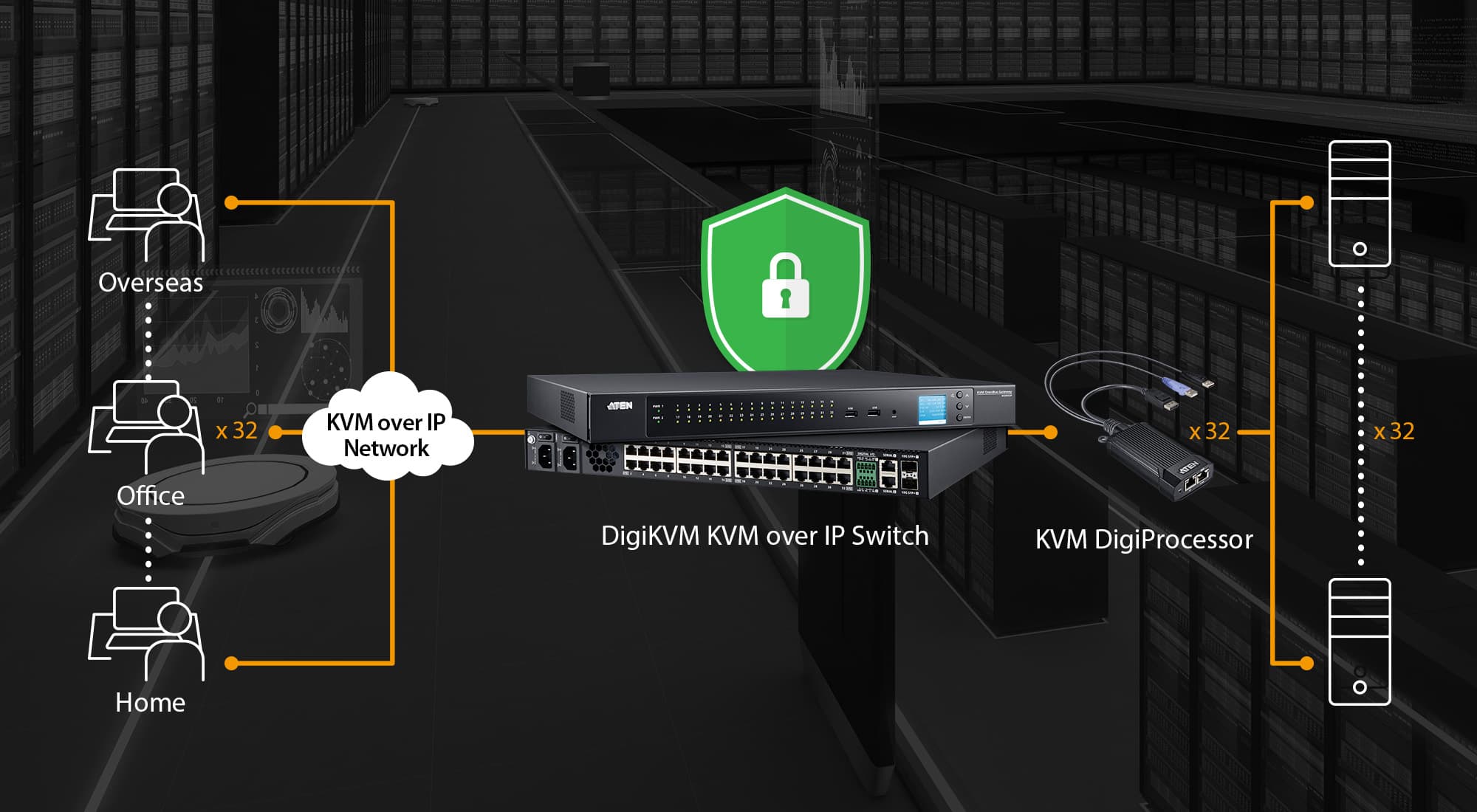

- Up to 32 independent connections for remote KVM over IP access
- Dual 10G NICs for redundant LAN or two IP operation
- LCD display – provides real-time connection status, notifications, and system alert message
- LED indication of connection and hardware status
- Multi-platform server environments: Windows, Mac, and Linux
- All-around ventilation chassis design improves airflow efficiency – induces cold air suction on both sides at the front panel and dissipates heat via ventilation holes on the back panel
- Dual power supply with power redundancy
- Simultaneously shares 32 independent connections to the attached servers
- Out-of-Band access
- Integration with ATEN CC2000 Centralized Management Software and CCVSR Video Session Recording Software
- Green IT Fan – auto-fan-speed adjustment corresponding to temperature
- Event logging and Windows-based log server
- Event notification – supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
- Event destination – event logs will be saved to Log server, Syslog server, and USB drive
- Firmware upgradeable
- Port share mode – allows multiple users to gain access to a server simultaneously
- Supports IPv4, IPv6
- Supports ATEN KVM over IP console station (KA82xx series)
- The intuitive WinClient AP's supports of an Array View and a Control View – enables users to monitor all servers and control a specific server concurrently
- Panel Array Mode™ Live+ – real-time monitoring of livestreamed video feeds from all ports in a configurable multiscreen layout
- Browser-based, and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, and Linux) via WebClient
- Multi-browser support – Edge, Chrome, Firefox, Safari, and Opera
- Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer – users can remotely access all the connected servers and PCs without Java or browser plug-in installation
- Full-screen or sizable and scalable virtual remote desktop
- High-grade security – supports an embedded FIPS 140-3 certified OpenSSL cryptographic module (Certificate #4985)
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports TLS 1.3 data encryption and RSA 2048-bit certificates to secure user logins in from browser
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or random for video, and virtual media data encryption
- Support for IP / MAC filter
- Configurable user and group permissions for server access and control
- Automated CSR creation utility and third party CA certificate authentication
- Virtual media transmission rate is approximately 10 times faster than traditional KVM, ideally for file transfers, OS patching, software installation, and diagnostic testing
- Works with USB-enabled servers in operating system and at the BIOS level
- Supports USB2.0 DVD / CD drives, USB mass storage devices, PC hard drives, and ISO images
- Video quality such as monochrome color depth and bandwidth’s increment / decrement can be adjusted for optimizing data transfer speed
- Mouse DynaSync™ – automatically synchronizes remote mouse movements
- On-screen keyboard with multi-language support
- BIOS-level access for troubleshooting
Конзолни връзки
- Локално
- N/A
- Отдалечено
- 32
Връзки към компютри
- Директно
- 32
- Избор на порт
- GUI

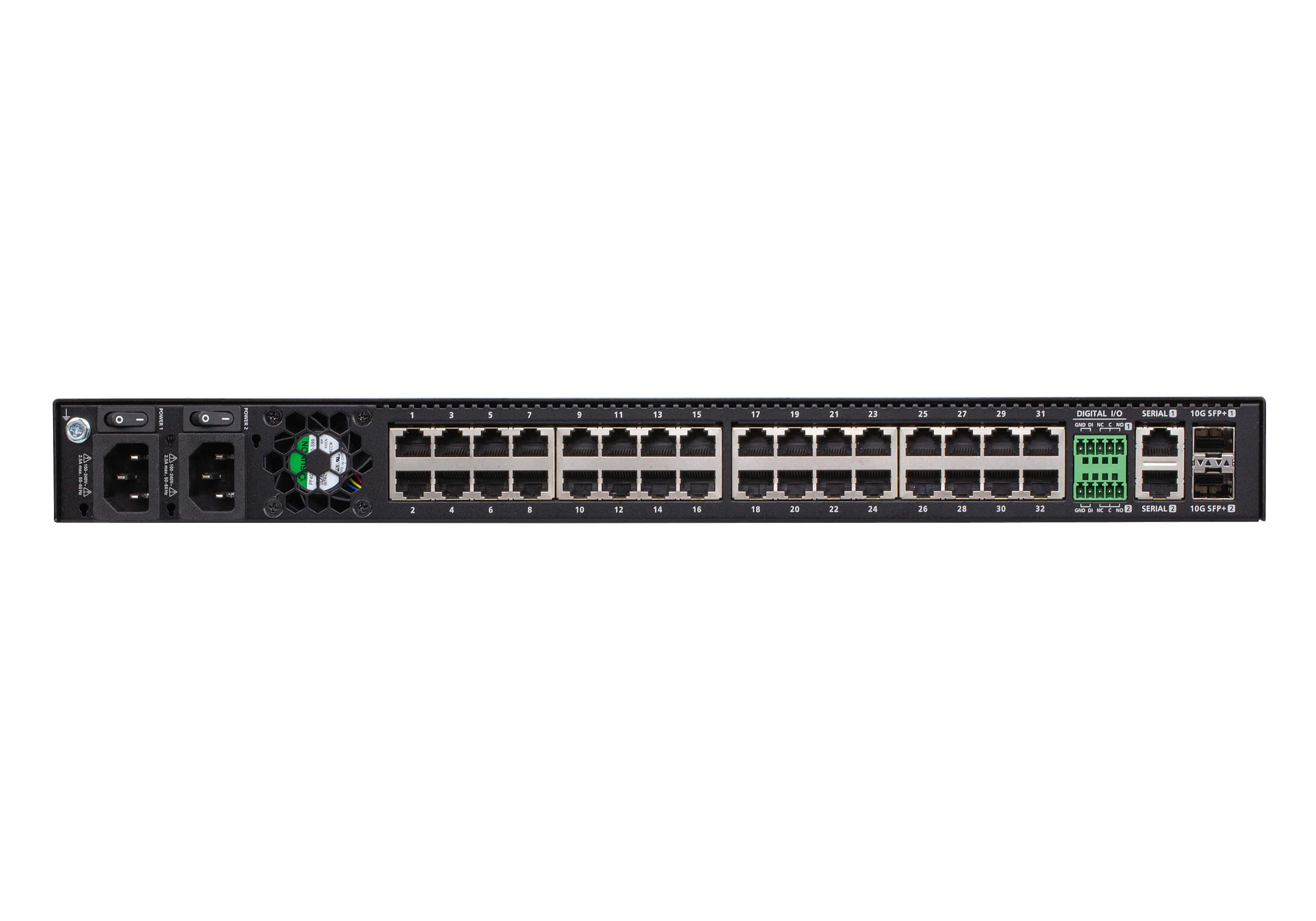

Конектори
- USB порт
- 2 x USB Type-A Female (Reserved for future expansion)
- KVM портове
- 32 x RJ-45 Female
- SFP+ uplink портове
- 2 x SFP+ Slots*
- Сериен
- 2 x RJ-45 Female (Reserved for future expansion)
- Захранване
- 2 x IEC 60320/C14
- Вход
- 2 x 2-pin DI (Reserved for future expansion)
- Реле
- 2 x 3-pin Relay (Reserved for future expansion)
Бутони и превключватели
- Нулиране
- 1 x Semi-recessed Pushbutton
- Захранване
- 2 x Rocker Switches
Индикатори
- KVM портове
- 32 (Green)
- Захранване
- 2 (Green)

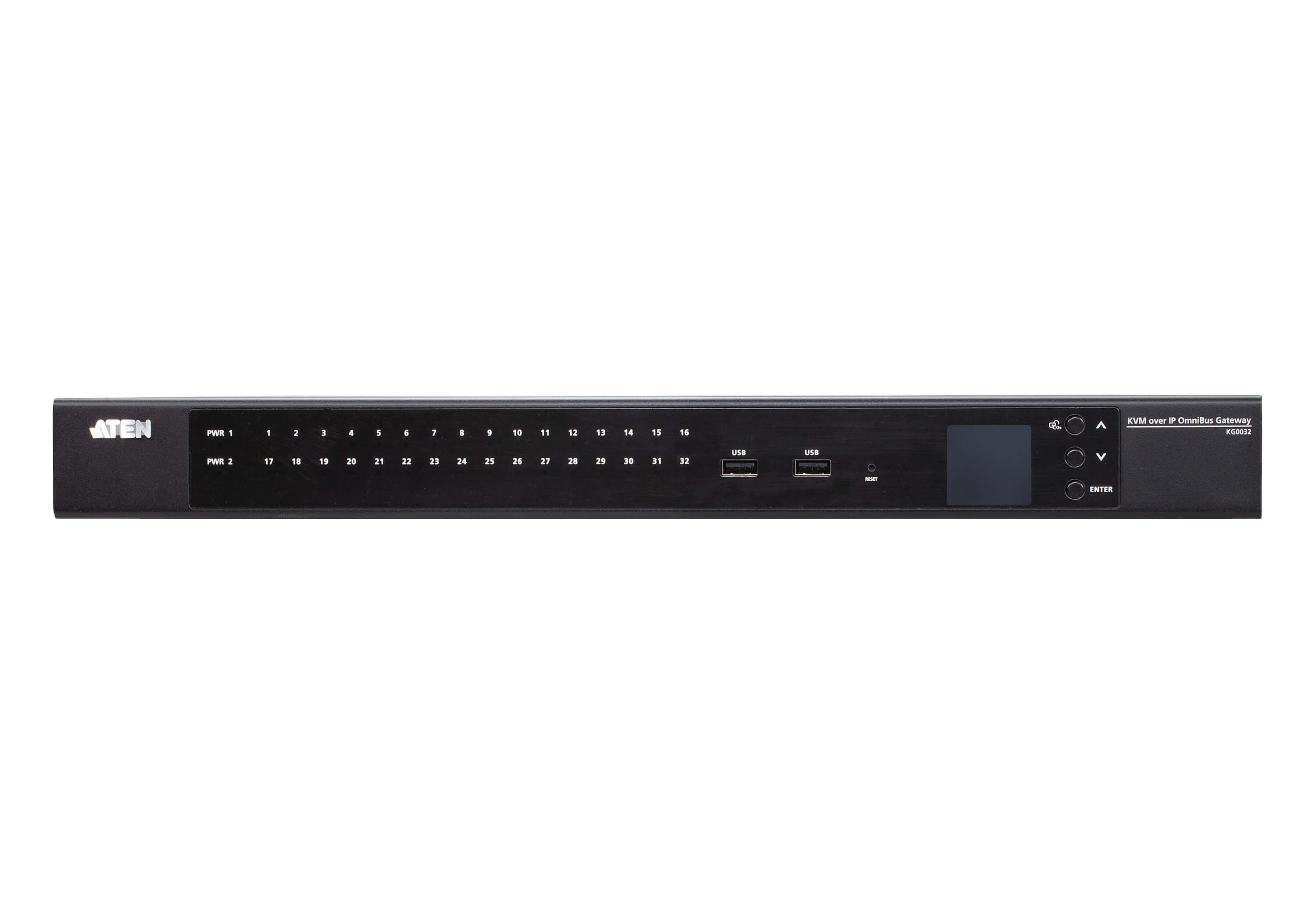

Панел
- Сечение
- 1.6"
- Резолюция
- 128x64
Бутони
- Избор
- 3 x Pushbuttons (Up, Down, Enter)
Емулация
- Клавиатура / мишка
- USB
Видео
- Отдалечено
- Up to 3840 x 2160 @ 30Hz
- Макс. входна мощност
- 100–240V~, 2.5A max, 50-60Hz
- Консумация
- AC110V:46.8W:160BTU/h AC220V:46.9W:160BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40˚C
- Температура на съхранение
- -20 - 60˚C
- Влажност
- 10 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 5.93 kg ( 13.07 lb )
- Размери (Д x Ш x В)
- 43.36 x 37.90 x 4.40 cm (17.07 x 14.92 x 1.73 in.)
- Забележка
- * Fiber or copper SFP modules are sold separately. Please find them on the compatible accessories list and order with KG devices together.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
