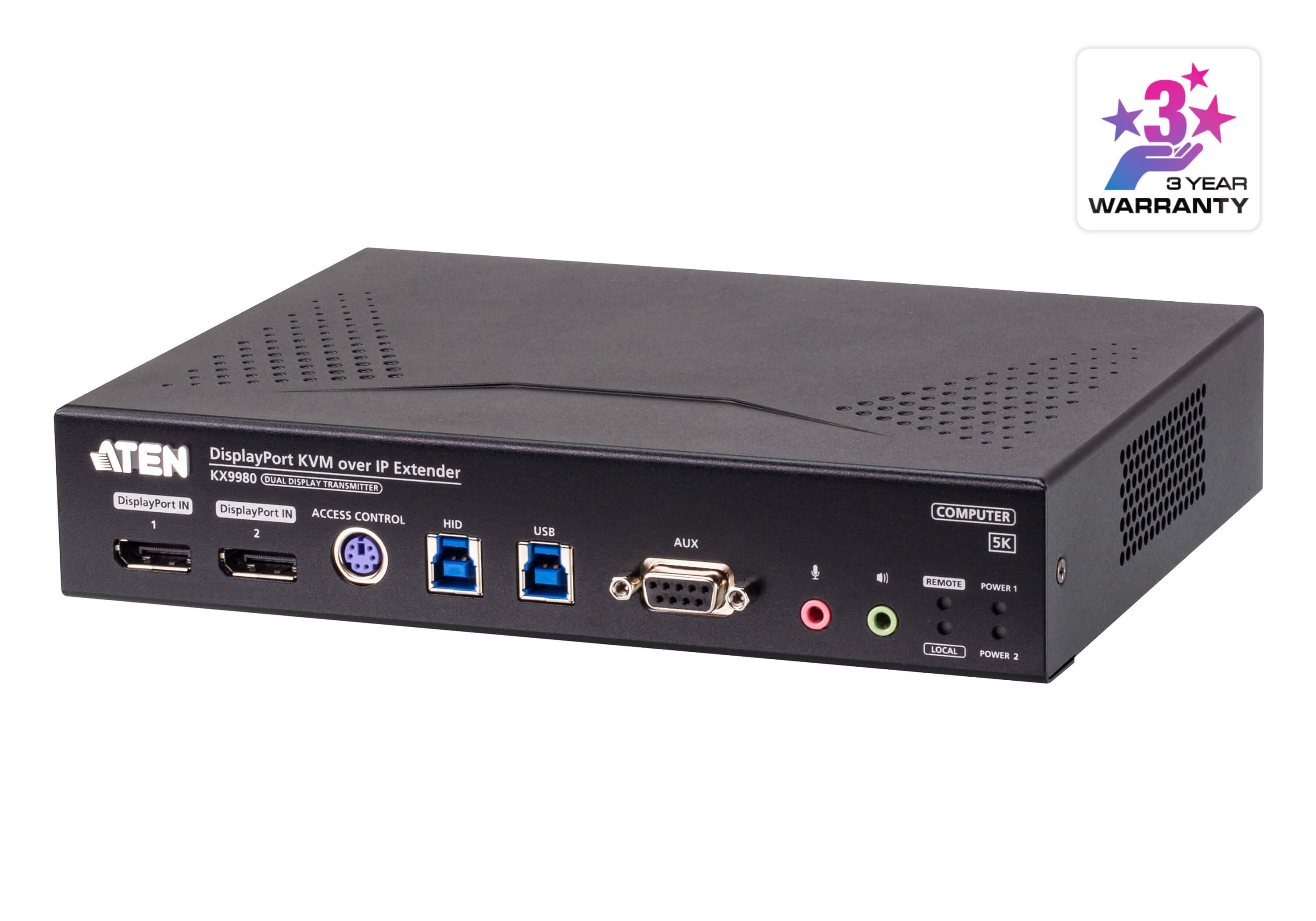

5K DisplayPort Dual Display KVM over IP Transmitter
KX9980T
KVM Over-IP предавател за два DisplayPort дисплея с видео без загуби до 5120 x 2880 и поддръжка на USB 3.2 периферия. Мрежова връзка през RJ-45 и 2 SFP+ слота.
Характеристики
- Supports KVM over IP with USB 3.2, including Control, Interrupt, and Bulk transfer modes
- Built-in 2-port KVM switch on the receiver provides flexible local console control and expanded usage scenarios
- Lossless video compression up to 5120 x 2880 for dual display, including UHD or DCI with zero latency
- Native DP signal processing with color depth 8, 10, 12 bits
- Supports Adobe RGB
- Supports one-to-many USB transparent transmission, enabling a single USB source to be shared across multiple receivers
- Allows a single source to mirror video output to two displays for simultaneous monitoring
- Supports USB isochronous transfer to enable USB camera and USB speaker usage between transmitter and receiver
- Boundless Switching – simply move the mouse cursor across screen borders to switch between different receivers (Rx)
- Fast Switching – 0.3-second switching between transmitter-connected servers of any resolution
- Authentication lock – automatically logs in when the power of the system is resumed after power off
- Connection redundancy – automatically connects to another transmitter (Tx) after disconnection with the original Tx, ensuring constant access to servers
- Disconnection alert – Pop-up warning message and looping alarm beeping notify users the disconnection status
- Push and Pull – share content instantly to / from a single Rx or video wall by just one click
- Video walls – create multiple video walls with up to 12 x 12 (144 displays max.) in each layout
- Advanced Scheduling – improve efficiency and save costs by allowing connections to be set based on time and date
- Virtual Transmitter – independently stream video, audio, USB, and serial sources from different Tx
- Internal and external authentication support – supports LDAP, Active Directory, RADIUS, and TACACS+
- Advanced User Authorization Settings – administrators can set up to four access modes on Tx devices for collaboration or prevention of interference among users
- Configurable user and group permissions for access and control of KX devices
- Tx grouping of up to 4 sets of KX transmitters to support multi-display applications
- Rx access control – users at the Tx local console can enable / disable Rx control privilege by simply pressing a control button Note: 1. These advanced functions are supported when the KX transmitters are paired with KX receivers and managed by CCKM. 2. The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.
- The housing meets IEC 60945 standards for maritime control room use and has passed environmental tests
- Support dual display with 32:9 ultra-wide resolution (combined) or two individual displays
- Supports DisplayPort video resolutions – up to 5120 x 1440 @ 60 Hz (4:4:4), 5120 x 2880 @ 30 Hz (4:4:4), 4096 x 2160 @ 60 Hz (4:4:4), 1920 x 1080 @ 240 Hz (4:4:4) (CVT-RB), 2560 x 1440 @ 144 Hz (4:4:4) per display
- DisplayPort 1.2 compliant
- Stereo speakers and microphone support
- High-speed USB Storage Transmission support
- Auto-MDIX – automatically detects cable type
- Built-in 8 kV / 15 kV ESD protection and 2 kV surge protection
- Supports power redundancy – KX9980 has 2 DC jacks for power redundancy
- Supports network failover – 1 RJ-45 & 2 SFP+ slots for network failover to ensure constant availability for missioncritical applications
- Supports 10-Gbps SFP+ fiber module expansions for up to 10 km*
- Rack Mountable – Mounting options: – 2X-021G Dual Rack Mount Kit – 2X-031G Single Rack Mount Kit
- Includes an industrial-grade power adapter – supports operating temperature of 0 °C – 50 °C to ensure durability and adaptability under harsh environmental conditions Note: *The SFP+ module (2A-141G / 2A-142G) is sold separately. Contact your ATEN dealer for product information.
- Integration with KVM over IP Matrix Manager (CCKM) – a software enabling easy configurations of all KX devices with an intuitive web-based GUI
- Dual console operation – controls user's system from both the transmitter’s and receiver’s keyboard, monitor, and mouse
- OSD (On Screen Display) – enables configuration of both Tx / Rx devices on the receiver’s display screen
- EDID Expert ™ – selects optimum EDID settings to prevent video compatibility issue caused by different monitors
- On-screen Preview (Panel Array ™Mode) – allows users to view the video of up to 36 displays on one screen
- Video Compression Level – allows users to increase / decrease the video quality to adjust for appropriate network bandwidth
- Command Line Interface – administrators can control all KX devices via RS-232 or Telnet by issuing commands or 3rdparty application
- Supports hotkey commands
- RS-232 serial ports – allows users to connect to a serial terminal for TextMenu, CLI, or to serial devices such as touch screens and barcode scanners
- All KX Tx models are compatible to be used with all Rx models
- Dedicated LAN port for KX direct connections – can be isolated from the corporate network
- Secured data transmission – 256-bit AES encryption for all data being transmitted from the transmitter to the receiver
- Supports industry standard Transport Layer Security (TLS) protocol
- Virtual Media mode enhances data transmission performance, and is ideal for file transfers, OS patching, software installations and diagnostic testing
- Supports USB 2.0 DVD / CD drives, USB mass storage devices, PC hard drives and ISO images
- Supports smart card / CAC reader

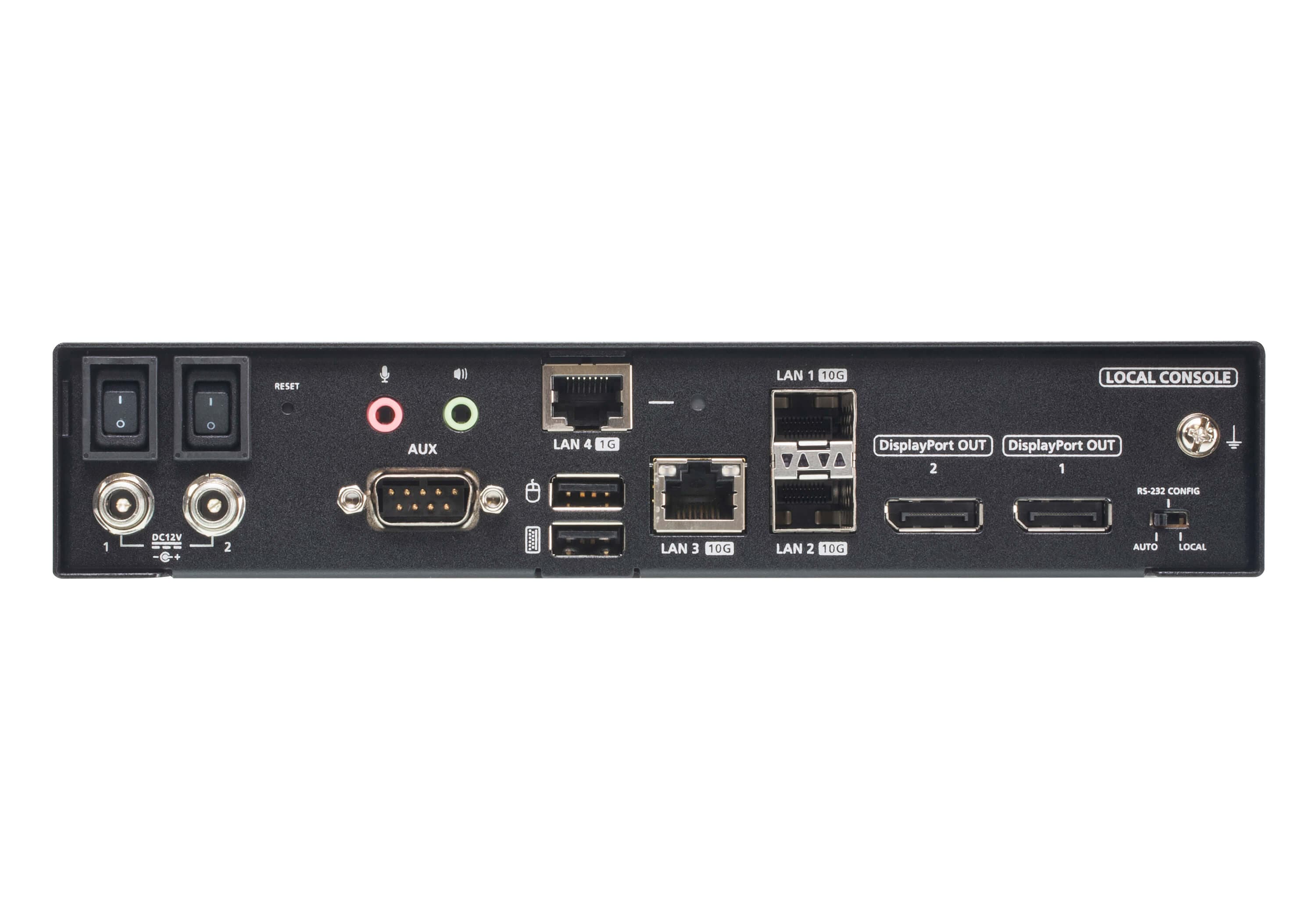

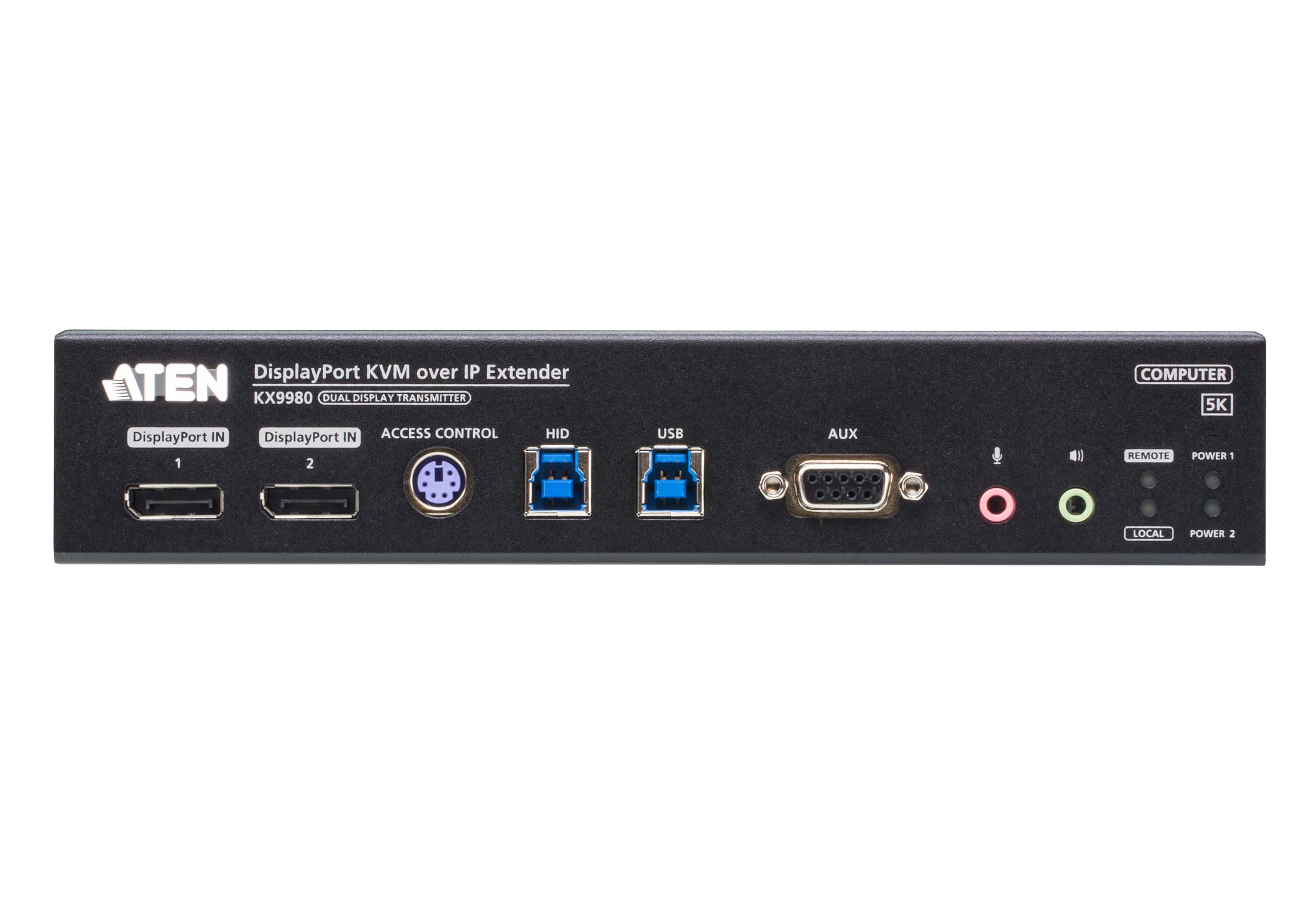

Конектори
- Конзолни портове
- 2 x USB Type A Female (White) 2 x DisplayPort Female (Black) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black)
- KVM портове
- 2 x USB 3.2 Gen1 Type B Female (Blue) 2 x DisplayPort Female (Black) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Female (Black)
- Захранване
- 2 x DC Jack (Black)
- LAN портове
- 1 x RJ-45 (Black) 2 x SFP+ Slot
- Управление
- 1 x PS/2 Female (Purple)
Бутони и превключватели
- Нулиране
- 1 x Semi-recessed Pushbutton
- Захранване
- 2 x Power Switch
Индикатори
- 1000/10000 Mbps
- 1 (1000: Orange / 10000: Green )
- Захранване
- 2 (Green)
- Локално
- 1 (Green)
- Отдалечено
- 1 (Green)
Емулация
- Клавиатура / мишка
- USB
- Консумация
- DC12V:36.6W:215BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Видео резолюция
- Up to 2*5120 x 2880 @ 30Hz, 2*5120 x 1440 @ 60Hz, 2*4096 x 2160 @ 60Hz, 2*2560 x 1440 @ 144hz, 2*1920 x 1080 @ 240Hz
- Закъснение
- < 1ms
Работна среда
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–95% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.43 kg ( 3.15 lb )
- Размери (Д x Ш x В)
- 21.50 x 16.30 x 4.20 cm (8.46 x 6.42 x 1.65 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
