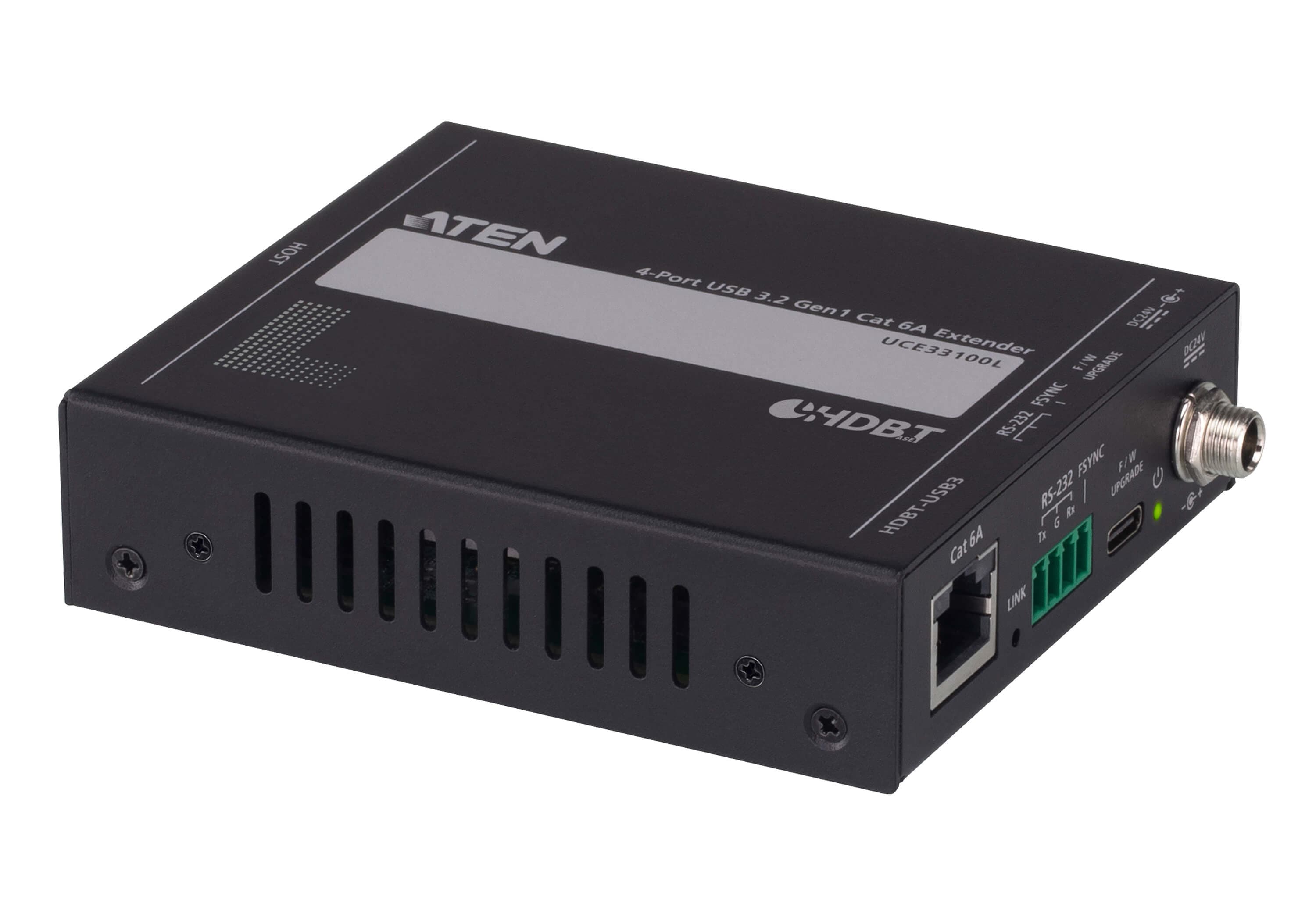

4-Port USB 3.2 Gen 1 Cat 6A Extender (up to 100 m)
UCE33100
Двумодулен удължител, който пренася USB 3.2 Gen 1 сигнал до 5 Gbps на 100 m по Cat 6A кабел. Отдалеченият модул има 4 USB Type-A порта за флаш памети, клавиатури и мишки.
Характеристики

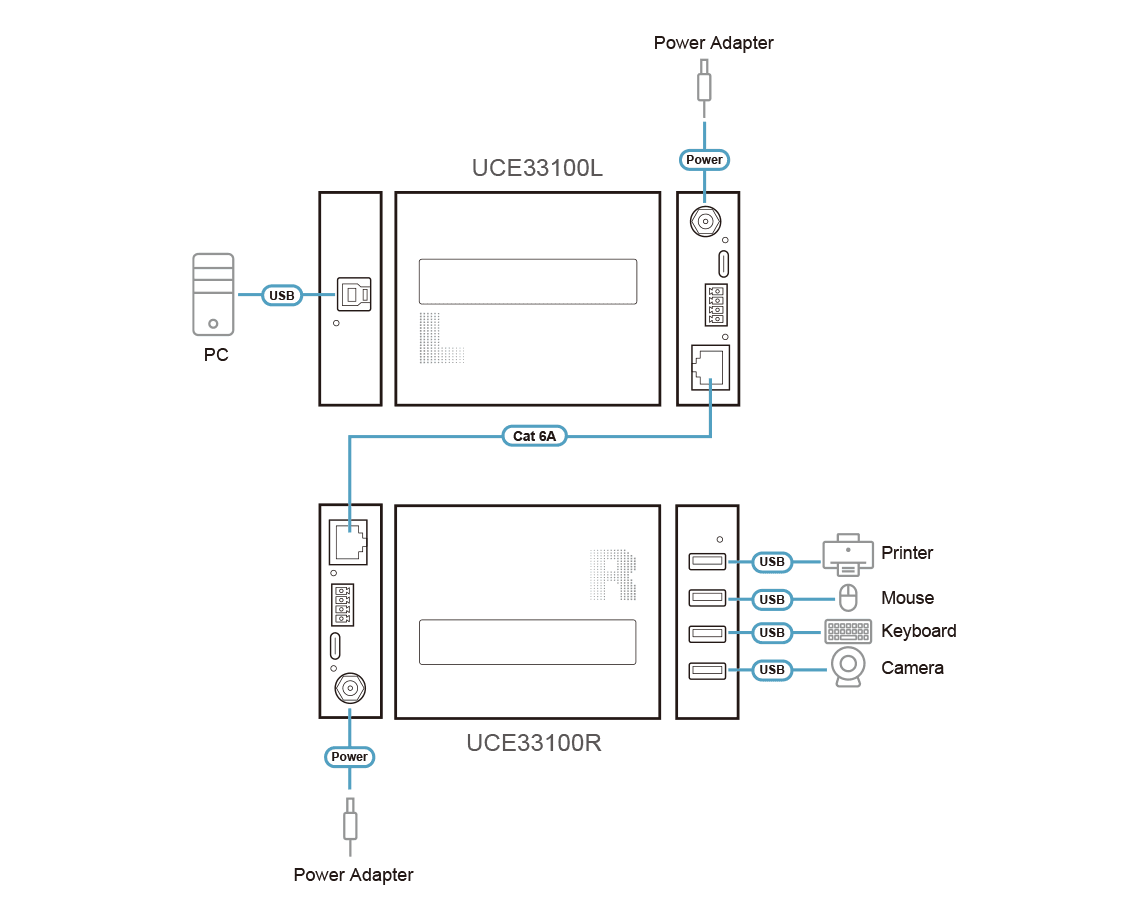

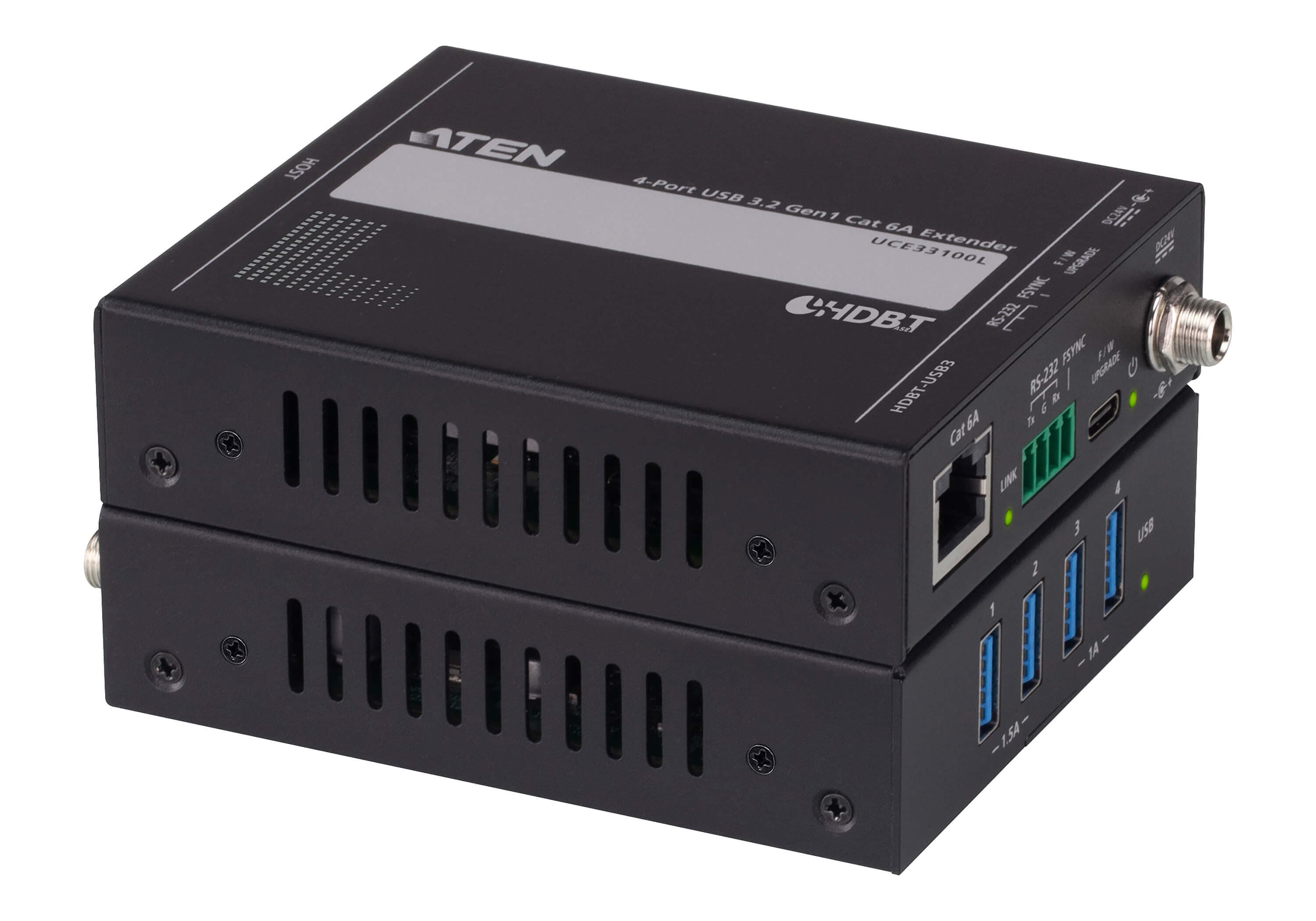

- A two-piece extension kit that transmits USB signals over a Cat 6A cable
- Long distance USB 3.2 data transmission at up to 5Gbps across 100m
- Backward compatible with USB 2.0 / 1.1 specifications
- 4x USB Type-A ports built on the remote unit for connection to multiple USB peripherals (flash drives, keyboards, mice, webcams, interactive whiteboards, and any other USB-based devices)
- Supports bi-directional RS-232 pass-through for integration into control systems
- Supports bi-directional Frame Synchronization (FSYNC) GPIO pass-through for industrial camera applications
- Bi-directional 24V power over cable eliminates the need for an additional power adapter when either of the local or remote unit receives power
- Plug-and-play with no driver / software required to work with all operating systems

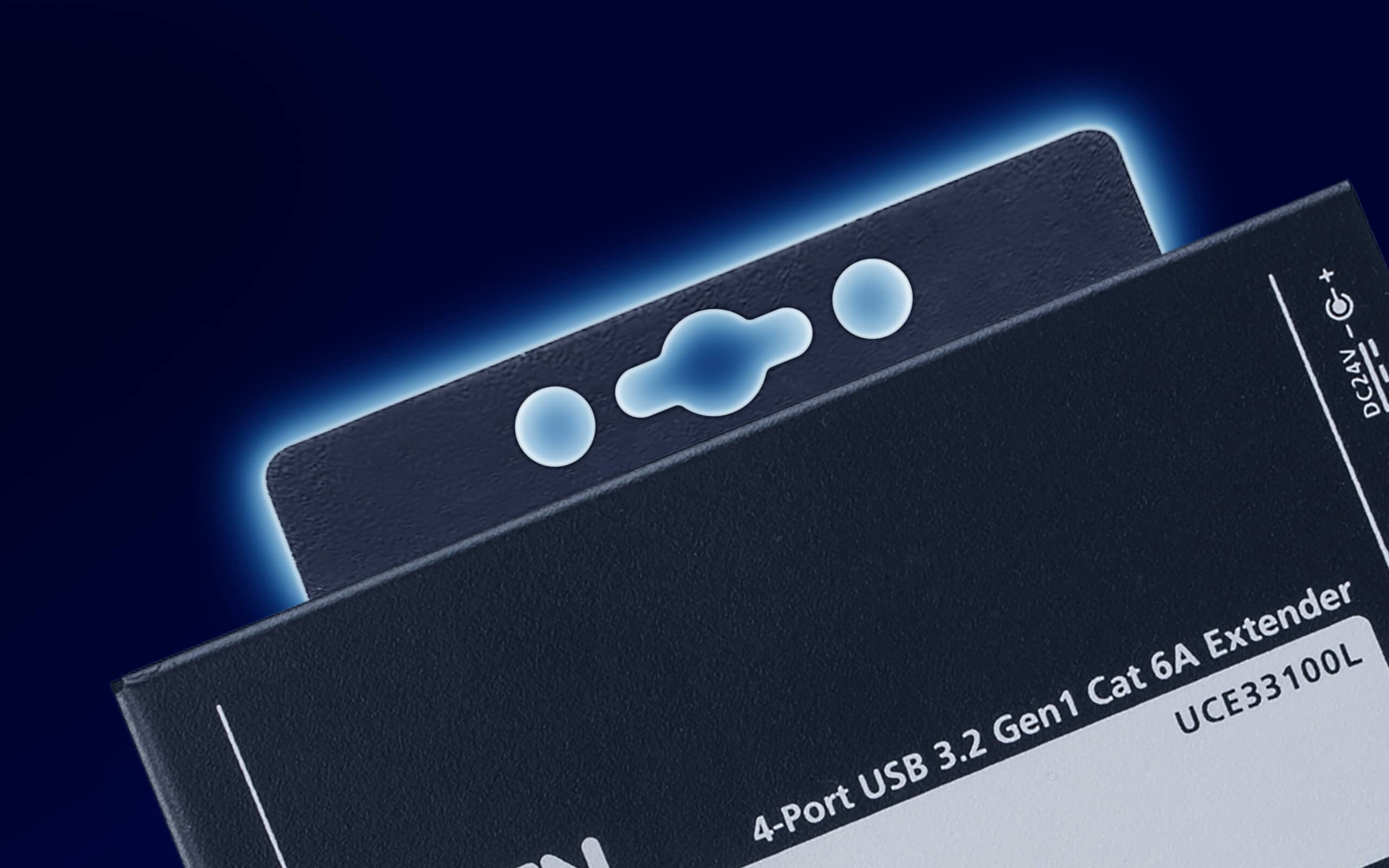

- Compact, wall-mountable enclosure elevates installation flexibility and helps save space
Локално устройство
- Upstream порт
- 1 x USB Type B Female
- Downstream порт
- 1 x RJ45 Female, HDBT-USB3 1 x USB Type C Female (Firmware Upgrade) 1 x 3-pin Terminal Plug (RS-232) 1 x 1-pin Terminal Plug (FSYNC) Note: The USB-C port is for firmware upgrade only. Please do not connect any other devices during regular use.
- Захранване
- 1 x DC Jack

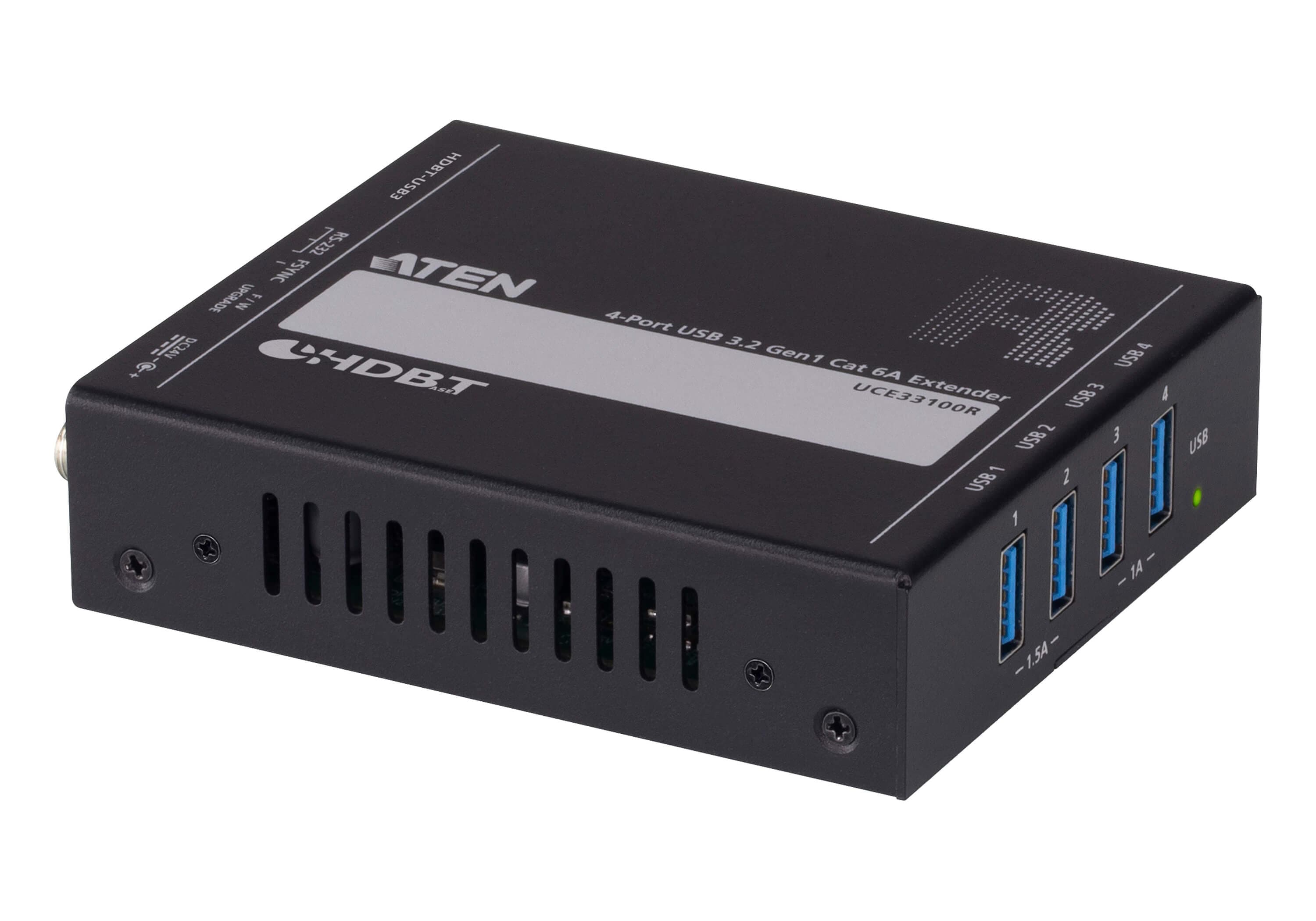

Отдалечено устройство
- Upstream порт
- 1 x RJ45 Female, HDBT-USB3
- Downstream порт
- 4 x USB Type A Female 1 x USB Type C Female (Firmware Upgrade) 1 x 3-pin Terminal Plug (RS-232) 1 x 1-pin Terminal Plug (FSYNC) Note: The USB-C port is for firmware upgrade only. Please do not connect any other devices during regular use.
- Захранване
- 1 x DC Jack
- USB спецификация
- USB3.2 Gen1
- Тип кабел
- Cat 6A Ethernet Cable Note: We recommend using cables of HDBaseT 3.0 Certified Cat 6A U/FTP cable for a better transmission.
- Обхват на сигнала
- 100m
Индикатори
- Състояние
- 3 x LED
- Консумация
- DC24V:1.92WBTU/h DC24V:2.64WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0°C to 40°C
- Температура на съхранение
- -20°C to 60°C
- Влажност
- 20–90% RH, Non-condensing
Физически характеристики
- Тегло
- 0.26 kg ( 0.57 lb )
- Корпус
- Metal Enclosure
- Размери (Д x Ш x В)
- 10.75 x 8.50 x 2.55 cm (4.23 x 3.35 x 1 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
