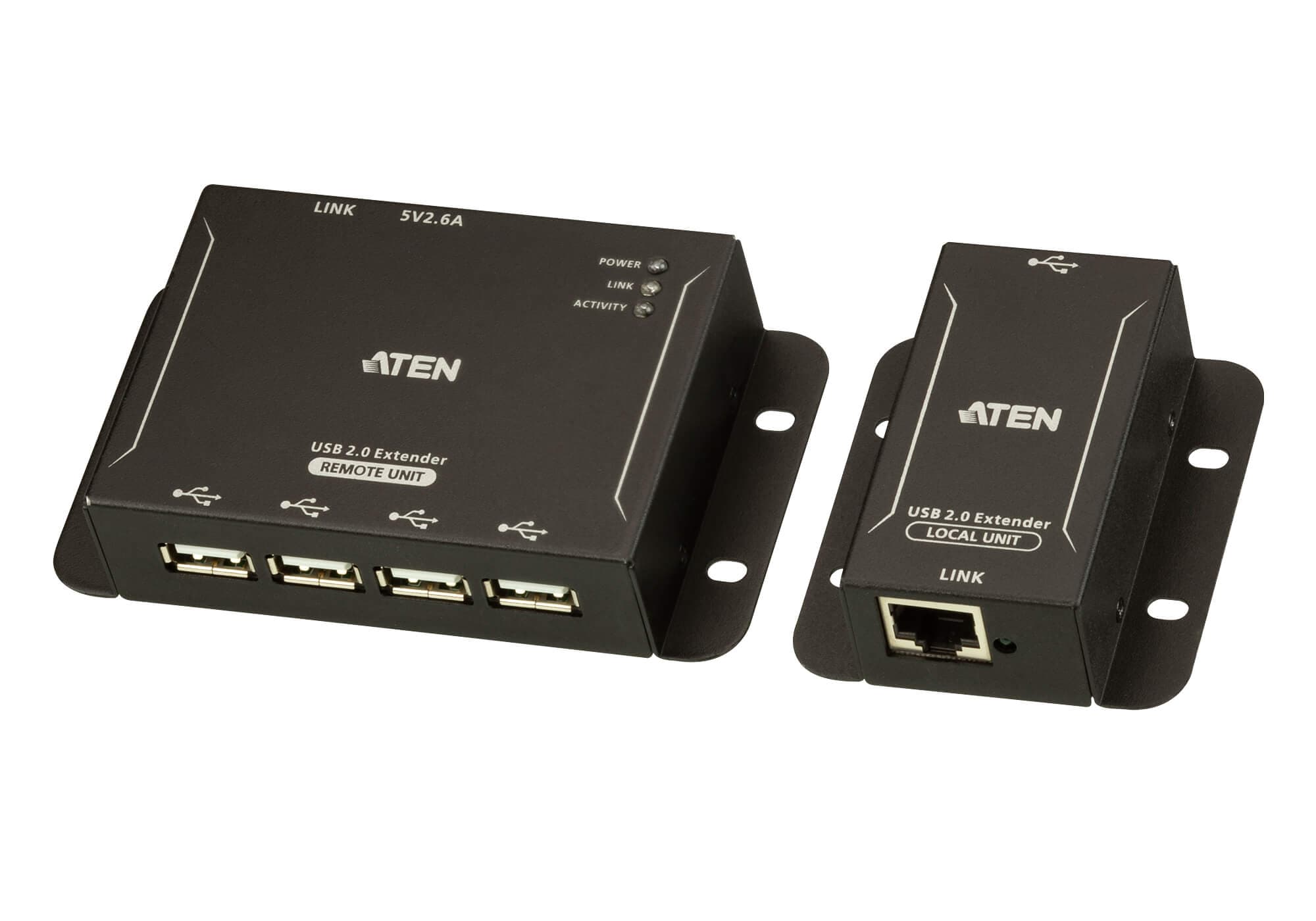

4-Port USB 2.0 Cat 5 Extender (up to 50 m)
UCE3250

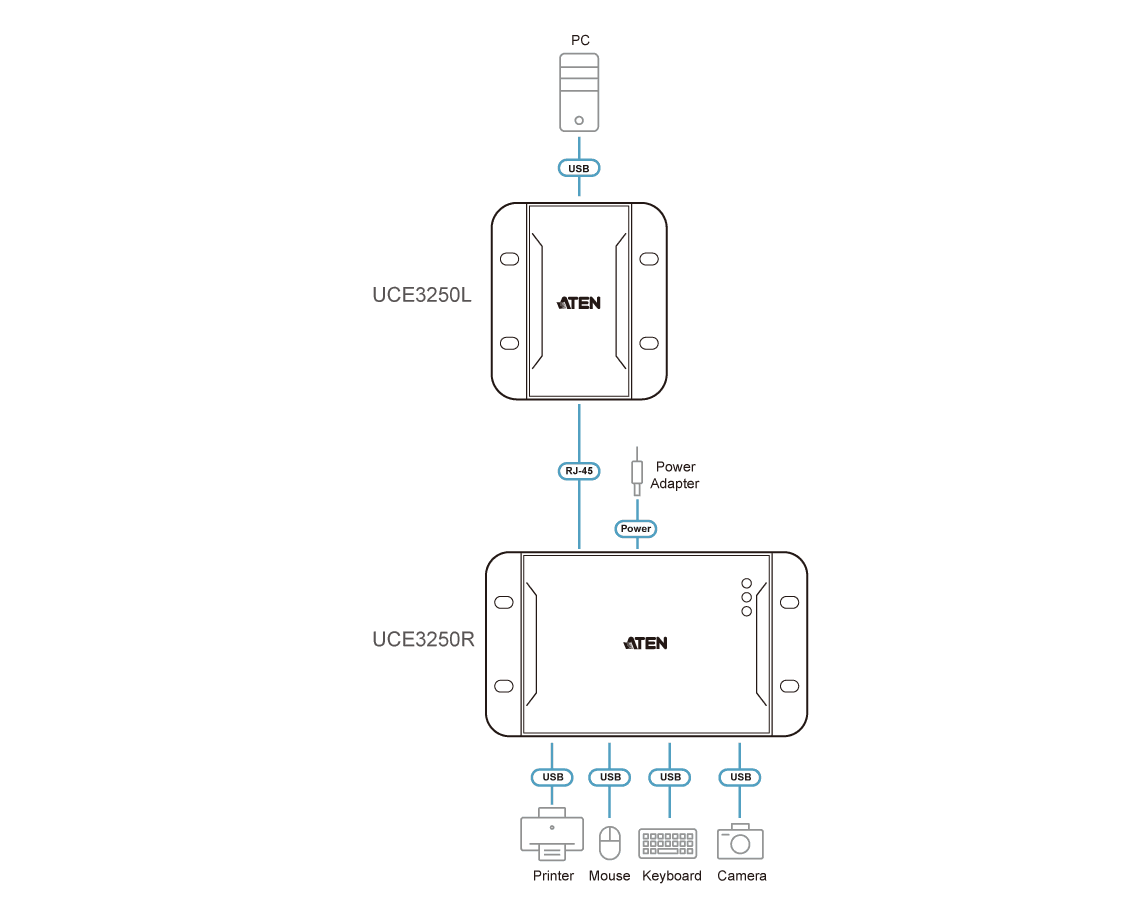

Удължава до 4 USB 2.0 устройства — уебкамери, скенери, принтери — на разстояние до 50 m по Ethernet кабел при 480 Mbps. Металният корпус с монтаж на стена е подходящ за индустриални инсталации.
Характеристики
- High-Speed USB 2.0 compliant with a data transfer rate of up to 480 Mbps
- Extension distance of up to 50m over an Ethernet cable
- Receives up to 4 USB peripherals of all types – flash drives, keyboards, mice, webcams, scanners, printers and more
- Metal mechanical with wall mount design supports industrial deployment
- Supports Windows®, OS X®, and Linux®
- Plug- and- play
Конектори
- USB порт

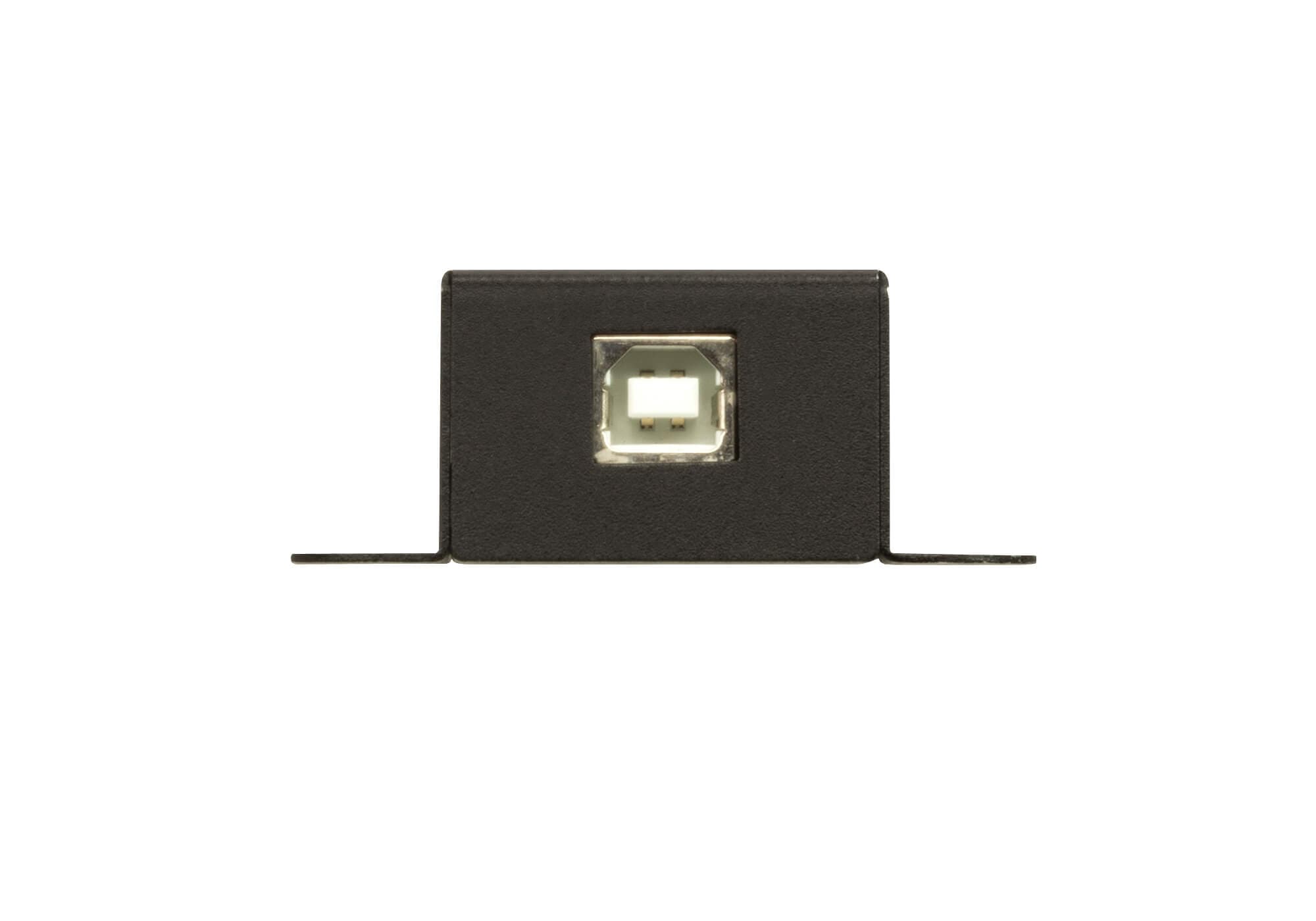

- 1 x USB Type B Female
- USB порт

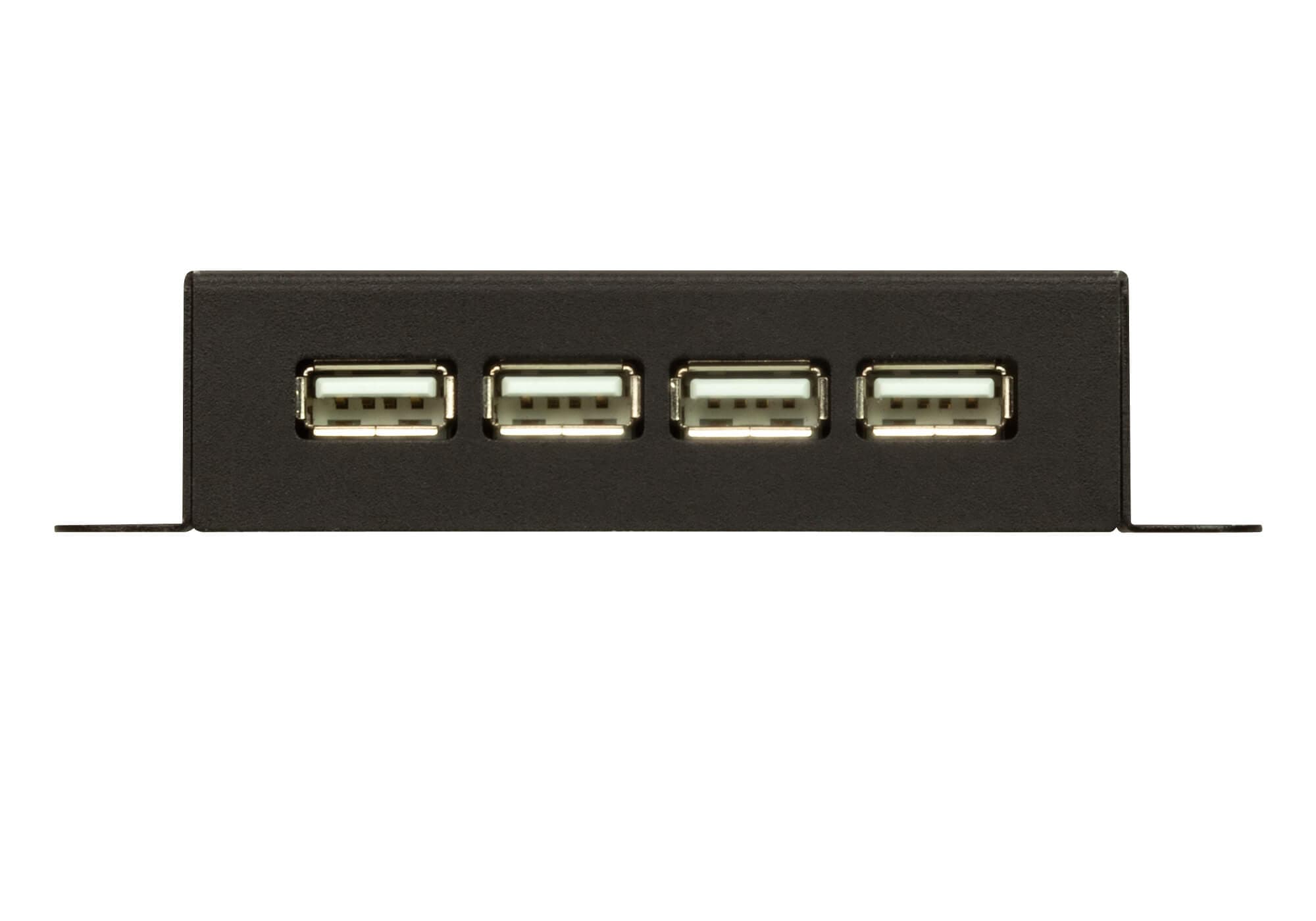

- 4 x USB Type A Female
- Връзка
- 1 x RJ45 Female
- Връзка
- 1 x RJ45 Female
- Захранване
- N/A
- Захранване

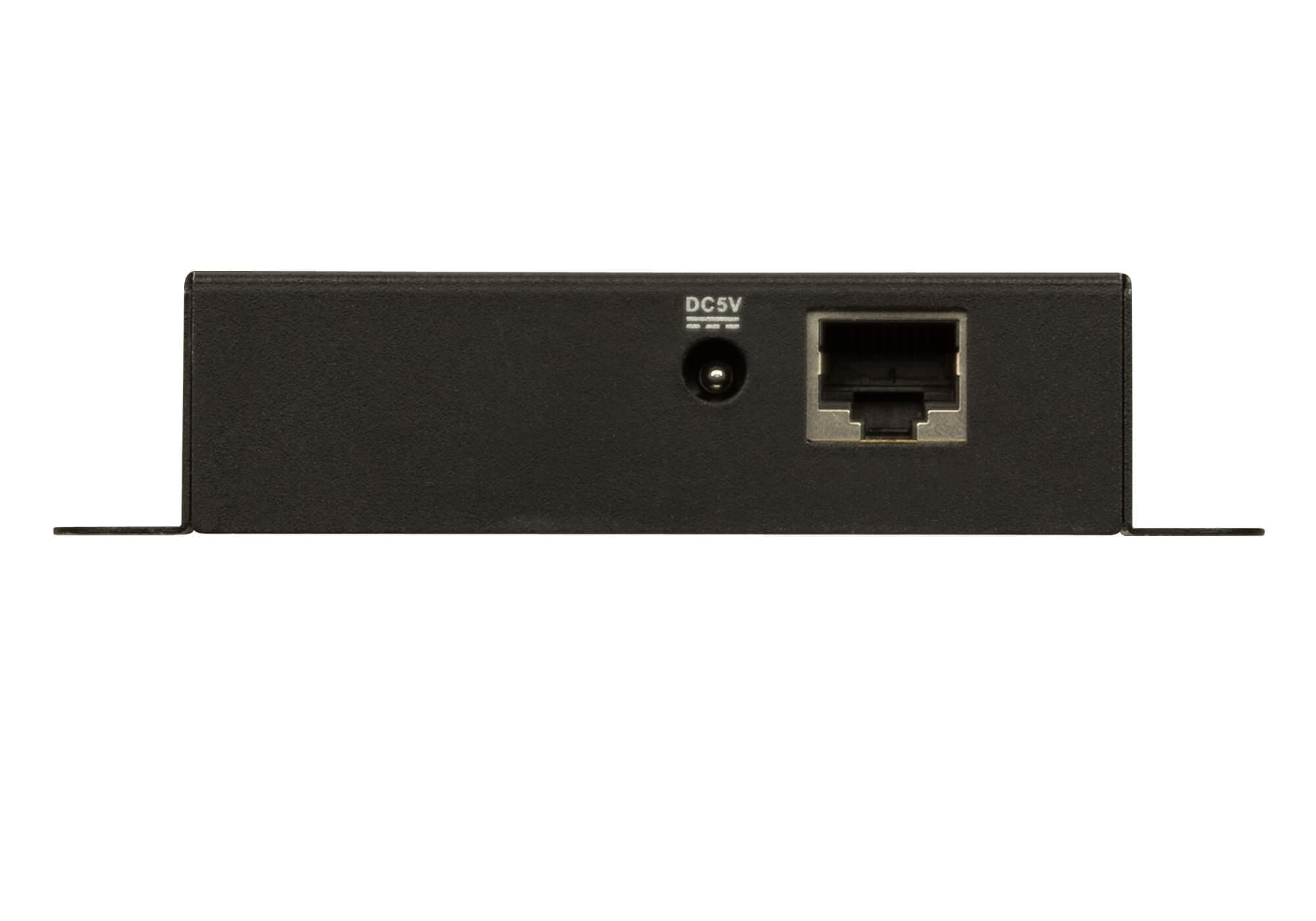

- 1 x DC Jack
- USB спецификация
- 2.0 / 1.1 High / Full / Low Speed
- USB спецификация
- 2.0 / 1.1 High / Full / Low Speed
- Поддържани USB устройства
- N/A
- Поддържани USB устройства
- 4 Devices
- Консумация
- BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V:13W:48BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–50°C
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–70°C
- Температура на съхранение
- -20–70°C
- Влажност
- 0–80% RH, Non-condensing
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Тегло
- 0.09 kg ( 0.2 lb )
- Тегло
- 0.16 kg ( 0.35 lb )
- Корпус
- Metal
- Корпус
- Metal
- Размери (Д x Ш x В)
- 6.70 x 6.02 x 2.37 cm (2.64 x 2.37 x 0.93 in.)
- Размери (Д x Ш x В)
- 6.33 x 11.04 x 2.41 cm (2.49 x 4.35 x 0.95 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
