DVI/Audio Extender (1920 x 1200@40m)

Name: DVI/Audio Extender (1920 x 1200@40m)
Brand: ATEN
SKU: VE600A

VE600A

Request a quote Datasheet PDF Quick start guide CAD drawing

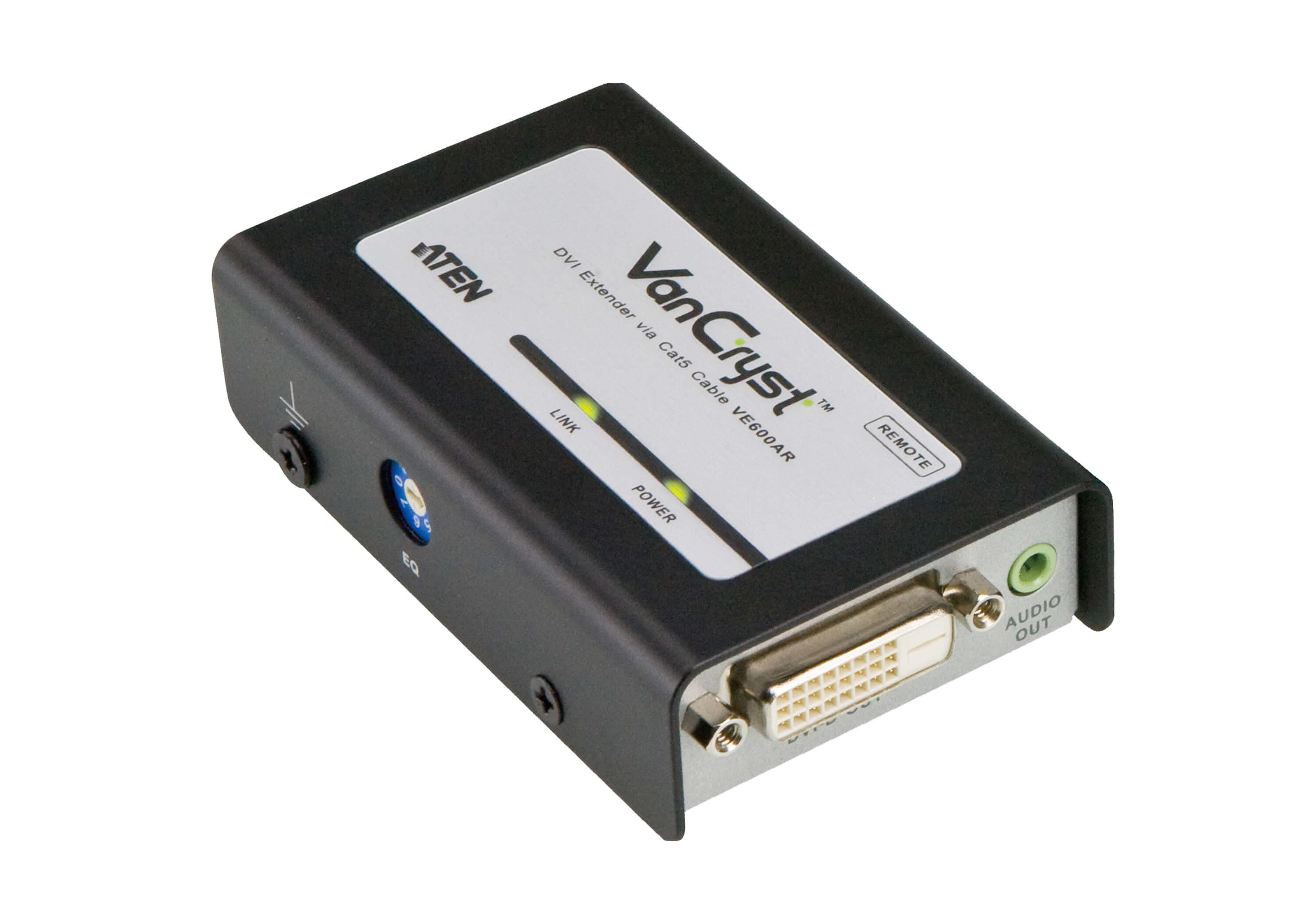

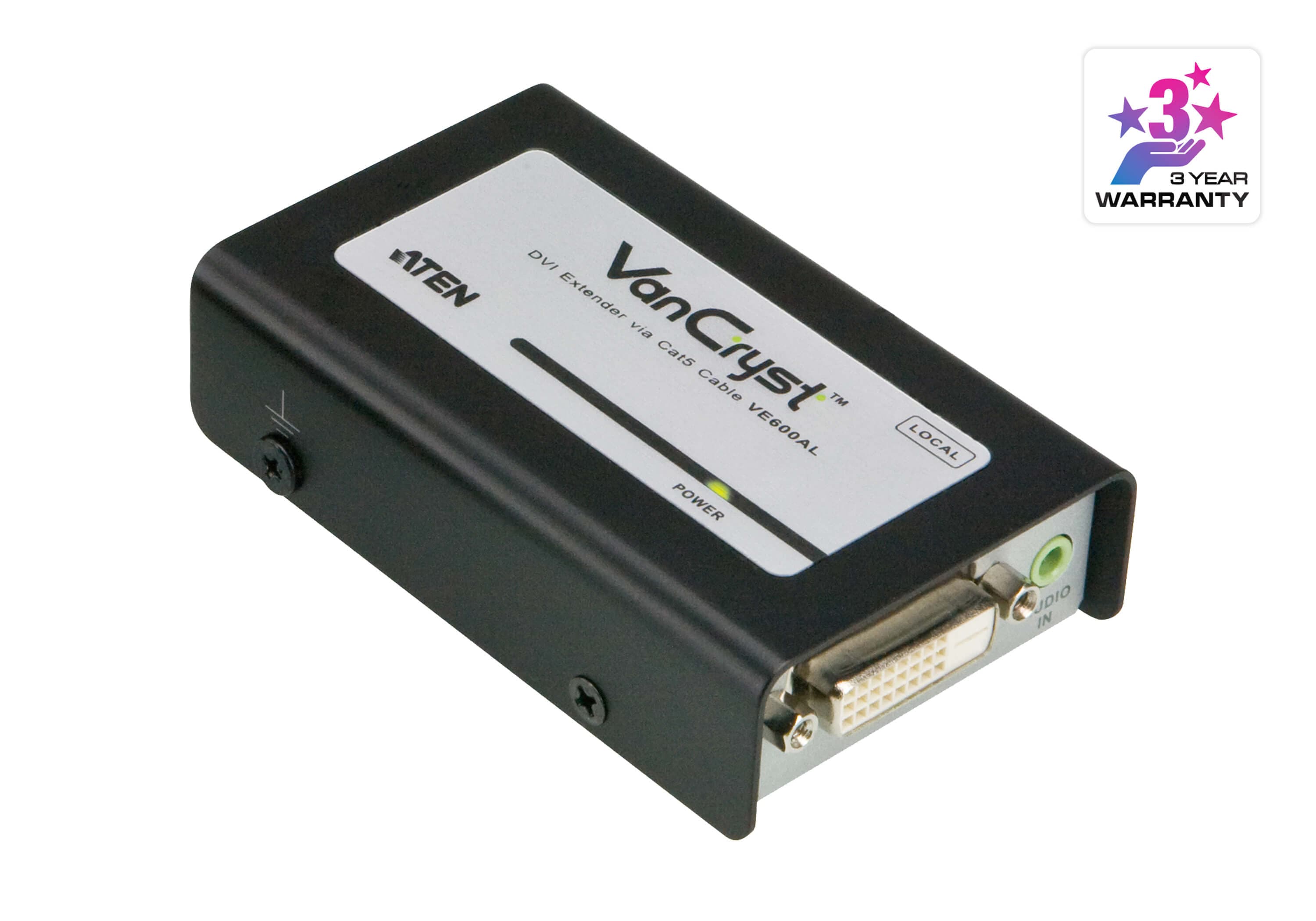

The VE600A DVI Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides

Features

Extends the distance between DVI source and DVI display device
Long distance transmission – up to 60 m

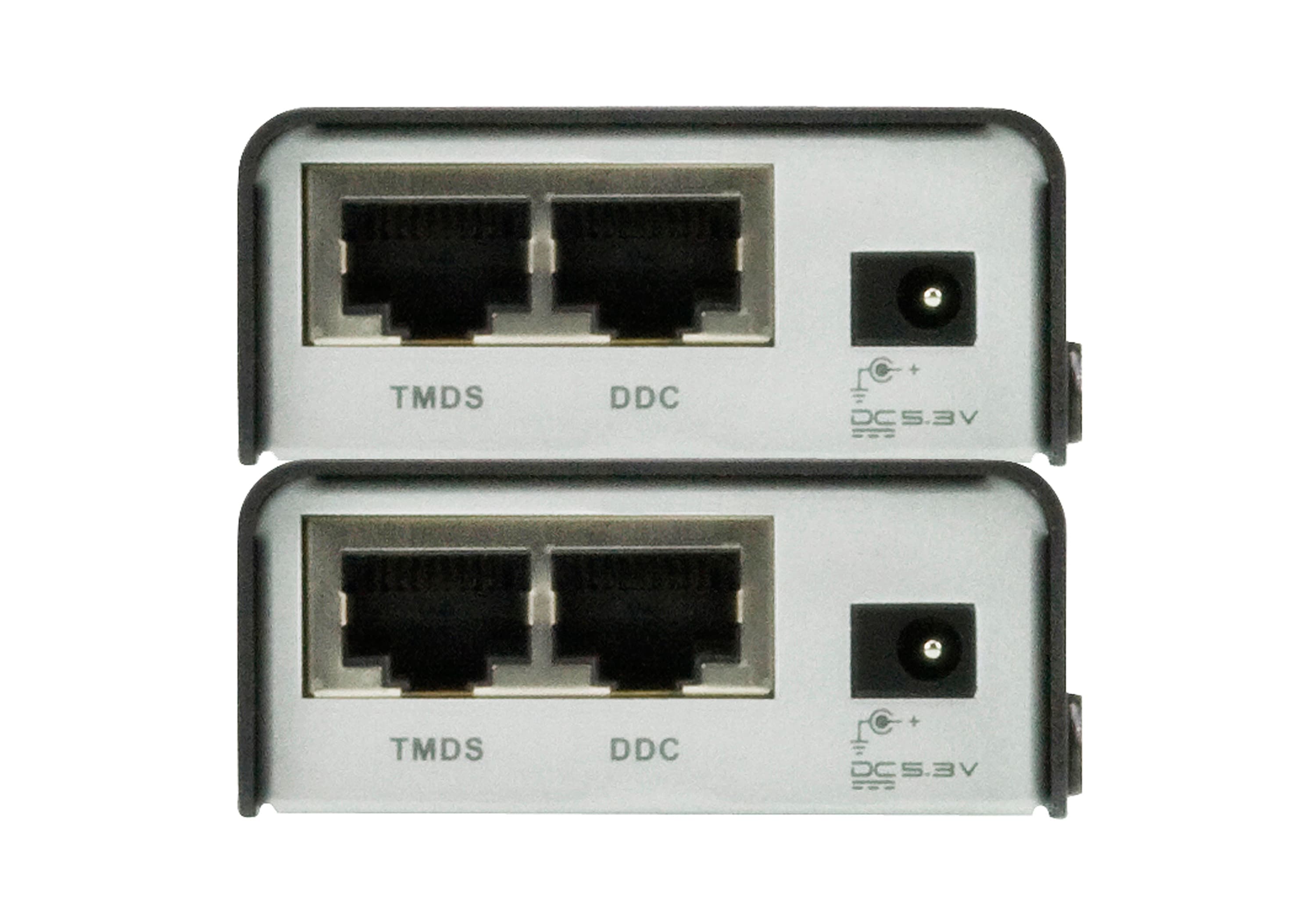

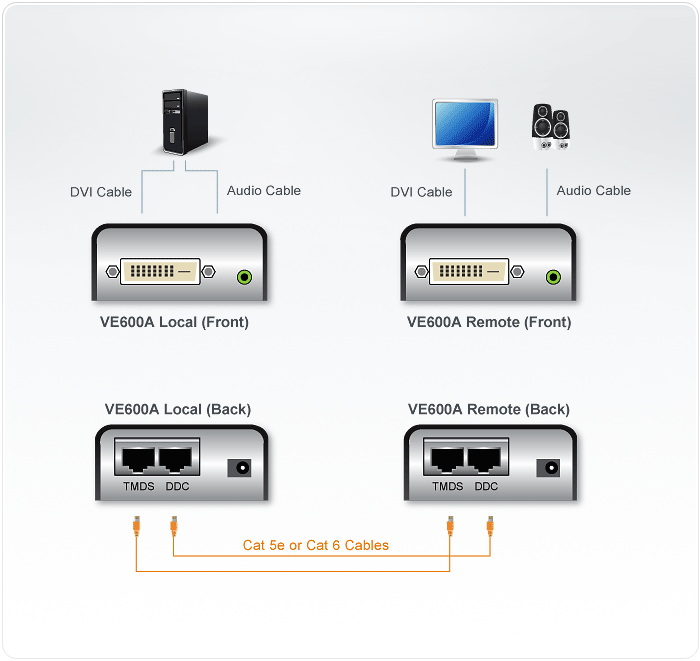

Uses Cat 5e cable to connect the local and remote units
Superior video quality – up to 1920x1200 (40 m); 1080p (40 m) ; 1080i (60 m)
Audio enabled
Adjustable EQ compensation control
Supports widescreen formats
Rack mountable
HDCP Compatible

Video Input

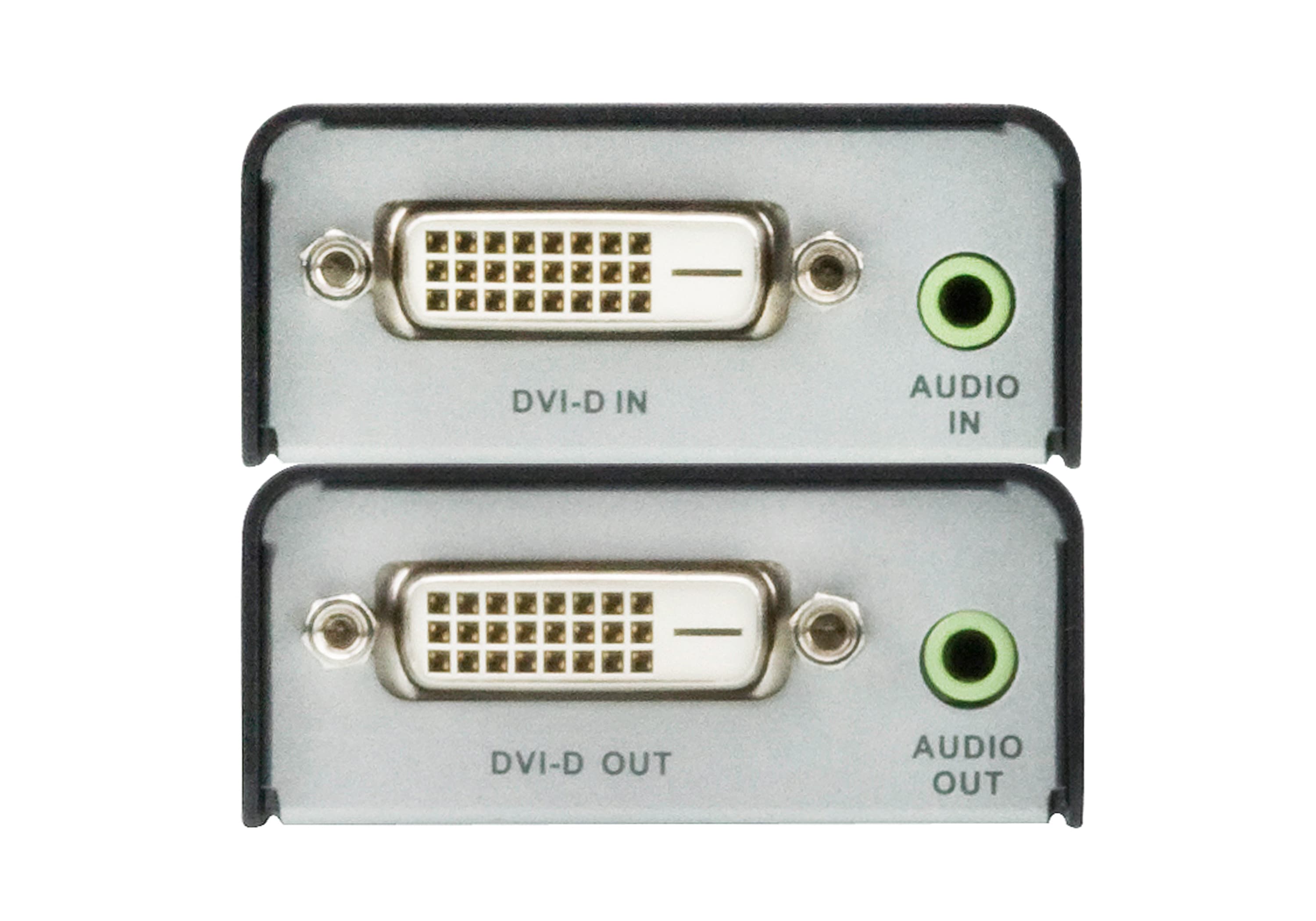

Interfaces: 1 x DVI-D Female (White)
Interfaces: N/A
Impedance: 100 Ω
Impedance: N/A
Max. Distance: 1.8 m
Max. Distance: N/A

Video Output

Interfaces: N/A
Interfaces: 1 x DVI-D Female (White)
Impedance: N/A
Impedance: 100 Ω

Video

Max. Data Rate: 6.75 Gbps (2.25 Gbps Per Lane)
Max. Data Rate: 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock: 225 MHz
Max. Pixel Clock: 225 MHz
Compliance: HDCP Compatible
Compliance: HDCP Compatible
Max. Resolutions / Distance: Up to 1080p@40m; 1080i@60m
Max. Resolutions / Distance: Up to 1080p@40m; 1080i@60m

Audio

Input: 1 x Mini Stereo Jack Female (Green)
Input: N/A
Output: N/A
Output: 1 x Mini Stereo Jack Female (Green)

Connectors

Power: 1 x DC Jack
Power: 1 x DC Jack
Power Consumption: DC5.3V:1.56W:7BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Power Consumption: DC5.3V:0.76W:4BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0 - 50°C
Operating Temperature: 0 - 50°C
Storage Temperature: -20 - 60°C
Storage Temperature: -20 - 60°C
Humidity: 0 - 80% RH, Non-Condensing
Humidity: 0 - 80% RH, Non-Condensing

Physical Properties

Housing: Metal
Housing: Metal
Weight: 0.17 kg ( 0.37 lb )
Weight: 0.17 kg ( 0.37 lb )
Dimensions (L x W x H): 9.13 x 5.60 x 2.40 cm (3.59 x 2.2 x 0.94 in.)
Dimensions (L x W x H): 9.13 x 5.60 x 2.40 cm (3.59 x 2.2 x 0.94 in.)
Carton Lot: 20 pcs
Carton Lot: 20 pcs
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
