DVI Dual Link/Audio Cat 5 Extender (2560 x 1600@40m)

Name: DVI Dual Link/Audio Cat 5 Extender (2560 x 1600@40m)
Brand: ATEN
SKU: VE602

VE602

Удължител за DVI Dual Link и аудио по Cat 5e — изнася дисплея до 60 m от източника; при 2560 x 1600 — до 40 m.

Характеристики

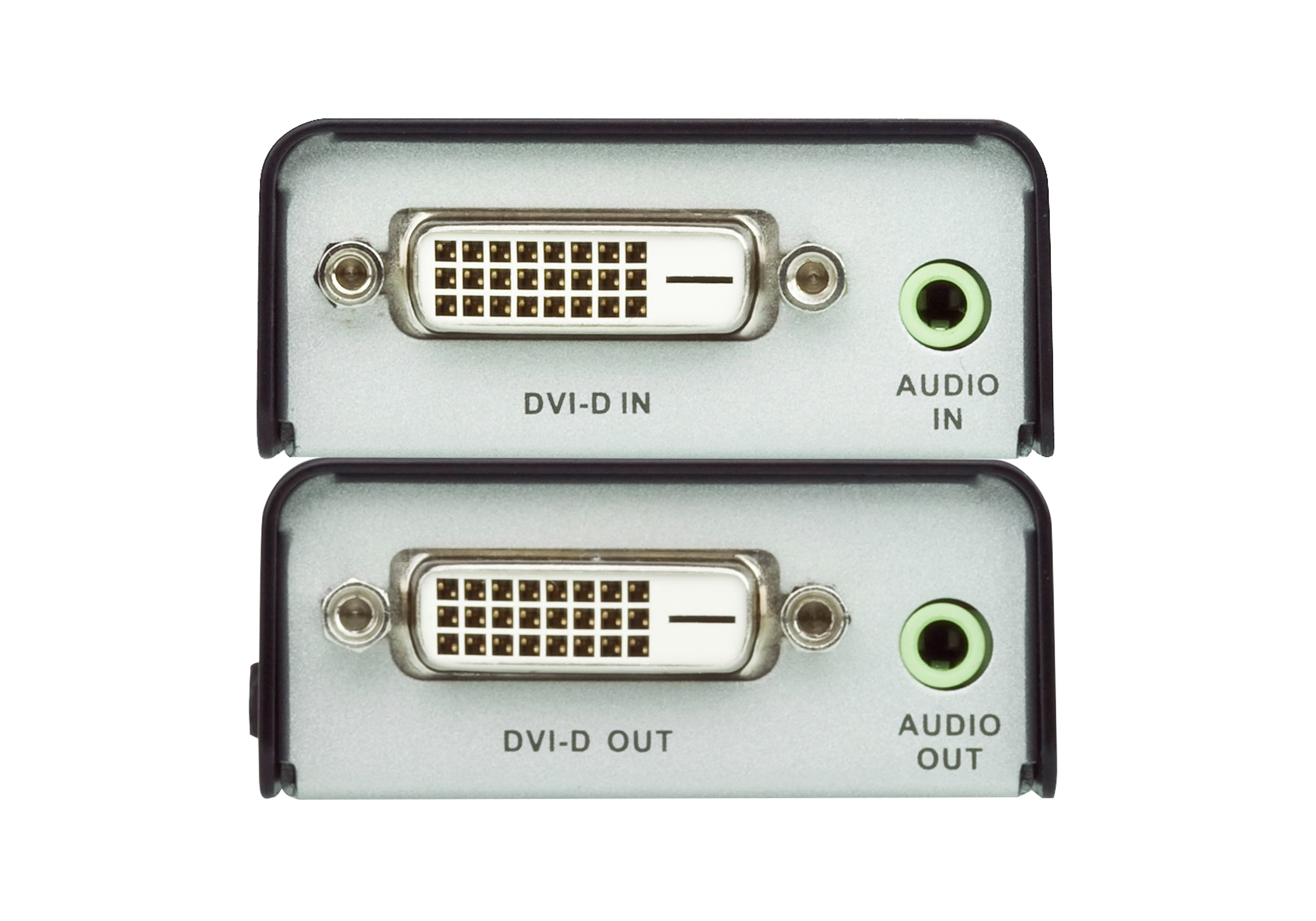

Extends the distance between the DVI source and DVI display device
Long distance transmission – up to 60 m

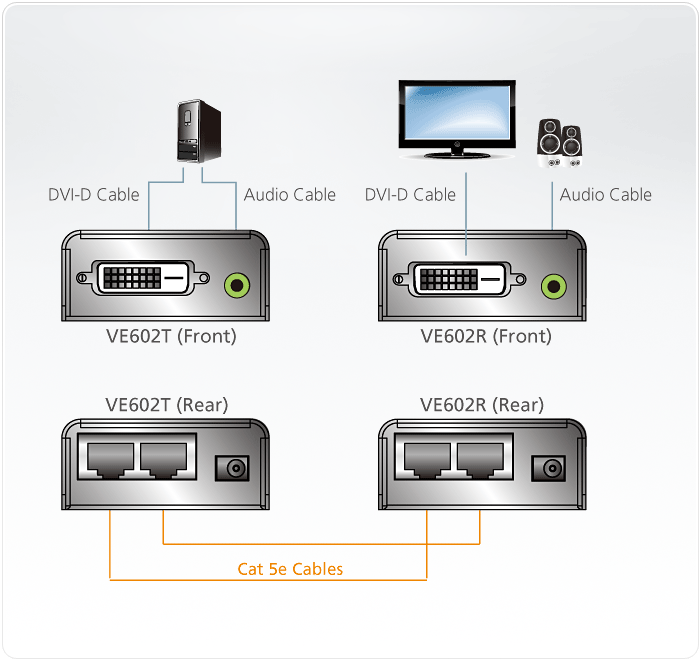

Uses Cat 5e cable to connect the local and remote units
Employs ATEN EDID technology that allows signal transmission over one Cat 5e cable

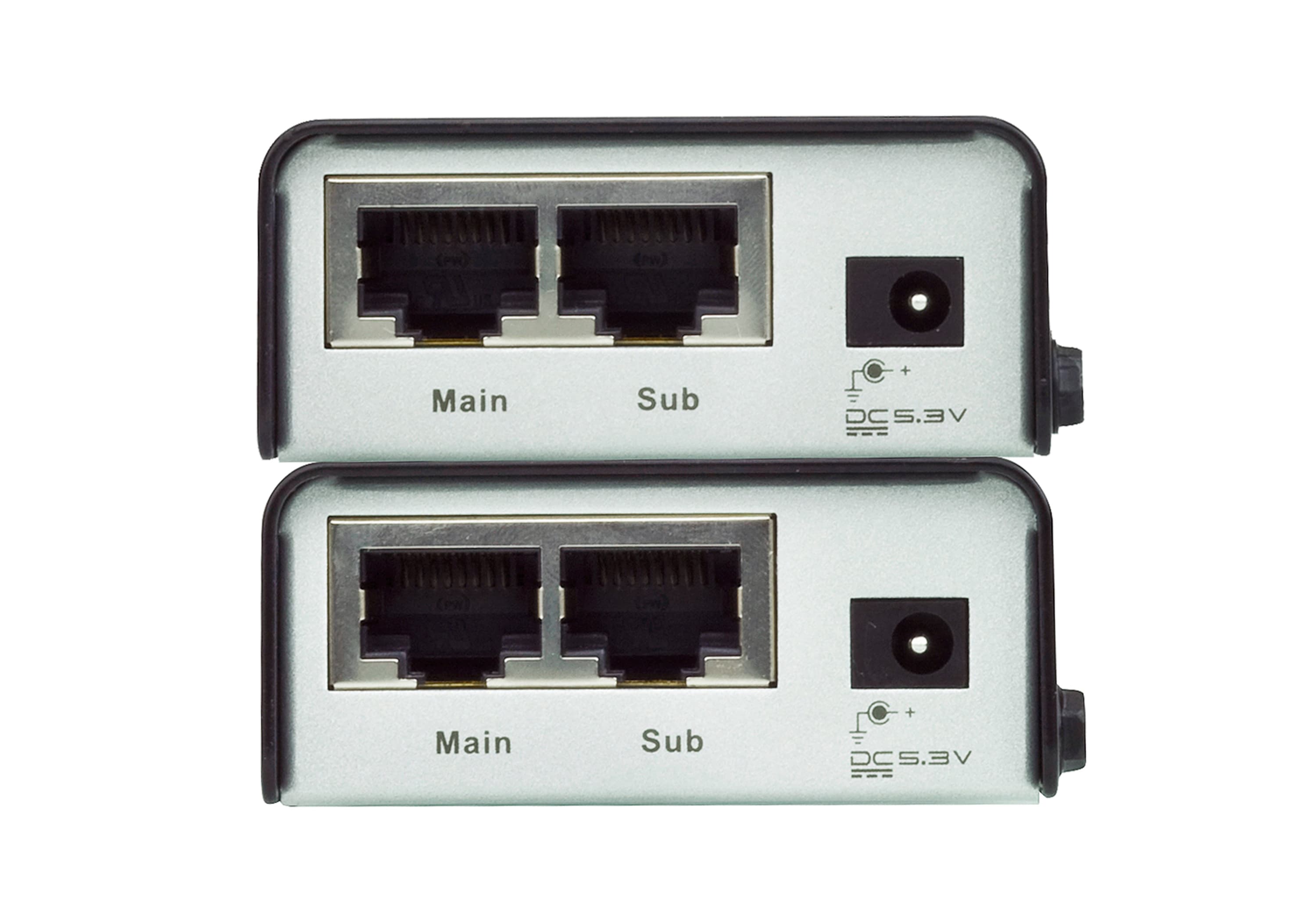

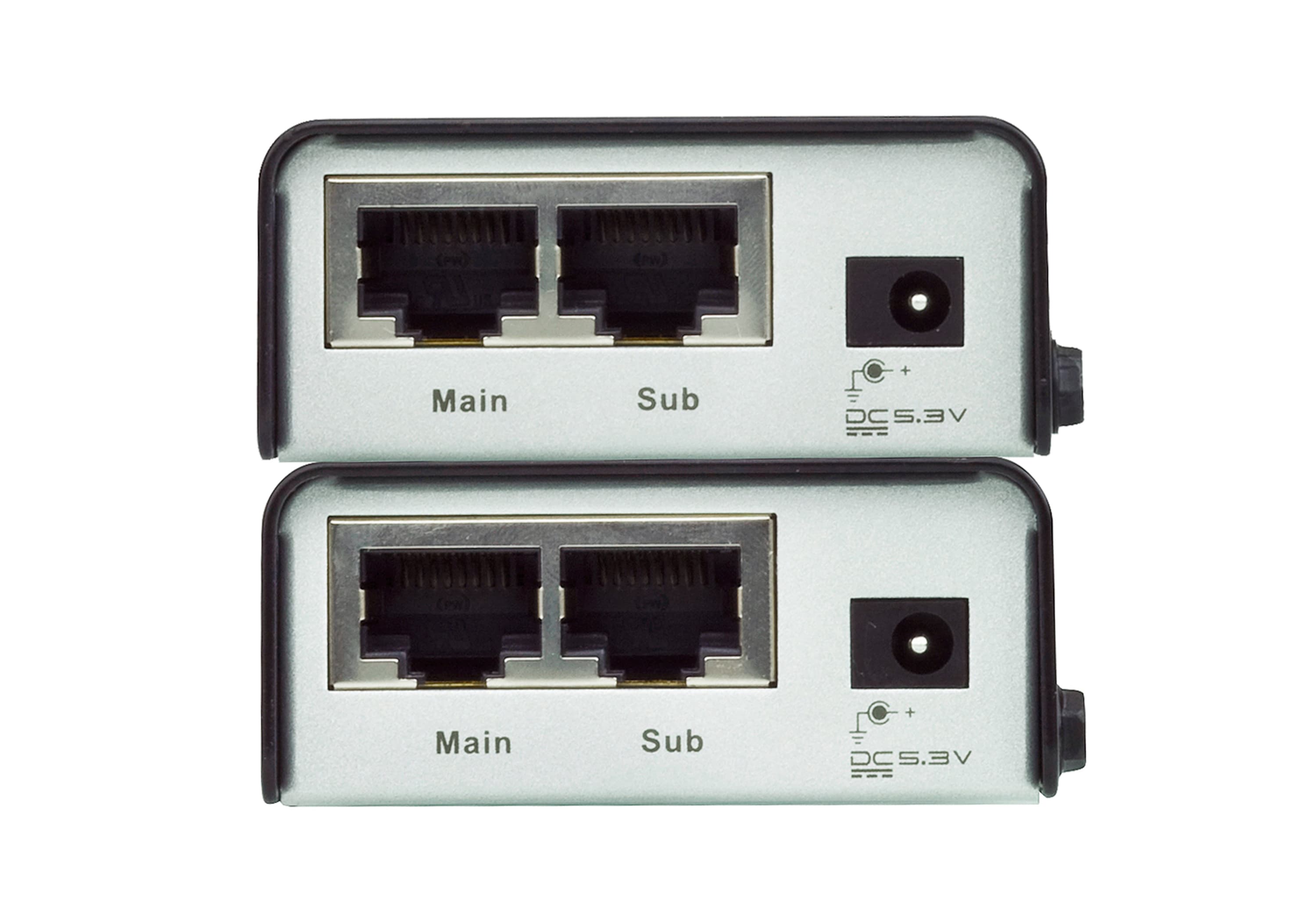

Uses a second (Sub) Cat 5e cable for dual link signals*

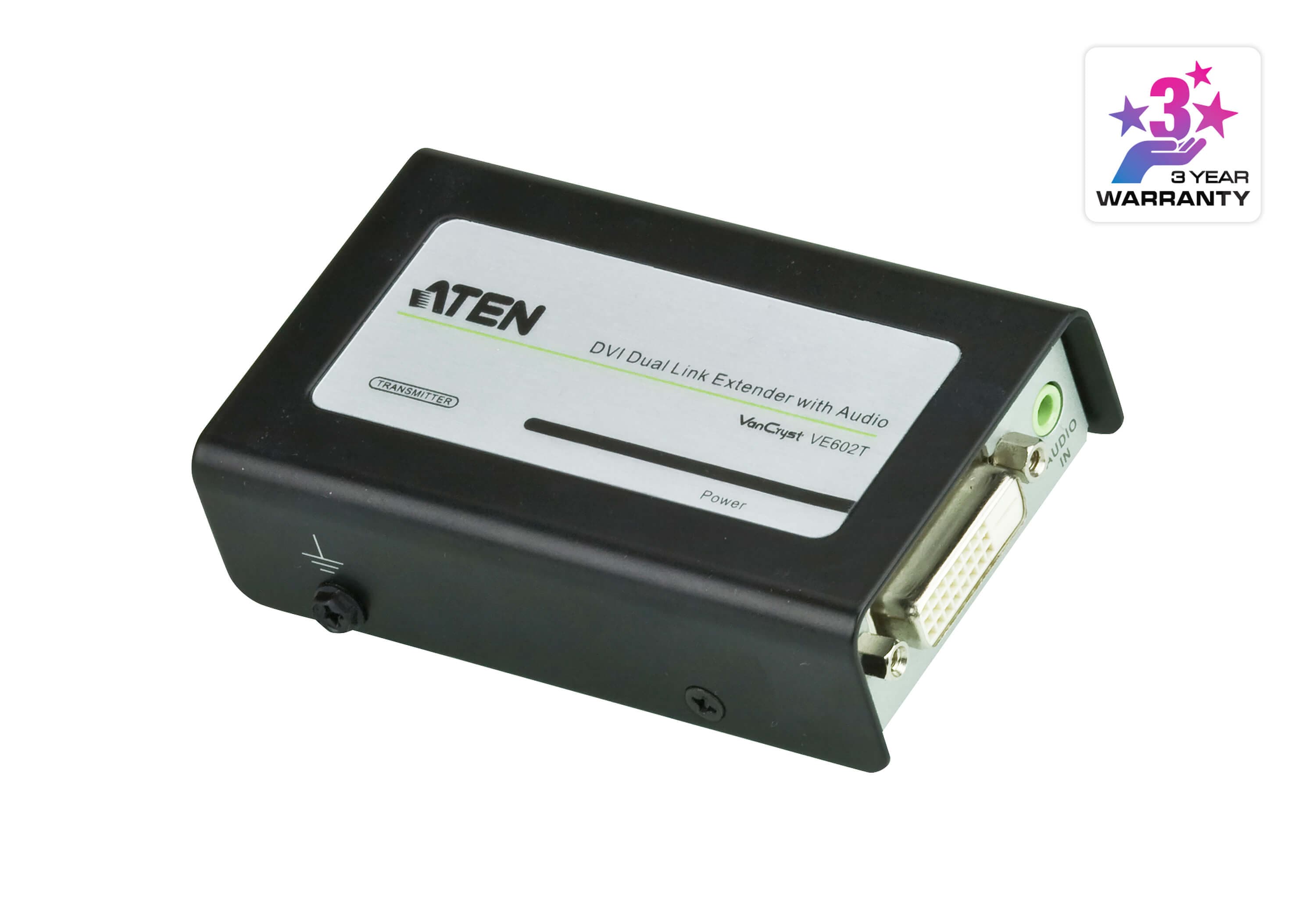

Supports EDID Learning – Automatically learns and saves the EDID data of the display to which the Transmitter (VE602T) is connected
Superior video quality – DVI Dual Link up to 2560 x 1600 @ 60 Hz (40 m); DVI Single Link up to 1920x1200 @ 60 Hz (40 m), 1024 x 768 @ 60 Hz (60 m)
Audio enabled

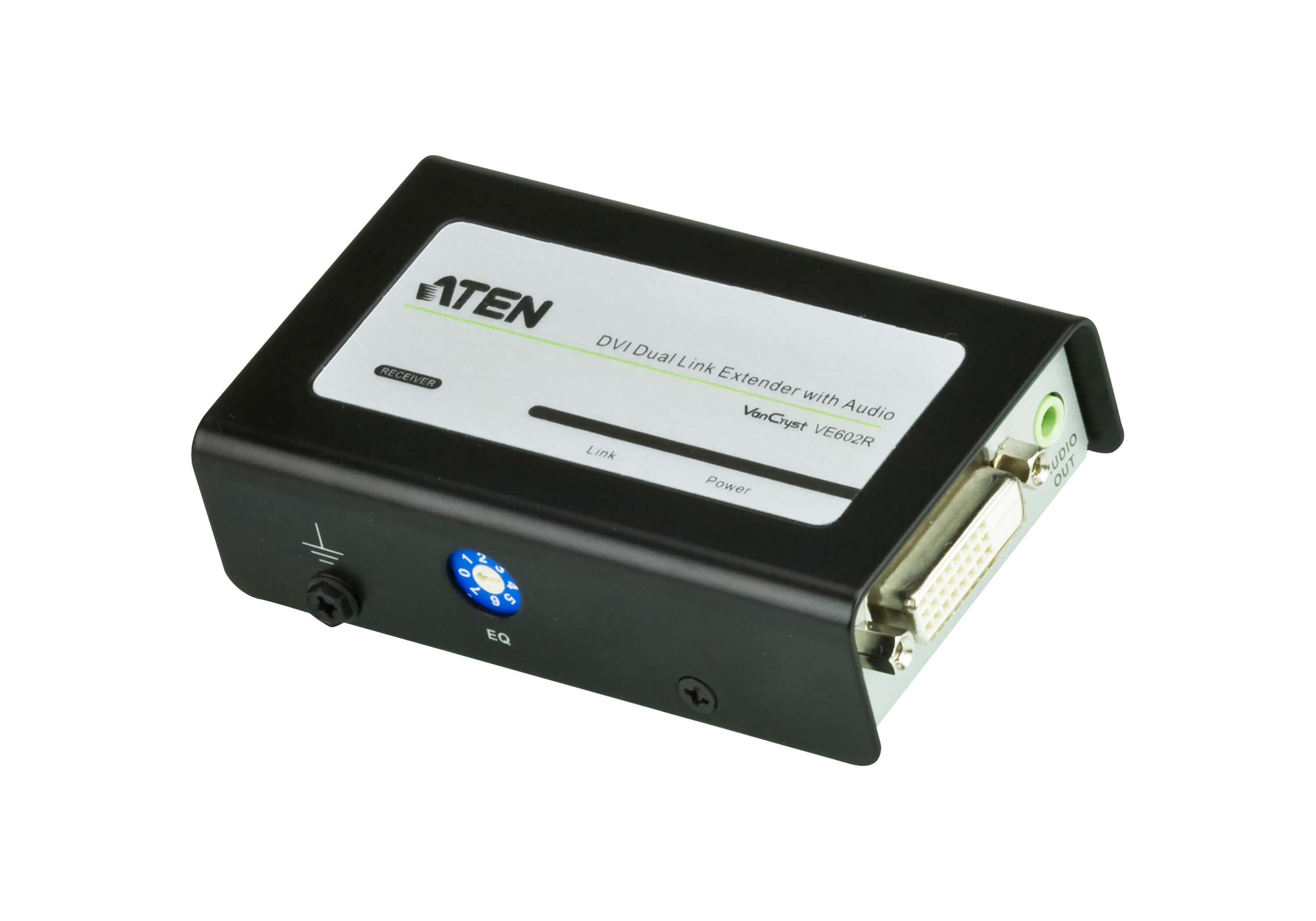

8 segment equalization adjustment switch optimizes display quality
Built-in 8KV/15KV ESD protection
Supports widescreen formats
Rack mountable Note: * The length of the two Cat 5e cables must be the same. ** Note: HDCP is not supported

Макс. скорост на данните: 6.75 Gbps (2.25 Gbps Per Lane)
Макс. скорост на данните: 6.75 Gbps (2.25 Gbps Per Lane)
Макс. пикселна честота: 225 MHz
Макс. пикселна честота: 225 MHz
Макс. резолюция / разстояние: Dual Link: up to 2560 x 1600@40m Single Link: up to 1920 x 1200@40m; 1280 x 1024@60m
Макс. резолюция / разстояние: Dual Link: up to 2560 x 1600@40m Single Link: up to 1920 x 1200@40m; 1280 x 1024@60m

Захранване: 1 x DC Jack
Захранване: 1 x DC Jack
Консумация: DC5.3V:2.4W:11BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC5.3V:2.86W:13BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Корпус: Metal
Тегло: 0.18 kg ( 0.4 lb )
Тегло: 0.18 kg ( 0.4 lb )
Размери (Д x Ш x В): 9.13 x 5.60 x 2.40 cm (3.59 x 2.2 x 0.94 in.)
Размери (Д x Ш x В): 9.13 x 5.60 x 2.40 cm (3.59 x 2.2 x 0.94 in.)
Брой в кашон: 20 pcs
Брой в кашон: 20 pcs
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
