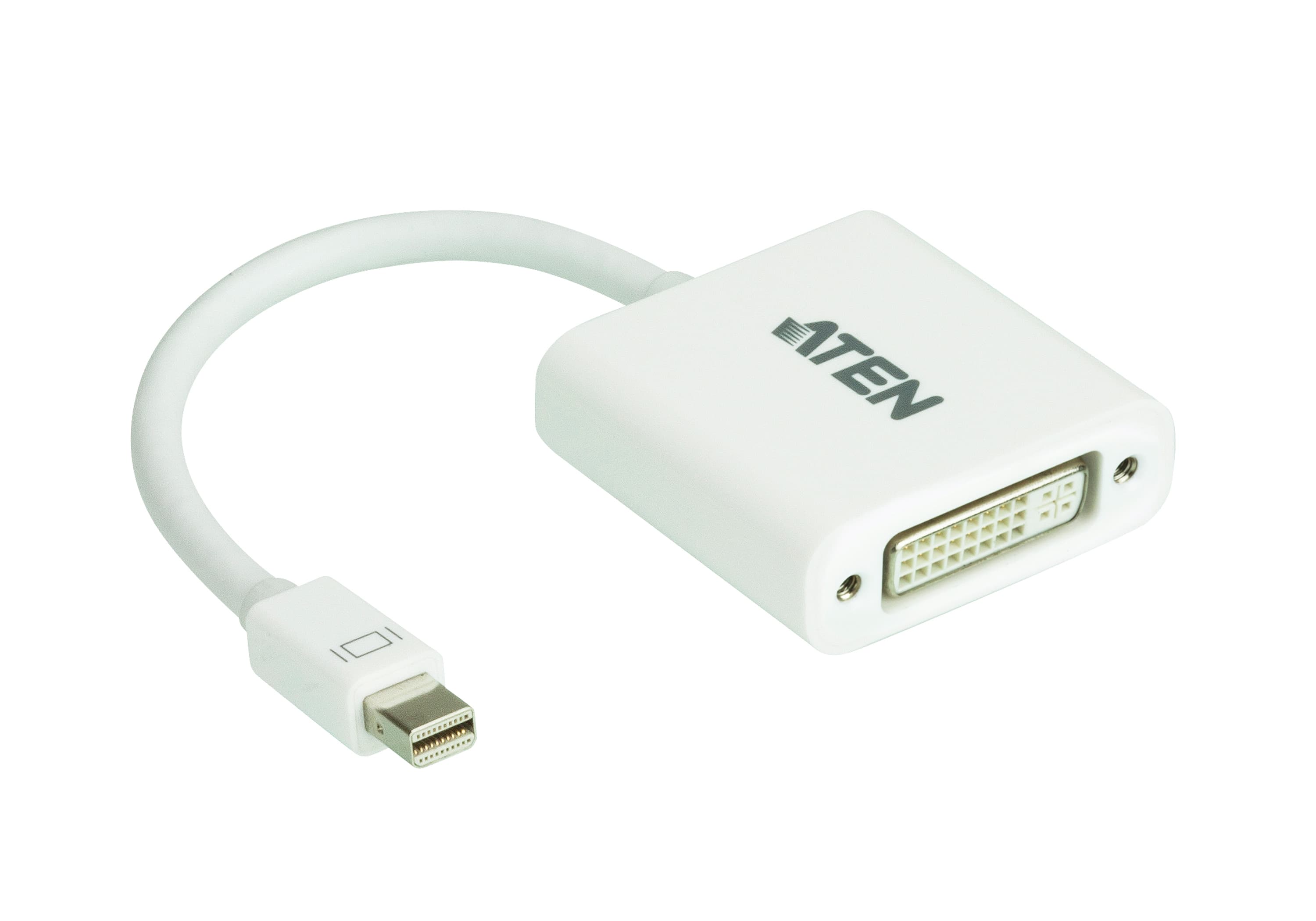

The Mini DisplayPort to DVI Adapter allows you to connect a device with a Mini DisplayPort to a Display with a DVI connector.The adapter is perfect for Mac series products,
Features
- Converts Mini DisplayPort signals to DVI output
- Supports VGA, SVGA, XGA, SXGA, UXGA and resolutions up to 1920x1200(PC) / 1080p(HDTV)
- Supports Mac Products including MacBook, MacBook Pro, MacBook Air, Mac mini and Mac Pro
- No software or driver installation needed
- DisplayPort 1.2 compliant
Video Input
- Interfaces
- 1 x Mini DisplayPort Male (White)
Video Output
- Interfaces
- 1 x DVI-I Female (White)* *VC960 Only supports digital signal transmission.
Video
- Max. Pixel Clock
- 165 MHz
- Max. Resolution
- Input up to 4096 x 2160@60Hz (4:4:4) Output up to 1920 x 1200
- Compliance
- DP 1.2
Environmental
- Operating Temperature
- 0 - 50 ºC
- Storage Temperature
- -20 - 60 ºC
- Humidity
- 0 - 80% RH, Non-Condensing
Physical Properties
- Housing
- Plastic
- Weight
- 0.05 kg ( 0.11 lb )
- Dimensions (L x W x H)
- 20.00 x 4.30 x 2.01 cm (7.87 x 1.69 x 0.79 in.)
- Carton Lot
- 40 pcs
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
