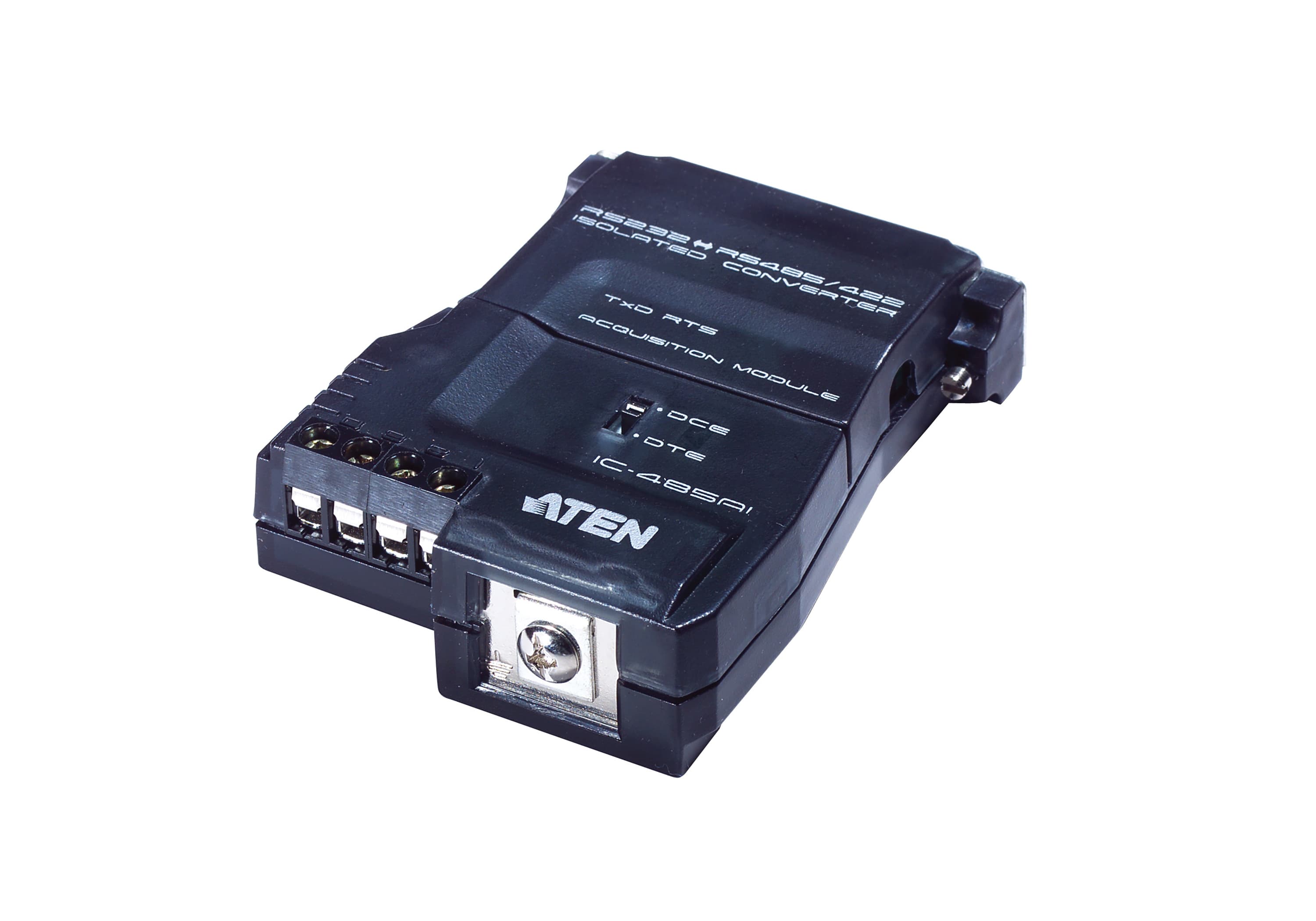

RS-232 to RS-422/RS-485 Isolated Converter

Name: RS-232 to RS-422/RS-485 Isolated Converter
Brand: ATEN
SKU: IC485AI

IC485AIDiscontinued

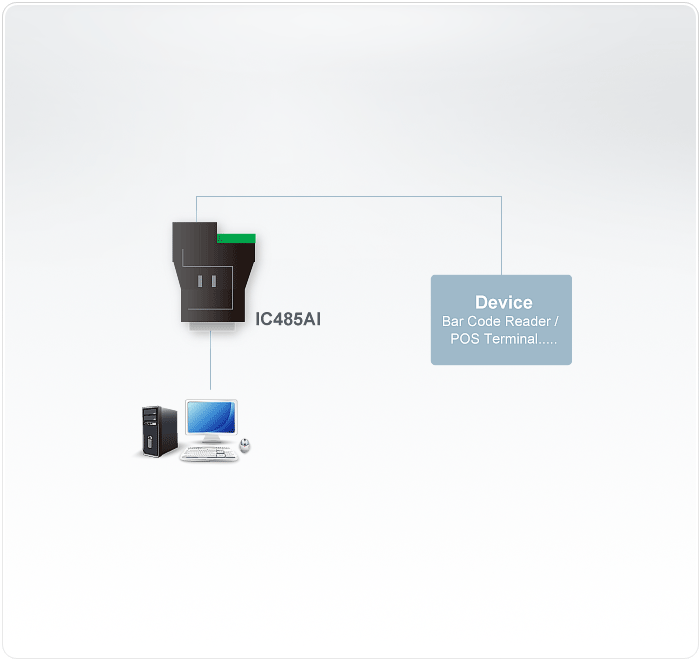

IC485AI is a 2-way converter converting RS-232 signals into RS-422/RS-485 signals in long-distance application up to 1200m (4000 ft.). Its built-in RS-485 automatic flow and direction monitoring function can suppress

Features

Automatic internal RS-485 bus supervision.
No external flow control signals for RS-485 required.
Transient suppression on RS-485 data lines.
DCE / DTE selectable.
Point-to-Point; Multidrop; and Simplex operating modes.
Four wire full duplex; two wire half duplex.
LEDs for easy status monitoring.
Minimum 2000V isolation protection.
Compact size• Cable distance of up to 1200m (4000 ft.).
Supports baud rates up to 115.2kbps.
OS Support: Windows 2000, Windows XP

Specifications

Connectors: 1 DB-25 Female (RS-232) RS-485 / RS-422 Four Terminal Block Grounding Tab
Switches: DCE, DTE Segment 1~3: Baud Rate; Segment 4: Reserved; Segment 5~6: Data Format (bits); Segment 7~8: RS-422 / RS-485 Operating Mode
Power Consumption: DC9V:0.47W:2BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Signal Range: 1200 m [4000'] (Max)
Data Rate: Up to 100 Kbps Under 1200 m [4000']

Environmental

Operating Temperature: 0 ~50˚C
Storage Temperature: -20 ~ 60˚C
Humidity: 0~80% RH, NC

Physical Properties

Housing: Plastic
Weight: 0.06 kg ( 0.13 lb )
Dimensions (L x W x H): 7.90 x 5.45 x 2.10 cm (3.11 x 2.15 x 0.83 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
