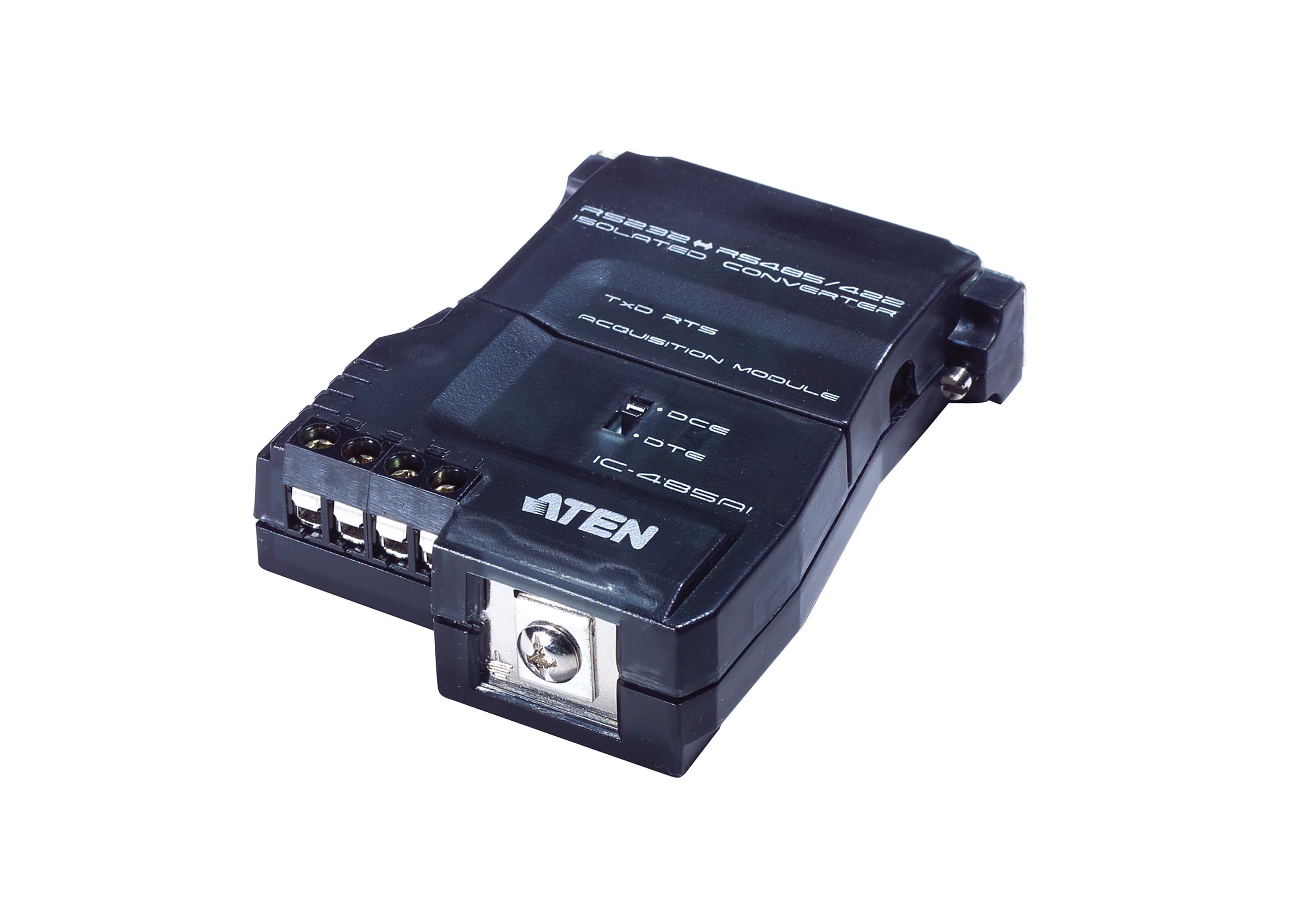

RS-232 to RS-422/RS-485 Isolated Converter
IC485AIСнет от производство
Двупосочен изолиран конвертор от RS-232 към RS-422/RS-485 за разстояния до 1200 m; автоматично следене на посоката на RS-485 линията, скорост до 100 Kbps.
Характеристики
- Automatic internal RS-485 bus supervision.
- No external flow control signals for RS-485 required.
- Transient suppression on RS-485 data lines.
- DCE / DTE selectable.

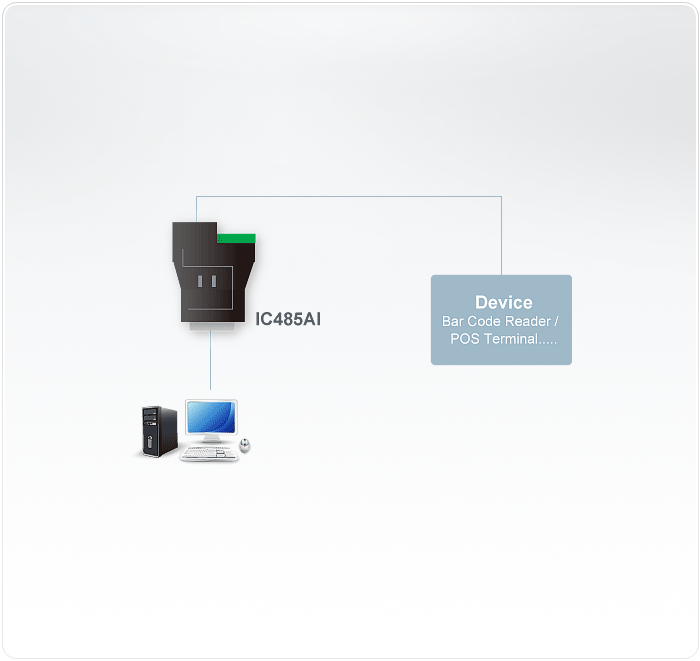

- Point-to-Point; Multidrop; and Simplex operating modes.
- Four wire full duplex; two wire half duplex.
- LEDs for easy status monitoring.
- Minimum 2000V isolation protection.
- Compact size• Cable distance of up to 1200m (4000 ft.).
- Supports baud rates up to 115.2kbps.
- OS Support: Windows 2000, Windows XP
Спецификация
- Конектори
- 1 DB-25 Female (RS-232) RS-485 / RS-422 Four Terminal Block Grounding Tab
- Превключватели
- DCE, DTE Segment 1~3: Baud Rate; Segment 4: Reserved; Segment 5~6: Data Format (bits); Segment 7~8: RS-422 / RS-485 Operating Mode
- Консумация
- DC9V:0.47W:2BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Обхват на сигнала
- 1200 m [4000'] (Max)
- Скорост на данните
- Up to 100 Kbps Under 1200 m [4000']
Работна среда
- Работна температура
- 0 ~50˚C
- Температура на съхранение
- -20 ~ 60˚C
- Влажност
- 0~80% RH, NC
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.06 kg ( 0.13 lb )
- Размери (Д x Ш x В)
- 7.90 x 5.45 x 2.10 cm (3.11 x 2.15 x 0.83 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
