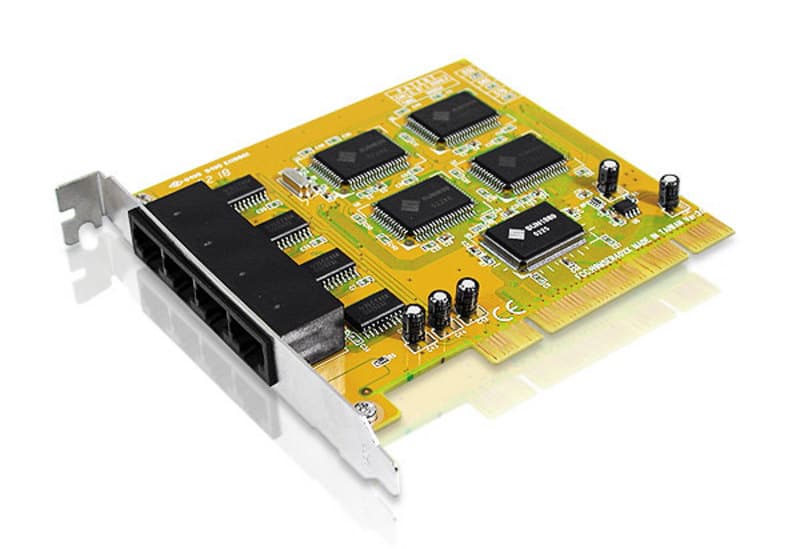

PCI карта с 4 серийни RS-232 порта и функция Re-Map. UART, съвместим с 16C650, скорост до 921.6 Kbps; работи в 32-bit и 64-bit PCI слотове (3.3V и 5V).
Характеристики
- Fully compliable with PCI Spec. Ver2.2 standard.
- Supports both 64-bit & 32-bit PCI Bus and 3.3V & 5V connector keys.
- High speed serial port support baud rates up to 921.6Kbps.
- High-tech 128K FIFO can reduce CPU loading, interrupting and improving system performance dramatically.
- Plug and Play, I/O address and IRQ assigned by BIOS.
- Works with various type of DB9M / DB25M serial devices.
- Assign serial ports Re-Map to ISA address 3F8, 3E8, 2F8, 2E8 under DOS, NT operation system for special devices working on COM1 and COM2.
- Ready for the Intel® Itanium® and AMD® Athlon® 64R 64-bit CPU on the Microsoft Windows® XP 64-bit Edition Version 2003 and Windows® Sever 2003 for 64-bit Itanium-based or Extended Systems.
- Ideal for 56K V.90 external modems and ISDN terminal adapters, PDA, UPS, barcode scanner and other high-speed serial port devices.
- OS Support: Windows 2000, Windows XP and Linux
Спецификация
- Режим на работа
- Hand-shaking Mode
- Шинни приемо-предаватели
- RS-232 Full-duplex
- Драйвери на линия
- RS-232 1 Driver
- Приемници на линия
- RS-232 1 Receiver
Хардуер
- Контролер
- UART (16C650 compatible)
- Шинен интерфейс
- 64-bit & 32-bit PCI Bus - 3.3V & 5V Connector Keys
- Конектор
- 4 RJ-45 to 4 DB9 Male or DB25 Male
Комуникация
- IRQ и I/O адрес
- Assigned by BIOS
- Преадресиране
- Re-Map to ISA address 3F8, 3E8, 2F8, 2E8
- FIFO
- 32 bytes hardware FIFO, 128 Kbytes software FIFO
- Скорост на предаване
- 75bps ~921.6Kbps
- Битове данни
- 4, 5, 6, 7, 8
- Стоп битове
- 1, 1.5, 2
- Четност
- even, odd, none, mark, space
- Контрол на потока
- None, Xon/Xoff, Hardware
- Сигнали
- DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS
Поддържани драйвери
- 64-битова система
- Intel Itanium and AMD Athlon64 CPU
- Microsoft
- DOS, Windows 3.x /9x / ME / NT / 2000 / XP / 2003
- Linux
- 2.0.x / 2.2.x / 2.4.18 / 2.4.20
- DOS
- DOS
Работна среда
- Работна температура
- 0－57˚C
- Температура на съхранение
- -20－85˚C
- Влажност
- 5 ~ 95% RH
