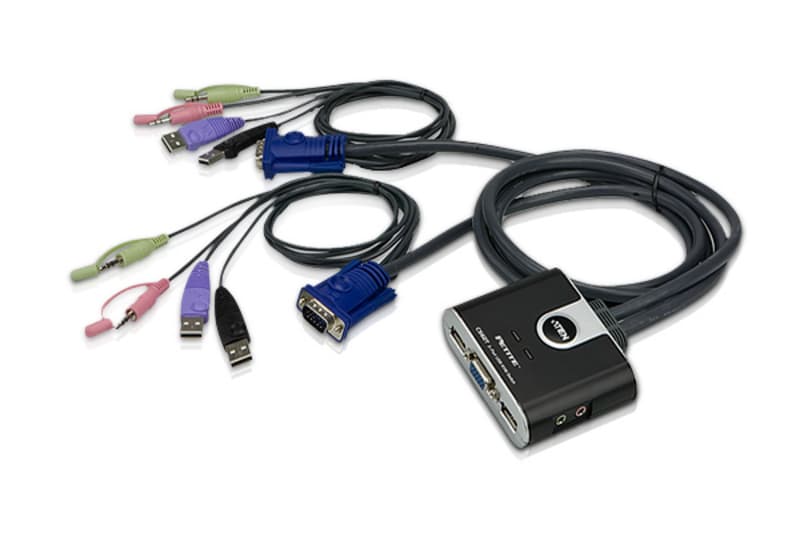

2- Port USB KVM Switch with File Transfer
CS62TDiscontinued
The CS62T improves on prior models in the Cable KVM series, by combing a 2-port KVM switch enabling it to provide USB peripheral sharing and USB file sharing between the
Features
- One USB console controls two USB interface computers
- USB File Management -transfer files between connected Windows based computers - sync files, folders
- USB mouse port can be used for USB hub and USB peripheral sharing
- Computer selection via hotkeys and mouse*
- Hotkey selection for OS and keyboard language
- Audio-enabled - full bass response for 2.1 surround sound
- Multiplatform support - Windows, Linux, Mac, and Sun
- Compact design, built-in all-in-one cables (2 x 0.9 m)
- Video DynaSync™ - exclusive ATEN technology which eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection - automatically switches to the fi rst powered on computer
- Superior video quality - up to 2048 x 1536; DDC2B
- Supports gaming and multimedia keyboards
- Supports multifunction and wireless keyboards and mice
- Mac/Sun keyboard support and emulation**
- Auto Scan function to monitor computer operation
- Non-powered * Mouse port switching is only supported when using a USB 3-key wheel mouse ** 1. PC keyboard combinations emulate Sun/Mac keyboards 2. Sun/Mac keyboards only work with their own computers
Specifications
- Computer Connections
- 2
- Port Selection
- Hotkey, Mouse
Connectors
- Console Ports
- 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
- KVM Ports
- 2 x USB Type A Male (Purple) 2 x HDB-15 Male (Blue) 2 x Mini Stereo Jack Female (Green) 2 x Mini Stereo Jack Female (Pink)
- File Transfer
- 2 x USB Type A Male (Black)
Cable Length
- Computer
- 2 x 0.9 m
Emulation
- Keyboard / Mouse
- USB
- Video
- 2048 x 1536; DDC2B
- Scan Interval
- 3, 5, 10, 20 secs. (default 5 secs.)
Environmental
- Operating Temperature
- 0 - 50°C
- Storage Temperature
- -20 - 60°C
- Humidity
- 0-80% RH Non-condensing
Physical Properties
- Housing
- Plastic
- Weight
- 0.42 kg
- Dimensions (L x W x H)
- 8.24x6.99x2.52cm
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
