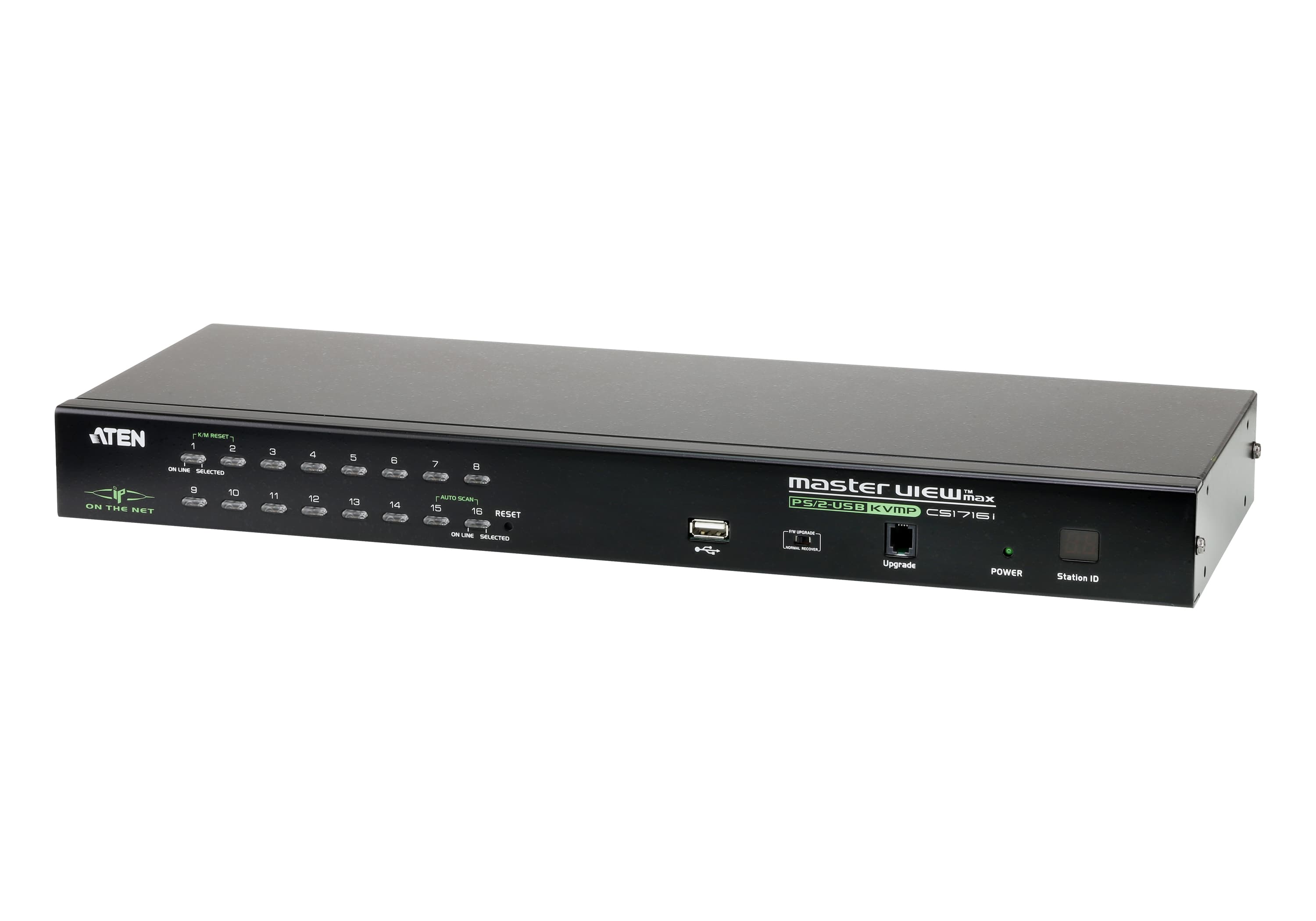

1-Local / Remote Shared Access 16-Port PS/2-USB VGA KVM over IP Switch

Name: 1-Local / Remote Shared Access 16-Port PS/2-USB VGA KVM over IP Switch
Brand: ATEN
SKU: CS1716I

CS1716I

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

KVM over IP превключвател за 16 компютъра — достъп от локална конзола и отдалечени потребители, с daisy-chain до 256. До 64 потребителски акаунта, избор на порт през OSD.

Характеристики

Management
Up to 64 user accounts
Convenient computer selection via front panel pushbuttons, hotkeys and multi-lingual on-screen display (OSD) menus
Up to 32 concurrent logins
Multi-language web UI support featuring a tree-structured local and remote OSD
Adjustable video quality for flexible adaptation to diverse network environments
Auto Scan feature for monitoring user-selected computers
Broadcast mode – operations from the keyboard can be simultaneously performed on all selected computers on the installation (software installation, system-wide shutdown, etc.)
Firmware upgradable
Backup and restore configuration and user account settings
Event logging
Enable / disable browser access
IPv6 capable Ease-to-Use Interface
Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multi-language interface to minimize user training time and increase productivity
Multi-platform client support (windows, Mac OS X, Linux, Sun)
Multi-browser support (IE, Firefox, Safari, Opera, Chrome)
Port names automatically reconfigured when station sequence is changed
Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
WinClient and JavaClient software support; JavaClient works with all operating systems Advanced Security
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB / Mouse and video data encryption
Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
Support for IP / MAC Filter
Local and remote access logged and authenticated Virtual Remote Desktop
Resizable remote desktop window
Message board allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
Mouse DynaSync™
On-screen keyboard with multi-language supports
BIOS-level access Hardware
16-port remote access KVM switch - monitor and control up to 16 computers from a single KVM console
Daisy chain up to 15 additional units - control up to 256 computers from a single console1
Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
Hot pluggable - add or remove computers without having to power down the switch
Multi-platform support - Windows, Linux, Mac, and Sun
Front panel USB hub allows connected computers to access USB peripherals
Dual Interface - supports PS/2 or USB keyboard and mouse computer connections with automatic interface detection
USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
Supports USB keyboards for PC, Mac and Sun
Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1920 x 1200 @ 60Hz2 and 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Rack mountable in a 1U system rack Note: 1. Compatible KVM Switches include the following: ACS1208A, CS1708A, CS1716A, KH1508A, KH1516A 2. The video quality of CS1708i/CS1716i has been enhanced to Full HD. To distinguish between the non-FHD and FHD versions, please refer to below link: FHD & Non-FHD Comparison Photo

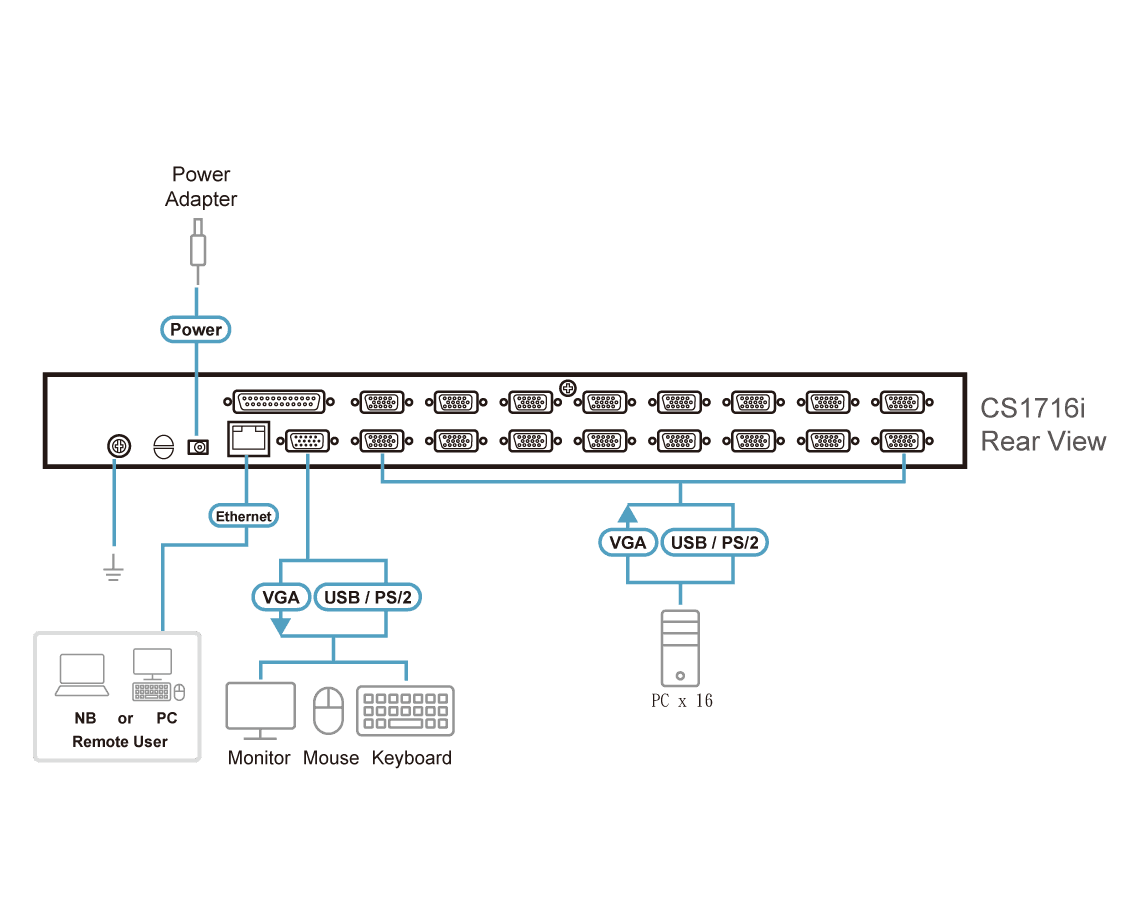

Връзки към компютри

Директно: 16
Максимум: 256 (via daisy chain)
Избор на порт: OSD/GUI; Hotkey; Pushbutton

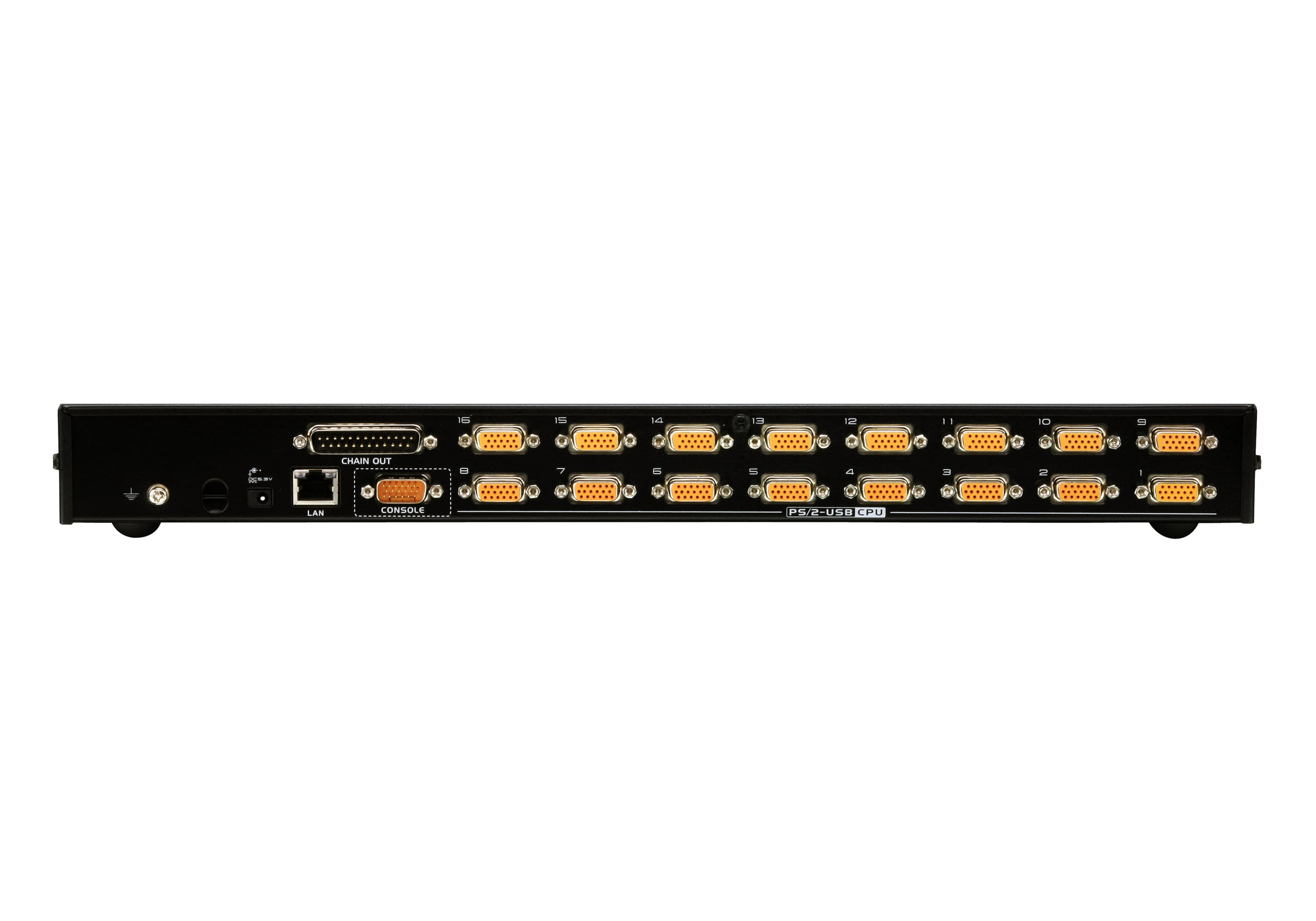

Конектори

Конзолни портове: 1 x SPHD Male (Yellow)
KVM портове: 16 x SPHD Female (Yellow)
Daisy Chain портове: 1 x DB-25 Male
Захранване: 1 x DC Jack
LAN портове: 1 x RJ-45 Female
Обновяване на фърмуера: 1 x RJ-11
USB порт: 1 x USB Type A Female

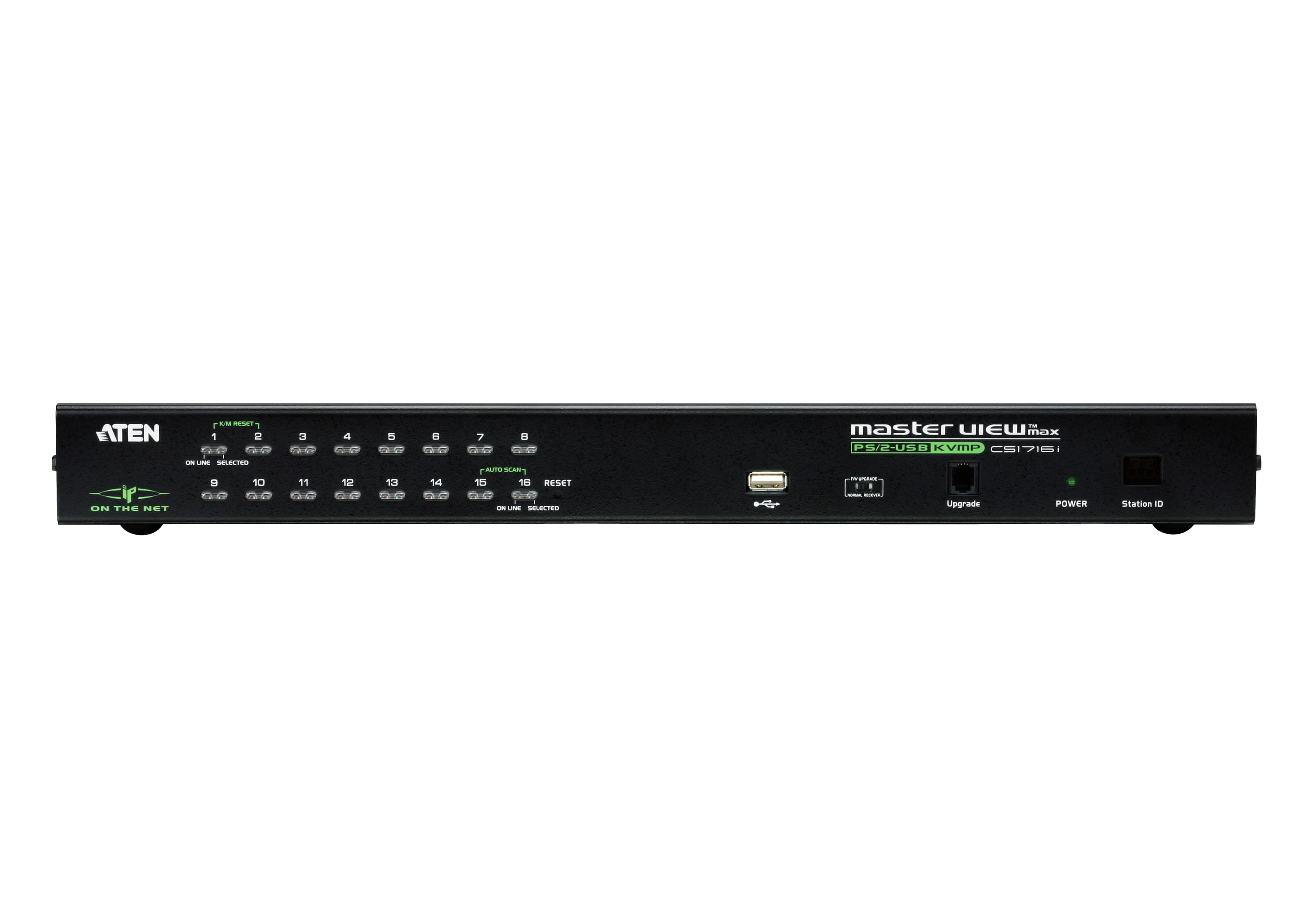

Бутони и превключватели

Нулиране: 1 x Semi-recessed Pushbutton
Избор на порт: 16 x Pushbutton
Възстановяване на фърмуера: 1 x Slide

Индикатори

Онлайн: 16 (Orange)
Избран: 16 (Green)
ID на станция: 1 x 2-digit, 7-segment (Orange)
Захранване: 1 (Dark Green)
10/100 Mbps: 1 (Orange/Green - at LAN port)

Емулация

Клавиатура / мишка: PS/2, USB

Видео

Локално: 2048 x 1536; DDC2B
Отдалечено: FHD : 1920 x 1200 @ 60Hz Non-FHD : 1600 x 1200 @ 60Hz
Интервал на сканиране: 1–255 sec.
Консумация: DC5.3V:9.2W:58BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0–50°C
Температура на съхранение: -20–60°C
Влажност: 0–80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 3.00 kg ( 6.61 lb )
Размери (Д x Ш x В): 43.72 x 15.96 x 4.40 cm (17.21 x 6.28 x 1.73 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
