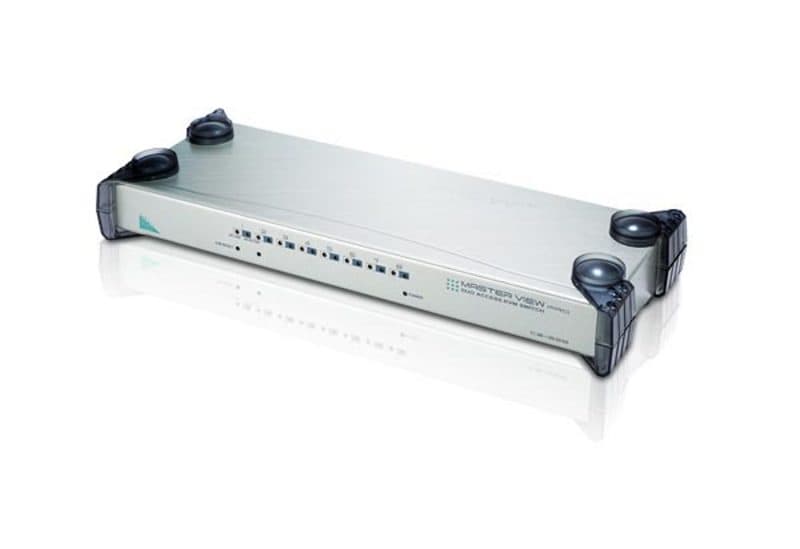

2-Console 8-Port PS/2 VGA/Audio KVM Switch
CS228Снет от производство
KVM превключвател с 2 PS/2 конзоли за 8 сървъра, с поддръжка на аудио. Конзолите работят самостоятелно или споделено, всяка със собствен контрол на достъпа; чрез каскада — до 64 компютъра.
Характеристики
- 2 PS/2 console control 8 computers.
- Up to four users can operate up to 64 computers (via cascade to CS88A and CS9138*) at the same time.
- Each console has its own access control
- Two-level (Administrator/User) password authorization for enhanced security protection.
- Administrator can access any computer completely independently of the other users.
- Each user has his own access control list
- Computer selection via On Screen Display (OSD)
- Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse.
- OSD automatically adjusts to resolution changes.
- Auto Scan function to monitor computer operation.
- With speaker and microphone support.
- Superior video quality: Up to 1920 x 1440; DDC2B.
- Special design for easy stacking.
- Rack mountable in 19" (1U) system rack. * CS88A and CS9138 do not support audio features of audio enabled KVM switches.
- Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD.
- For more information about KVMs which can connect to CS228, see Compatible KVM Table.
Връзки към компютри
- Директно
- 8
- Максимум
- 64 (via Cascade to CS9138)
- Избор на порт
- OSD
Конектори
- Конзолни портове (1,2)
- 2 x 6-pin Mini-DIN Female (Purple) 2 x 6-pin Mini-DIN Female (Green) 2 x HDB-15 Female (Blue) 2 x Mini Stereo Jack Female (Black) 2 x Mini Stereo Jack Female (Pink)
- KVM портове
- 8 x DB-25 Female (Black)
Индикатори
- Избран
- 8 (Green)
- Захранване
- 1 (Blue)
Емулация
- Клавиатура / мишка
- PS/2
- Видео
- 1920 x 1440; DDC2B
- Интервал на сканиране
- 3,5,10,15,20,30,40,60 Seconds
- Консумация
- DC9V, 6.3W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50˚C
- Температура на съхранение
- -20-60˚C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.70 kg ( 5.95 lb )
- Размери (Д x Ш x В)
- 43.72 x 15.76 x 4.40 cm (17.21 x 6.2 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
