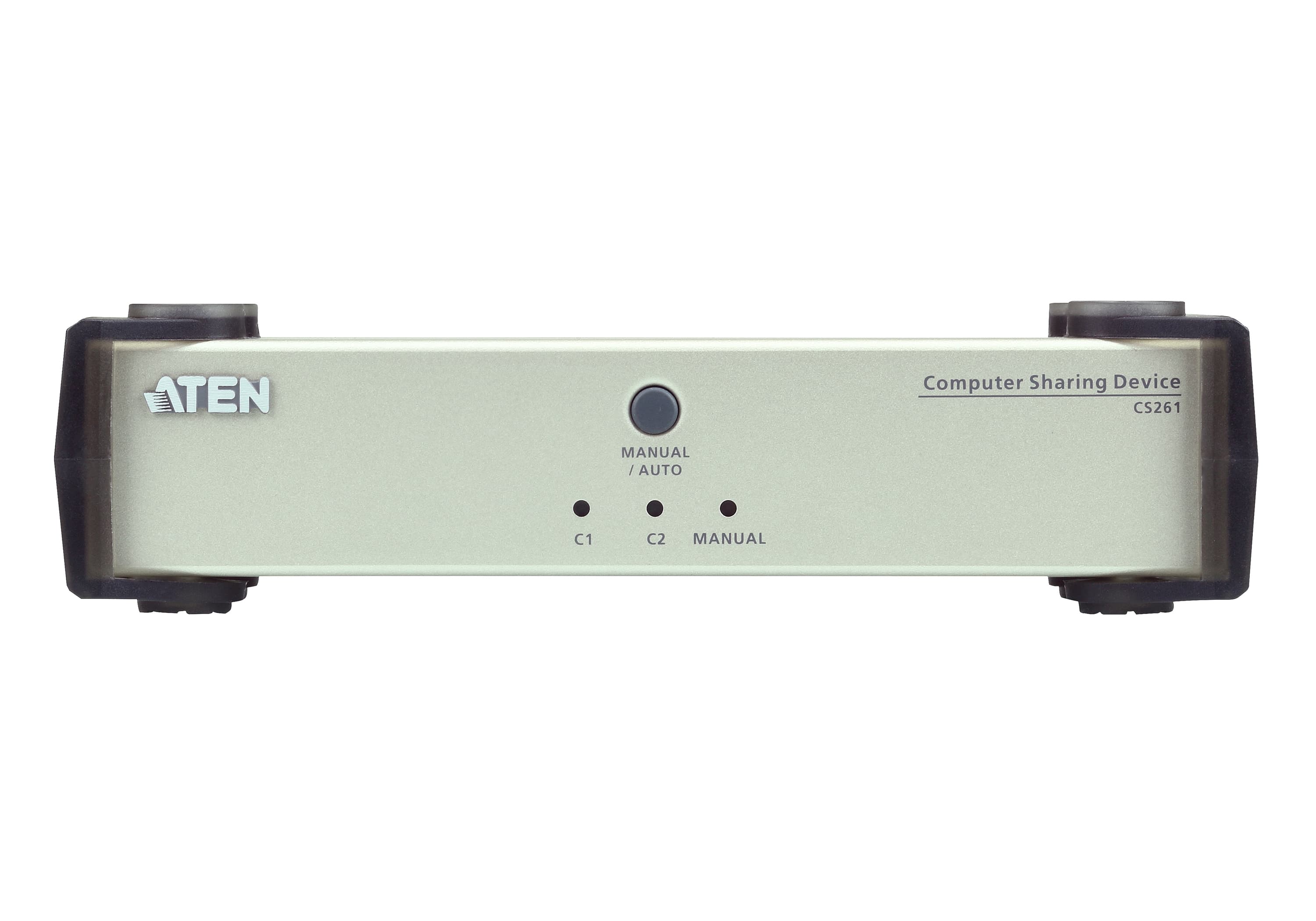

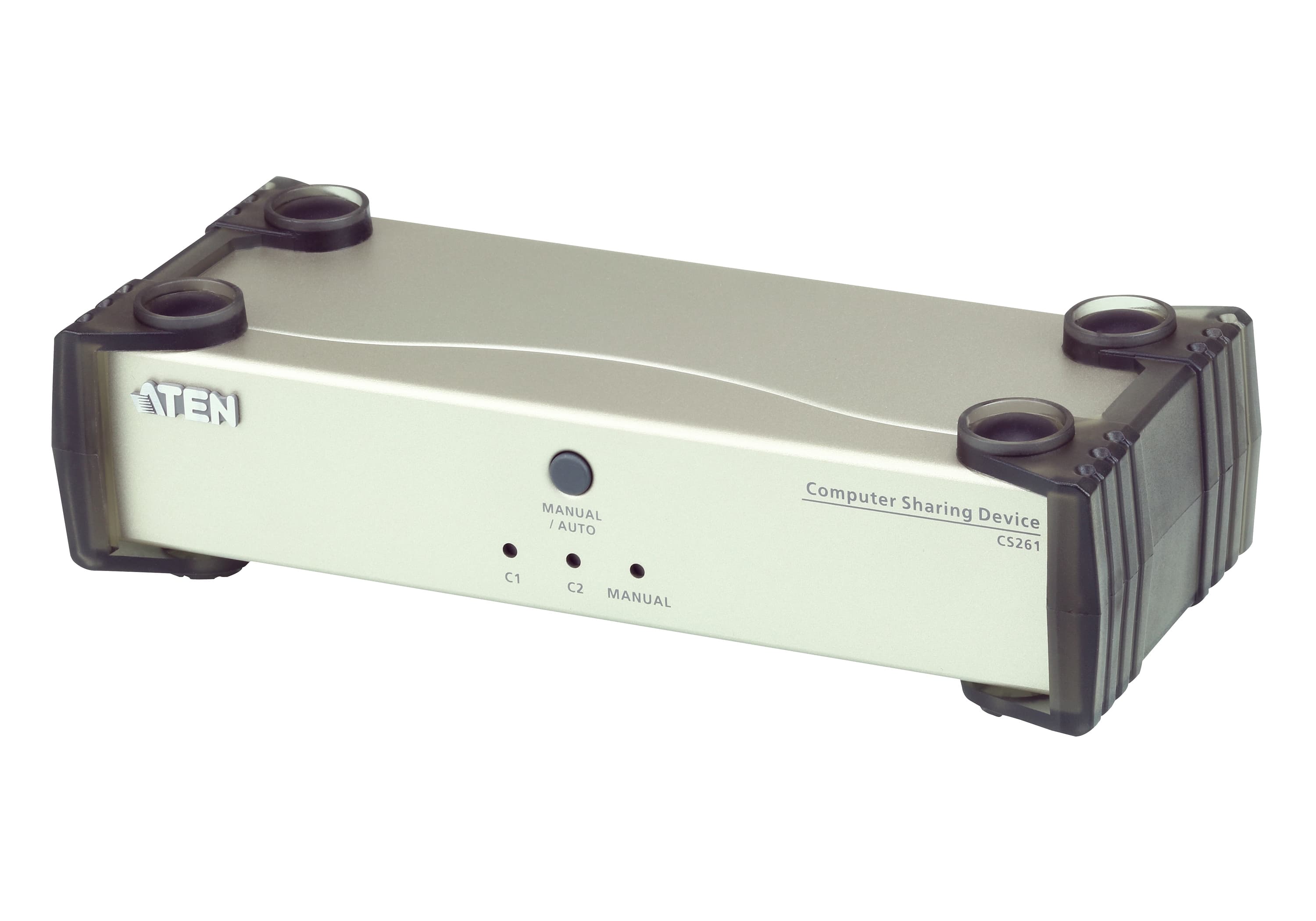

USB DVI Computer Sharing Device

Name: USB DVI Computer Sharing Device
Brand: ATEN
SKU: CS261

CS261Discontinued

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

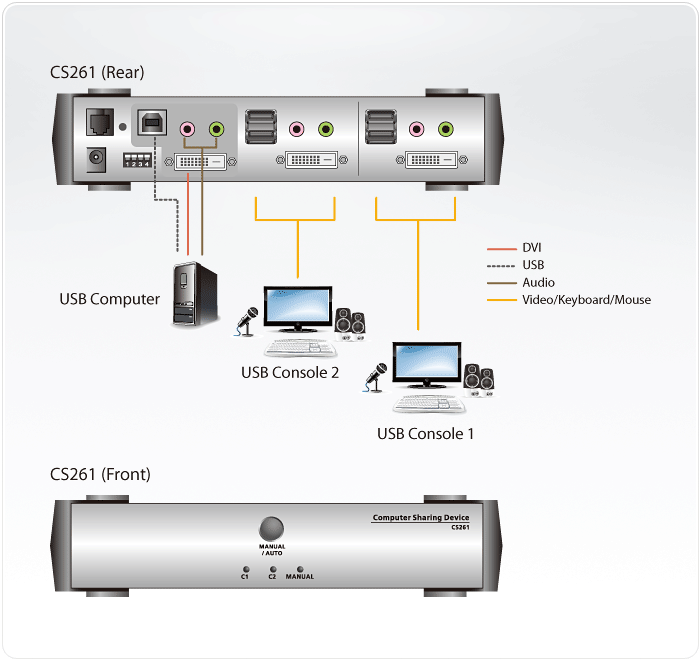

Sharing device giving 2 USB DVI consoles access to 1 computer, with an optional access control box to bar the second console; supports up to 1920 x 1200 and 4K at 30 Hz.

Features

Supports Access Control Box which allows users to prohibit Console 2 from controlling (operating)
Superior Video Quality – supports resolutions up to 1080p, 1920 x 1200, and 4K @ 30 Hz*
Supports 2.1 channel stereo sound and high definition audio**
HDCP Compliant – supports HDCP-enabled devices
EDID Expert™ – selects optimum EDID settings for smooth power up, high-quality display and use of the best resolution across different monitors
Exclusive Console Modes: -Auto: Computer access switches to a console on a first come first serve basis -Manual: Computer access switches to a console using the front panel pushbutton or a hotkey
Supports RS-232 serial commands to switch operation and configure settings
Screen Saver Feature – blocks the console's display after a period of inactivity
Mac/Sun keyboard emulation: consoles can use PC keyboards while working on Macintosh/Sun platforms***
Multilingual Keyboard Mapping – supports English, Japanese, French and German keyboards
Multiplatform Support: Windows, Linux, Mac or Sun
Upgradeable firmware to stay current with updates
No Software Required – eliminates incompatibility and installation issues and the need to configure software Note: * 4K @ 30 Hz is supported when using a DVI to HDMI cable. ** High definition audio can be converted using a DVI to HDMI cable. *** PC keyboard combinations emulate Mac/Sun keyboards.

Specifications

Computer Connections: 1
Console Selection: Pushbutton, RS-232, Hotkey* Note: Selecting the console via hotkeys only works in Manual Mode

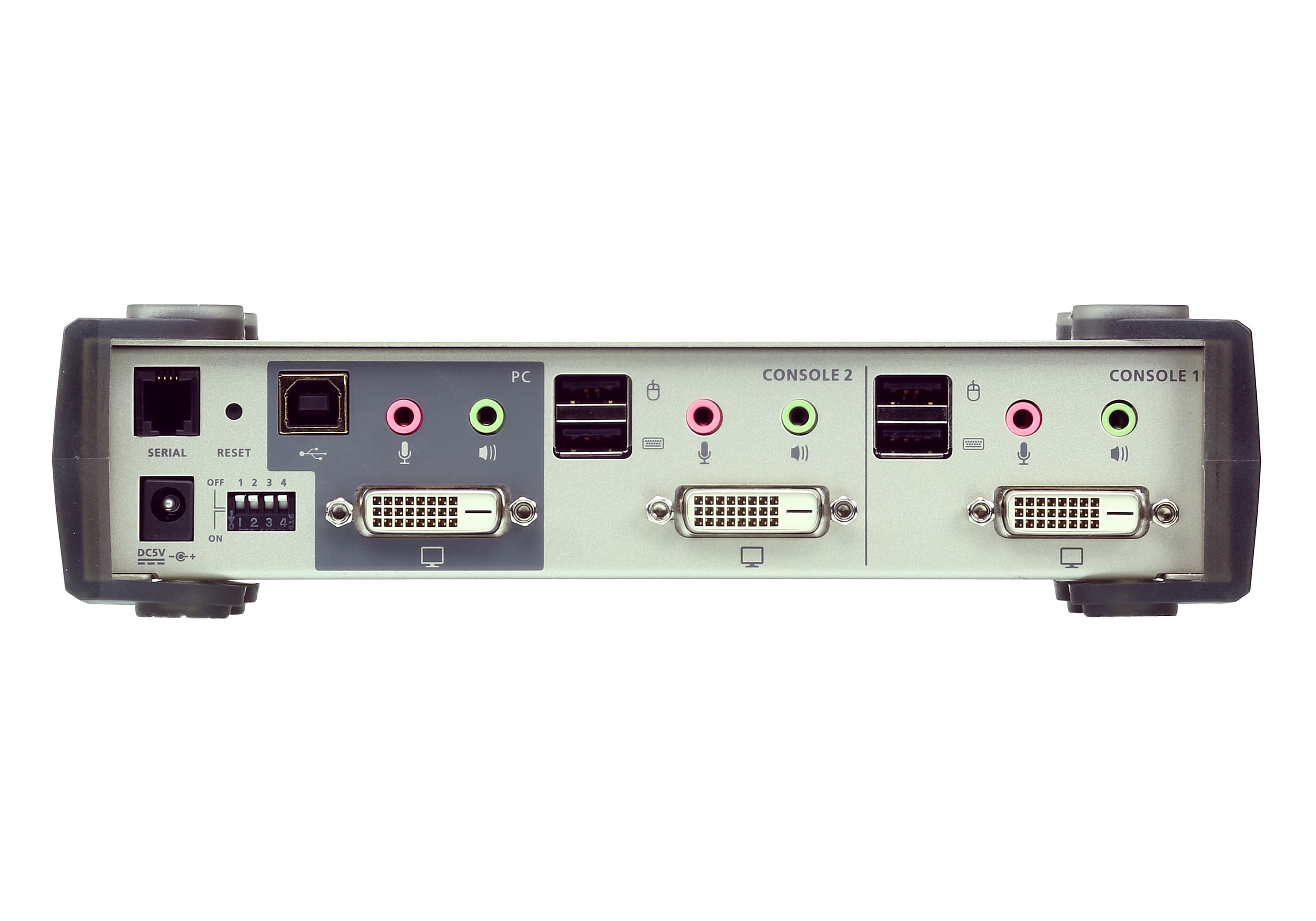

Connectors

Console Ports: 2 x DVI-D Female (White) 4 x USB Type A Female 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
KVM Ports: 1 x DVI-D Female (White) 1 x USB Type B Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
RS-232: 1 x RJ-11 Female
Power: 1 x DC Jack (Black)

Switches

Mode Selection: 1 x Pushbutton
Reset: 1 x Semi-recessed Pushbutton
DIP: 1 x 4 pin

LEDs

Selected: 2 (Green)
Manual: 1 (Orange)
Video: 3840 x 2160 @ 30Hz
Power Consumption: DC5V:2.4W:20BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0-50˚C
Storage Temperature: -20-60˚C
Humidity: 0-80% RH, Non-condensing

Physical Properties

Housing: Metal
Weight: 0.72 kg ( 1.59 lb )
Dimensions (L x W x H): 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
