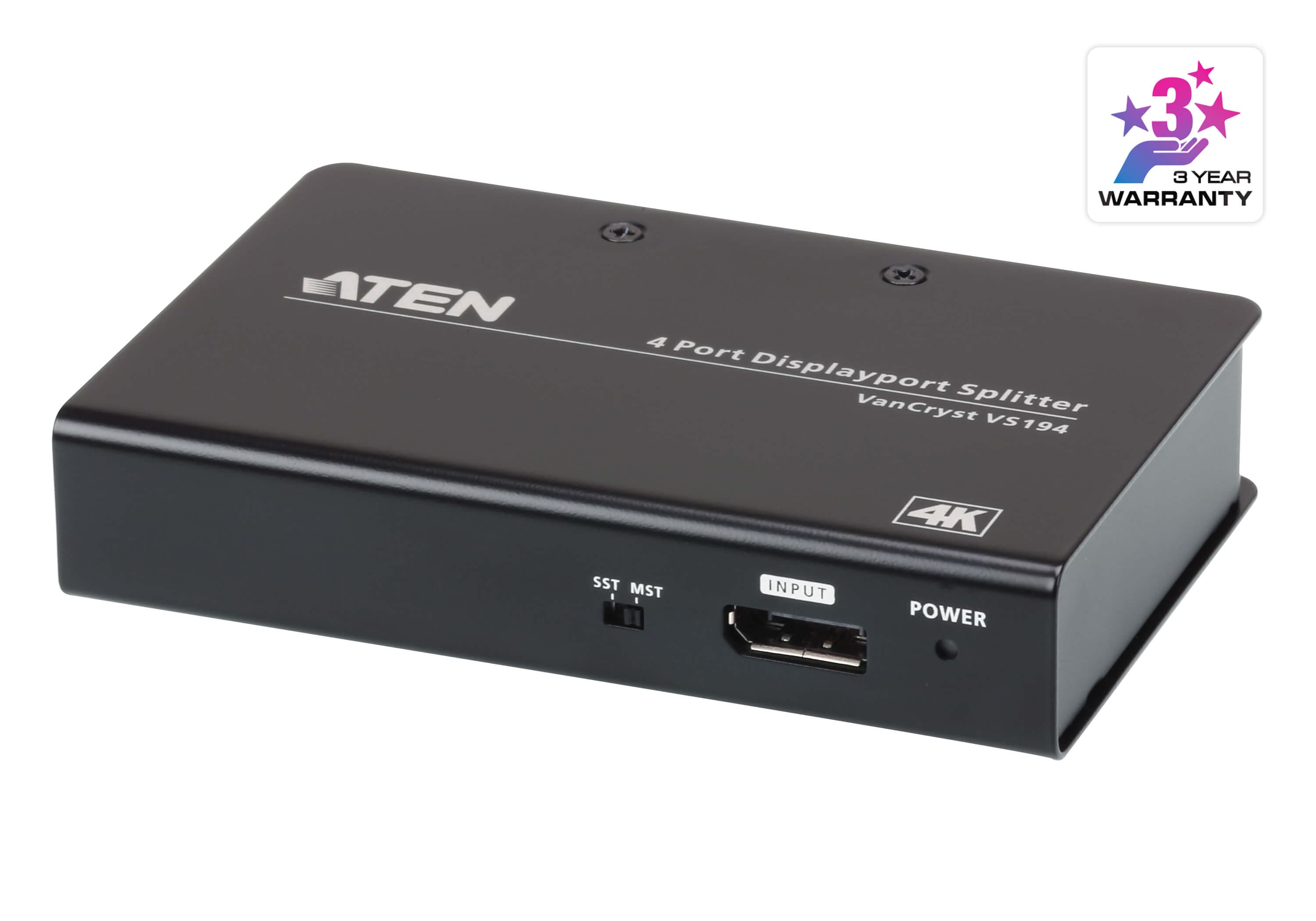

Сплитер, който свързва един DisplayPort източник към 4 монитора при резолюция до 4096x2160@60Hz. Поддържа режими MST/Extend и SST/Split; DisplayPort 1.2a, HDCP 1.3.
Характеристики

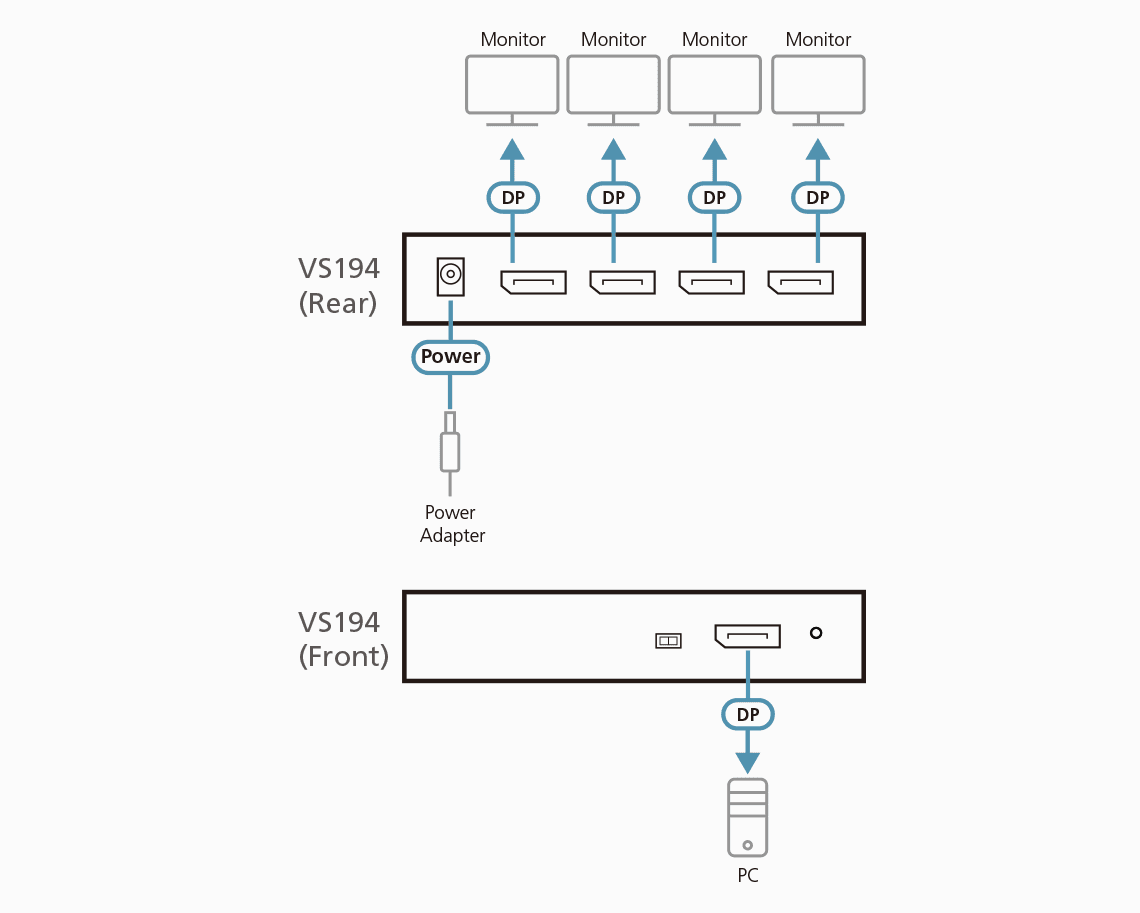

- Connects 1 DisplayPort source to 4 DisplayPort monitors
- Supports DisplayPort 1.2a; HDCP 1.3
- Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz
- Supports MST/ Extend Mode and SST/ Split Mode* MST/ Extend Mode: Extend a video source across 4 displays with a maximum resolution of 4K. SST/ Split Mode: Duplicate a single video source to 4 displays with a maximum resolution of 4K on each monitor
- Supports Linkrate: HBR2 (High Bit Rate 2) Note: * The VS194 will bypass EDID Mode during SST Mode and will detect the resolution of the monitor connected to port 1.

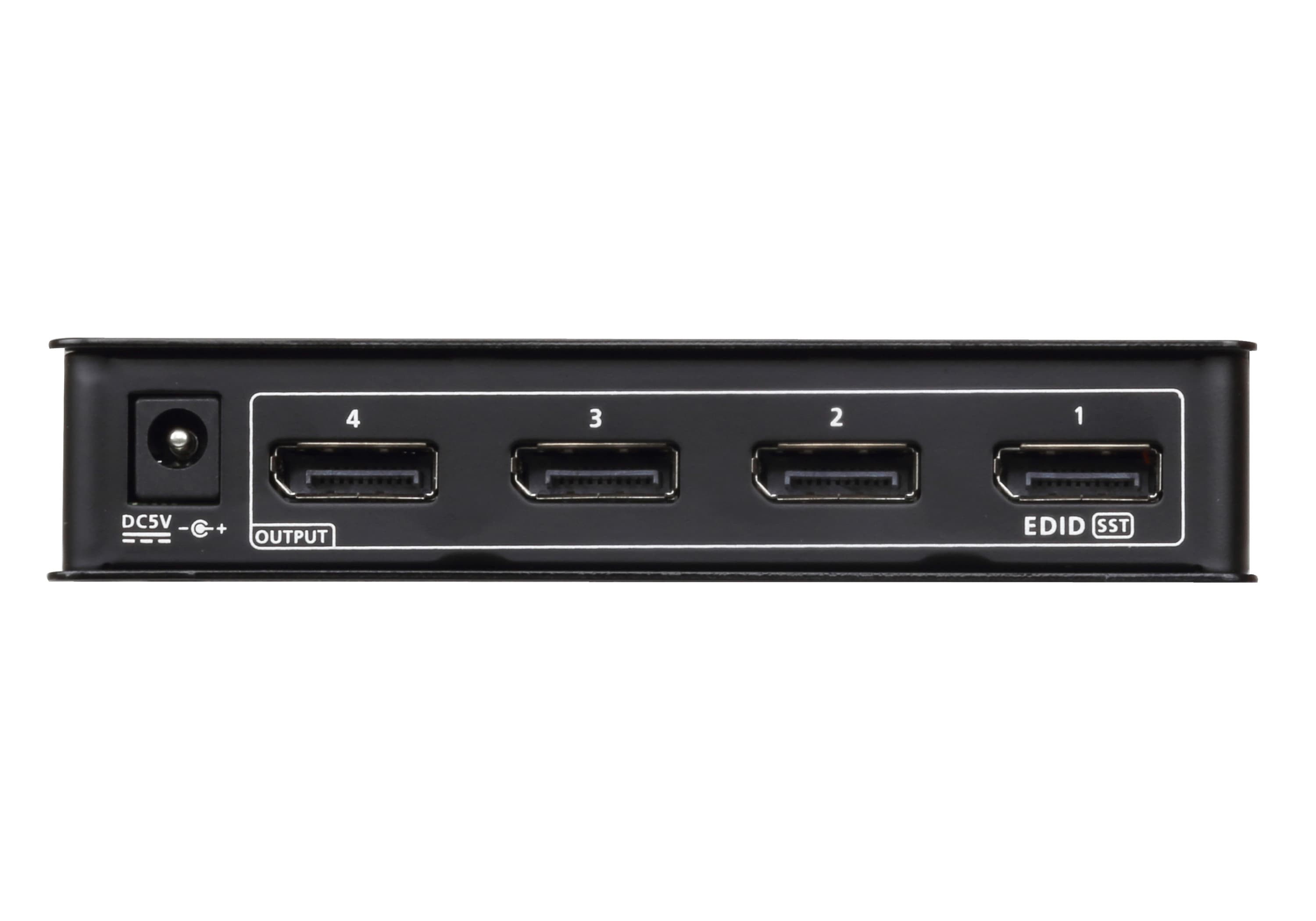

Видео изход
- Интерфейси
- 4 x DisplayPort Female (Black)
- Макс. разстояние
- 4.6m (4096 x 2160 / 3840 x 2160 @ 60Hz) *tested with 2L-7D04DP

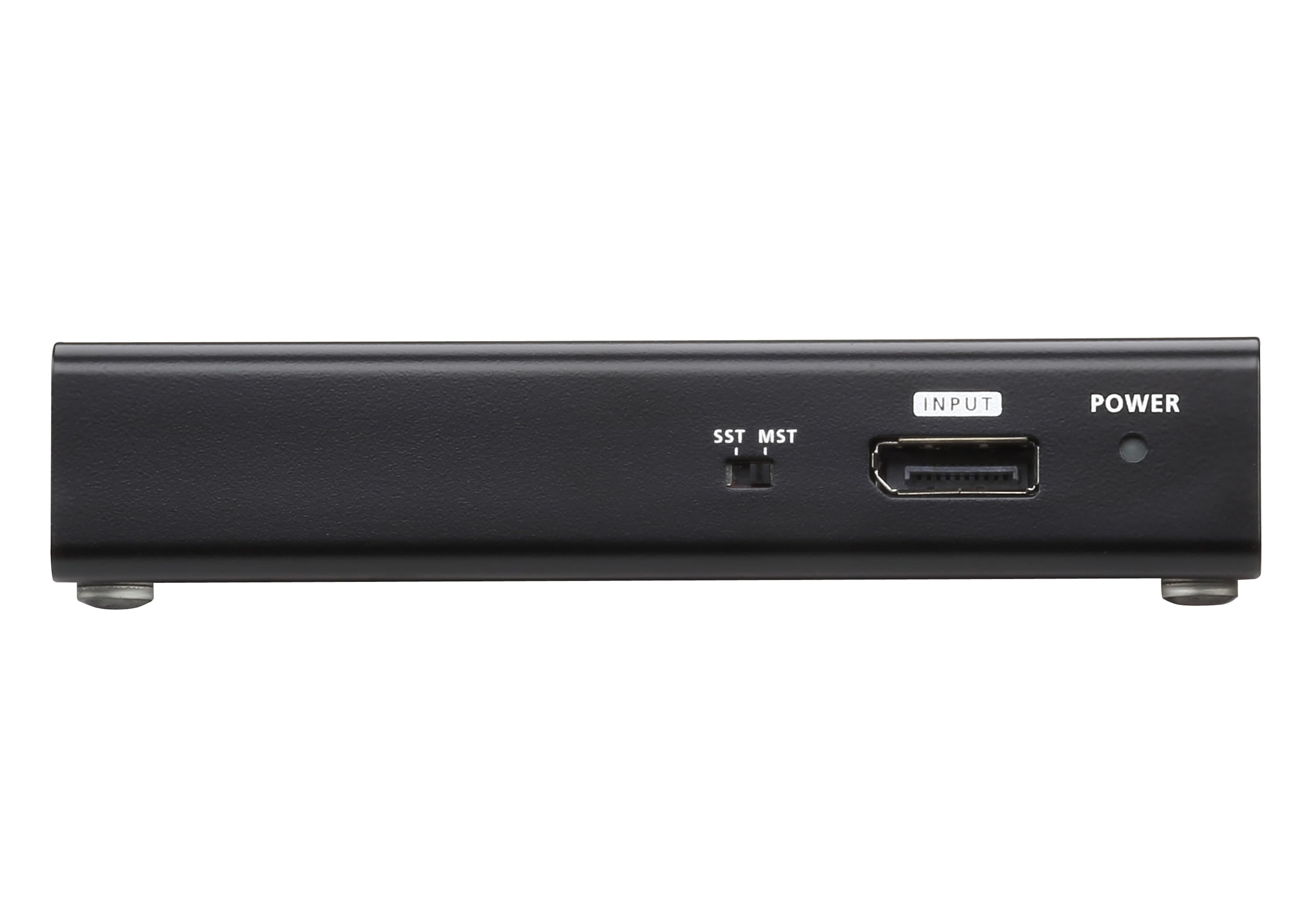

Видео вход
- Интерфейси
- 1 x DisplayPort Female (Black)
- Макс. разстояние
- 4.6m (4096 x 2160 / 3840 x 2160 @ 60Hz) *tested with 2L-7D04DP
Видео
- Съответствие
- DP 1.2a; HDCP 1.3
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz
- Макс. скорост на данните
- 21.6 Gbps (5.4 Gbps per lane)
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5V:3.36W:44BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40 °C
- Температура на съхранение
- -20 - 60 °C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.33 kg ( 0.73 lb )
- Размери (Д x Ш x В)
- 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
- Брой в кашон
- 20 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
