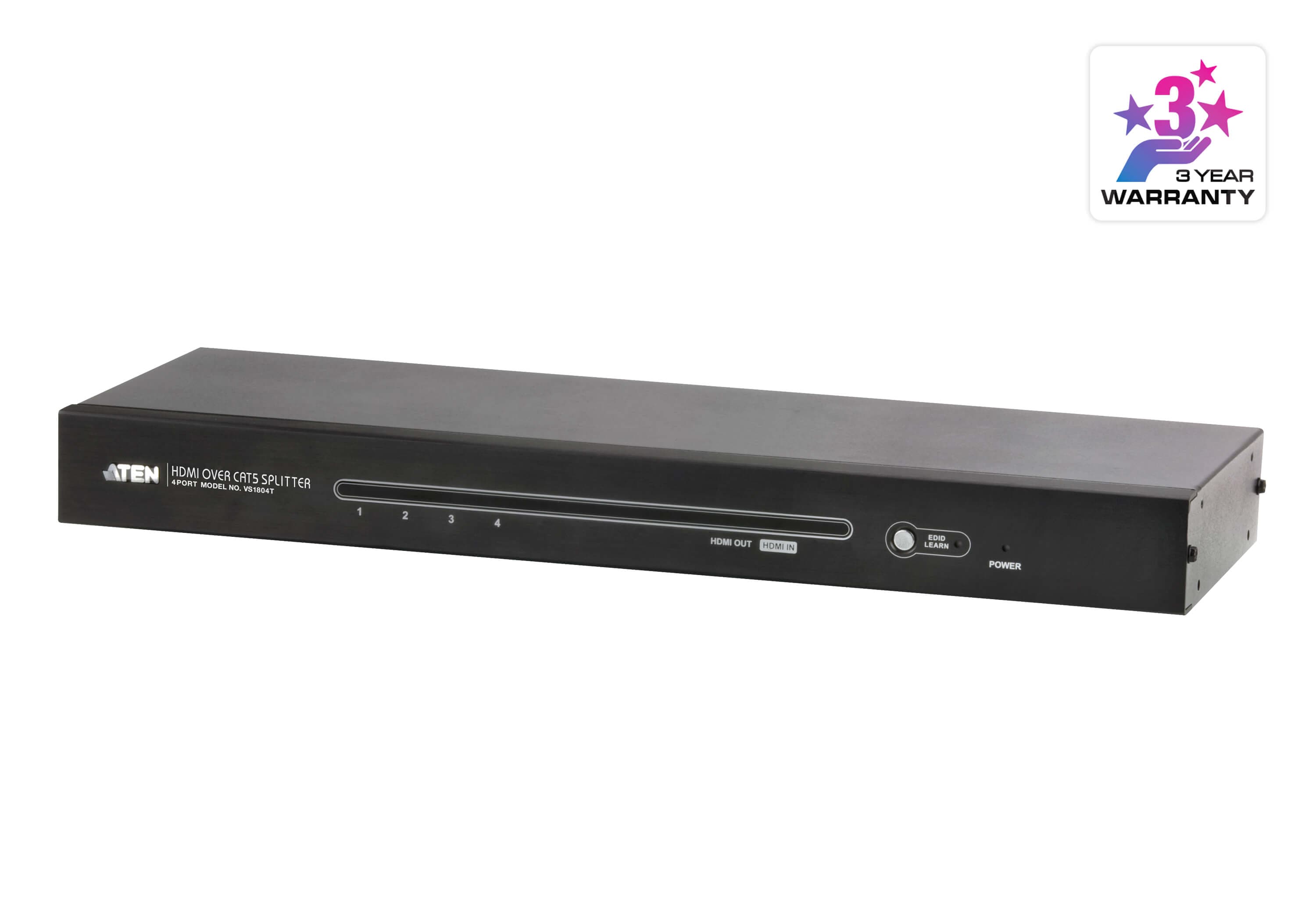

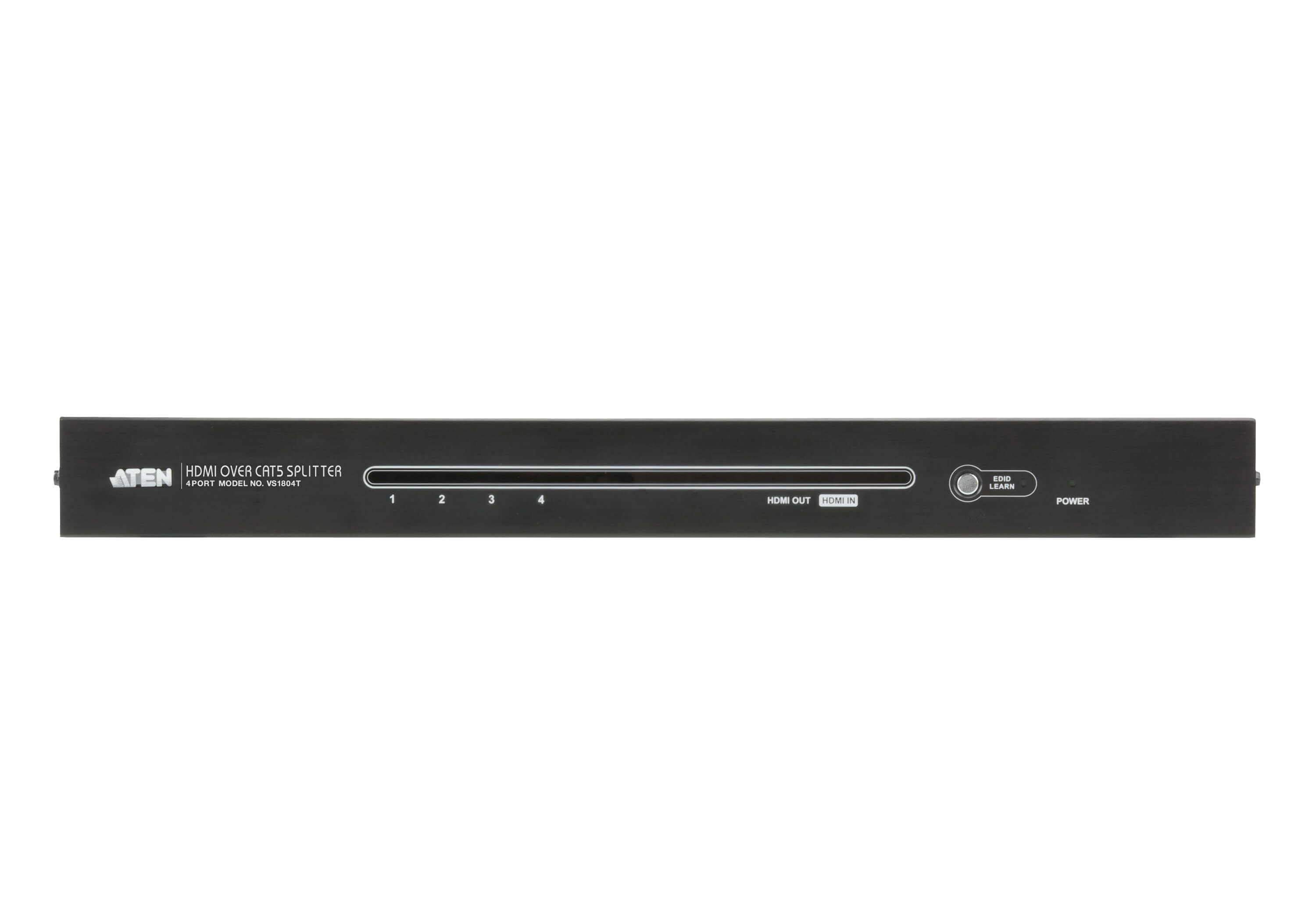

HDMI сплитер по Cat 5e — подава сигнала от един източник към 4 отдалечени дисплея на разстояние до 60 m, плюс локален HDMI изход. Поддържа 3D и Deep Color.
Характеристики
- One HDMI input to 4 HDMI outputs via Cat 5e cables
- Extends displays up to 60 m
- Supports HDMI (3D, Deep color)
- Supports Dolby True HD and DTS HD Master Audio
- Offers local HDMI output
- HDCP compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- Features RS-232 serial port for command controls *

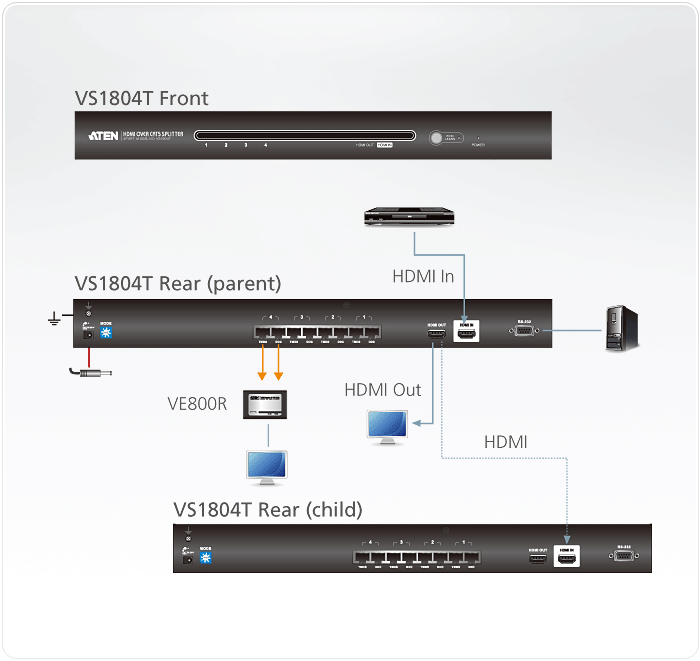

- Cascadable to three levels
- Supports superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
- EDID mode selection
- Rack-mountable Note: The VS1804T AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Видео вход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 1.8 m
Видео изход
- Интерфейси

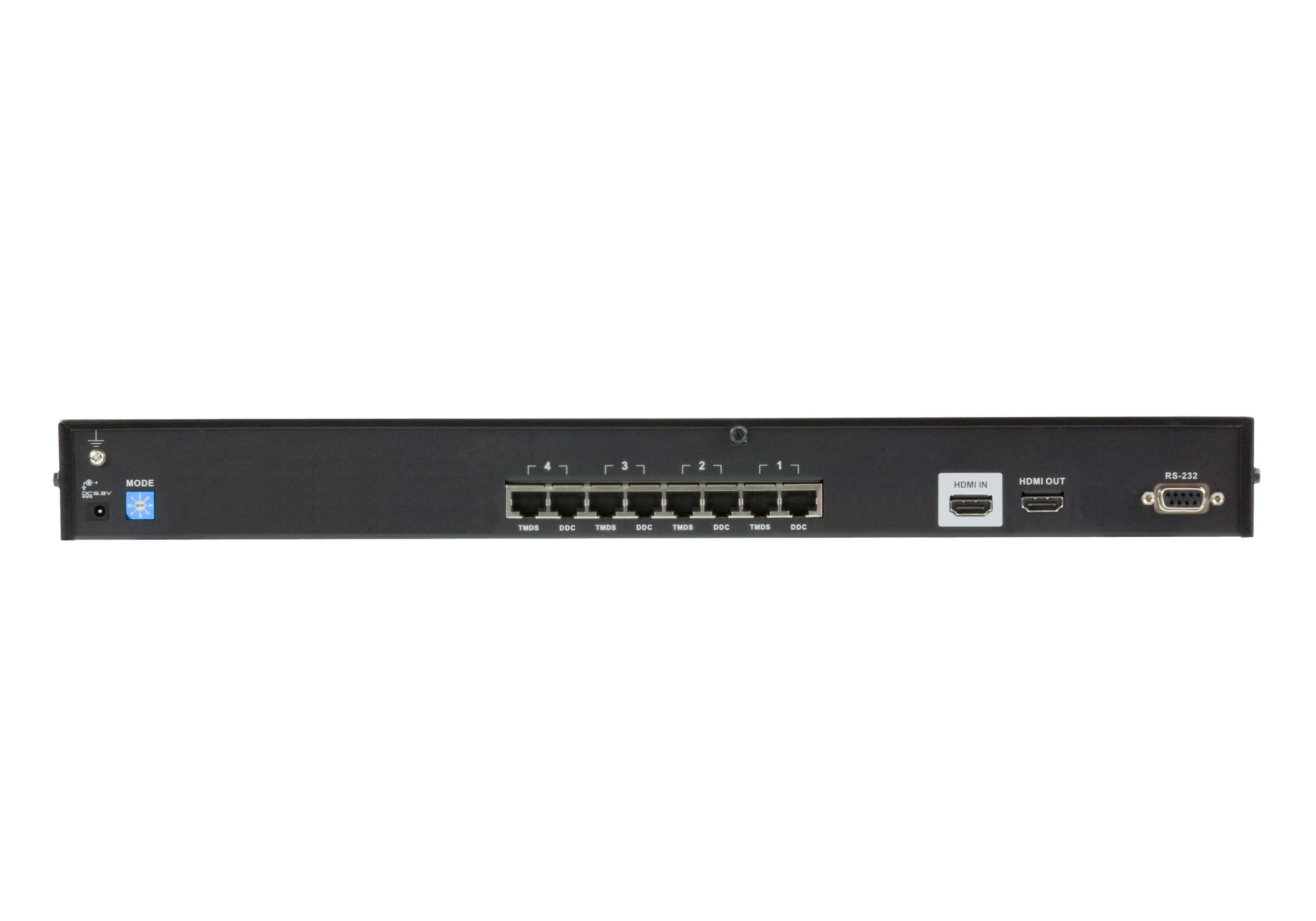

- 1 x HDMI Type A Female (Black) - Local Output 4 x RJ-45 Female
- Импеданс
- 100 Ω
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D, Deep Color) HDCP Compatible Consumer Electronics Control (CEC)
- Макс. резолюция
- Up to 1080p (Depends on connected receiver)
- Макс. разстояние
- Up to 60 m (Depends on connected receiver)
Аудио
- Вход
- 1 x HDMI Type A Female (Black)
- Изход
- 1 x HDMI Type A Female (Black)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- EDID настройки
- EDID Mode: Default / Port 1 / Learn
Конектори
- Захранване
- 1 x DC Jack (Black)
- Консумация
- DC5.3V:5.2W:24BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.10 kg ( 4.63 lb )
- Размери (Д x Ш x В)
- 43.72 x 15.78 x 4.40 cm (17.21 x 6.21 x 1.73 in.)
- Брой в кашон
- 3 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
