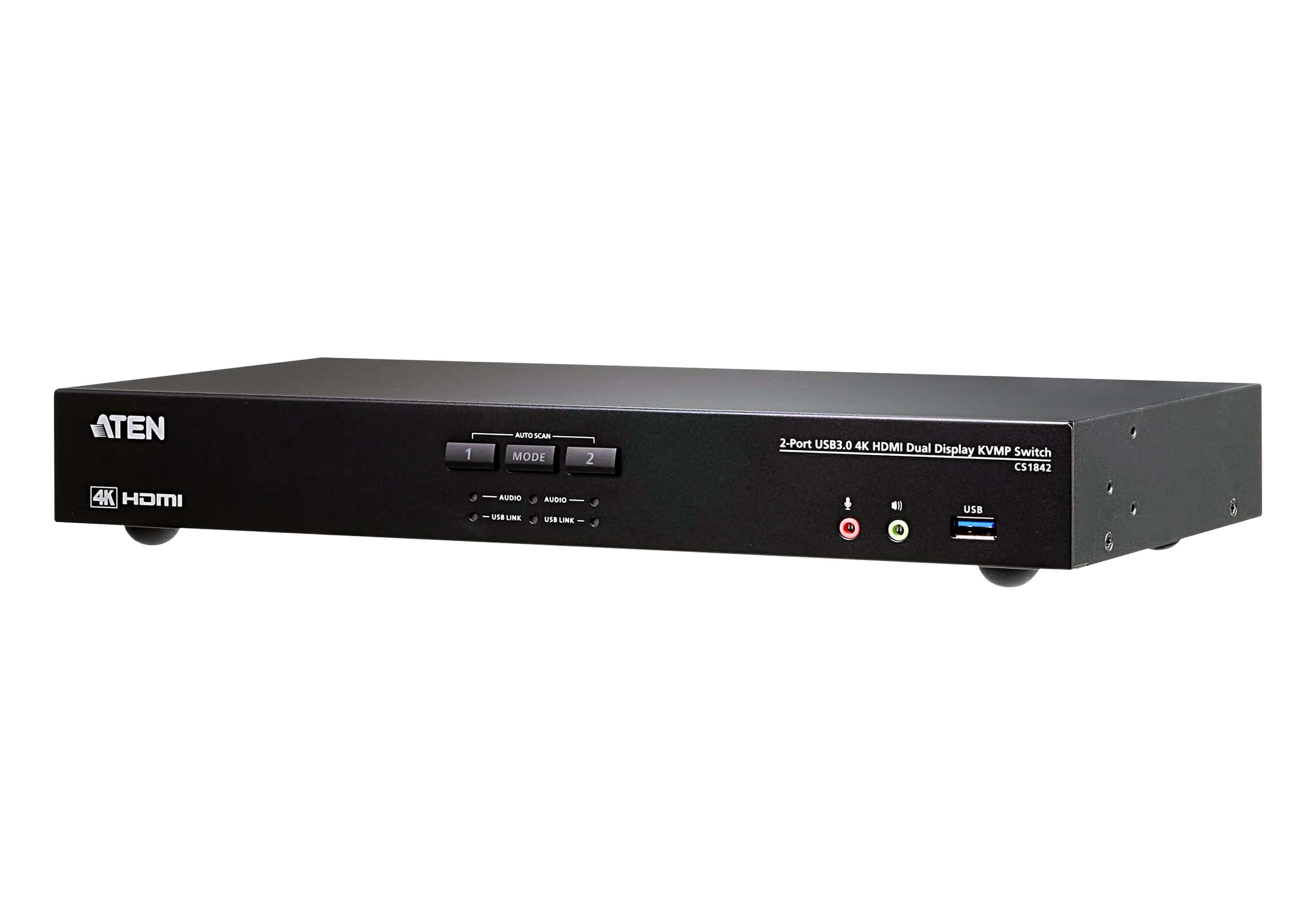

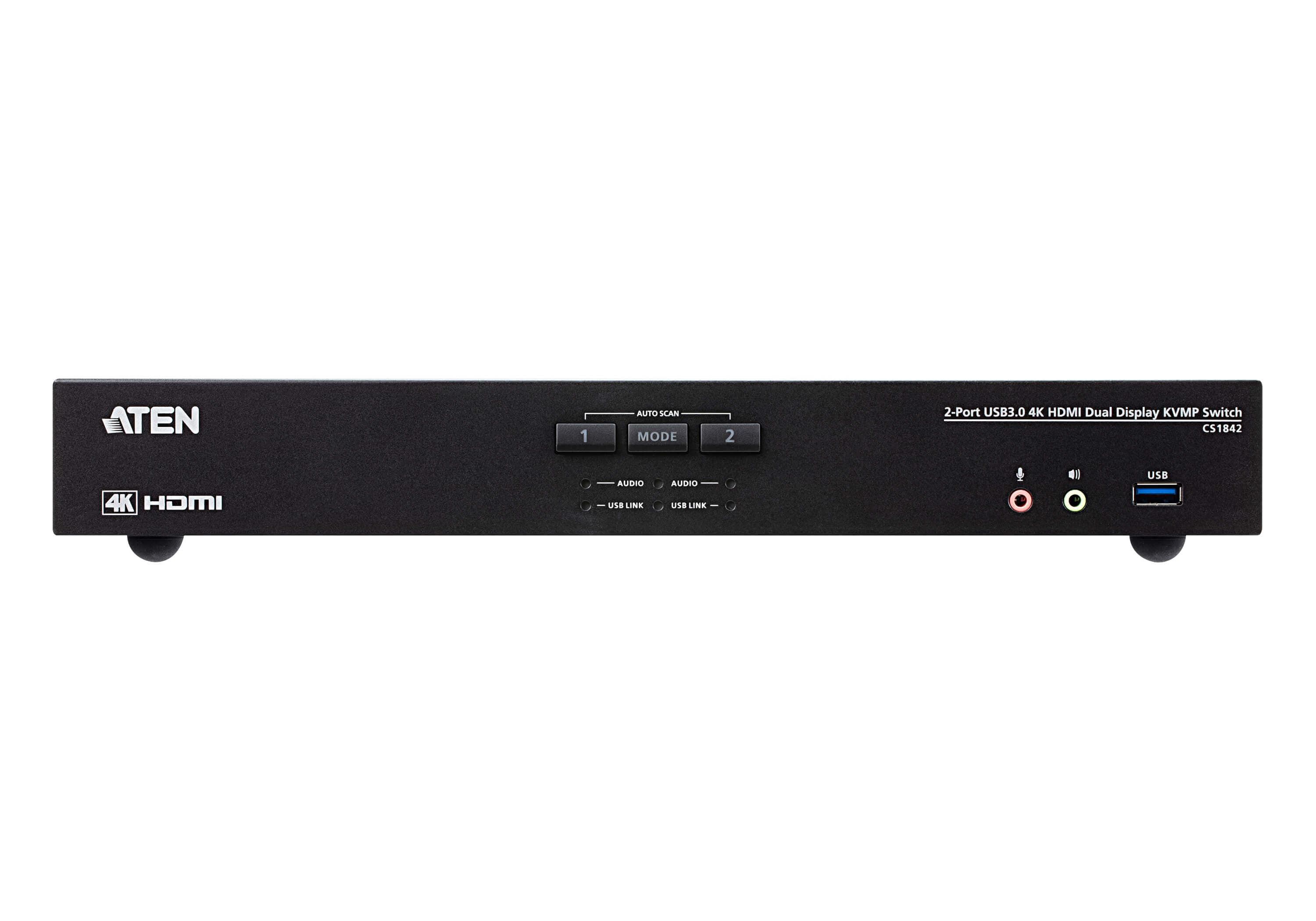

2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
CS1842
Свързва два компютъра с по два HDMI изхода към обща конзола с два монитора при 4K@60Hz. Вграденият USB 3.0 хъб споделя две периферни устройства между компютрите.
Характеристики
- One USB keyboard, mouse and two HDMI monitors control two HDMI computers and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM switches
- Video DynaSync™ – an exclusive ATEN technology that optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports
- Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
- Computer selection via pushbuttons, hotkeys, mouse1, remote port selector, and RS-232 commands2
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports console keyboard emulation / bypass feature
- Supports console mouse emulation / bypass feature
- Independent switching of KVM, USB peripheral, and stereo audio focus3
- Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
- HDMI compliant; HDCP compliant
- Supports HD audio3
- Power on detection
- Auto Scan Mode for monitoring all computers
- Firmware upgradable Note: 1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice. 2. Slide the DCC switch to the s position to allow the KVM switch to receive RS-232 commands via an RJ-45 to DB-9 cable. Please refer to the CS1842/CS1844 user manual. 3. HD audio through HDMI channel cannot be switched independently.
Спецификация
- Връзки към компютри
- 2
- Избор на порт
- Hotkey, Pushbutton, Mouse, RS-232 Commands, Remote Port Selector

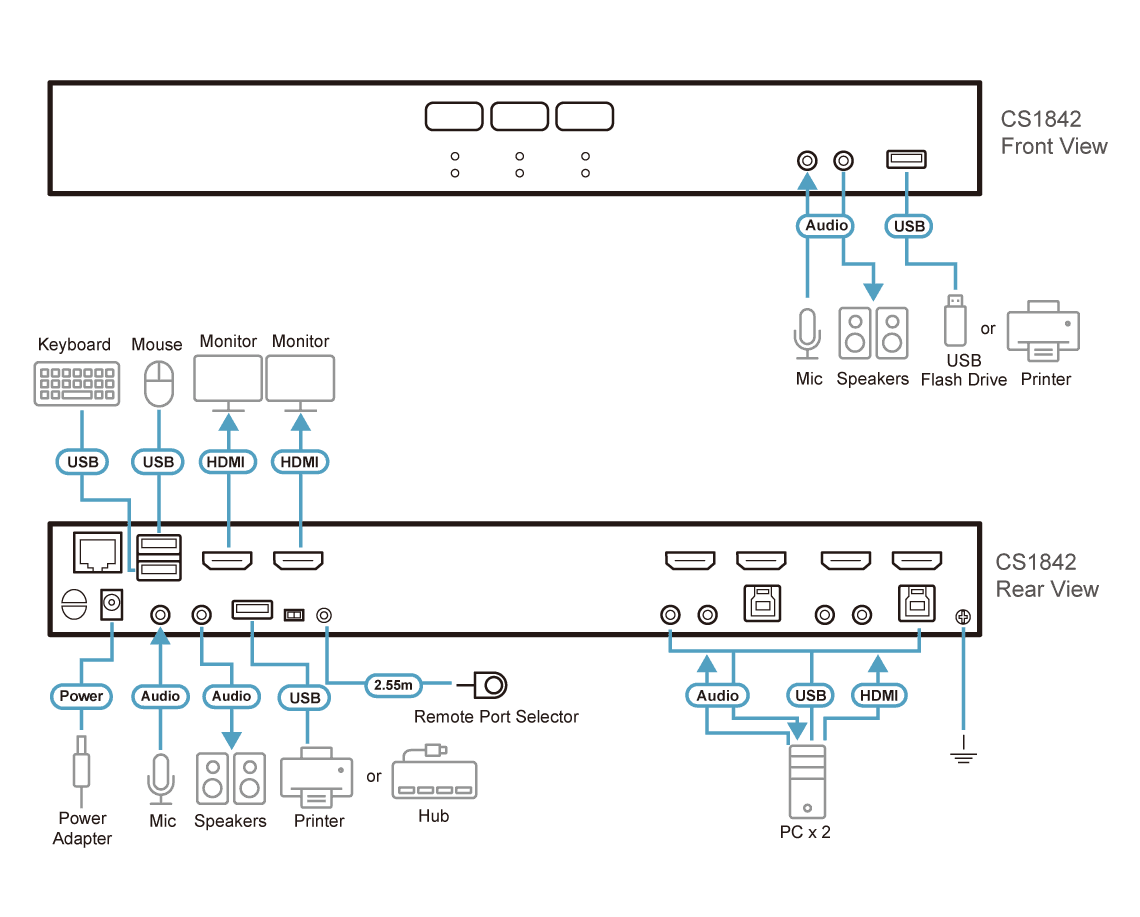

Конектори
- Конзолни портове
- 2 x USB Type A Female 2 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

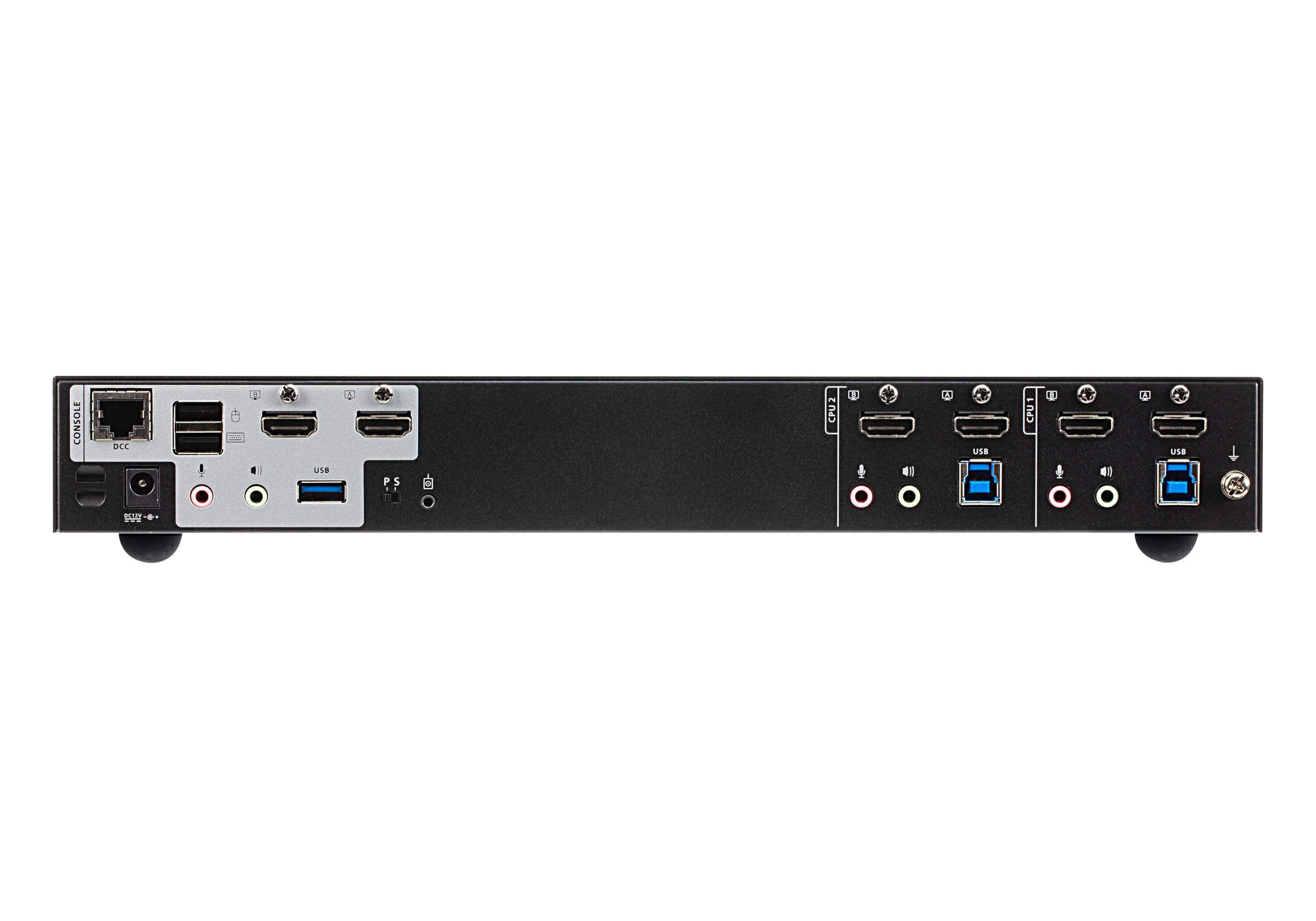

- KVM портове (компютри)
- 2 x USB3.1 Gen1 Type B Female (Blue) 4 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
- Daisy Chain портове
- 1 x RJ-45 Female
- Дистанционен избор на порт
- 1 x 2.5mm Audio Jack Female
- Захранване
- 1 x DC Jack
- USB хъб
- 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Бутони и превключватели
- Избран
- 3 x Pushbutton
- Избор на станция
- 1 x Slide Switch
Индикатори
- Онлайн / избран
- 3 (Orange)
- USB връзка
- 3 (Green)
- Аудио
- 3 (Green)
Емулация
- Клавиатура / мишка
- USB
- Видео
- Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
- Интервал на сканиране
- 1-99 Seconds (Default: 5 sec.)
- Консумация
- DC12V:3.17W:57BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.60 kg ( 3.52 lb )
- Размери (Д x Ш x В)
- 33.50 x 16.05 x 4.40 cm (13.19 x 6.32 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
