2-Port VGA Splitter Wall Plate (350MHz)

Name: 2-Port VGA Splitter Wall Plate (350MHz)
Brand: ATEN
SKU: VS132

VS132Снет от производство

VGA сплитер за стенен монтаж, който дублира един аналогов сигнал към два изхода; честотна лента до 350 MHz, каскадира се до три нива за 8 сигнала.

Характеристики

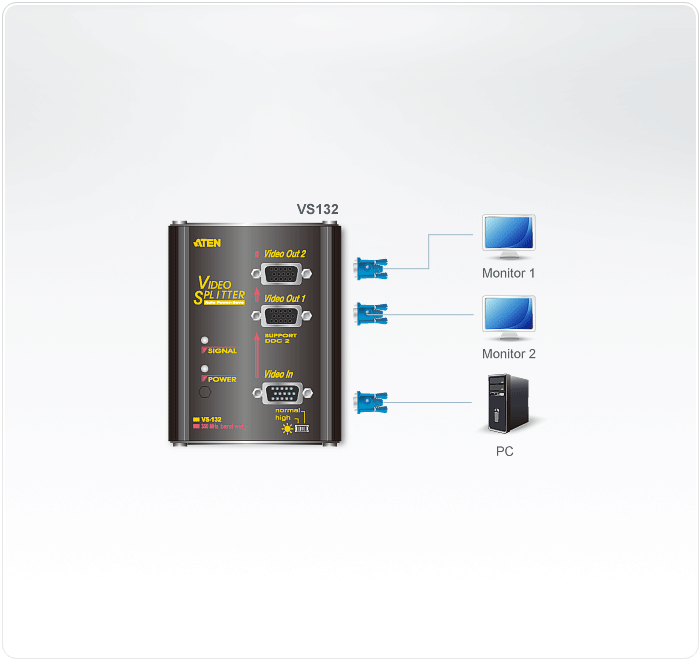

One video input to two video outputs
Cascadable to three levels – provides up to 8 video signals
Supports up to 350 MHz bandwidth
Long Distance Transmission – up to 65 m (210 ft) *
Superior video quality – 1920 x 1440
DDC, DDC2, DDC2B Compatible (Port 1 only*)
Supports VGA, SVGA, XGA, UXGA, QXGA, WUXGA and multisync monitors Note: If you connect a DDC type monitor to Video Out 1, all other monitors must be able to support the highest video resolution that the DDC monitor can provide. * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

Захранване: 1 x DC Jack
Консумация: DC5.3V:0.42W:2BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Тегло: 0.19 kg ( 0.42 lb )
Размери (Д x Ш x В): 10.36 x 7.90 x 2.82 cm (4.08 x 3.11 x 1.11 in.)
Брой в кашон: 20 pcs
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
