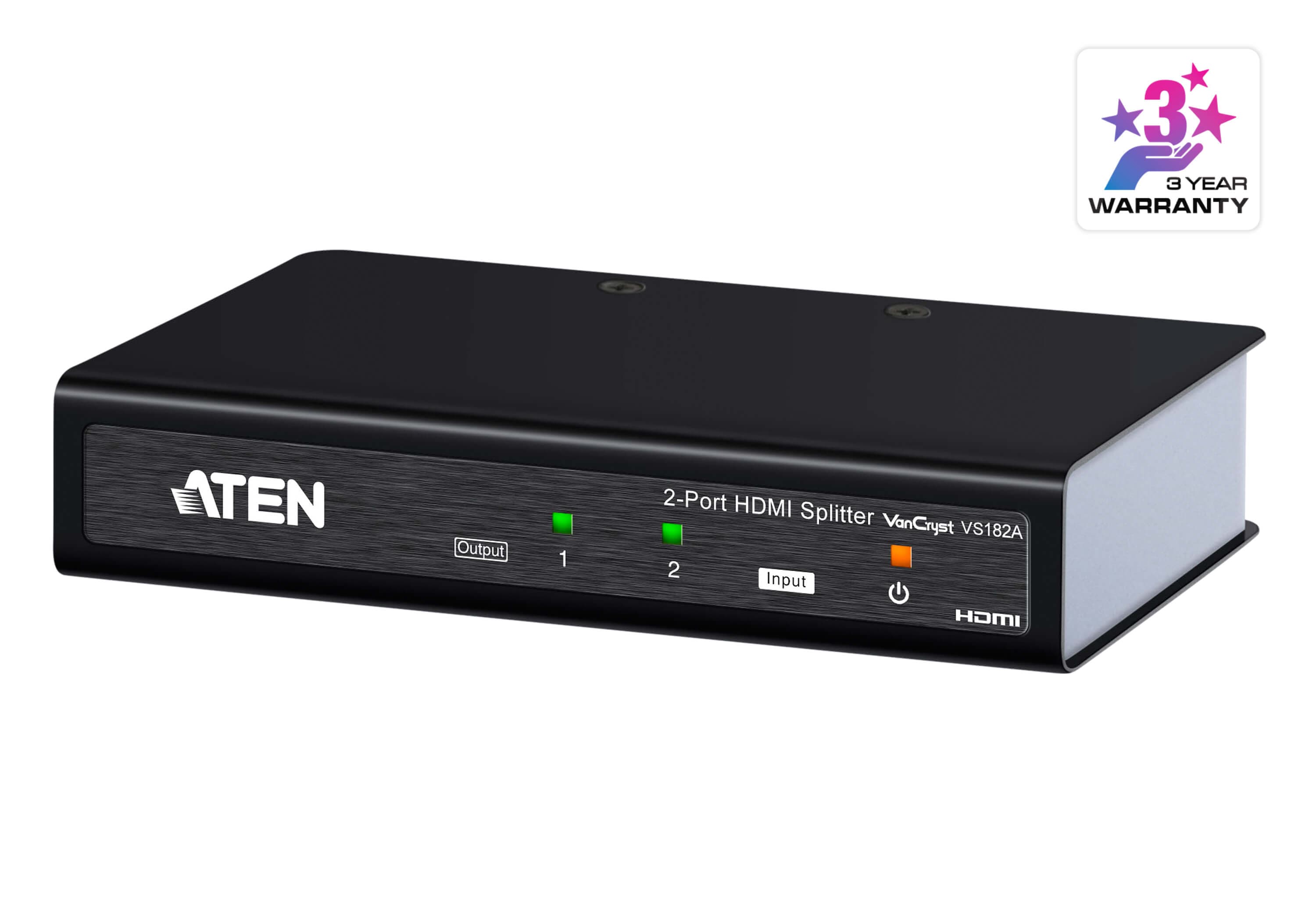

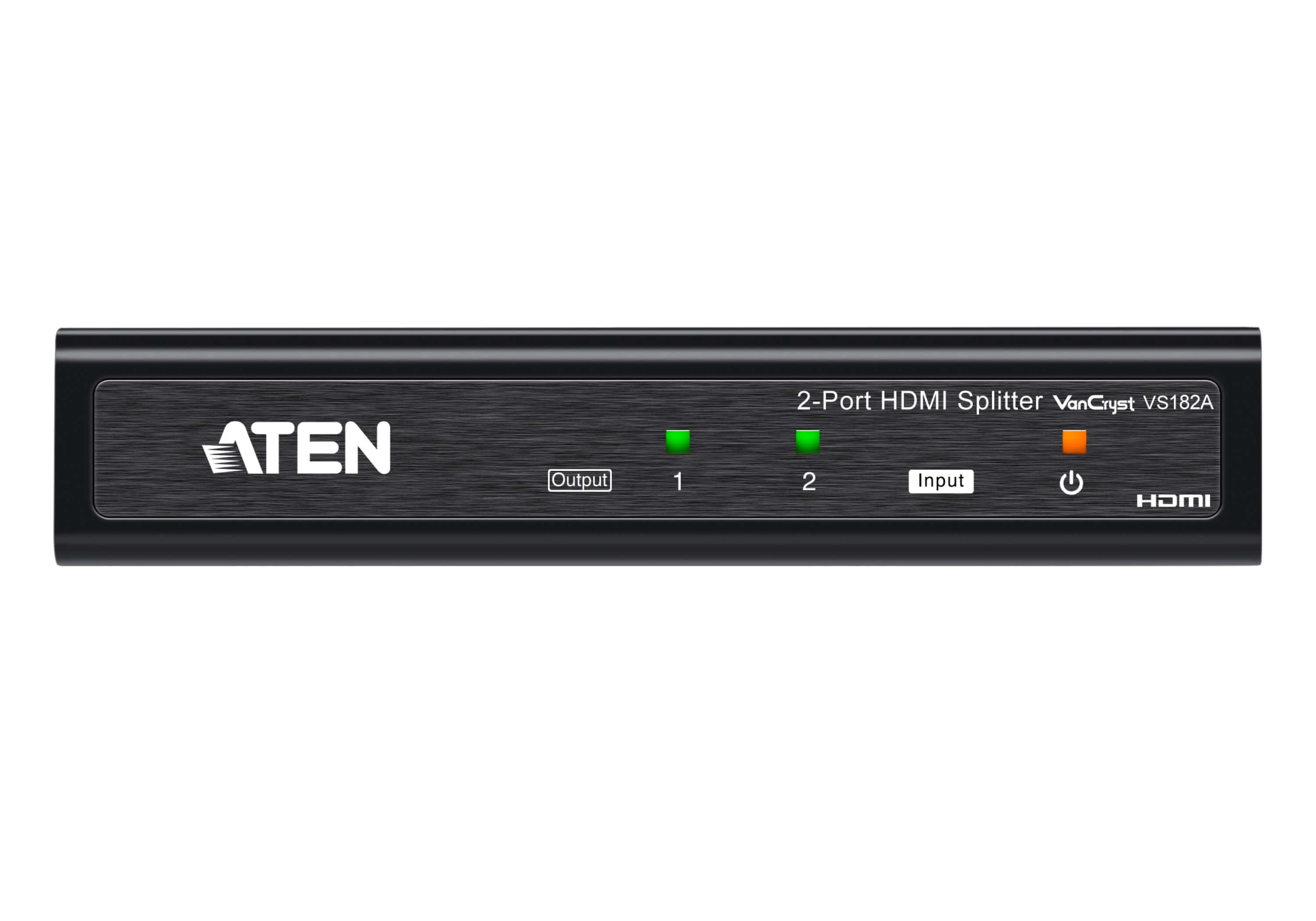

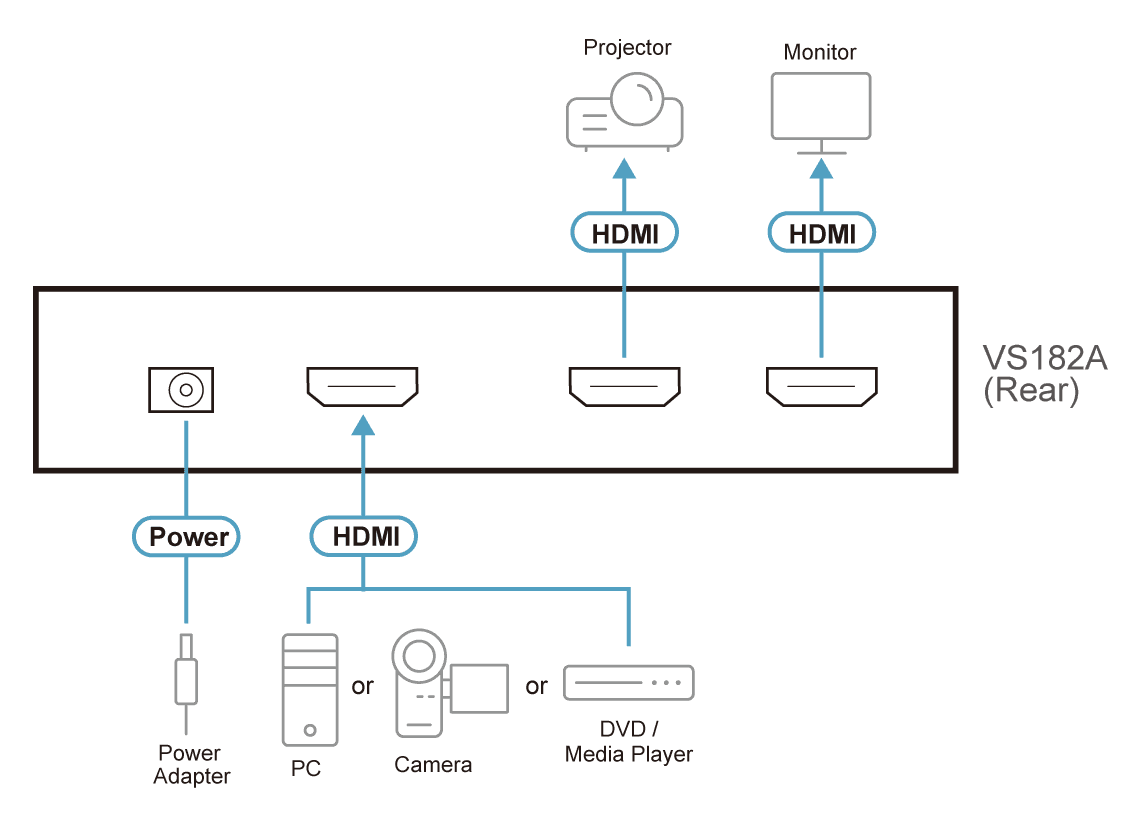

HDMI сплитер, който подава един източник към 2 дисплея едновременно. Поддържа 4K до 3840x2160@30Hz с изходен кабел до 15 m; съвместим с HDCP, 3D и Deep Color.
Характеристики
- Connects one HDMI source to two HDMI displays at the same time
- HDMI (3D, Deep Color, 4K); HDCP Compatible
- Supports resolutions of up to Ultra HD 4k x 2k
- Supports Dolby True HD and DTS HD Master Audio
- Long distance transmission – up to 15 m (24 AWG)
- Supports max. data rate of 10.2 Gbps
- Plug-and-play – no software installation required Note: Long distance transmission up to 20m (with ATEN 2L-7D20H)
Видео вход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 3m @3840x2160@30Hz (4:4:4)
Видео изход
- Интерфейси
- 2 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 15m @3840x2160@30Hz (4:4:4)
Видео
- Макс. скорост на данните
- 10.2 Gbps (3.4 Gbps Per Lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K); HDCP Compatible
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Аудио
- Вход
- 1 x HDMI Type A Female (Black)
- Изход
- 2 x HDMI Type A Female (Black)

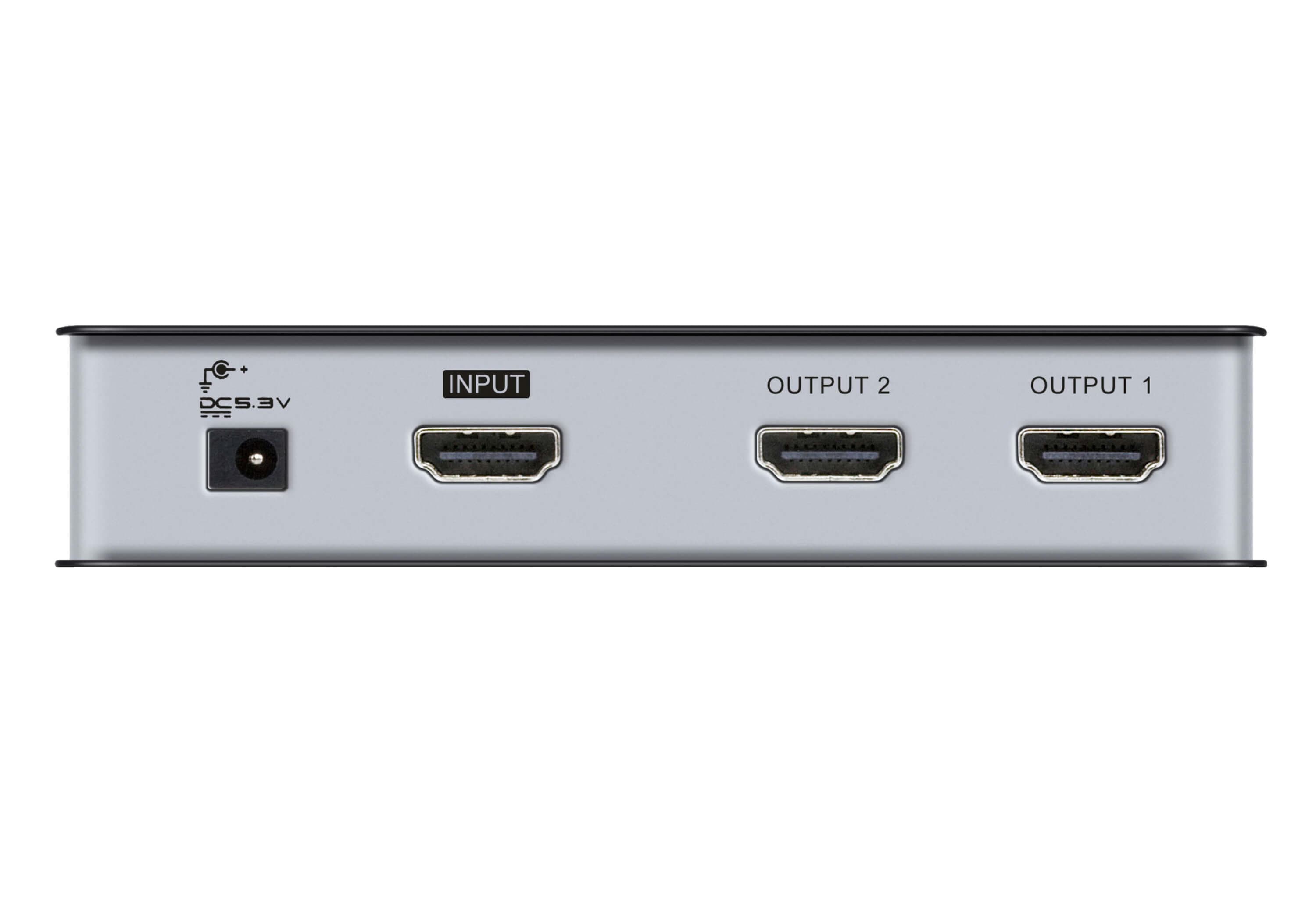

Конектори
- Захранване
- 1 x DC Jack
Работна среда
- Работна температура
- 0-50 °C
- Температура на съхранение
- -20 - 60 °C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.31 kg ( 0.68 lb )
- Размери (Д x Ш x В)
- 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
- Брой в кашон
- 20 pcs
- Консумация
- DC5.3V:3.12W:15BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
