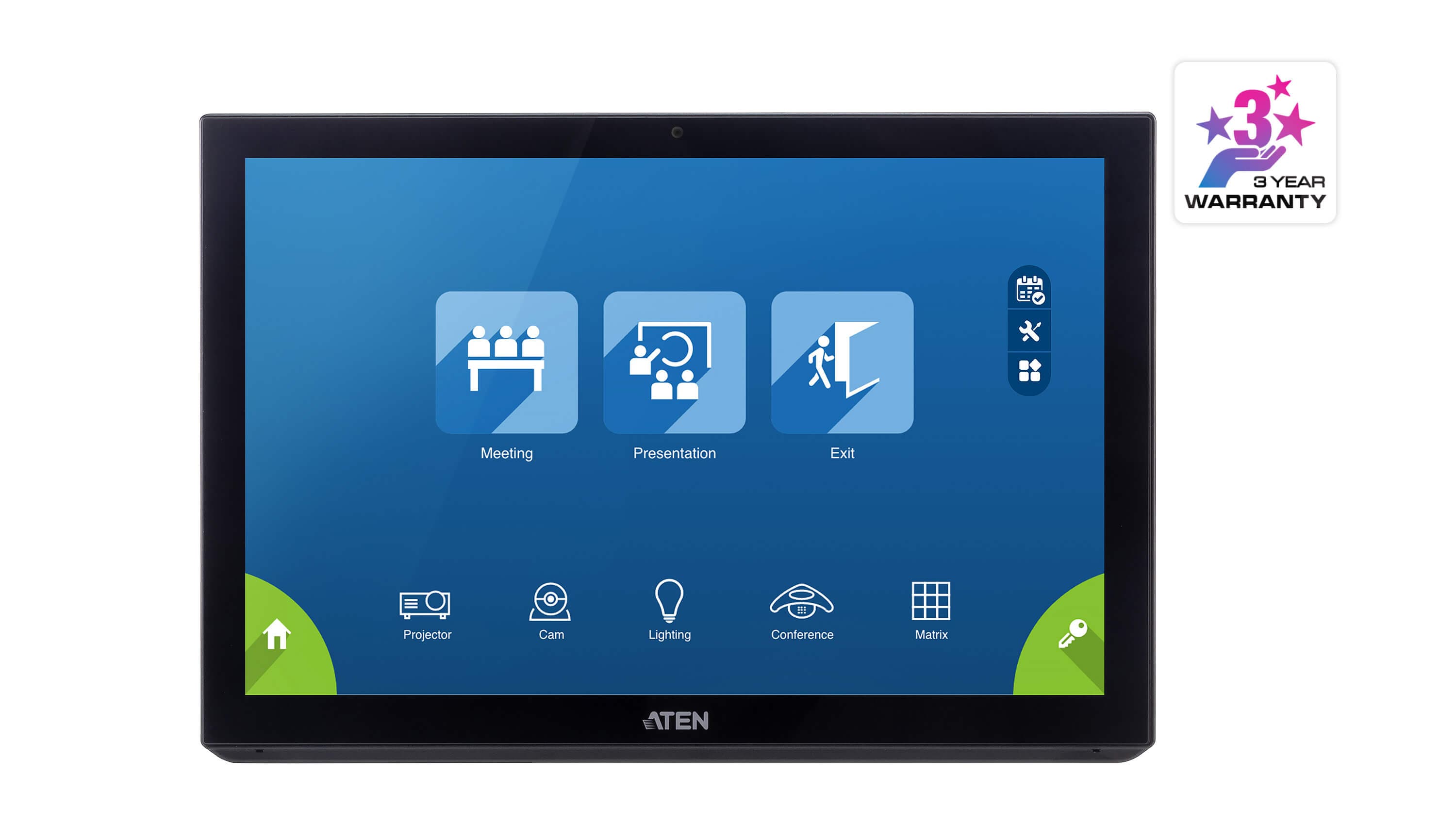

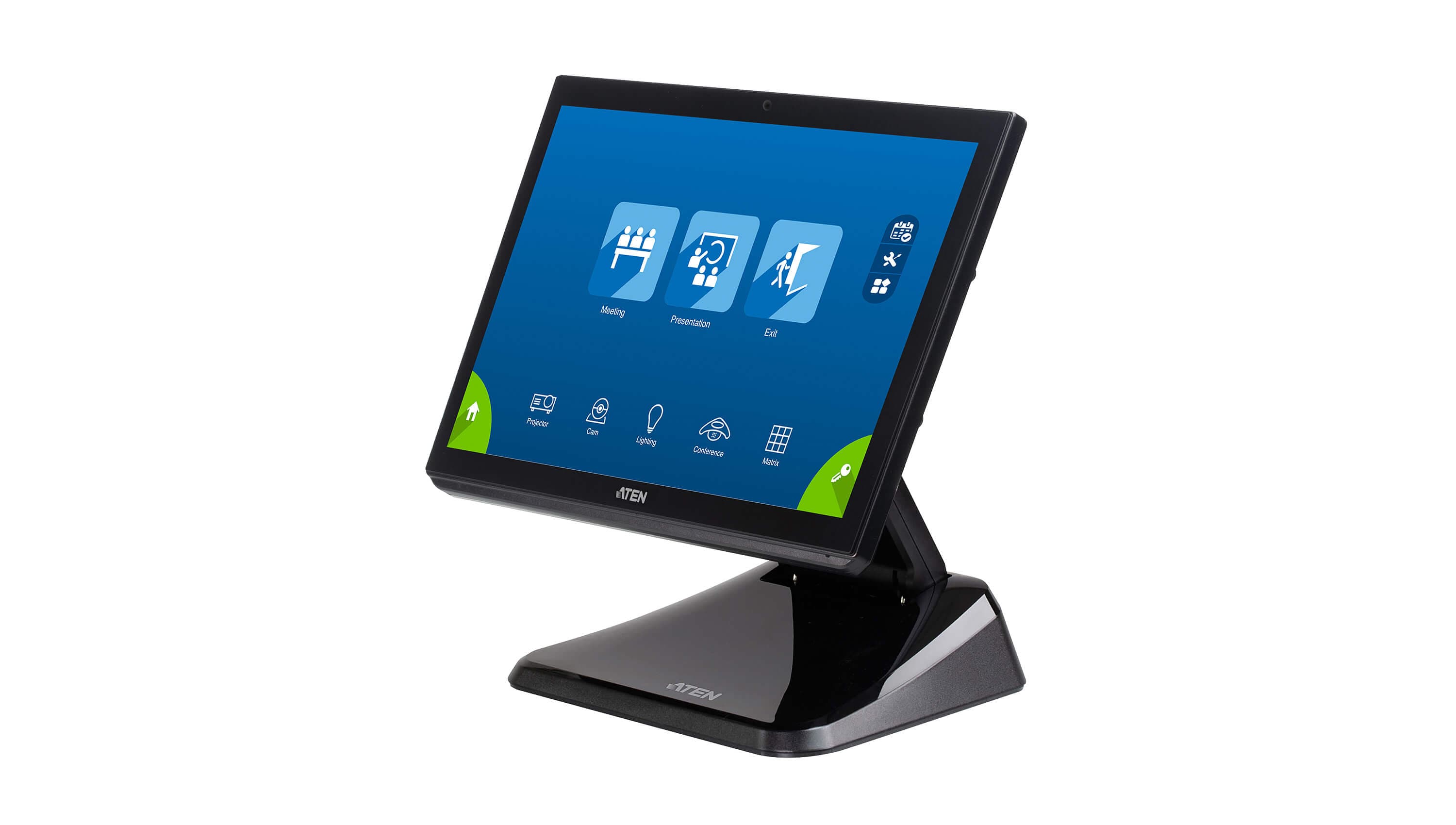

10.1-инчов сензорен панел (1280 x 800) за централизирано управление на AV системи в няколко помещения чрез профили. Четириядрен процесор, 4GB RAM и 32GB памет; синхронизира се с други панели и мобилни устройства.
Характеристики
- Allows administrators for central control of multiple rooms via profiles
- Restricts user access to profiles via password authentication
- Synchronization of system control among multiple ATEN Touch Panels, mobile devices, and tablets
- Screen Saver – helps energy saving and prolongs the lifetime of the touch screen
- Real-Time Video Preview – displays real-time feeds from IP cameras and ATEN VE89 transmitters* via RTSP/ONVIF, enabling preview and seamless video source switching from the panel
- AppSwitcher – enables quick switch between windows of different third-party apps running *Function only applicable to VK2200 / VK1200.
- Shows room usage and operating status in real-time
- Allows for room reservation, check-in/out, and room reservation extension from the panel

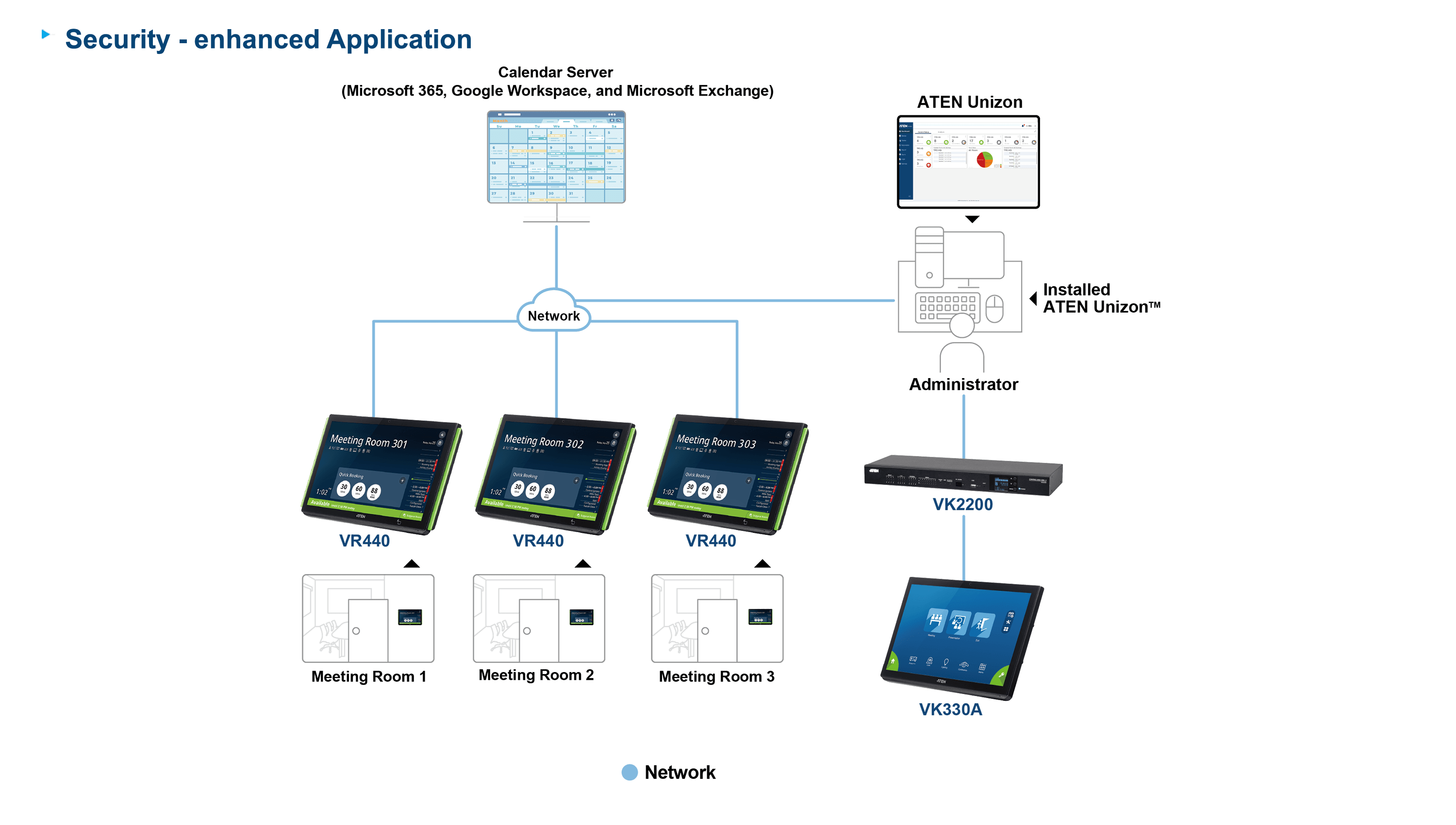

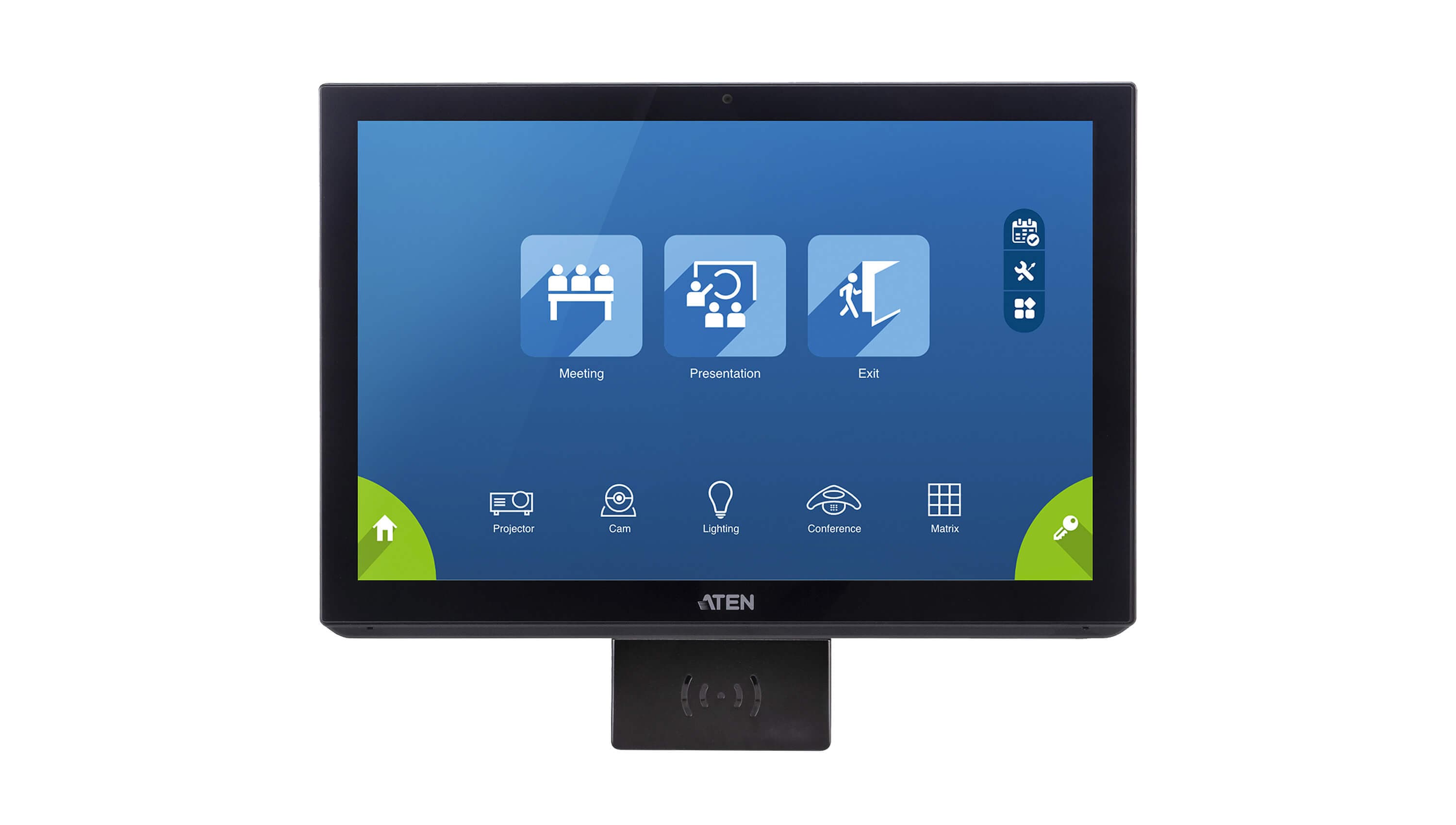

- Supports VK401 Access Inspector to enable exclusive card-access functionality – only authorized users can scan cards to book and check in meeting rooms and facilitate conference room automation.
- Allows on-screen request for cleaning / catering / repair / replacement or report of any issue occurs to the in-room equipment
- Notifications of requests are sent in real-time to administrators and are trackable on the Unizon platform
- The proximity and light sensor adjusts screen brightness in response to ambient lighting, enhancing readability and conserving power.
- Reduces bezel interference for easy viewing and a sleek aesthetic that complements any guest-facing settings
- Enables data transmission while receiving power over an Ethernet cable to help simultaneously reduce installation costs and power consumption

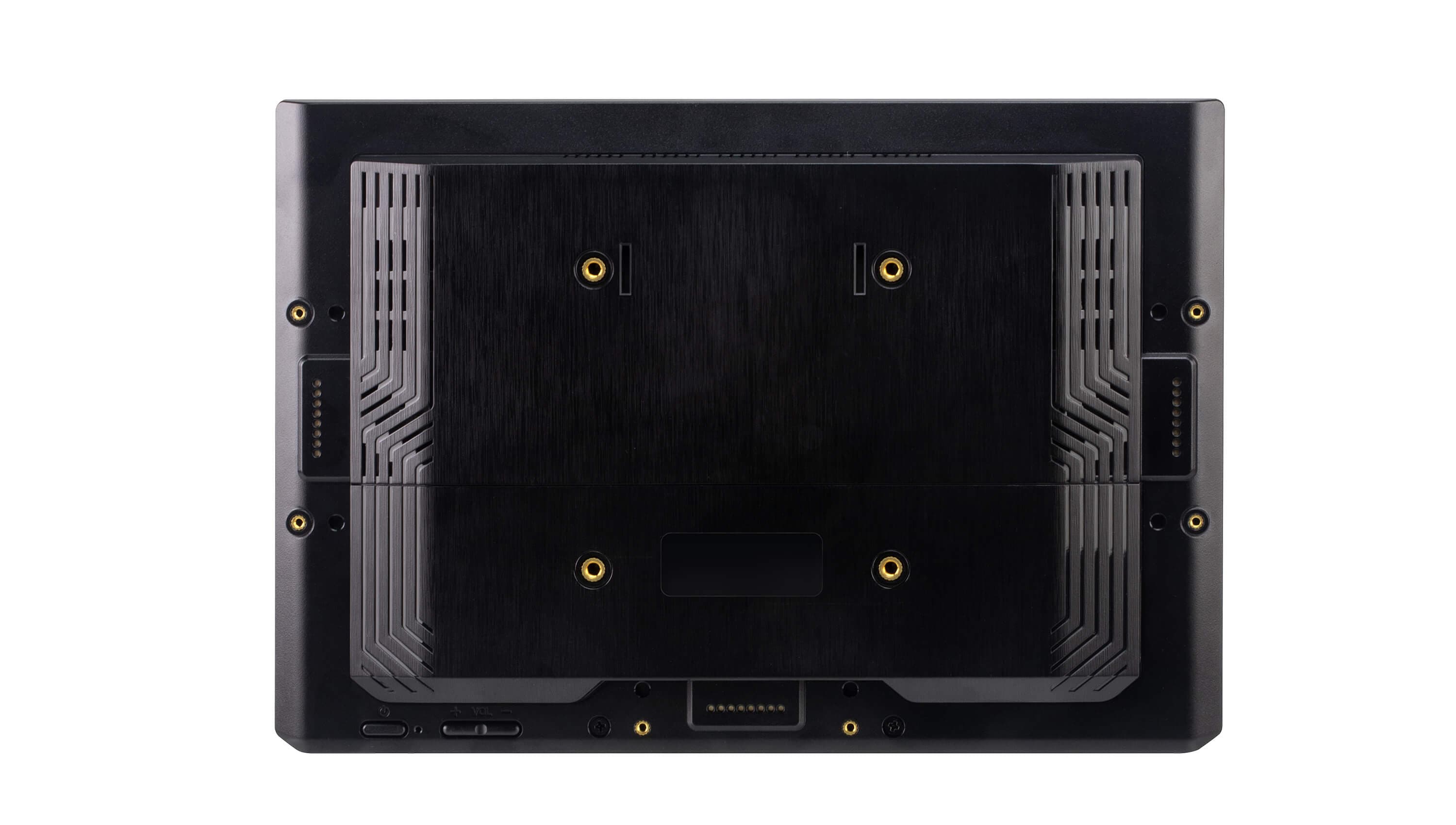

- Flexible mounting methods tailored to your space via ATEN VK302 wall mount kit, VK304 tabletop kit, or any standard VESA 75 x 75 mm mounts.
Спецификация
- Процесор
- Quad-core
Памет
- SDRAM
- 4GB
- Flash памет
- 32GB
Панел
- Тип дисплей
- TFT-LCD
- Сечение
- 10.1"
- Сензорен екран
- Capacitive
- Резолюция
- 1280 x 800
- Съотношение
- 16 : 10
- Дълбочина на цвета
- 8 bit
- Контраст
- 1000 : 1
- Подсветка
- LED
- Зрителен ъгъл
- ± 85° (H), ± 85° (V)
- Яркост
- 450 cd/m²
Интерфейси
- Ethernet
- 1 x RJ-45 Female, 10 / 100 / 1000 BaseT
- USB
- 1 x USB Type A 1 x USB Type C
- Други
- 1 x Light Sensor 1 x Proximity Sensor
Захранващи входове
- Power over Ethernet (PoE)
- 802.3af PoE
- Консумация
- DC12V:8.88W:30.3BTU/h POE:10.51W:35.86BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 – 40°C
- Температура на съхранение
- –10 – 55°C
- Влажност
- 10 - 70% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.57 kg ( 1.26 lb )
- Размери (Д x Ш x В)
- 24.30 x 16.70 x 2.40 cm (9.57 x 6.57 x 0.94 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
