8-инчов тъч панел с капацитивен IPS дисплей 1280 x 800, четириядрен процесор, 2 GB RAM и 32 GB памет. Идва с приложението ATEN Control System и се интегрира с ATEN Unizon и Room Booking.

Характеристики

  • 8” touch panel with narrow bezel modern design
  • Natively installed with ATEN Control System app and designed for the integrated use with ATEN Control System
  • Supports AppSwitcher to allow multiple apps to be switched and operated
  • Integrated with ATEN Unizon and ATEN Room Booking system to display room usage and operating status
  • Allows administrators for central control of multiple rooms via profiles
  • Restricts user access to profiles via password authentication
  • Synchronization of system control among multiple ATEN Touch Panels, mobile devices, and tablet computers
  • Demo mode enables demonstration without connecting a controller while familiarizing users with the solution’s most important functions
  • Screen Saver helps energy saving and prolongs the device lifetime
  • Allows for Display Real-time Streaming Protocol (RTSP), ONVIF, and ATEN VE89 series video preview*
  • Supports Power over Ethernet (PoE), which allows it to receive power and data over a single Ethernet cable
  • Side power LED – features the indicator in the dark place

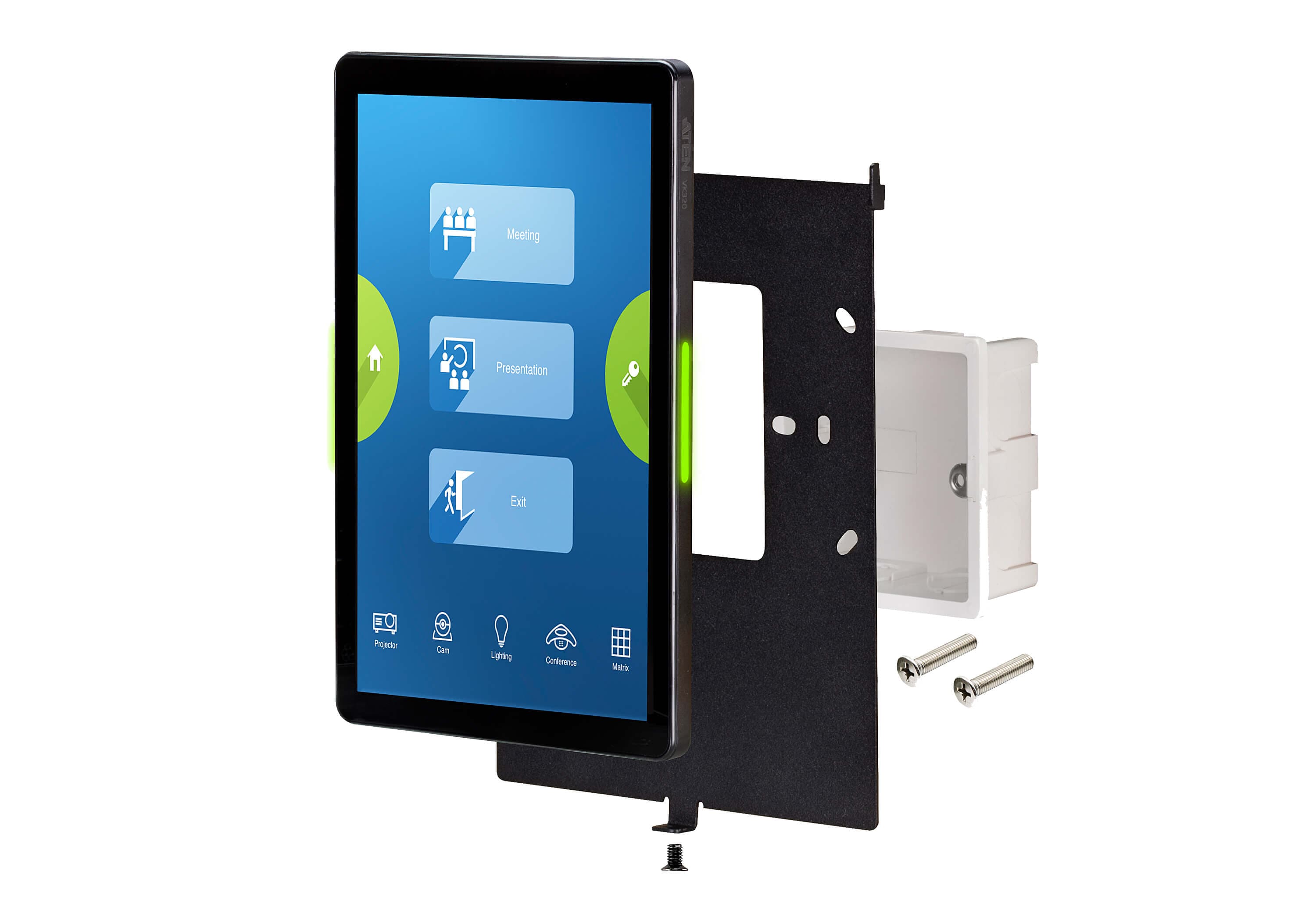

  • In-wall design – perfectly fits in building decoration

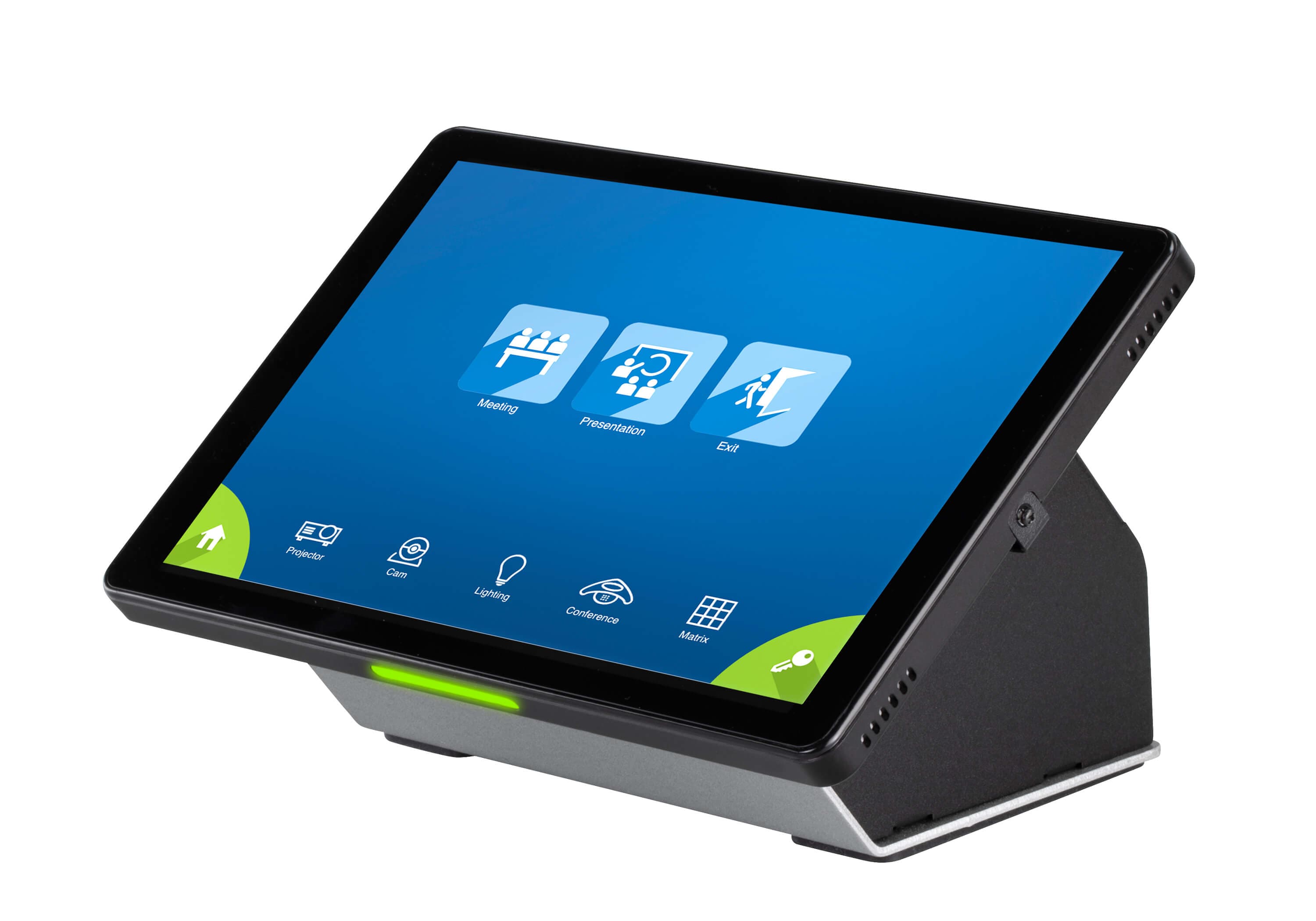

  • Compatible with VK101 and VK102 Tabletop Kits for desk mounting and wall mounting *Note: The function is applicable to VK2200 / VK1200.

Спецификация

Процесор
Quad-core

Памет

SDRAM
2GB
Flash памет
32GB

Панел

Тип дисплей
IPS-LCD
Сечение
8"
Сензорен екран
Capacitive
Резолюция
1280 x 800
Съотношение
16 : 10
Дълбочина на цвета
8 bit
Контраст
800 : 1
Подсветка
LCD
Зрителен ъгъл
± 85° (H), ± 85° (V)
Яркост
300 cd/m²

Интерфейси

Ethernet
1 x RJ-45 Female, 10 / 100 BaseT
USB
1 x USB Type C

Захранващи входове

Power over Ethernet (PoE)
802.3 at PoE+
Консумация
DC12V:12W:40.95BTU/h POE:14.1W:48.1BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура
0 – 40°C
Температура на съхранение
–10 – 55°C
Влажност
10 - 75% RH, Non-Condensing

Физически характеристики

Корпус
Plastic
Тегло
0.33 kg ( 0.73 lb )
Размери (Д x Ш x В)
20.01 x 12.46 x 3.77 cm (7.88 x 4.91 x 1.48 in.)
Забележка
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
