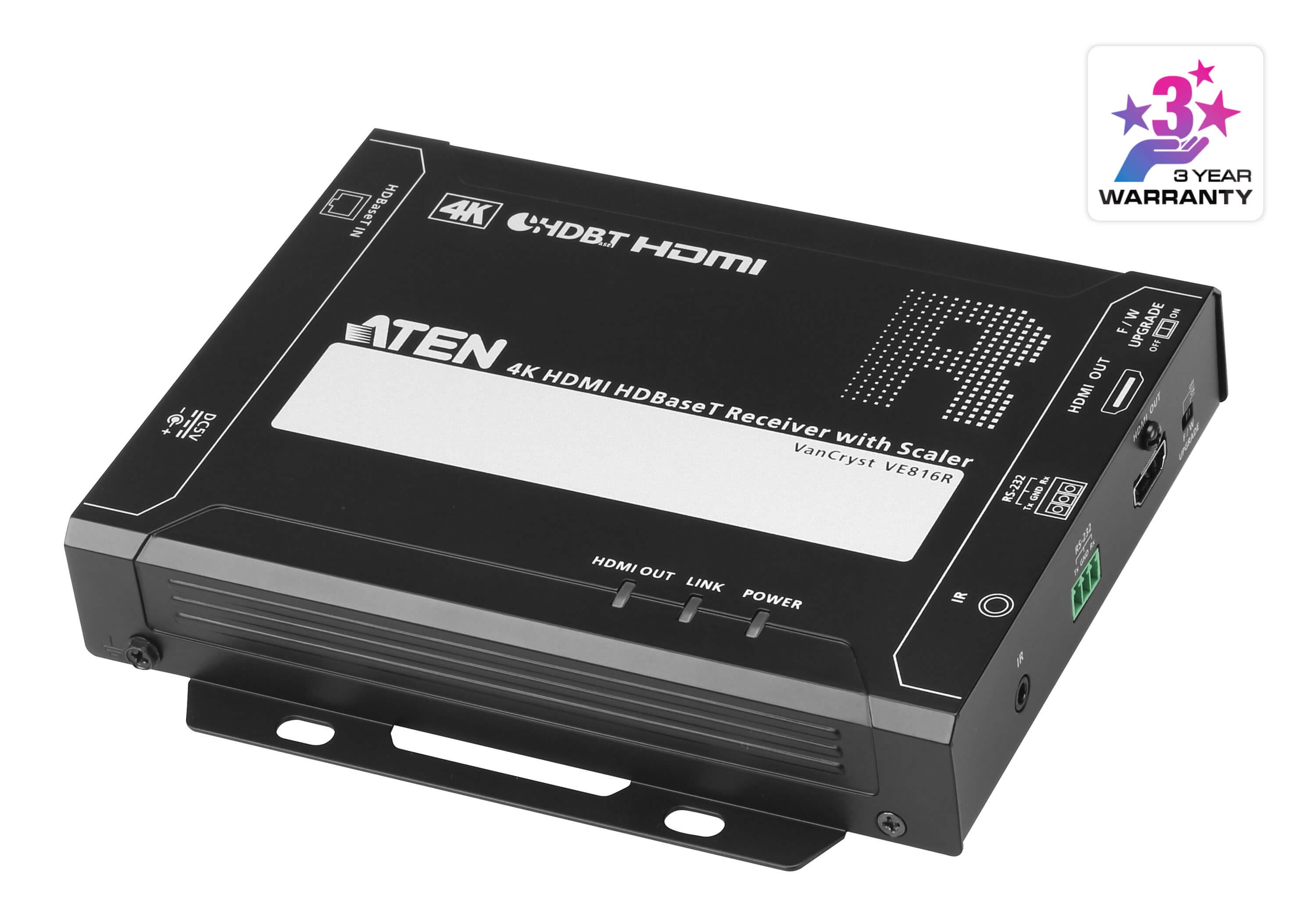

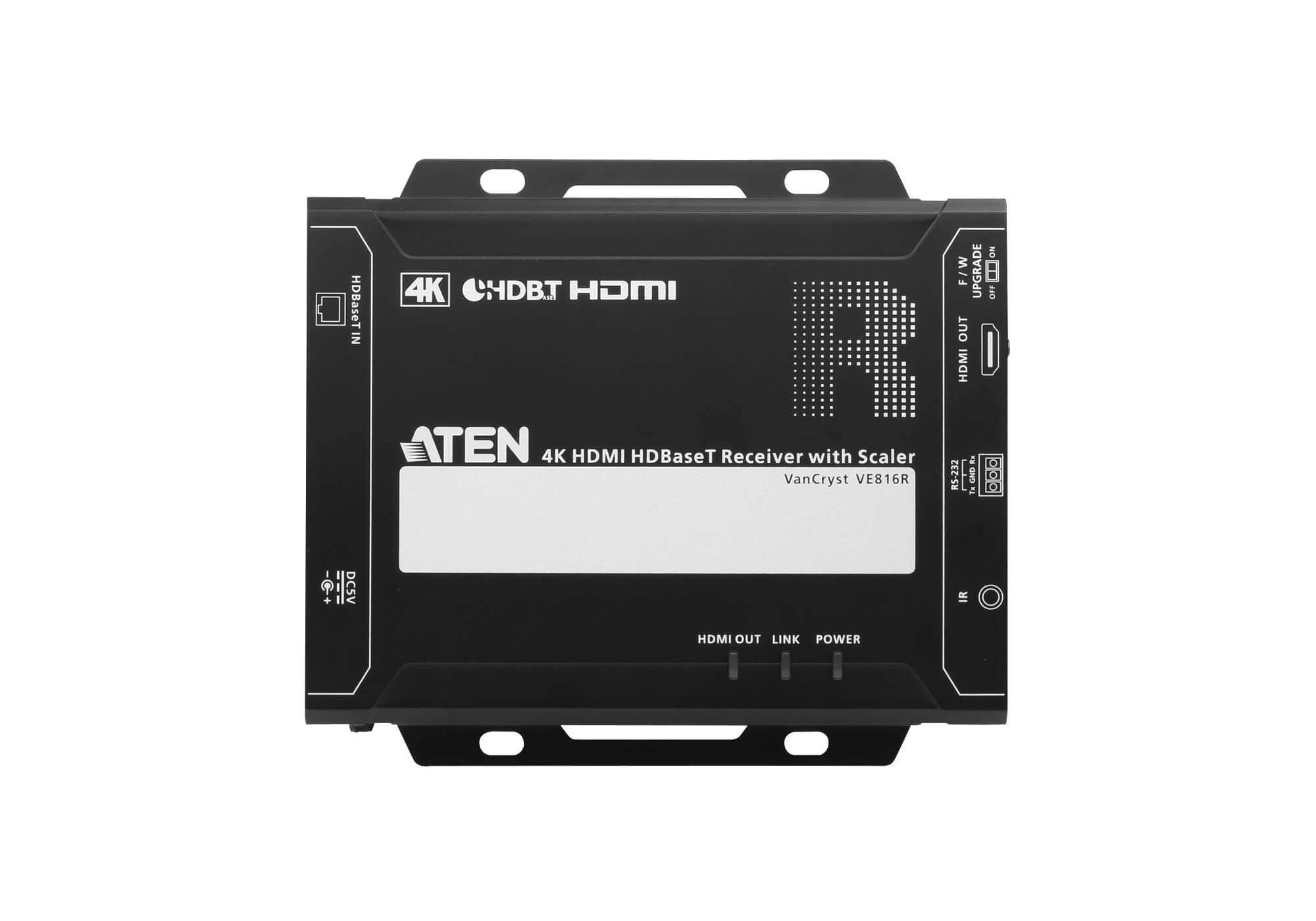

4K HDMI HDBaseT Receiver with Scaler (4K@100m) (HDBaseT Class A)
VE816R
HDBaseT приемник с вграден скалер — приема HDMI, RS-232 и IR сигнали, пренесени до 100 m по един Cat 5e/6/6a кабел; 4K до 100 m, 1080p до 150 m в режим Long Reach.
Характеристики

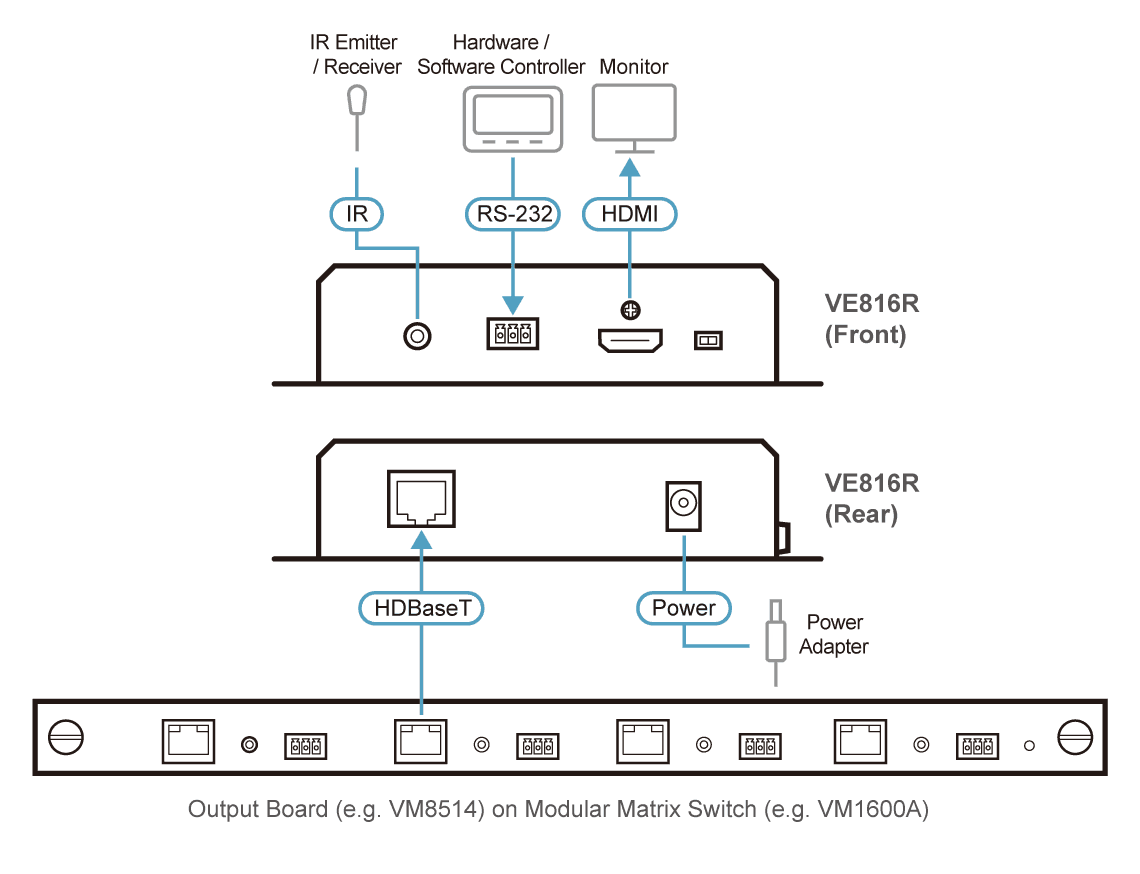

- Extends HDMI, RS-232, and IR signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- HDCP 2.2 compatible
- Superior video quality: • 4K up to 100 m • 1080p up to 150 m
- HDBaseT Long Reach Mode – activated by RS-232 commands, Long Reach Mode extends signals up to 150 m, 1080p, via a single Cat 5e/6 cable
- Scaler – scales videos of different resolutions to their optimal output for display and to avoid black screen*
- Video Wall – features video wall profiles that allows for custom screen layouts via an intuitive web GUI**
- Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions**
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
- Bi-directional RS-232 channel – allows for control using serial terminals or serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel – IR transmission is processed one direction at a time***
- Cable Quality Tester – examines the category cable quality through signal level detection from HDBaseT Matrix Switches to the VE816R.
- FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
- Remote Firmware upgrade
- Built- in 8KV / 15 KV ESD protection
- Plug-and-play
- Rack-mountable Note: 1. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device. 2. The Seamless Switch™ and video wall functionalities are available when the VE816R is used with ATEN HDBaseT Matrix. For further information, please see the compatible list below 3. Supports full-frequency IR signals from 30 KHz to 56 KHz.

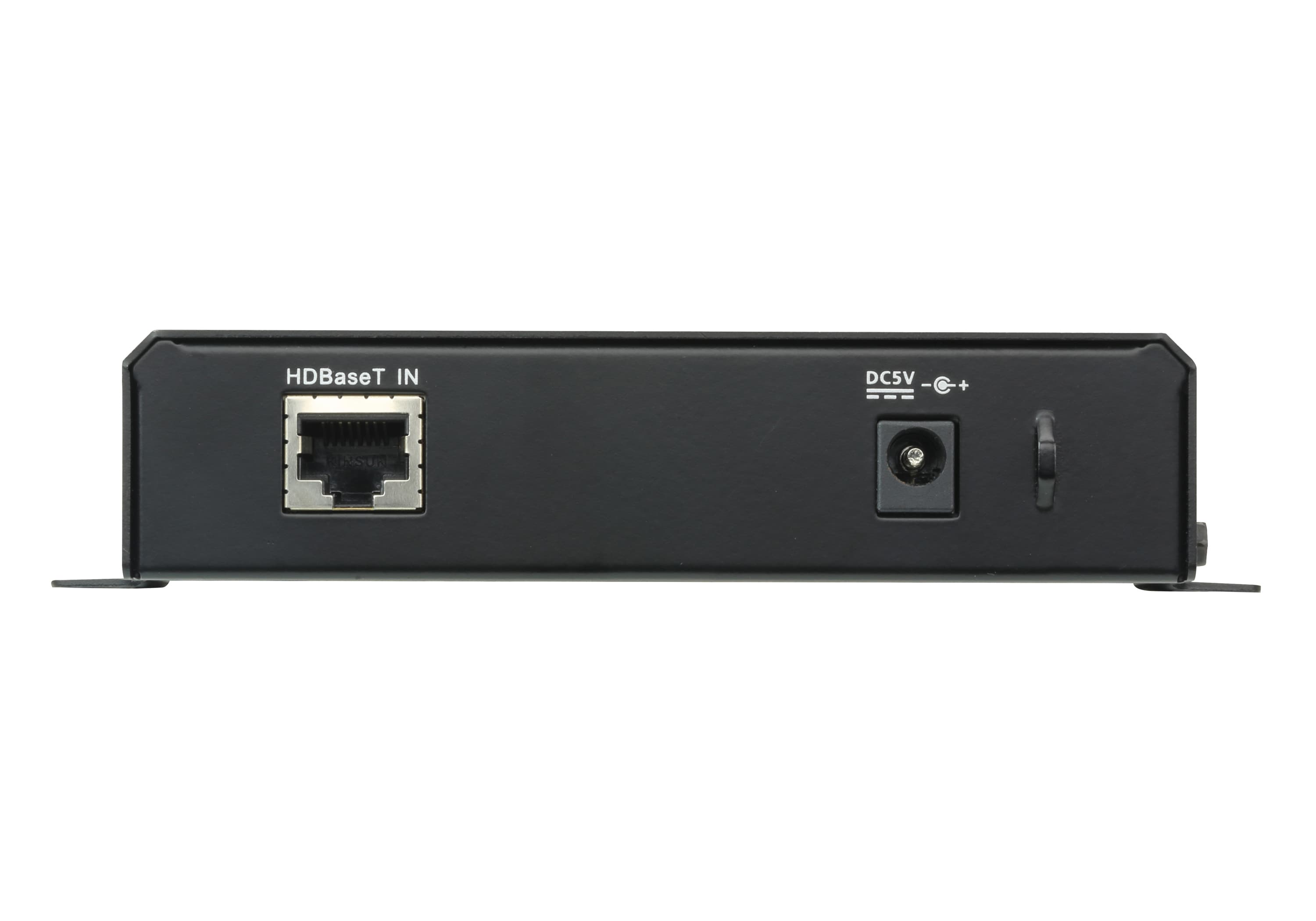

Видео вход
- Интерфейси
- 1 x RJ-45 Female (Silver)
- Импеданс
- 100 Ω
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 3 m
Видео
- Макс. скорост на данните
- 10.2 Gbps (3.40 Gbps per lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, 4K, Deep Color) HDCP2.2 Compatible HDBaseT Compatible
- Макс. резолюция / разстояние
- Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Конектори
- Между устройства
- 1 x RJ-45 Female
- Захранване
- 1 x DC Jack (Sliver)

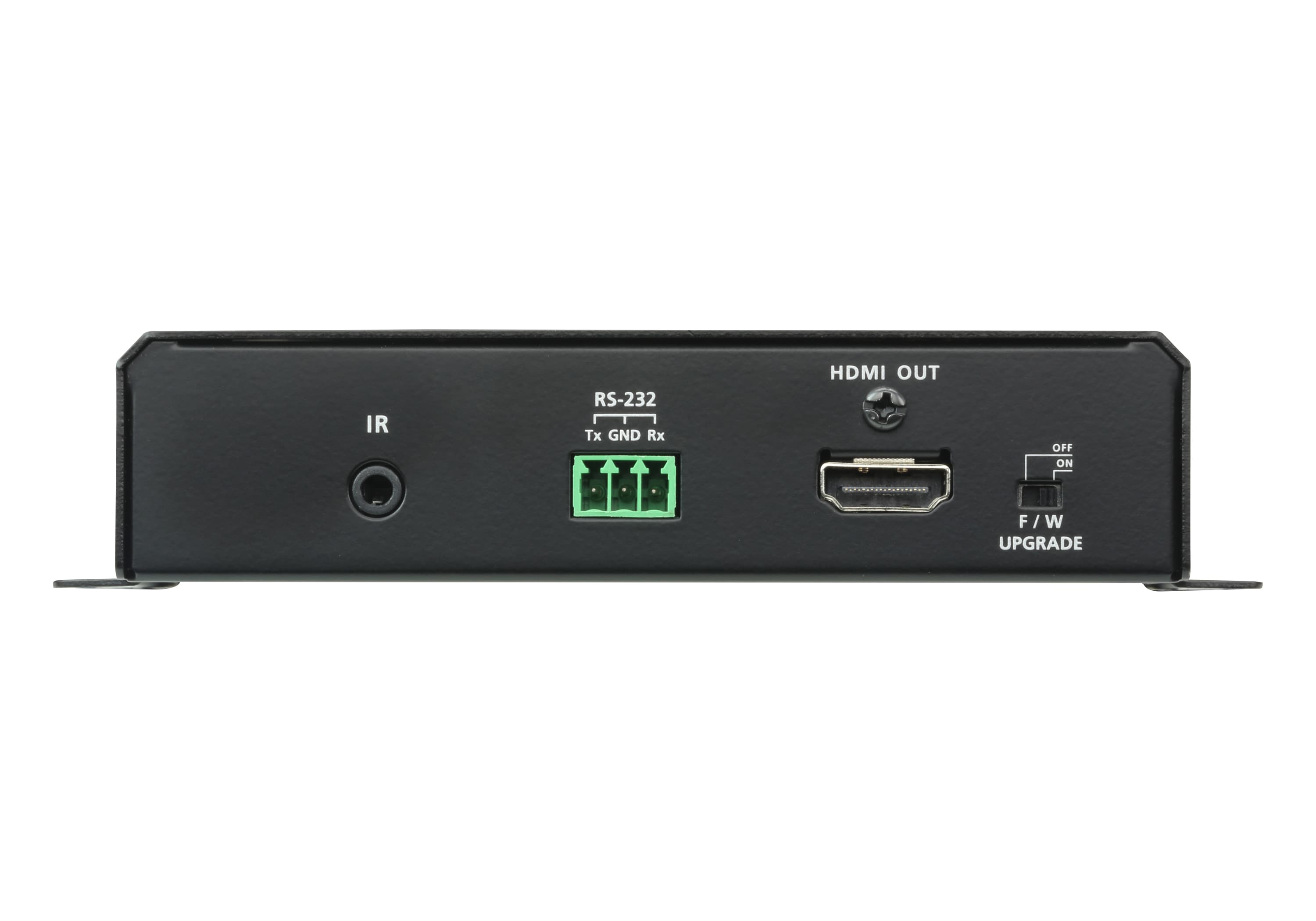

Управление
- IR канал
- 1 x Mini Stereo Jack Female (Black);
- RS-232 канал
- 1 x Terminal Block, 3 pole (Green)
Бутони и превключватели
- Обновяване на фърмуера
- 1 x Slide Switch - ON/OFF
- Консумация
- DC5V:9.09W:28BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.67 kg ( 1.48 lb )
- Размери (Д x Ш x В) със скоба
- 16.80 x 14.69 x 3.00 cm (6.61 x 5.78 x 1.18 in.)
- Размери (Д x Ш x В) без скоба
- 16.60 x 12.49 x 2.90 cm (6.54 x 4.92 x 1.14 in.)
- Брой в кашон
- 5 pcs
Фърмуер
