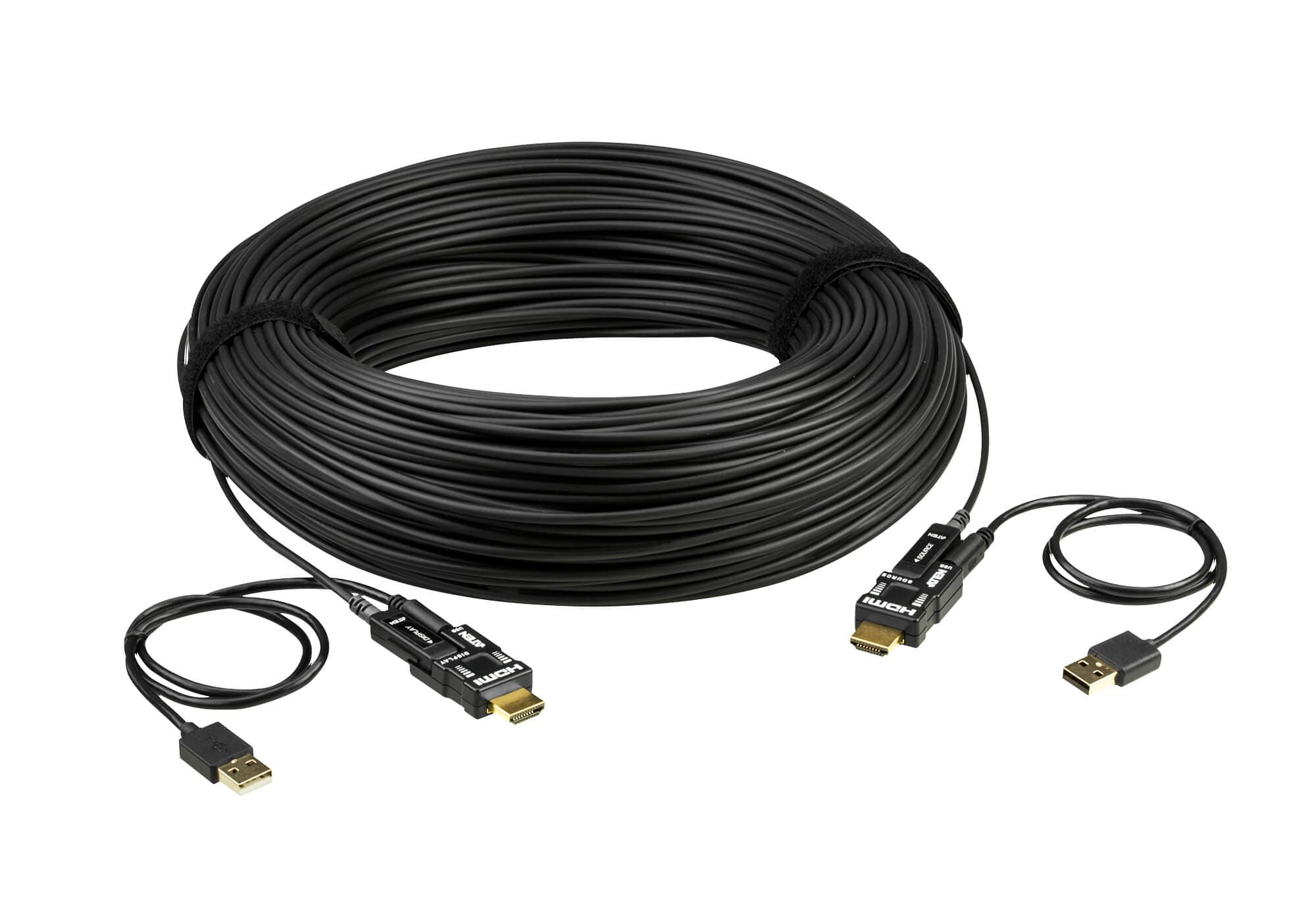

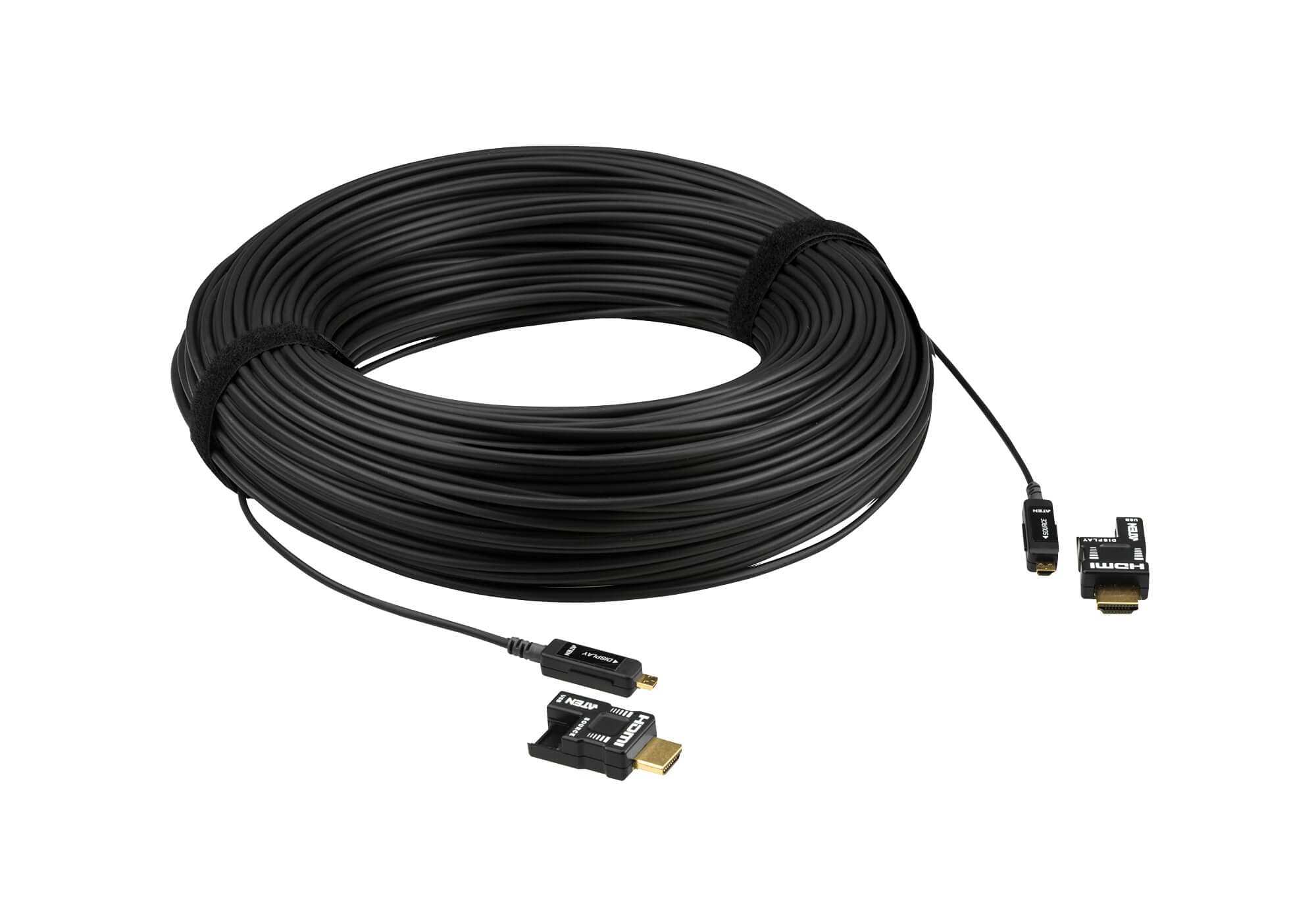

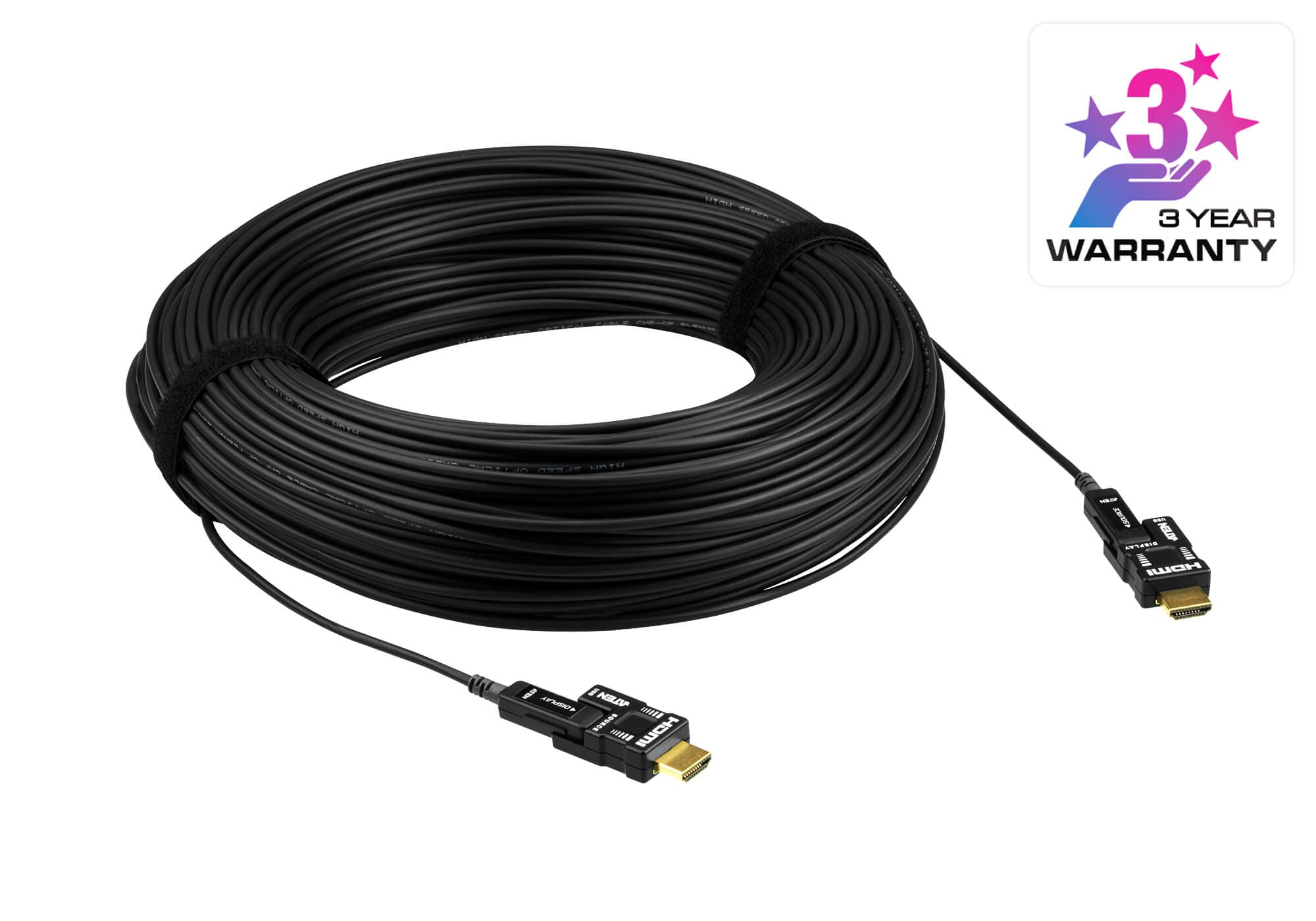

100M True 4K HDMI Active Optical Cable (True 4K@100m)
VE7835Снет от производство
Активен оптичен HDMI кабел 100 m, който пренася True 4K сигнал (4096 x 2160 @ 60Hz 4:4:4); HDCP 2.2 съвместим, с намалени EMI и RFI смущения.
Характеристики
- HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
- Extends True 4K signals (4096 x 2160 @ 60Hz 4:4:4) up to 100 m
- Reduced EMI and RFI for lower noise interference
- Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
- Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)
- Additional power source is available via Micro USB cable for better compatibility
- Gold-plated connectors for reliable transmissions
- Compliant with International Flame Retardant Standards : UL CMP-OF (Plenum)
- Pluggable gender for easy installation
- Plug-and-play
Сертификати
- Сертификати
- Safety and Emission: CE / FCC / RoHS2 / UL CMP-OF
- Известяване
- Bend Radius: 6mm (Min.) Connector Pull Strength: Max. 10kg (100N) Compression Load Resistance: Max. 50kg (500N) Reduced EMI & RFI
Обвивка
- Материал
- UL Plenum (CMP-OF)
Проводник
- Конструкция
- 6 x Insulated Copper wire (28 AWG) 4 x Fiber
- Дължина на кабела
- 100M / 328ft
Комуникация
- Сигнали
- TMDS / HDCP 2.2 / EDID / CEC
- Захранване (опция)
- Optional power source: Micro USB to USB cable (45cm) 5V, 0.148A
Аудио
- Вход
- PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
- Изход
- PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
- Тип кабел
- Cable Type: Hybrid optical with fiber and copper wire HDMI Standards: High Speed HDMI Cable
Видео вход
- Интерфейси
- 1 x HDMI 19-pin Type-A Male (gold-plated) pluggable (Black) 1 x HDMI Type-D Male (Black)
Видео изход
- Интерфейси
- 1 x HDMI 19-pin Type-A Male (gold-plated) pluggable (Black) 1 x HDMI Type-D Male (Black)
Видео
- Макс. скорост на данните
- 18 Gbps (6 Gbps per Channel)
- Макс. пикселна честота
- 600 MHz (Max.)
- Съответствие
- HDMI (3D, Deep Color, 4K, HDR) HDCP 2.2 Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 Color Depth: 30 / 36 / 48 bit
- Макс. резолюция / разстояние
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) / 100m
- Консумация
- DC5.3V:0.63W:2.15BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0°C to 50°C (32℉ to 122℉)
- Температура на съхранение
- -20°C to 70°C (-4℉ to 158℉)
- Влажност
- 0 - 85% RH, Non-Condensing
Физически характеристики
- Корпус
- Connector Case: ABS (Acrylonitrile Butadiene Styrene)
- Тегло
- 1.64 kg ( 3.61 lb )
- Външен размер на кабела
- Cable Outer Diameter: 3.4mm (± 0.2mm)
- Сечение на проводника
- Copper wire (28 AWG)
- Материал на проводника
- Copper
- Тегло на устройството
- 1.64 kg / 3.61 lb
- Брой в кашон
- 5 pcs
