Захранващ инжектор, който подава PoH/PoE към до 4 HDBaseT устройства по Cat 5e/6 кабели, като пропуска данни до 10.2 Gbps на порт. Вградена ESD защита 8KV/15KV.
Характеристики
- Supplies power for up to four ATEN Power-over-HDBaseT (PoH) /Power-over-Ethernet (PoE) compatible products over Cat 5e/6/6a cables
- HDBaseT connectivity – extends HDMI connection over a long distance via Cat 6/6a cable
- Offers a data rate up to 10.2Gbps which is compatible with ATEN HDBaseT PoH PD products • Compatible ATEN PoH-powered/PoE-powered models: VE2812AT, VE2812AEUT, VE2812AUST, VE1812R, VE802R, VK108US, VK112EU, VK224, VK236, VK248, KE8952, or future ATEN PoH-powered/PoE-powered products which follow IEEE 802.3 af standard
- Built-in 8KV/15KV ESD protection
- Plug-and-play without additional settings
- Rack-mountable
- Supplies up to 15.4W of power per PSE port

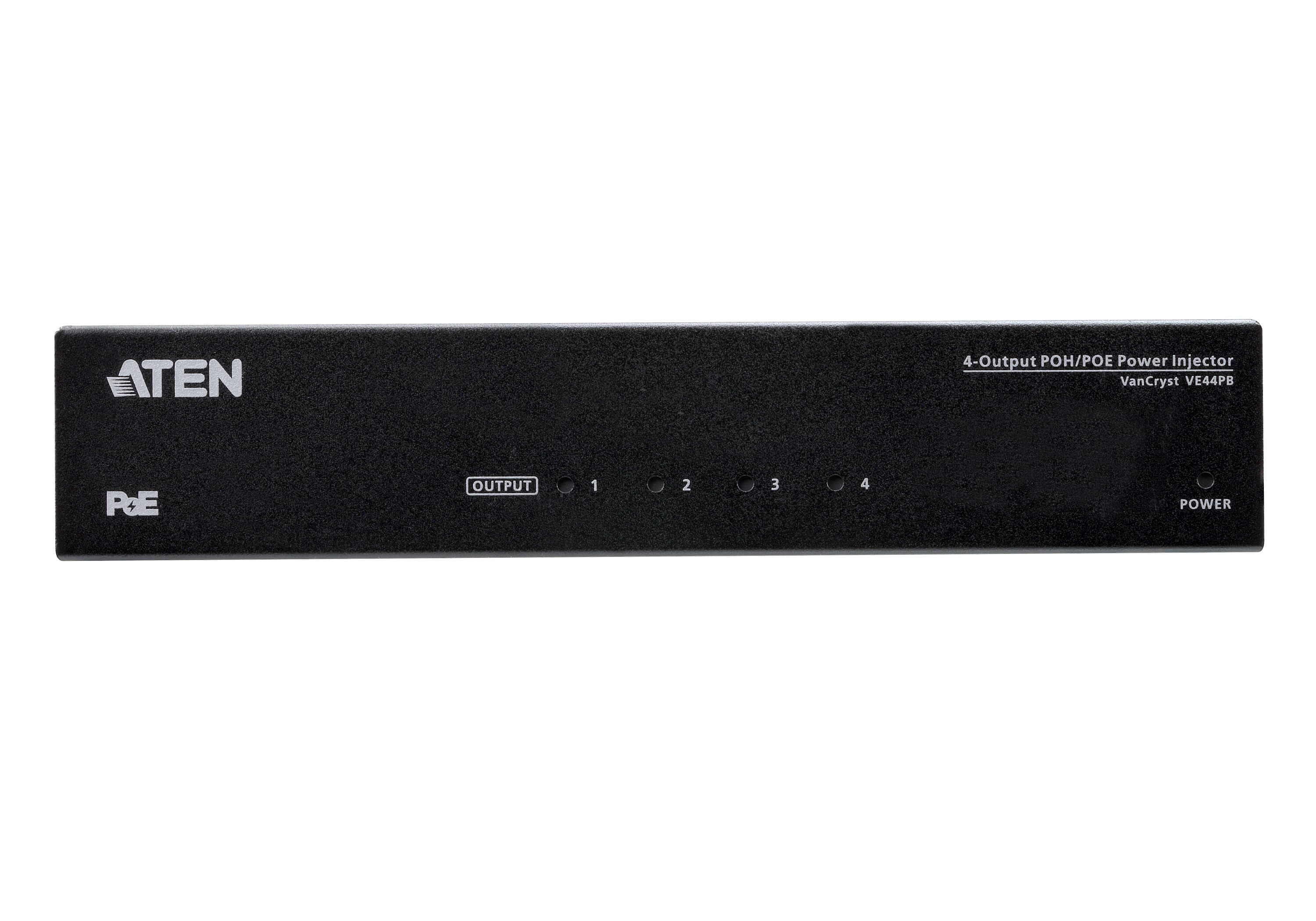

- Status LEDs to provide an at-a-glance overview of device status, improving real-time monitoring and troubleshooting
- Assured signal quality – usage of the VE44PB power injector does not affect the signal quality of the video, audio, bi-directional RS-232, and Ethernet transmission* *The transmission distance maybe reduced to 80% of the original distance.
Видео
- Макс. скорост на данните
- 10.2Gbps per port (Support HDBaseT POH PD ready models)

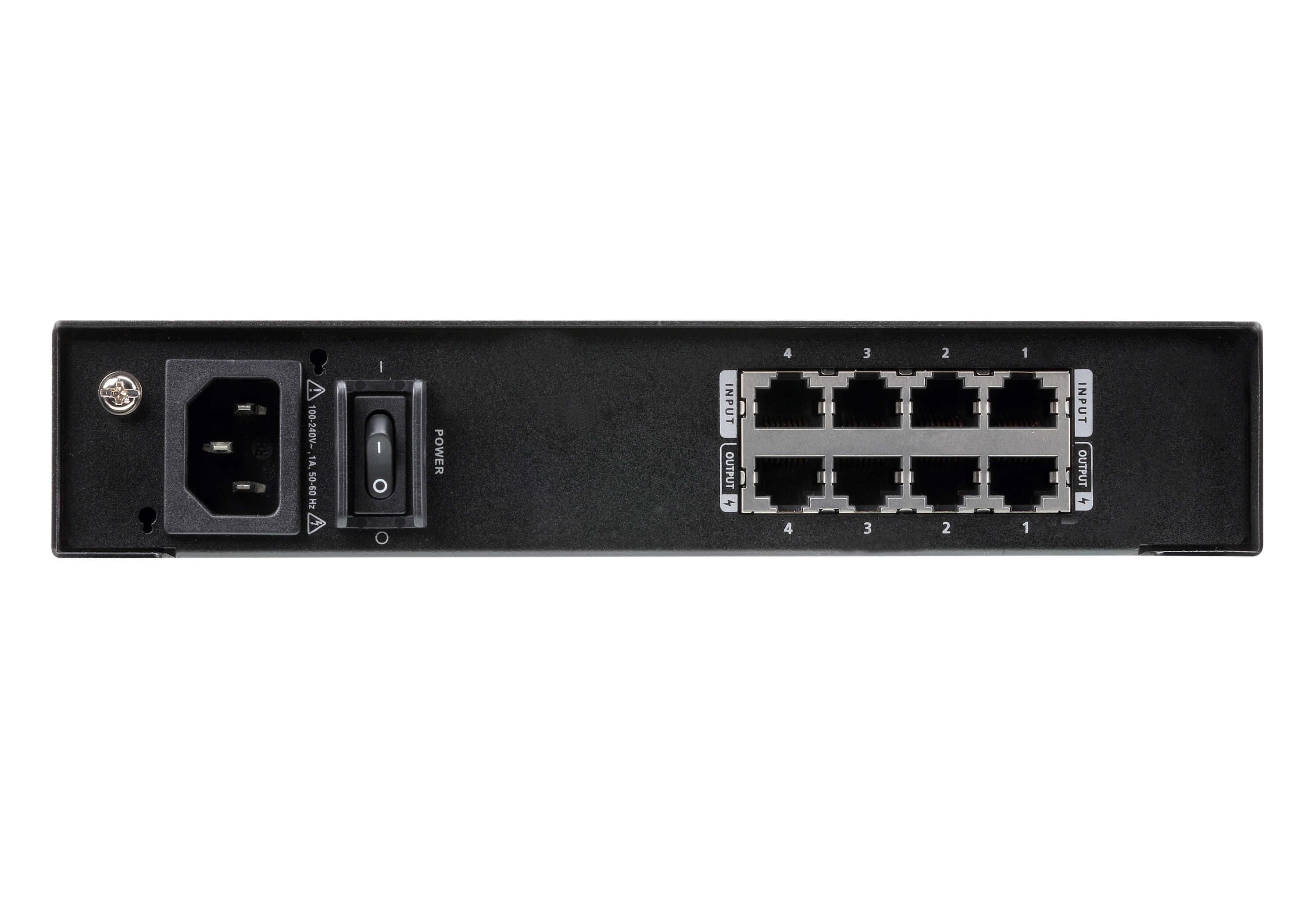

Конектори
- Вход
- 4 x RJ-45 Female
- Изход
- 4 x RJ-45 Female (with POH/POE PSE)
- Захранване
- 1 x 3-Prong AC Socket
Бутони и превключватели
- Захранване
- 1 x On/Off Switch
Захранване
- Макс. входна мощност
- 100-240 VAC; 50-60 Hz
- Консумация
- AC110V:1.2W:294BTU/h AC220V:1.1W:293BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.23 kg ( 2.71 lb )
- Размери (Д x Ш x В)
- 21.50 x 16.12 x 4.18 cm (8.46 x 6.35 x 1.65 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
