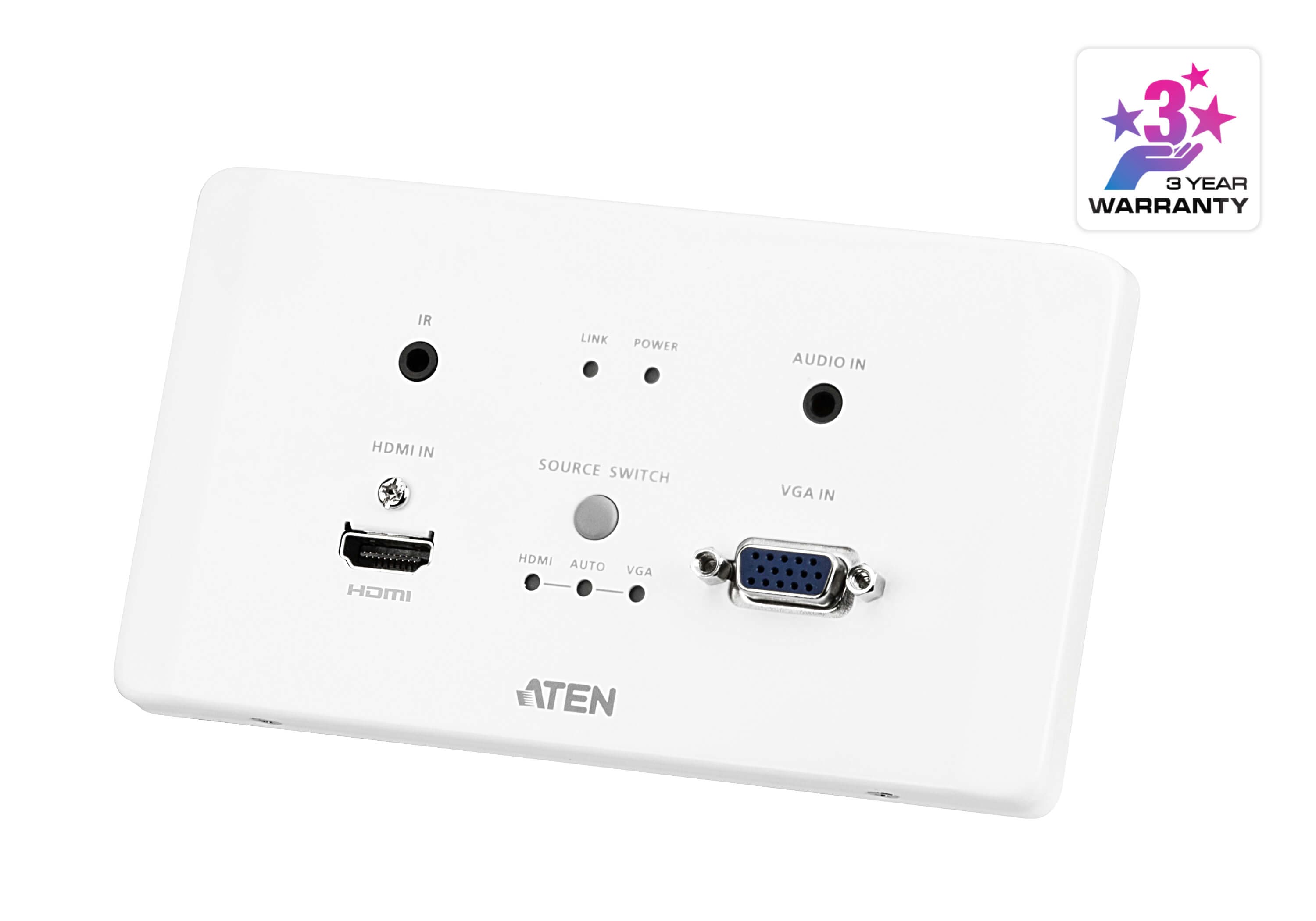

HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A) (PoH PD)

Name: HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A) (PoH PD)
Brand: ATEN
SKU: VE2812AEUT

VE2812AEUT

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

HDBaseT предавател за вграждане като стенен панел в EU формат. Предава HDMI или VGA сигнал – 4K до 100 m по Cat 6a кабел, а в Long Reach режим до 150 m при 1080p.

Характеристики

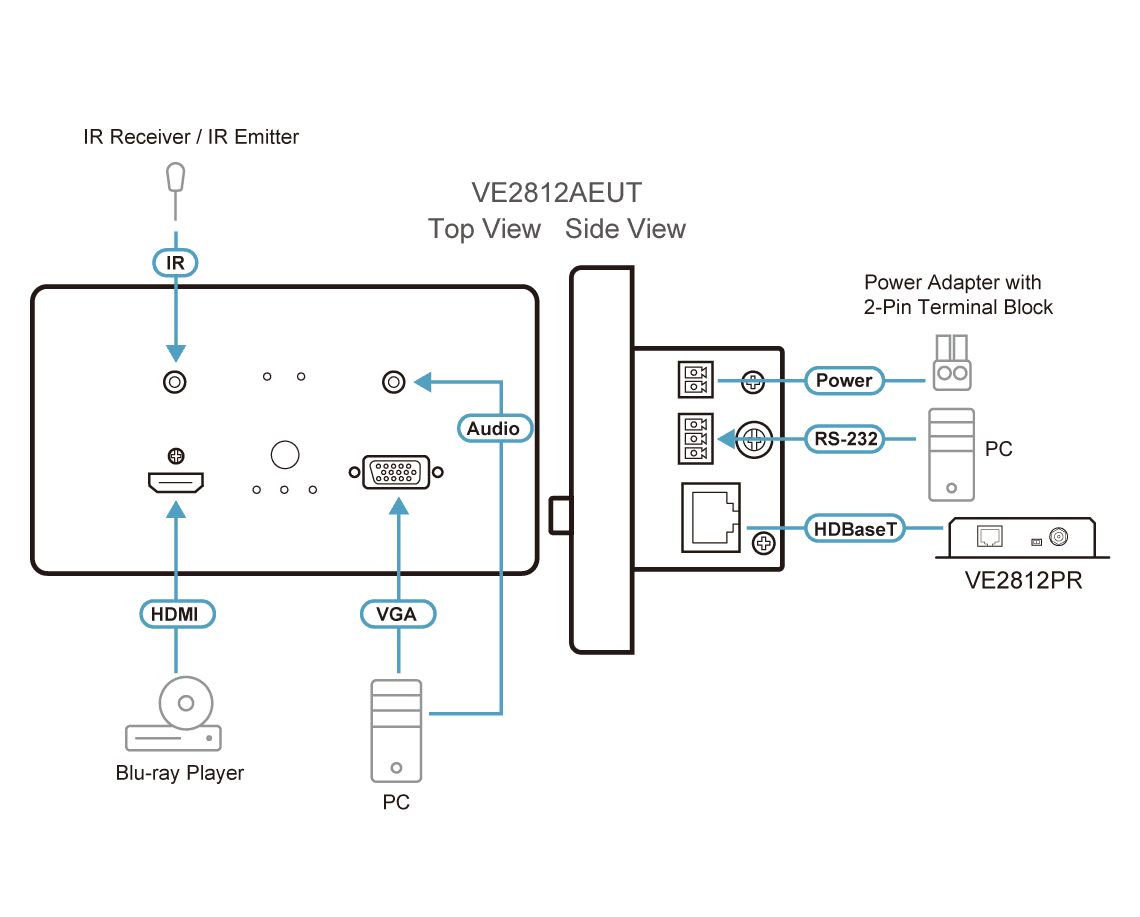

Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
Superior video quality: • HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable • VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
Designed to mount in a two-gang junction box, compatible with EU & MK type
Built-in PoH (Power over HDBaseT) function – the VE2812AEUT receives power supply from the HDBaseT output port on the connected device
Supports Auto Switch – allows the VE2812AEUT to automatically switch to a newly plugged-in source
Functions as a switch or a converter • A Switch: Connects two sources (HDMI or VGA) • A Converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI)
Supports RS-232 channel transmission or command mode for source switch control
Compatible Receivers – VE2812R, VE1812R, VE812R, VE814AR, VE811R, VE801R, VE802R, VE601R, VE901R, VE2812PR or future ATEN HDBaseT Receivers
Plug-and-play
LED indication of sources and device status
Built- in 8KV / 15 KV ESD protection

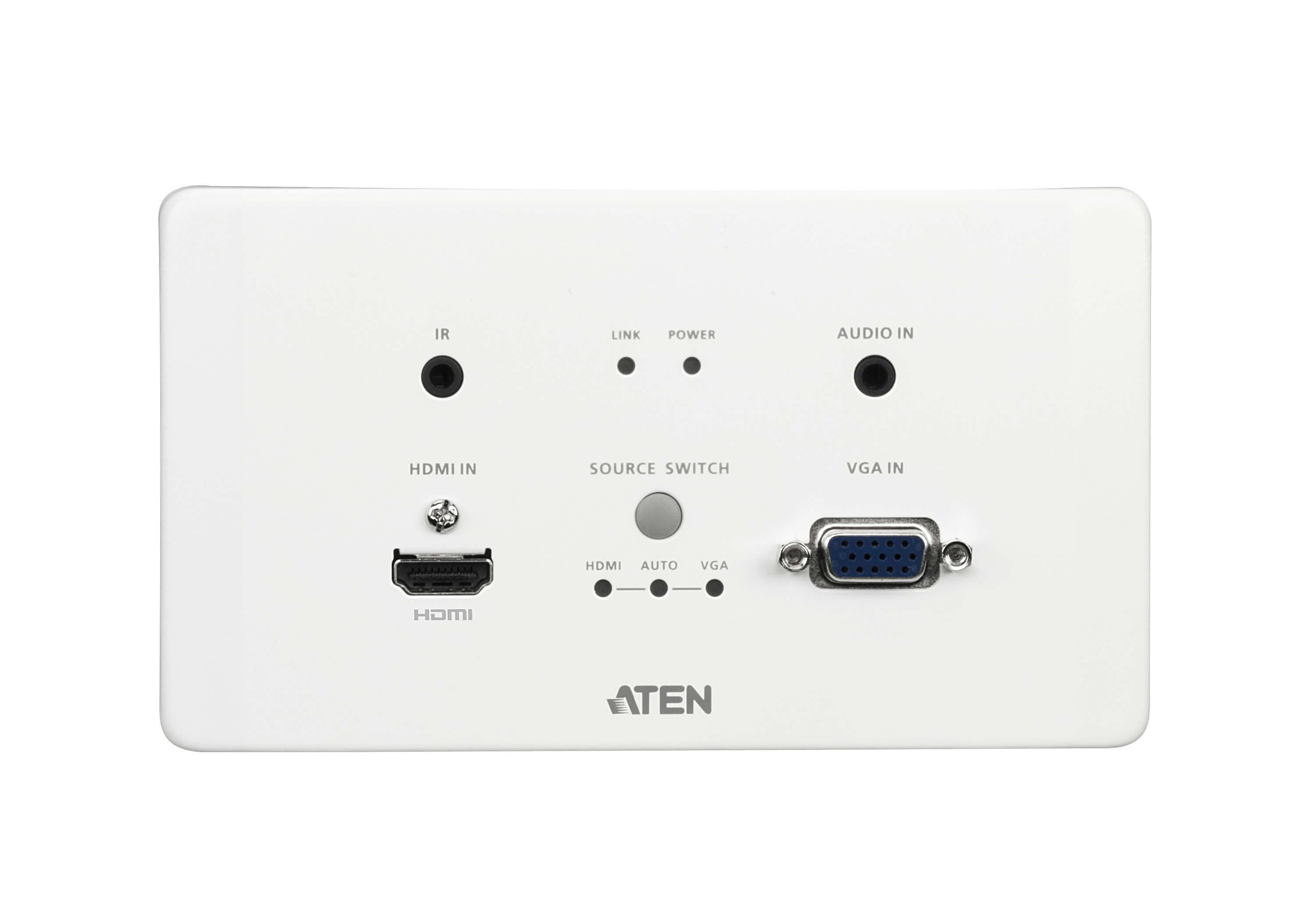

Видео вход

Интерфейси: 1 x HDMI Type A Female (Black) 1 x HDB-15 (VGA) Female (Blue)
Импеданс: HDMI: 100 Ω HDB-15 (VGA): 75 Ω
Макс. разстояние: HDMI: 3 m HDB-15(VGA): 10m

Видео

Макс. скорост на данните: 10.2Gbps (3.4Gbps per lane)
Макс. пикселна честота: 340 MHz
Съответствие: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Макс. резолюция / разстояние: HDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) VGA: Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Аудио

Вход: 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green)

Управление

RS-232: Connector: 1 x Terminal Block, 3 pole (Green) Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
IR: 1 x Mini Stereo Jack Female (Black)

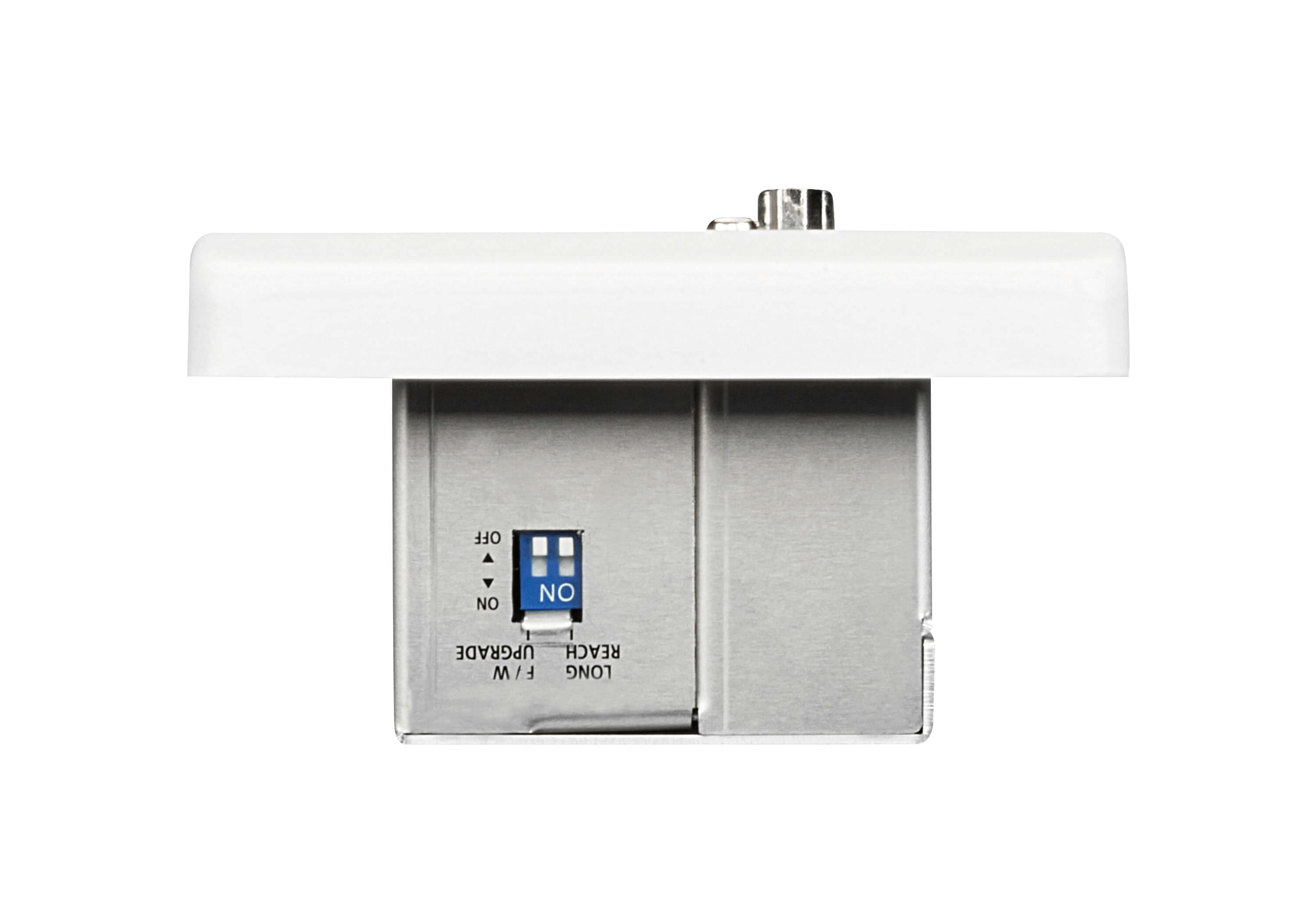

Бутони и превключватели

Избор на видео вход: 1 x Push Button - HDMI, VGA and AUTO
Превключвател Long Reach: 1 x Slide Switch - ON/OFF
Обновяване на фърмуера: 1 x Slide Switch - ON/OFF

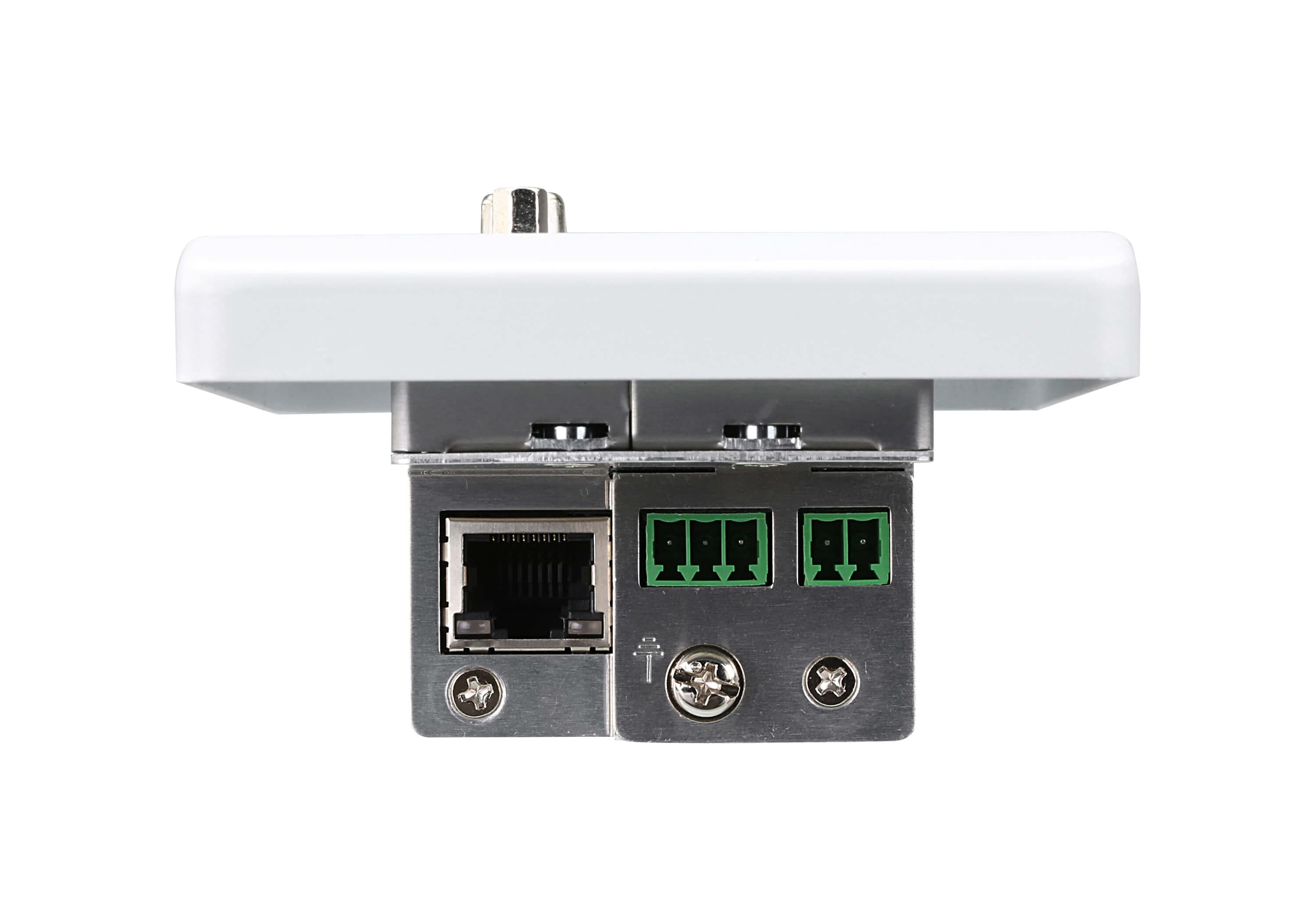

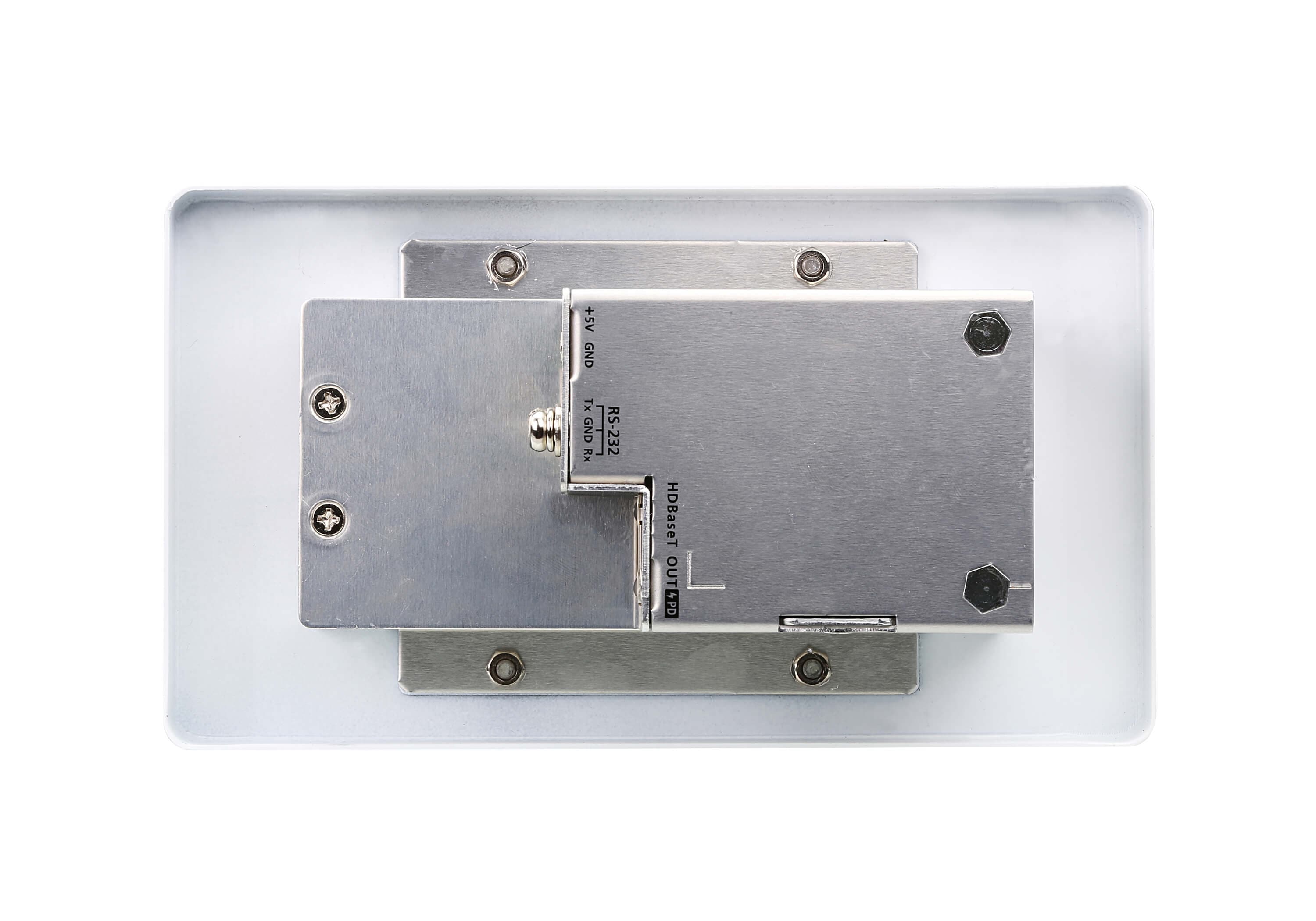

Конектори

Между устройства: 1 x RJ-45 Female
Захранване: 1 x Terminal Block, 2 pole (Green) or 1 x RJ-45 Female (POH)
Консумация: DC5V:3.14W:15BTU/h POH:3.93W:18BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 40°C
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-Condensing

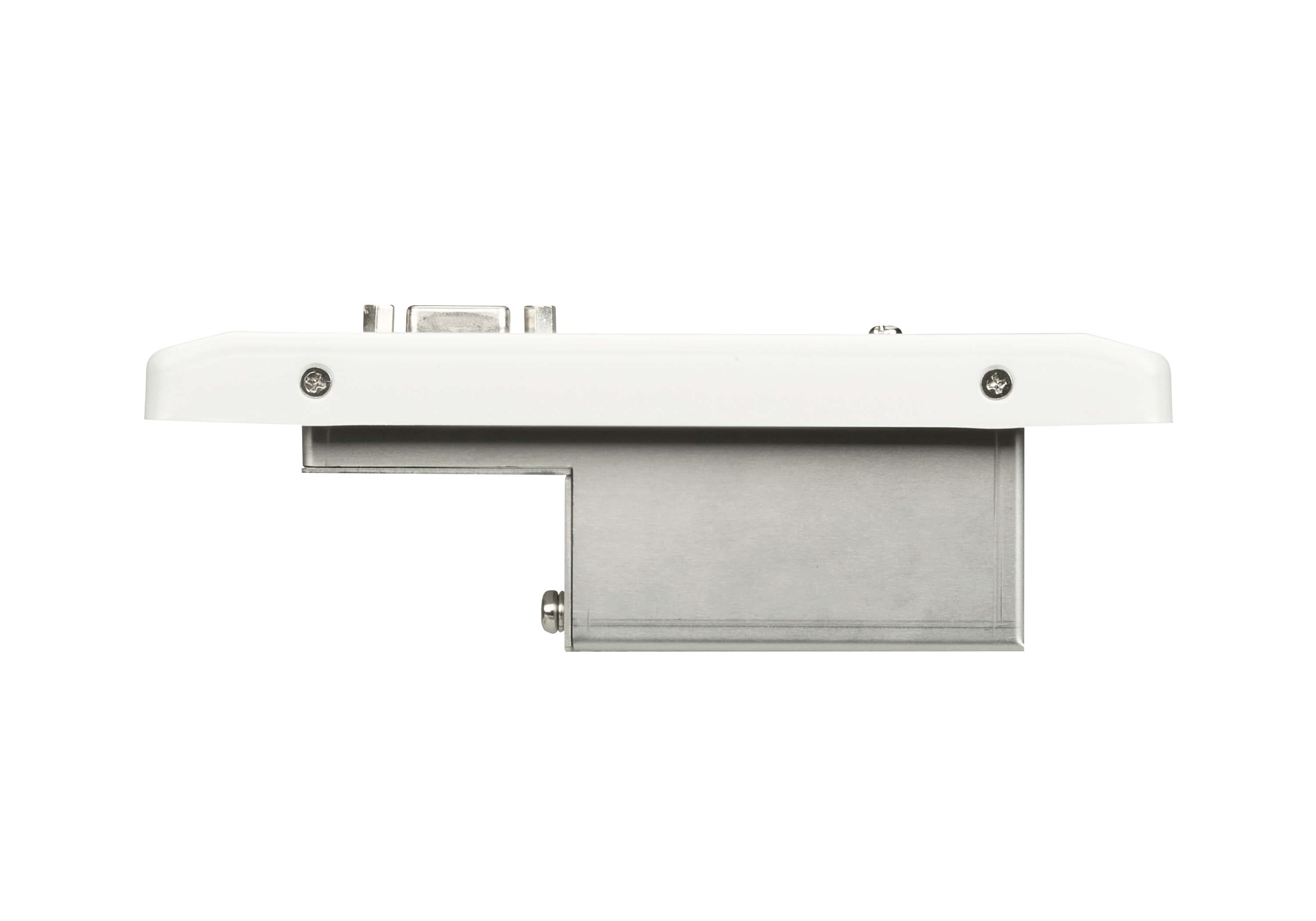

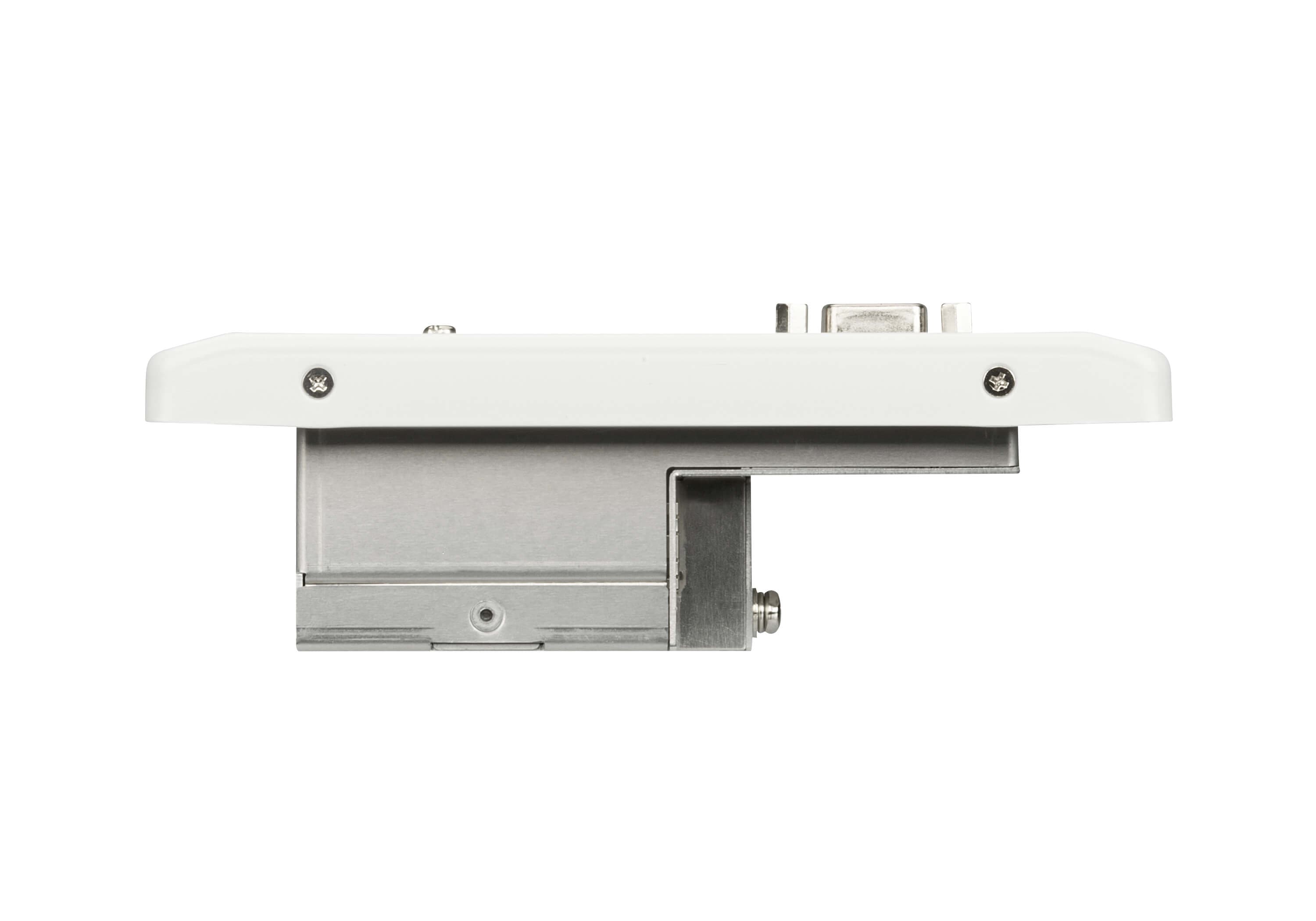

Физически характеристики

Корпус: Metal
Тегло: 0.30 kg ( 0.66 lb )
Размери (Д x Ш x В): 5.00 x 10.80 x 5.17 cm (1.97 x 4.25 x 2.04 in.)
Размери на лицевия панел (Д x Ш x В): 8.60 x 15.10 x 1.35 cm (3.39 x 5.94 x 0.53 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
