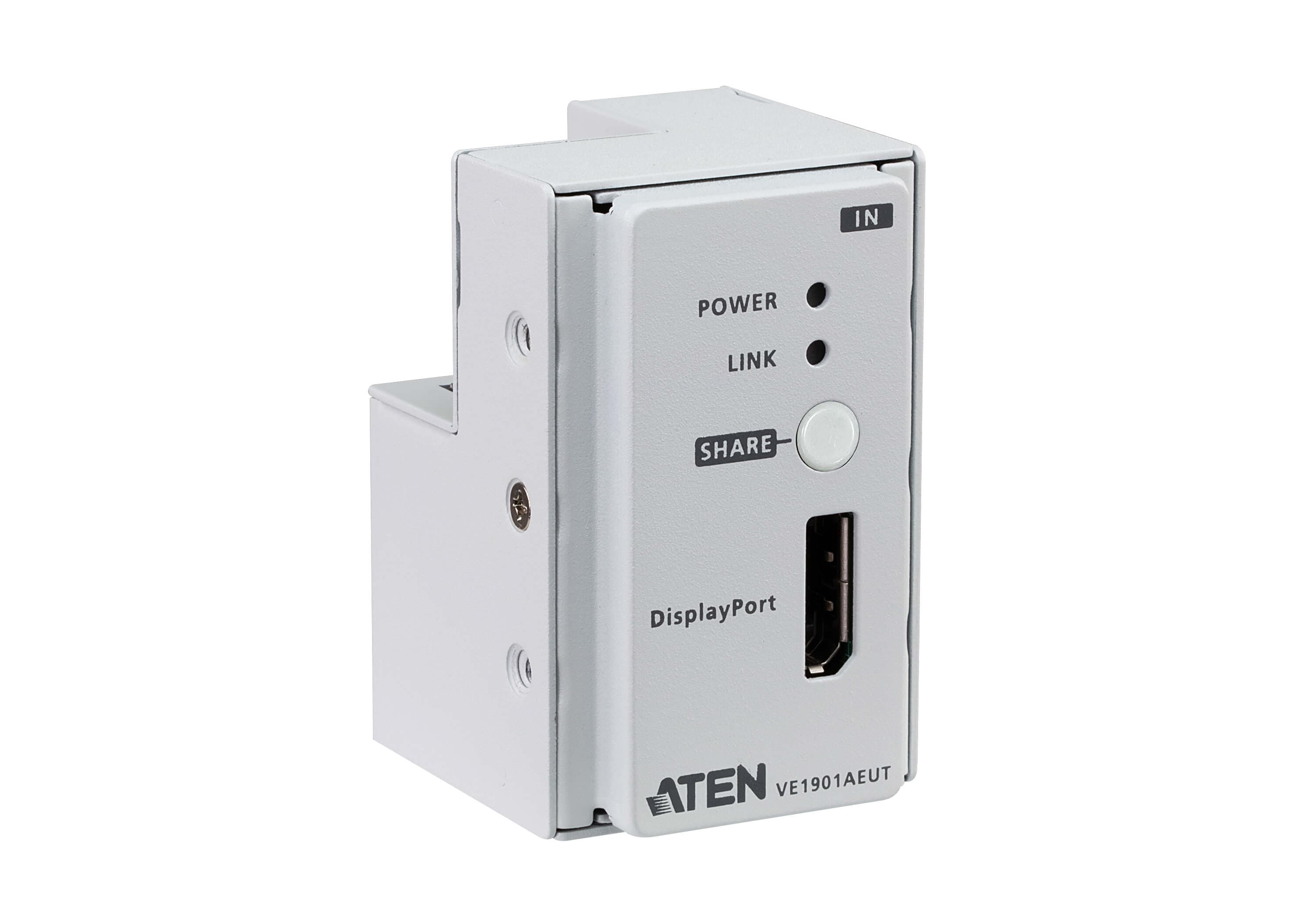

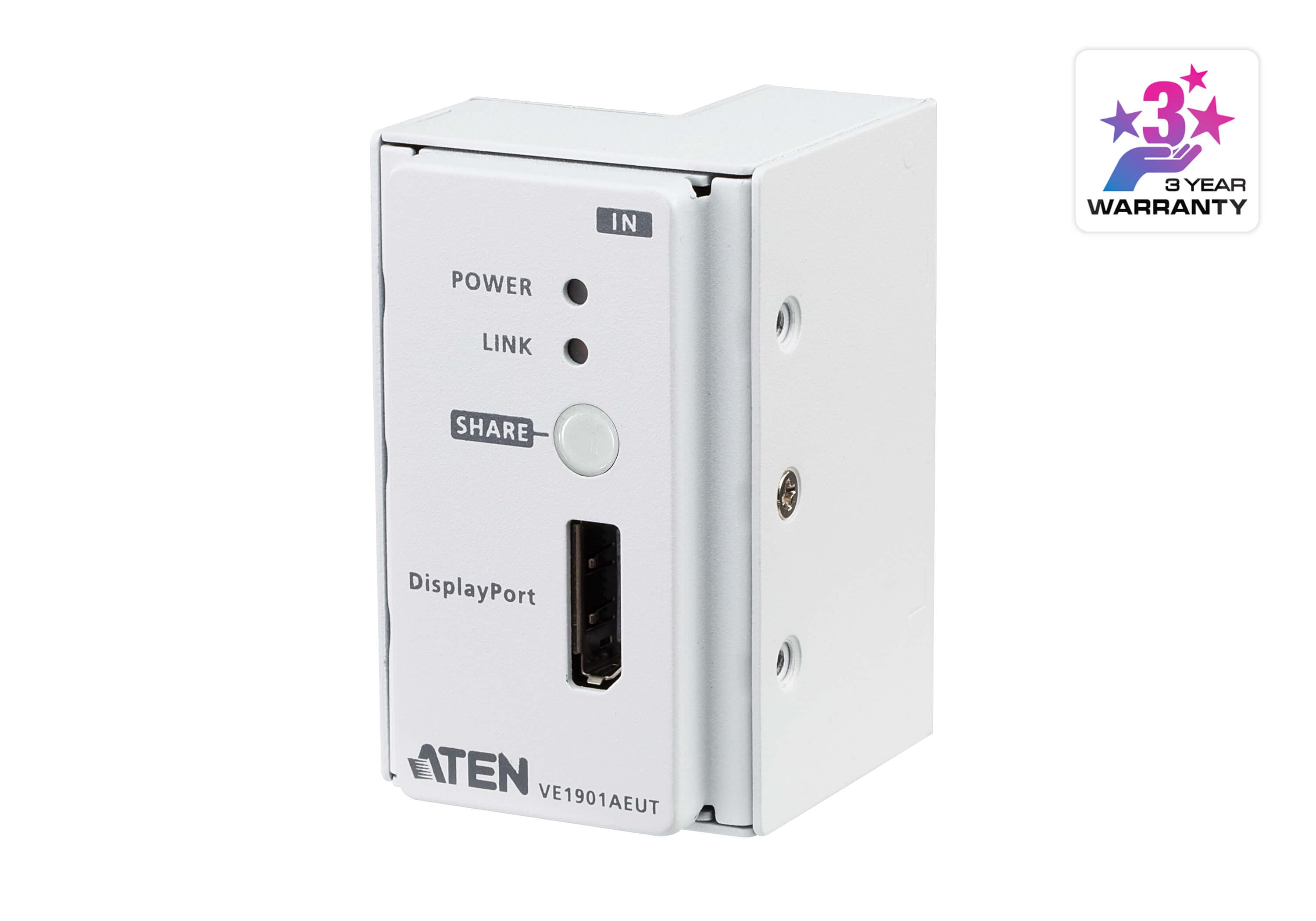

DisplayPort HDBaseT-Lite Transmitter with EU Wall Plate / PoH
VE1901AEUT
HDBaseT-Lite предавател за DisplayPort във формат на EU стенна планка за 1-gang кутия. Носи 4K до 35 m по Cat 5e/6 (40 m със сертифициран HDBaseT кабел) и получава захранване по PoH.
Характеристики
- Extends DisplayPort signals with superior video quality over a single Cat 5e/6/6a cable or ATEN 2L-29330 Cat 6 cable • 4K up to 40 m • 1080p up to 70 m
- Built-in PoH (Power over HDBaseT) function – the VE1901AEUT receives power supply from the HDBaseT output port
- DisplayPort (Deep Color, 4K); HDCP compliant

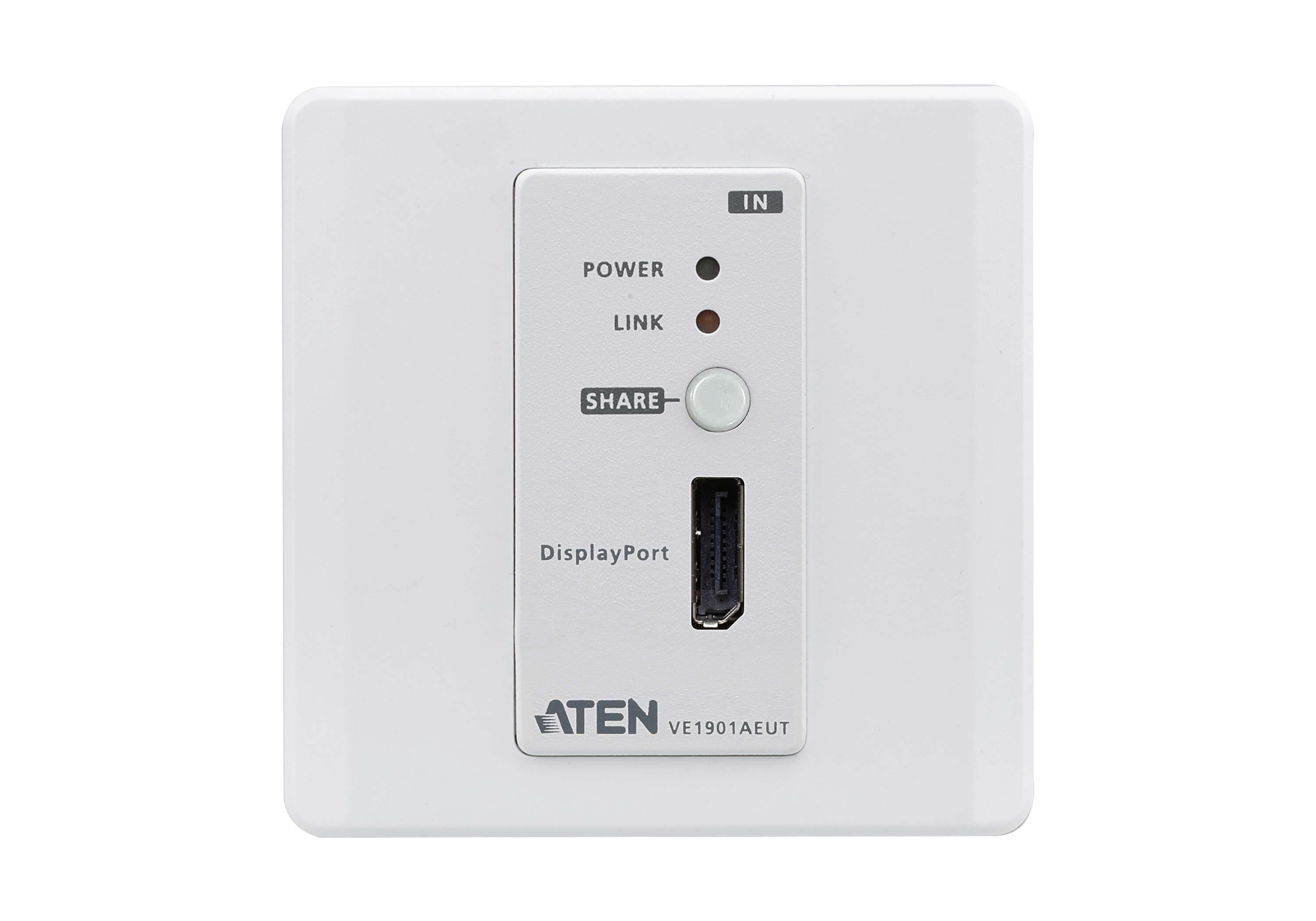

- Designed to mount in a 1-gang junction box with EU wall plate
- Supports RS-232 channel transmission
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- Share function – the VE1901AEUT can remotely switch source when connecting to a compatible receiver, e.g., VP1421

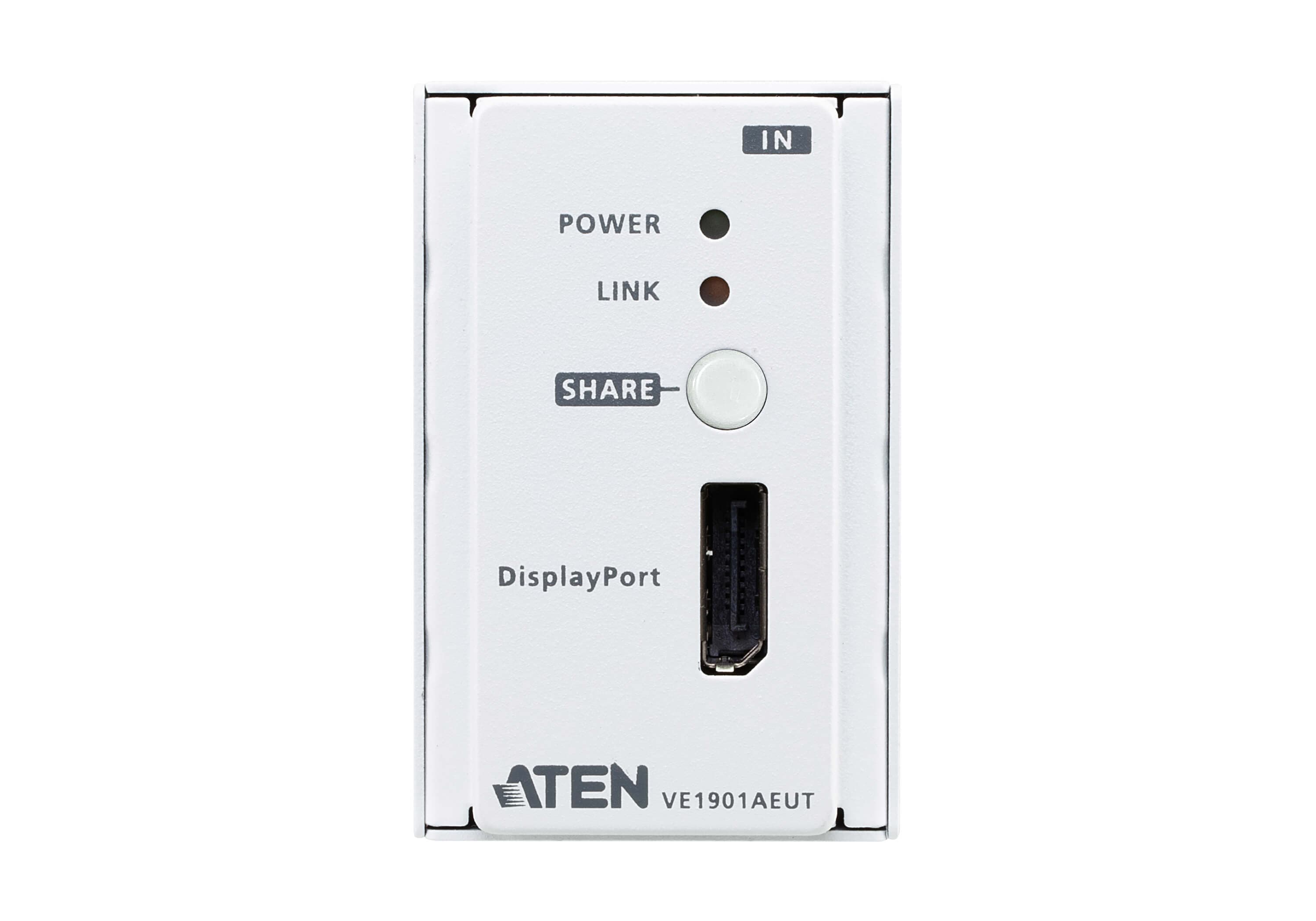

- LED indication of device status
- Built-in 8KV / 15KV ESD protection
- DC power and PoH for power redundancy
- Plug-and-play
Видео вход
- Интерфейси
- 1 x DisplayPort Female (Black)
- Импеданс
- 100Ω
- Макс. разстояние
- 3 m
Видео
- Макс. скорост на данните
- 10.2Gbps (3.4Gbps per lane)
- Макс. пикселна честота
- 297 MHz
- Съответствие
- DisplayPort (Deep Color, 4K) HDCP Compliant
- Макс. резолюция / разстояние
- Up to 4K@35m (Cat 5e/6) / 40m (HDBaseT Certified cable / ATEN’s tailor-made HDBaseT cable); 1080p@60m (Cat 5e/6) / 70m (HDBaseT Certified cable / ATEN’s tailor-made HDBaseT cable) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Аудио
- Вход
- 1 x DisplayPort Female (Black)

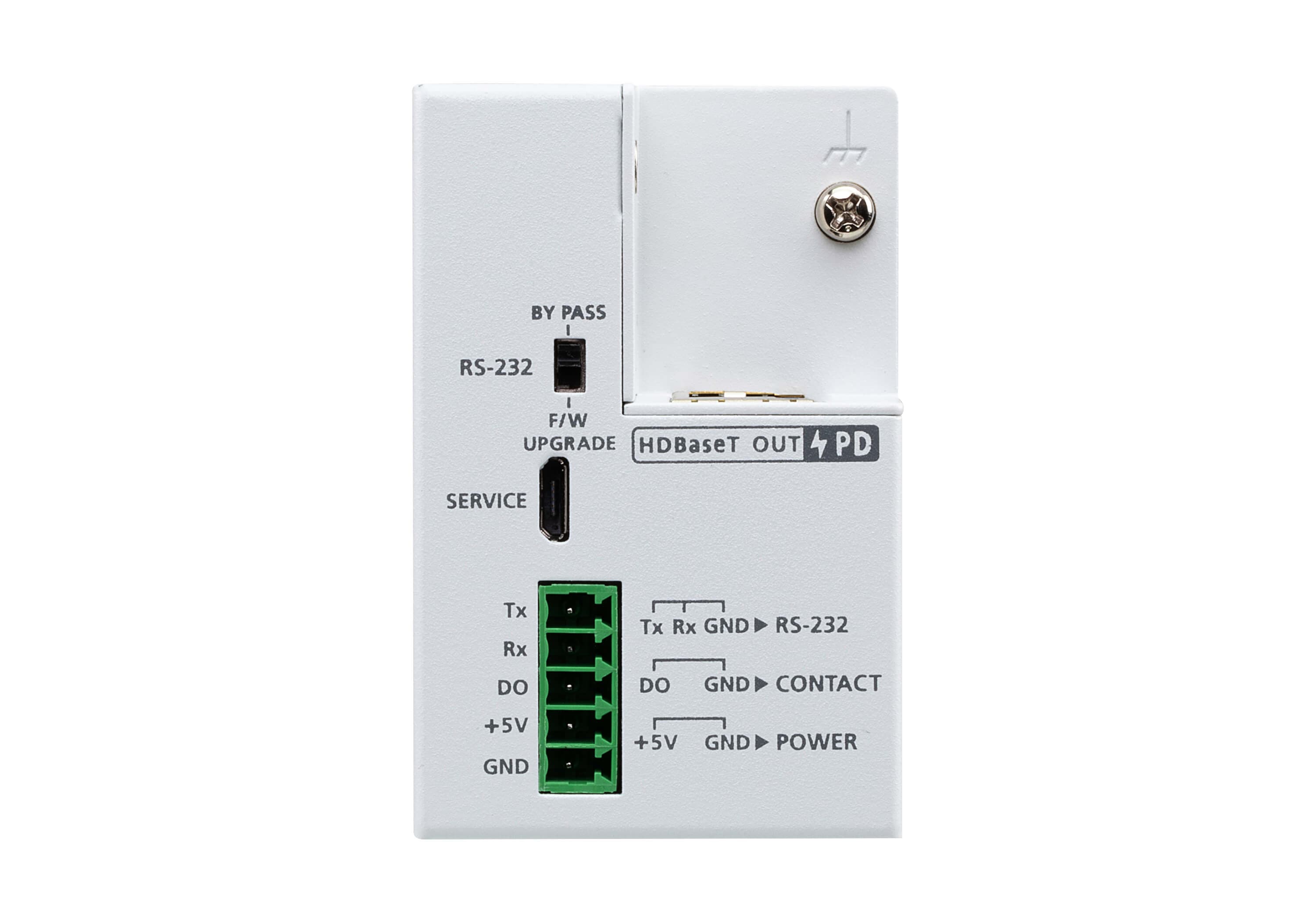

Управление
- RS-232 канал
- 1 x Terminal Block (3 pole, TX/RX/GND, Green)
- Контактен изход
- 1 x Terminal Block (2 pole, DO/GND, Green)
Конектори
- Между устройства

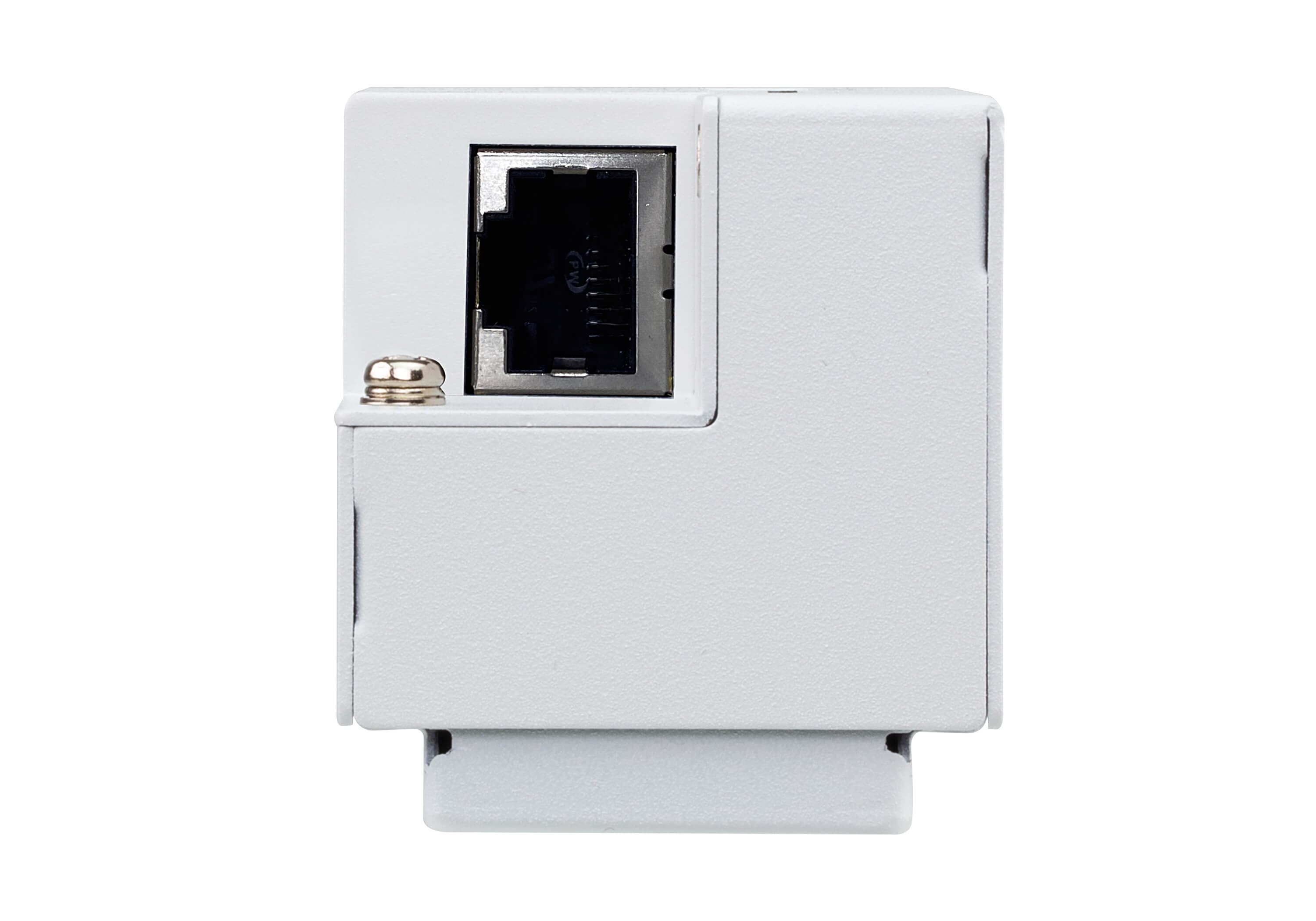

- 1 x RJ-45 Female
- Захранване
- 1 x Terminal Block (2 pole, +5V/GND, Green) or 1 x RJ-45 Female (POH)
- Консумация
- DC5V:2.97W:14BTU/h POH:3.71W:17BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0% - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.20 kg ( 0.44 lb )
- Размери (Д x Ш x В)
- 6.86 x 4.44 x 5.00 cm (2.7 x 1.75 x 1.97 in.)
- Размери на лицевия панел (Д x Ш x В)
- 8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
