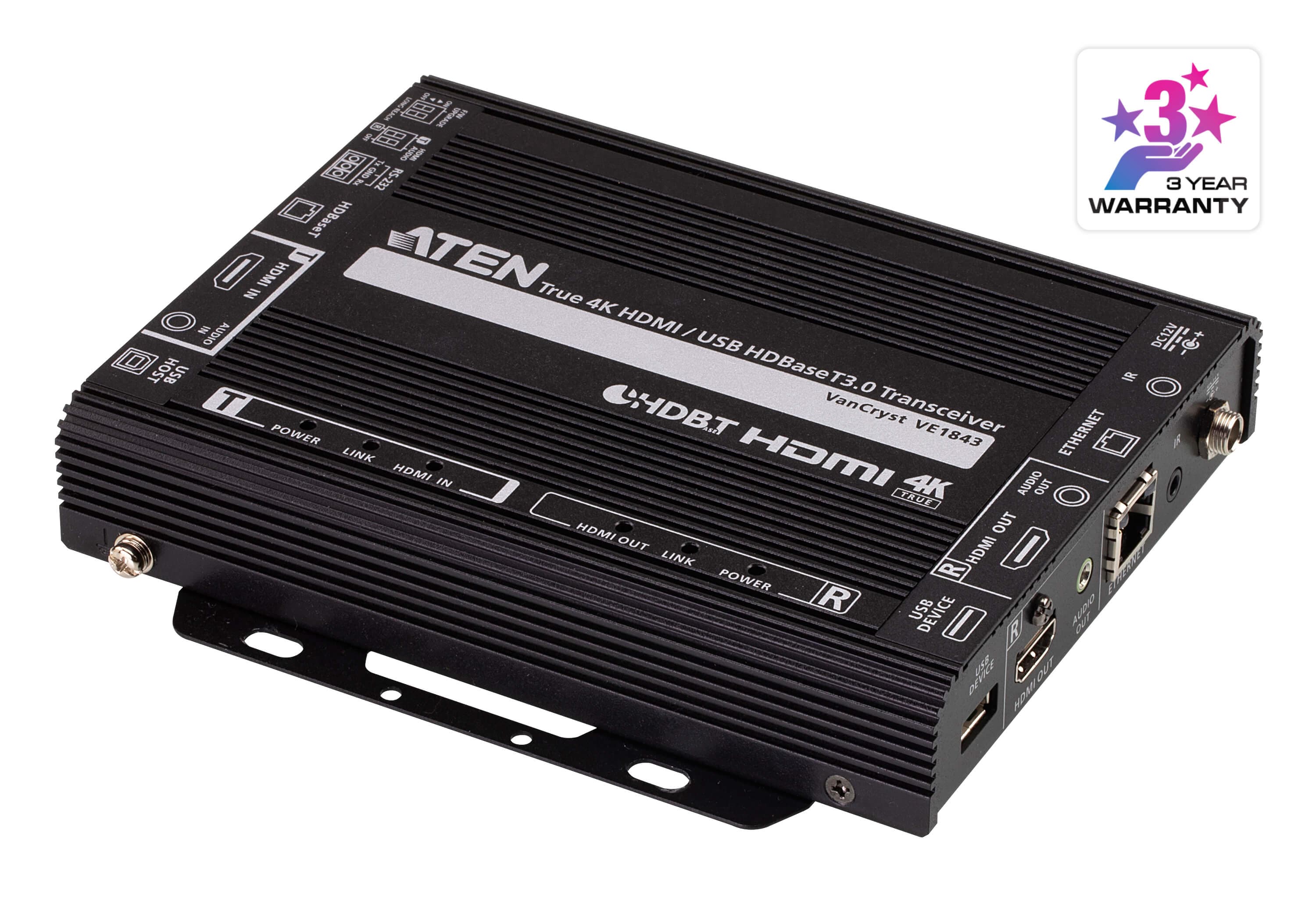

True 4K HDMI / USB HDBaseT 3.0 Transceiver

Name: True 4K HDMI / USB HDBaseT 3.0 Transceiver
Brand: ATEN
SKU: VE1843

VE1843

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

HDBaseT 3.0 трансивър — работи като предавател или приемник според конфигурацията и пренася некомпресиран True 4K HDMI и USB до 100 m по един Cat 6a кабел, заедно с IR и RS-232.

Характеристики

Extends uncompressed True 4K HDMI signals up to 100 m over a single Cat 6a cable (HDBaseT 3.0 Certified Cat 6a U/ FTP cable* / ATEN 2L-29330 Cat 6a cable) with zero latency

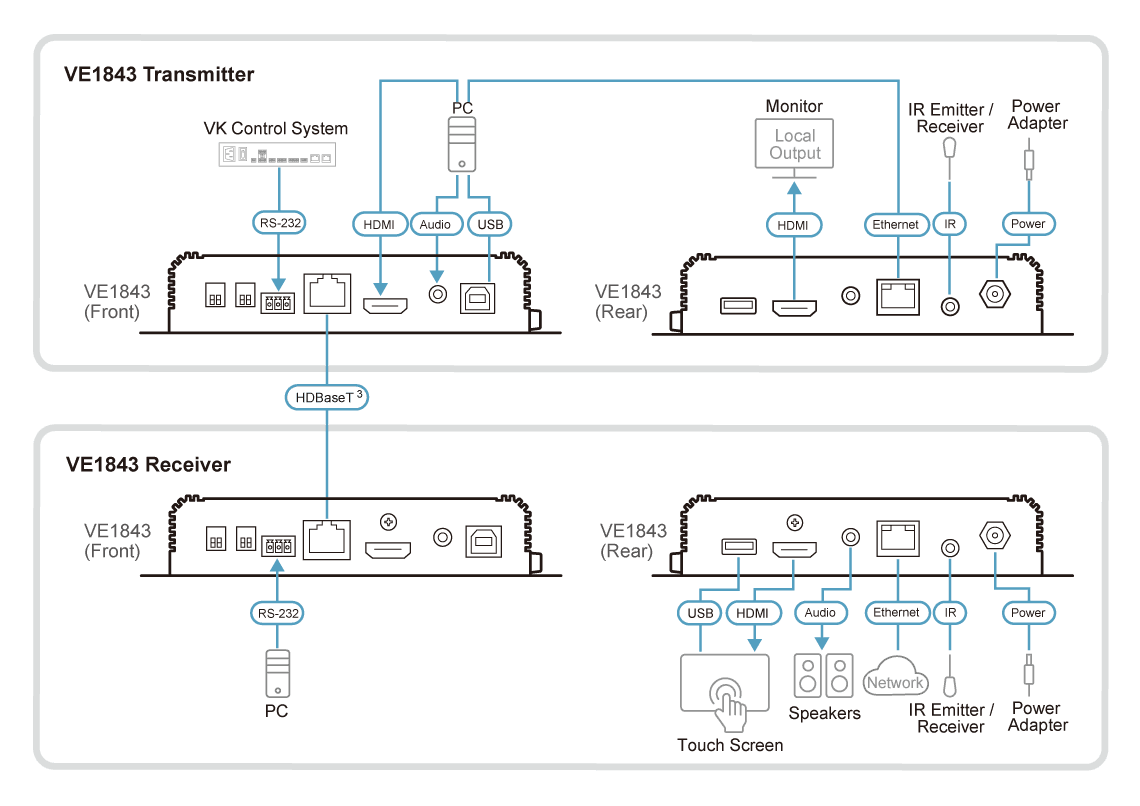

Flexible for deployment – can be configured as a transmitter or receiver depending on the AV solution
Compliant with HDBaseT 3.0 standards – transmits high-quality video, full range IR, bi-directional RS-232, Gigabit Ethernet, independent stereo audio and USB 2.0 signals channel bypass
HDMI (3D, Deep Color, 4K/60Hz); HDCP 2.3 compliant
Superior video quality – up to 4096 x 2160 @ 60 Hz (4:4:4); HDR, HDR+, Dolby Vision supported

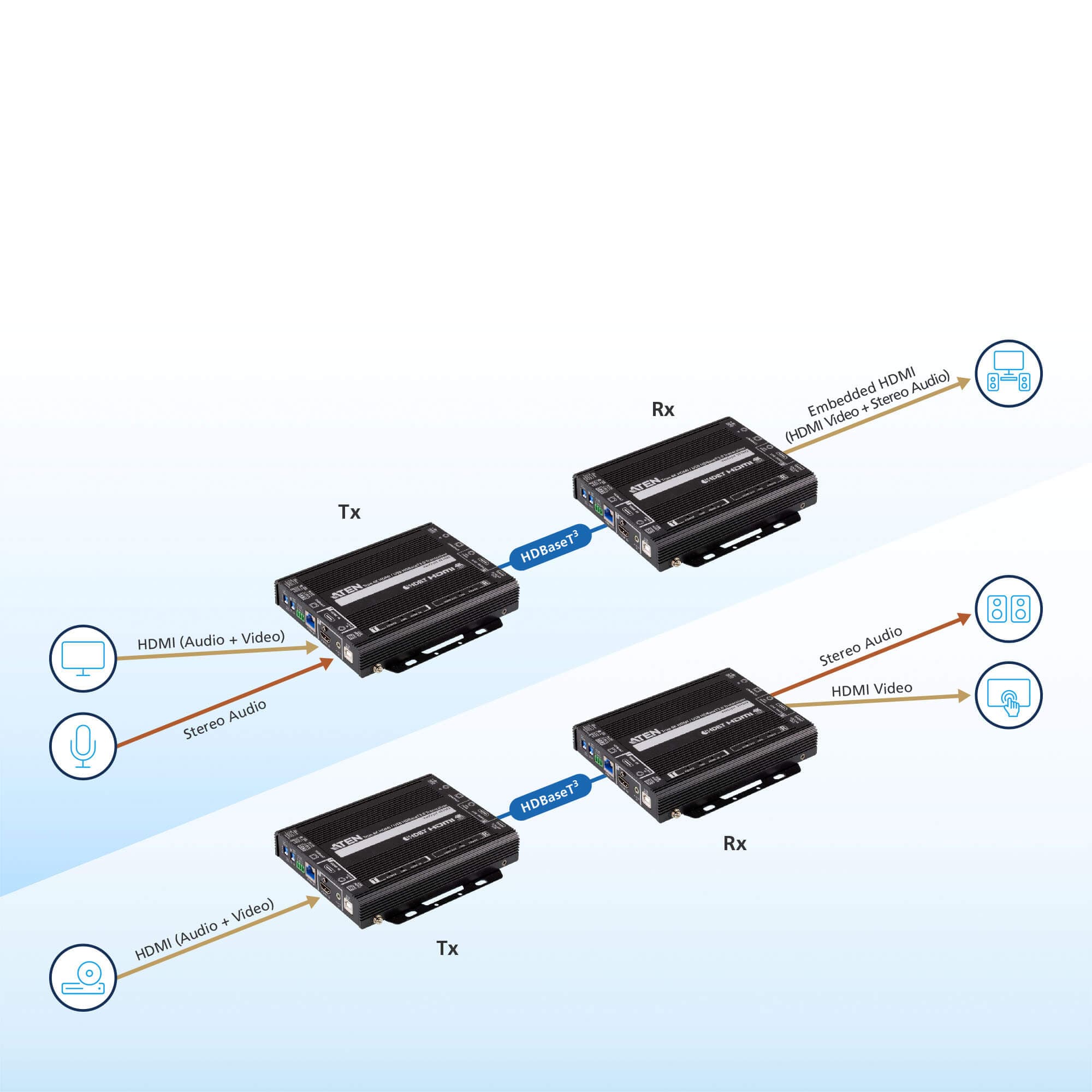

Supports HDMI audio embedding / de-embedding functions
Supports HDMI local output
Compliant with the USB 2.0 standard for a wide range of USB peripherals compatibility
LED indication of HDBaseT and HDMI signal status for easier recognition

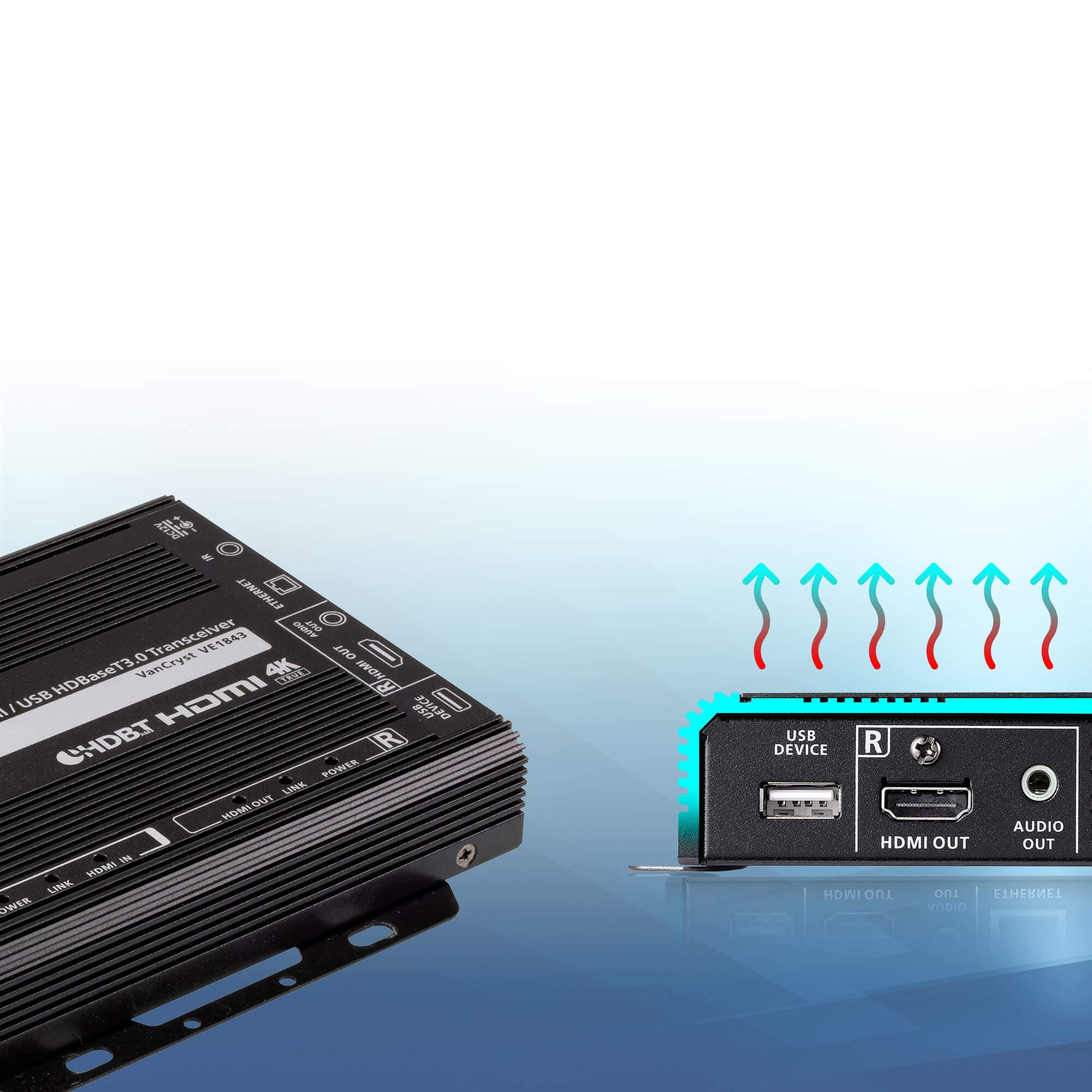

Fanless fin heat sink enclosure – elevates durability and reliability by preventing overheating, fan malfunctions, and noises
Supports extremely high refresh rates up to 240 Hz for the connected display
Firmware upgradable
Built-in 8KV / 15KV ESD protection
Plug-and-play
Rack-mountable * Cat 6a U/FTP is the recommended setting. The skewless nature and inter-pair shielding of FTP provides the better near-end crosstalk (NEXT, source end) and far-end crosstalk (FEXT, receiver end) parameters required to achieve the maximum performance and distance.

Видео вход

Интерфейси: 1 x HDMI Type A Female (Black)
Импеданс: 100 Ω
Макс. разстояние: 5 m

Видео изход

Интерфейси: 1 x HDMI Type A Female (Black)
Импеданс: 100 Ω
Макс. разстояние: 5 m

Видео

Макс. скорост на данните: 18Gbps (6Gbps per lane)
Макс. пикселна честота: 600 MHz
Съответствие: HDMI (3D, Deep Color, 4K/60Hz); 4K HDR HDCP2.2/2.3 Compatible Consumer Electronics Control (CEC)* *The CEC signals are only bypassed from the transmitter unit to the receiver unit and do not support local output.
Макс. резолюция: 4096 x 2160 @ 60Hz (4:4:4) 3840 x 2160 @ 60Hz (4:4:4)
Макс. резолюция / разстояние: Up to 4K x 2K @ 60Hz (4:4:4) @100m (HDBaseT3 Certified Cat 6a U/FTP cable / ATEN’s tailor-made HDBaseT cable) Up to 1080P@150m @Long reach mode (Cat 6/ 6a or above cable)

Аудио

Вход: 1 x HDMI Type A Female (Black) 1 x Stereo Audio ( mini stereo Jack female , Green)
Изход: 1 x HDMI Type A Female (Black) 1 x Stereo Audio ( mini stereo Jack female , Green)

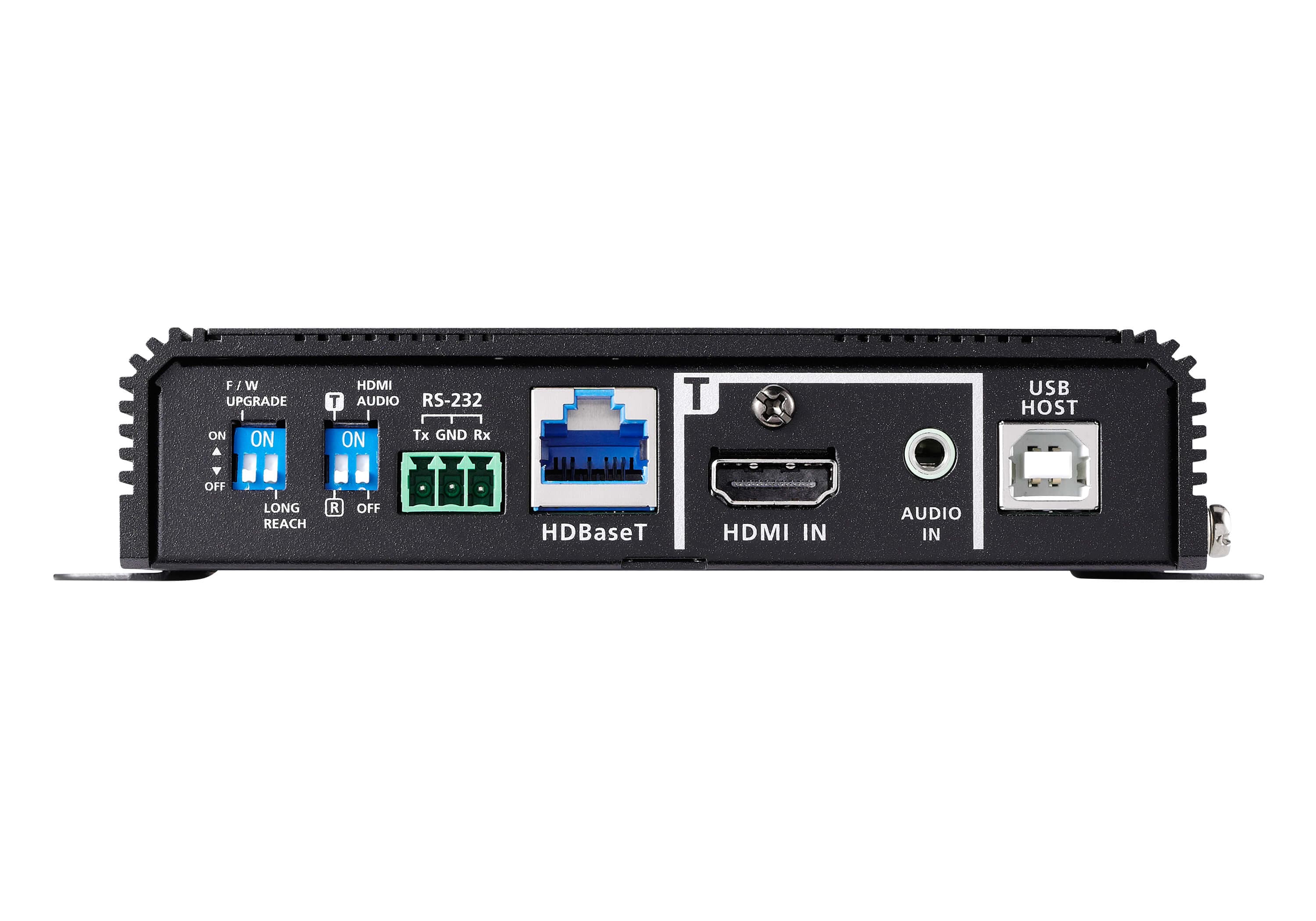

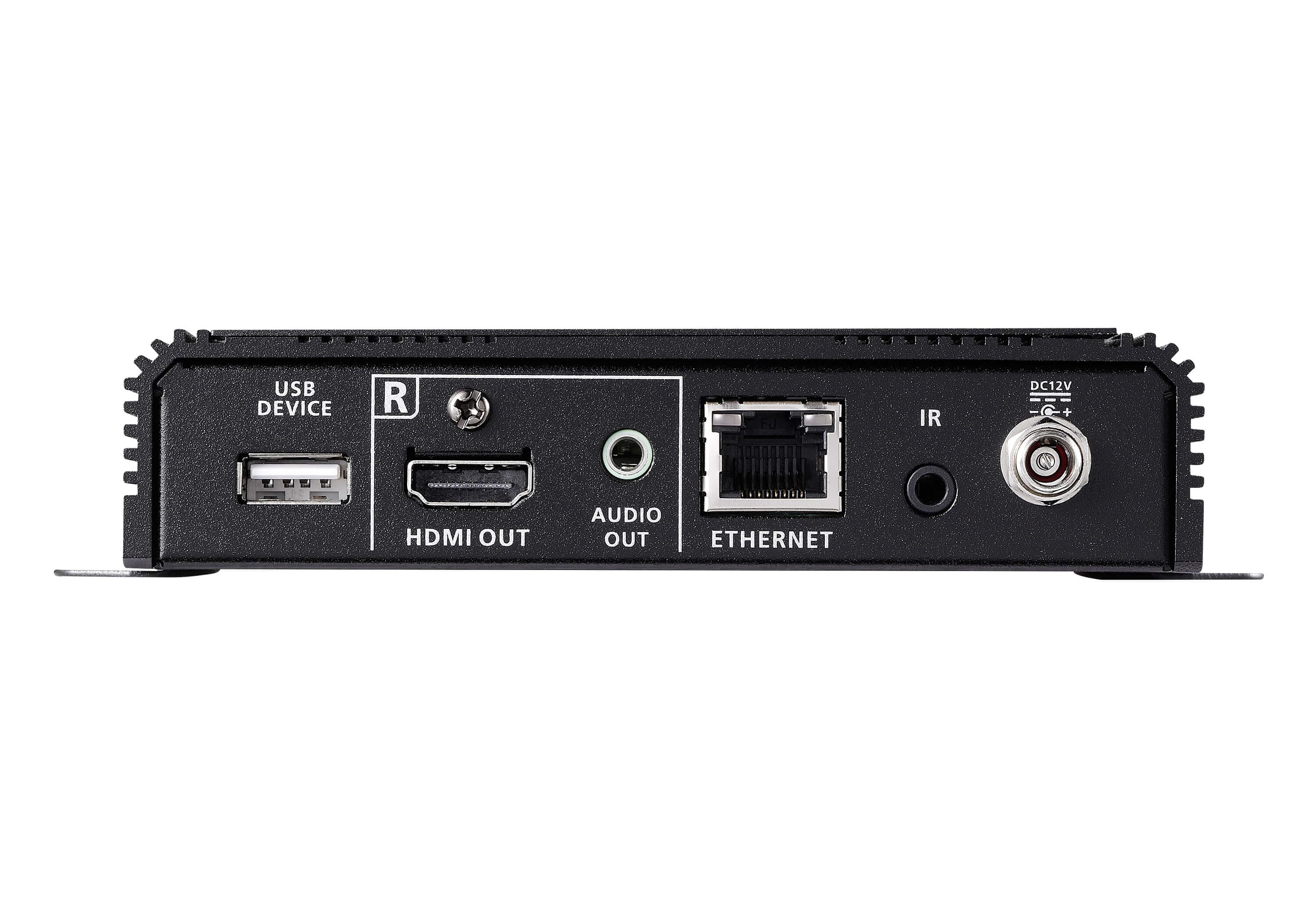

Конектори

Между устройства: 1 x RJ-45 Female
Захранване: 1 x DC Jack (Black) with locking

Управление

RS-232 канал: Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
IR канал: 1 x Mini Stereo Jack Female, (Bi-directional, Black) 30K ~56KHz full range transmission
Ethernet канал: 1 x GbE (RJ45 Female)
USB канал: 1 x USB2.0 Type B Female (White, Host) 1 x USB2.0 Type A Female (White, Device) Transmission data bandwidth: Up to 300Mbps
Консумация: DC12V:6.45W:40BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Бутони и превключватели

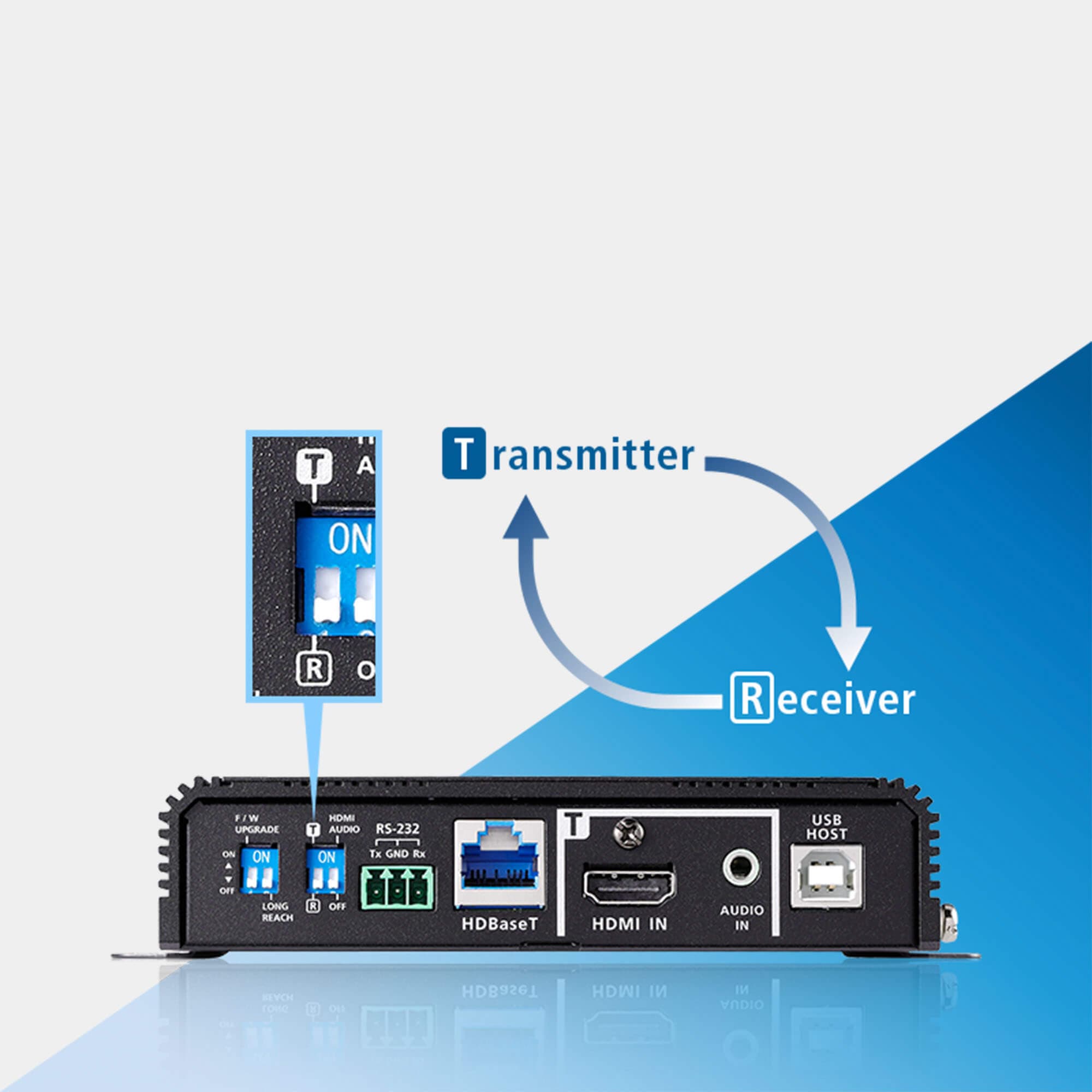

Избор: 1 x Slide Switch - TX (Be a Transmitter) / RX (Be a Receiver) selection
Избор на режим: 1 x Slide Switch - HDMI Audio embed or De-embed ON/OFF selection
Обновяване на фърмуера: 1 x Slide Switch - ON/OFF
Превключвател Long Reach: 1 x Slide Switch - ON/OFF

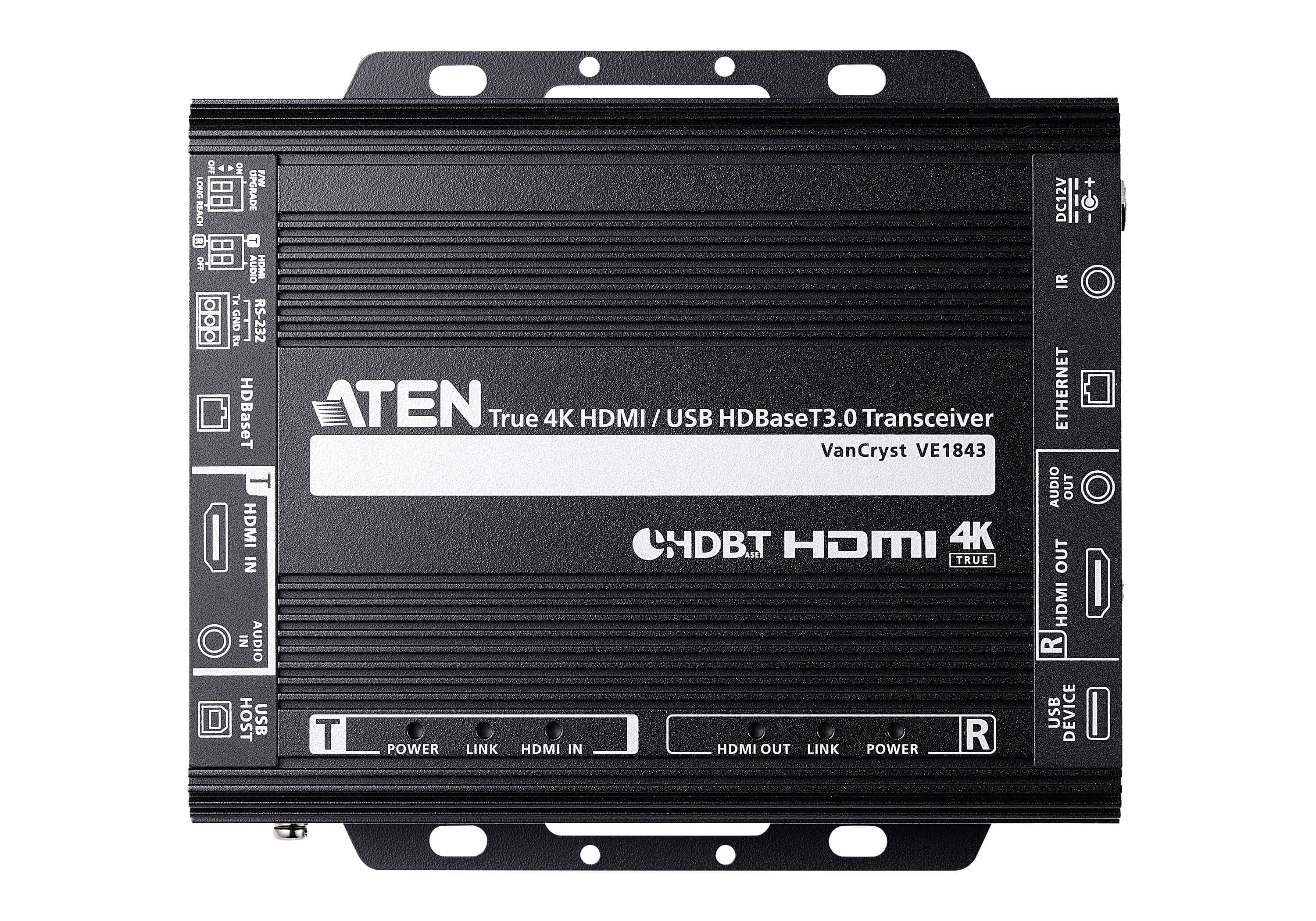

Индикатори

Захранване: 1 x TX (Transmitter, Green) 1 x RX (Receiver ,Green) NOTE: The TX or RX LED lights to indicate which role the VE1843 is set to.
Връзка: 1 x TX (Transmitter, Orange) 1 x RX (Receiver, Orange)
Видео изход: 1 x RX HDMI OUT (Receiver, Orange)
Видео вход: 1 x Tx HDMI IN (Transmitter, Orange)

Работна среда

Работна температура: 0 - 40°C
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-Condensing

Физически характеристики

Корпус: Metal
Тегло: 0.64 kg ( 1.41 lb )
Размери (Д x Ш x В): 17.15 x 15.09 x 3.00 cm (6.75 x 5.94 x 1.18 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Входни резолюции: 4096 x 2160p 24/25/30/50/60Hz
3840 x 2160p 24/25/30/50/60Hz: 1920 x 1200 @ 60Hz (Reduced Blanking)
3840 x 2400p 60Hz 4:4:4: 1600 x 1200 @ 60Hz
3840 x 2160p 50/60Hz 4:2:0: 1920 x 1080 @ 60/120/240Hz
4096 x 2160p 50/60Hz 4:2:0: 1680 x 1050 @ 60Hz
2560 x 1440 @ 60Hz: 1400 x 1050 @ 60Hz
2560 x 1440 @ 75Hz: 1400 x 900 @ 60Hz
1080p 24/25/30/50/60Hz: 1280 x 1024@ 60/75Hz
1080i 50/60Hz: 1280 x 800 @ 60Hz
720p 50/60Hz: 1024 x 768 @ 60/70/75Hz
576p 50Hz (4:3)/(16:9): 800 x 600 @ 56/60/72/75Hz
480p 60Hz (4:3)/ (16:9): 720 x 400 @ 70Hz
