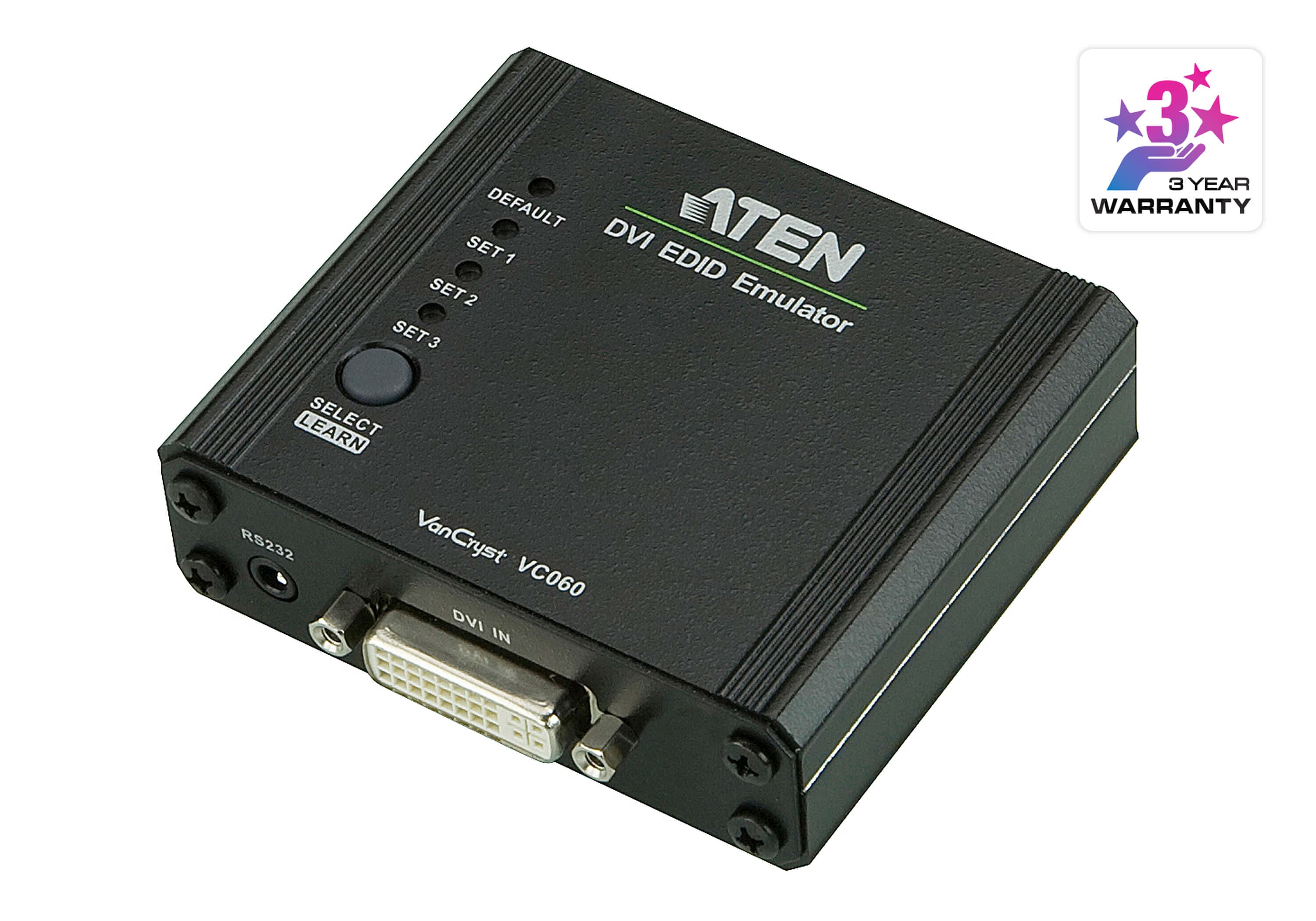

DVI EDID емулатор с програматор — съхранява EDID данните на дисплея и ги подава постоянно към източника. Резолюции до 1920 x 1200; режими Default, Learning и Programming.
Характеристики
- Superior video quality – HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
- EDID Wizard – allows a user an easy way to manage EDID settings
- EDID mode selection – Default, Learning , Programming
- Automatically manages EDID communication between connected devices
- Signaling rates up to 2.25 Gbits in support of 1080p display
- LED indication of video source devices
- Supports wide screen
- Supports hot-plugging
- Non-Powered * * If the video source is not receiving enough power an external power cord should be connected.
Спецификация
- Макс. видео резолюция
- WUXGA (1920 x 1200)
- Скорост на данните
- 2.25 Gbits
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5V:0.13W:1BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50 ºC
- Температура на съхранение
- -20 - 60 ºC
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.15 kg ( 0.33 lb )
- Размери (Д x Ш x В)
- 7.90 x 7.86 x 2.45 cm (3.11 x 3.09 x 0.96 in.)
- Брой в кашон
- 5 pcs

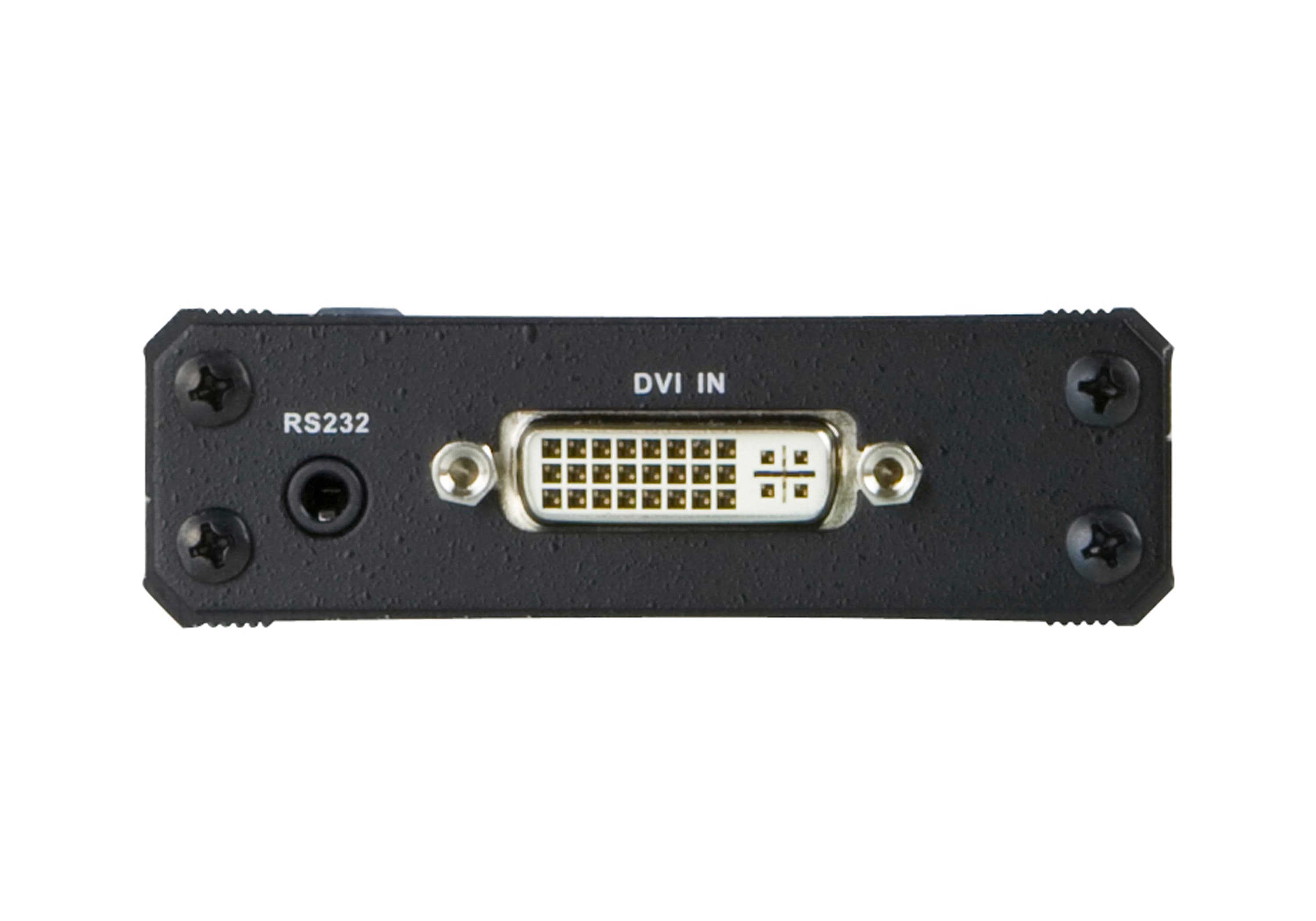

Видео вход
- Интерфейси
- 1 x DVI-I Female (White)
- Импеданс
- 100 Ω

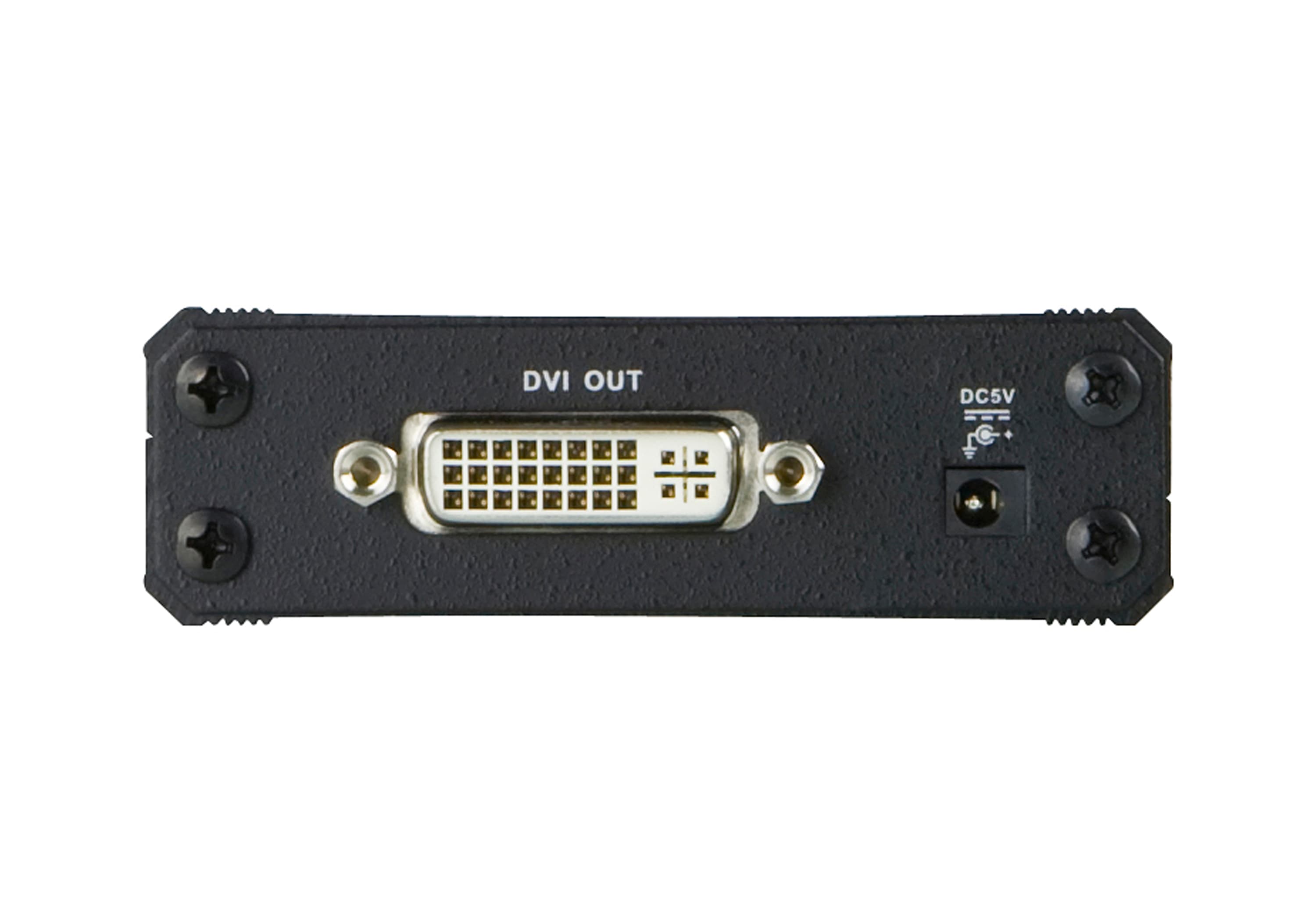

Видео изход
- Интерфейси
- 1 x DVI-I Female (White)
- Импеданс
- 100 Ω
- EDID настройки
- EDID Mode: Default / Learn / Customized (EDID Wizard support)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
