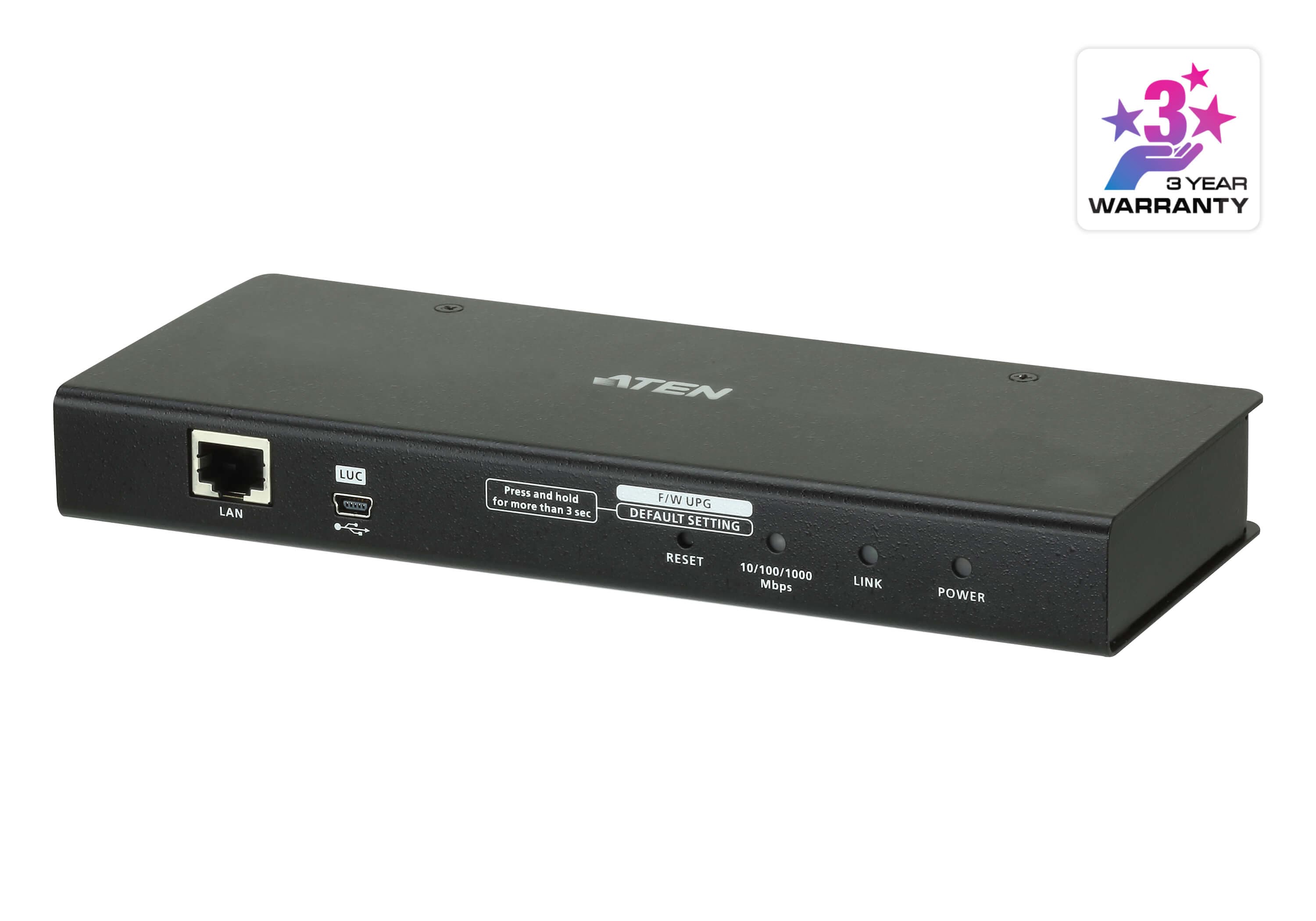

1-Local/Remote Shared Access Single Port VGA KVM over IP Switch

Name: 1-Local/Remote Shared Access Single Port VGA KVM over IP Switch
Brand: ATEN
SKU: RCM101A

RCM101A

Заяви оферта Datasheet PDF Ръководство CAD чертеж

KVM over IP устройство за споделен локален и отдалечен достъп до един VGA компютър. Access Control Box позволява включване и изключване на правото за отдалечен контрол; поддържа и OCR API интерфейс.

Характеристики

Supports Access Control Box which allows users to enable/disable remote control privilege
Supports Panel Array to monitor all machines for operators with multiple RCM products
Supports exclusive integrated RCM API (DLL) interface with various function for system integrators
Supports OCR API (DLL) interface for optical character recognition
Provides over-IP capability to KVM switches that do not have built-in over-IP functionality*
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Local console provides PS/2 and USB keyboard/mouse support**
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Virtual Media Support
High video resolution – up to 1920 x 1200 @ 60Hz- 24 bit color depth for the local console; up to 1920 x 1200 @ 60 Hz with 24 bit color depth for remote sessions
Enhanced fps (frames per second) throughput for crisp responsive video display * Cascade-compatible KVM Switches include the following: CS1308, CS1316, CS1754*, CS1758*, CS1708A, CS1716A • Some of the RCM101A's features may not be supported, depending on the functionality of the cascaded KVM switch. (For example, some switches do not support virtual media.) • Some features found on the cascaded KVM switches may not be supported on the RCM101A. (For example, the CS1754’s audio.) **Since there are a large number of keyboards/mouses with functions specifically designed for OS other than Windows, they may not be adapted and may have compatibility issue.
Laptop USB Console (LUC) – a dedicated USB port directly connects to laptop for easy console operation
Easy configuration through local console OSD
Up to 64 user accounts – up to 32 users can simultaneously share control
End session feature – administrators can terminate running sessions
Event logging and Windows-based Log Server support
Critical system events sent by email and SNMP trap; Syslog support
Remote firmware upgradable
Port Share Mode allows multiple users to gain access to a server simultaneously
Local/Remote Share Mode conveniently grants shared or exclusive console privilege
DDNS (Dynamic Domain Name System)
Exports/imports user account and configuration settings
Browser Access Permission – extra security feature to allow/disallow browser/http/https access
IPv6 capable
Browser-based and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multibrowser support (IE, Chrome, Firefox, Safari, Opera, Netscape)
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package requirements
Full-screen or sizable and scalable Virtual Remote Desktop
Magic Panel
Smart Card/CAC Reader Support
External authentication support: RADIUS, LDAP, LDAPS and MS Active Directory
TLS 1.2 encryption to protect password when users log in
Flexible design allows users to choose any combination of encryption algorithms (e.g. 256-bit AES) or system-generated random selection for independent keyboard/mouse, video, and virtual media data encryption
Supports IP/MAC Filter
Supports password protection
Private CA
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB-enabled servers at OS and BIOS level
Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
Convenient to use without virtual media cable
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full screen video display or scalable video display
Message Board for communication among remote users
On-screen keyboard with multilanguage support
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
Supports Exit Macros
BIOS-level access

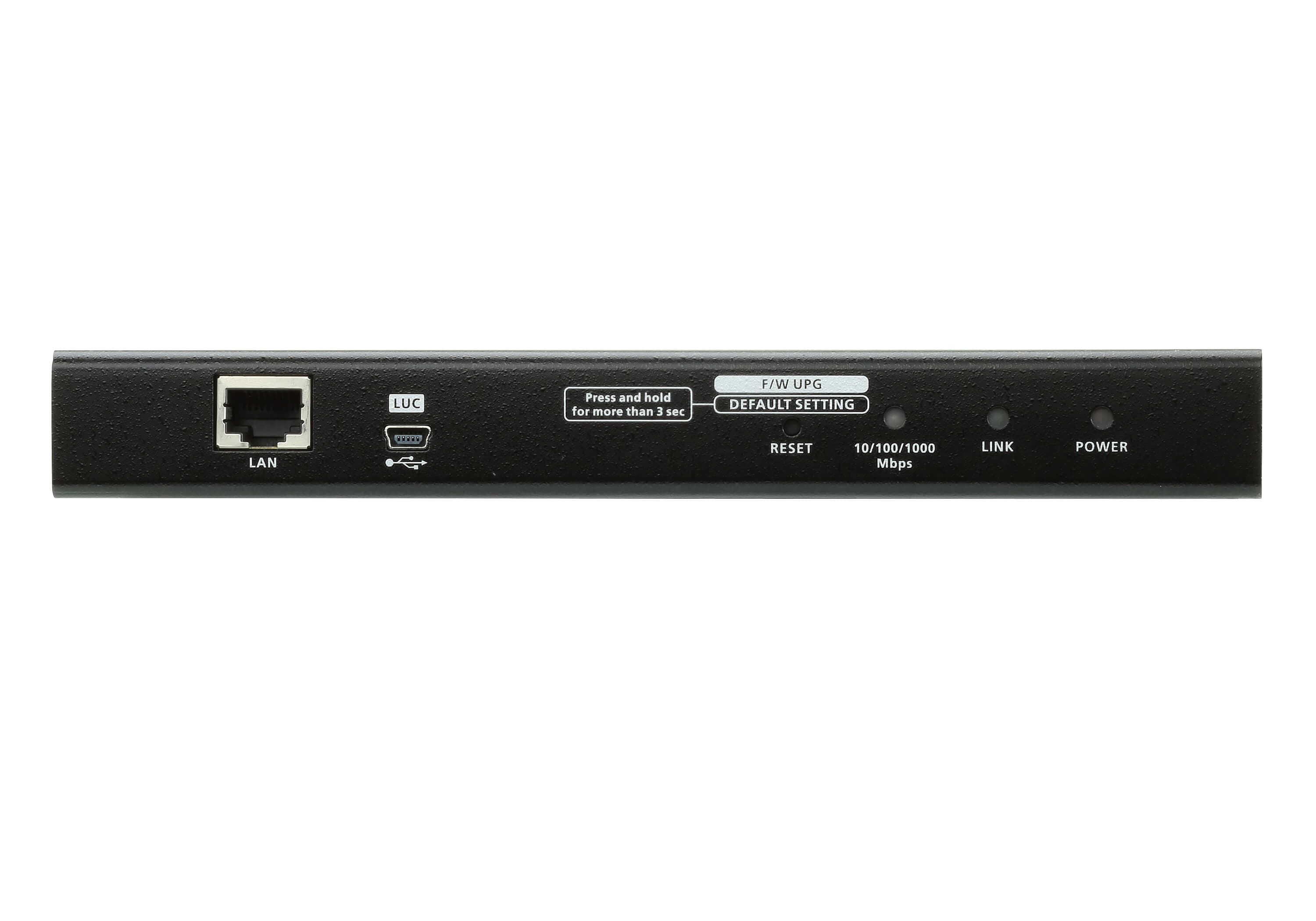

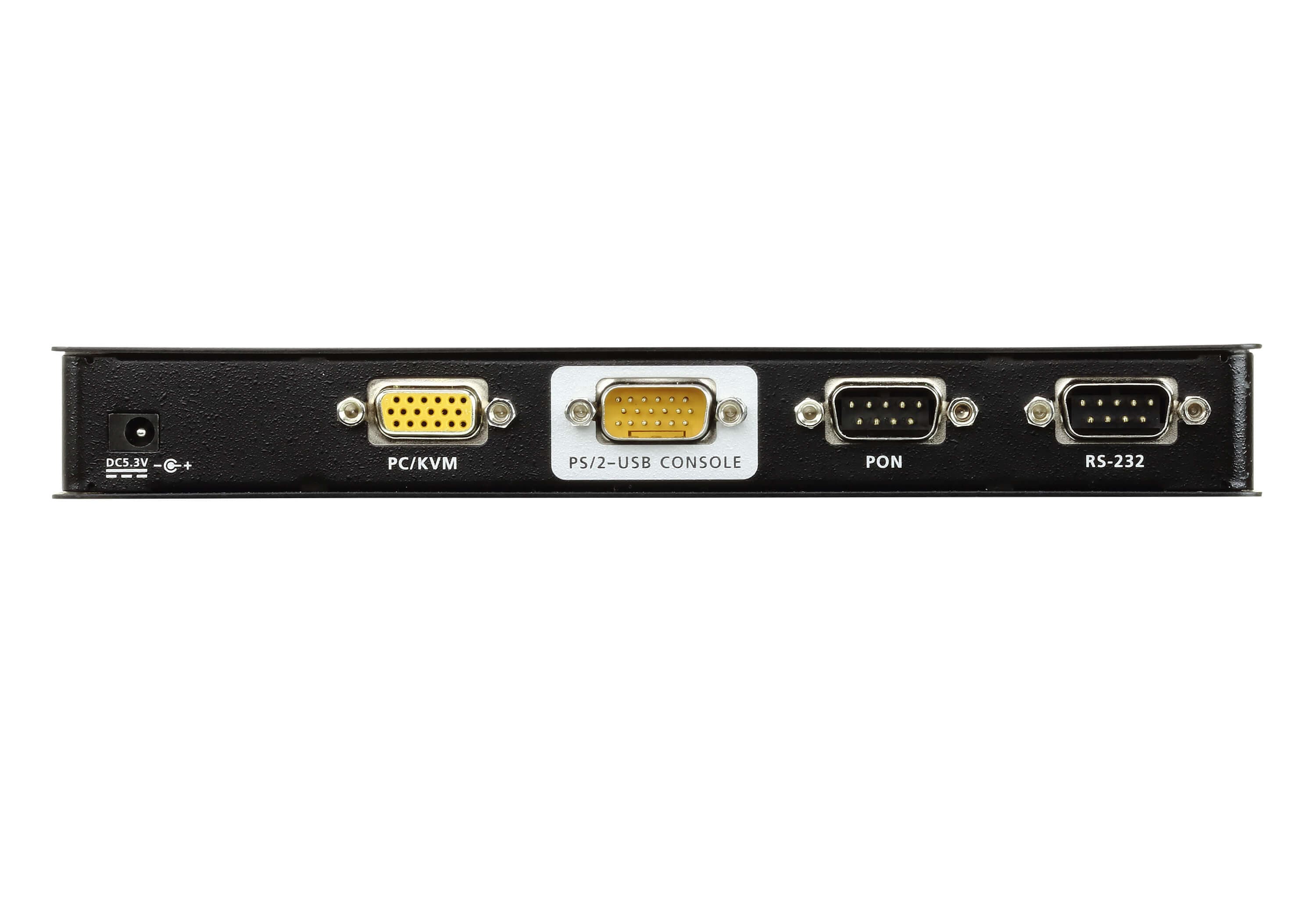

Конектори

Конзолни портове: 1 x SPHD-18 Male (Yellow)
KVM портове (компютри): 1 x SPHD-18 Female (Yellow)
Laptop USB Console (LUC) порт: 1 x USB Mini-B Female
PON: 1 x DB-9 Male
RS-232: 1 x DB-9 Male
LAN портове: 1 x RJ-45 Female
Захранване: 1 x DC Jack

Бутони и превключватели

Нулиране: 1 x Semi-recessed Pushbutton

Индикатори

Захранване: 1 (Orange)
Връзка: 1 (Green)
10/100/1000 Mbps: 1 (Orange / Orange+Green /Green)

Емулация

Клавиатура / мишка: USB; PS/2
Видео: Up to 1920 x 1200 @ 60 Hz; DDC2B
Консумация: DC5.3V:4.79W:31BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 50°C (RCM101A) 0 - 40°C (Power Adapter)
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 0.49 kg ( 1.08 lb )
Размери (Д x Ш x В): 20.00 x 8.14 x 2.50 cm (7.87 x 3.2 x 0.98 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
