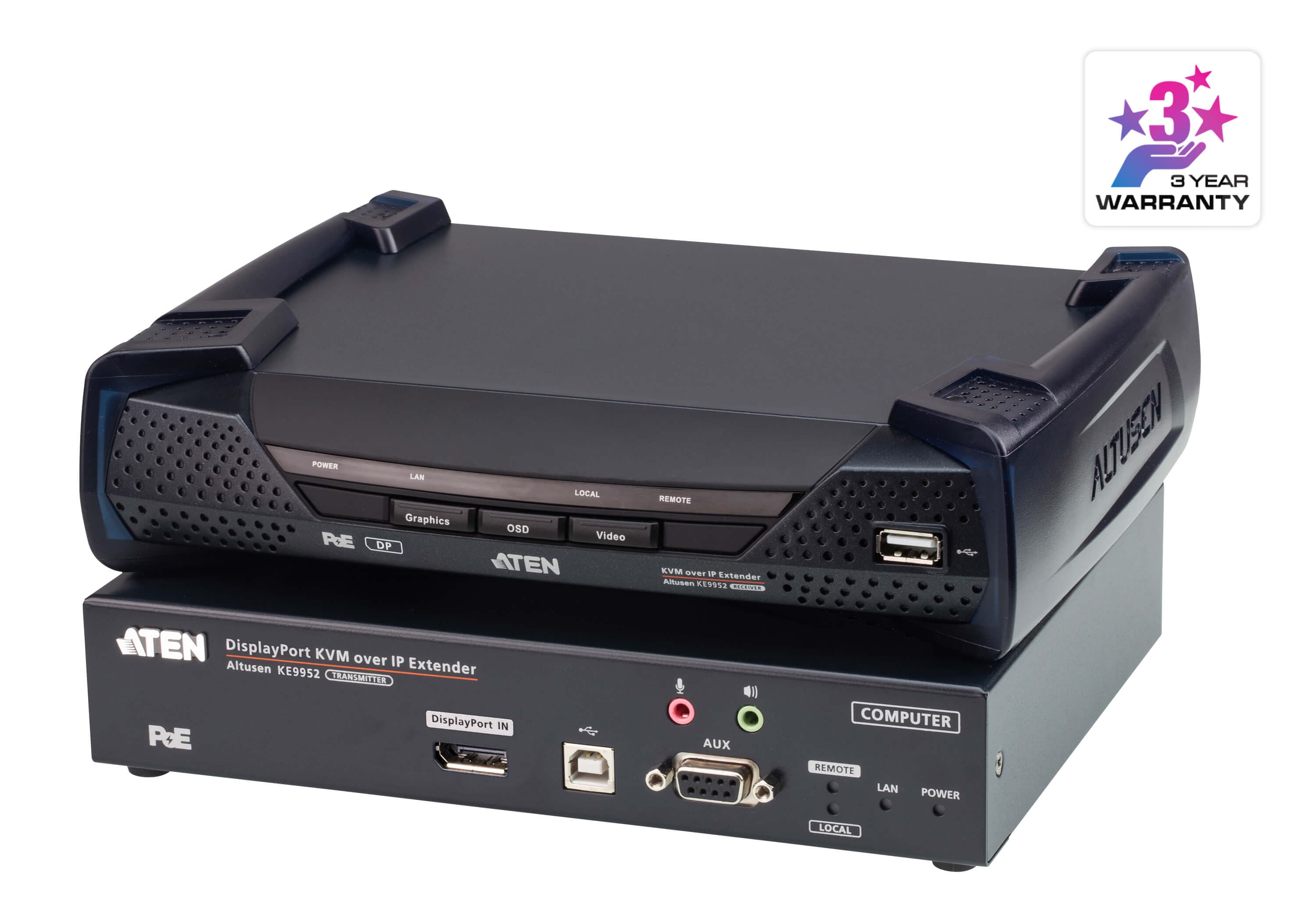

4K DisplayPort Single Display KVM over IP Extender with PoE
KE9952Снет от производство

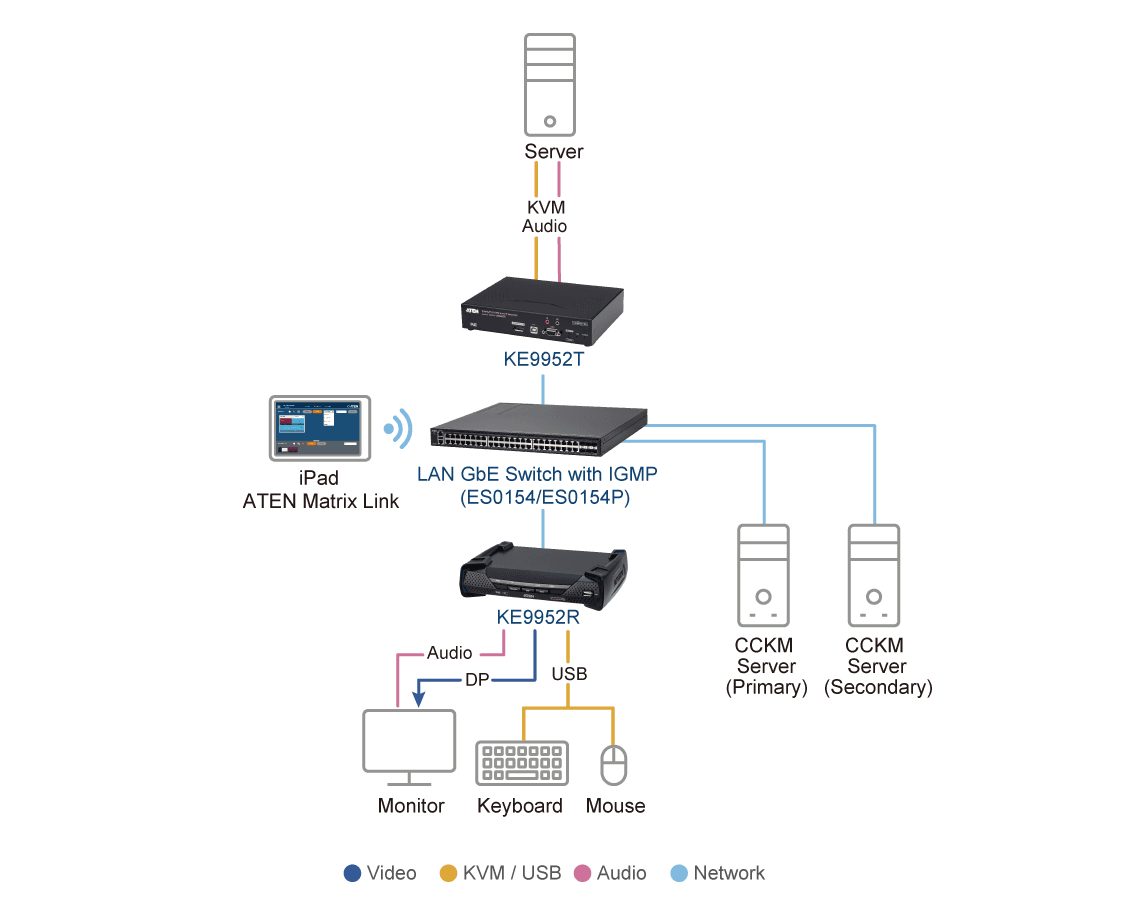

KVM Over-IP удължител за един DisplayPort дисплей с 4K видео и захранване по PoE. Работи в матрични инсталации с ATEN Matrix Link и изгражда видеостени до 8 x 8 (64 дисплея).
Характеристики
- ATEN Matrix Link – allows you instant link transmitters and receivers, and perform real-time port and profile switching on an iPad
- Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
- “Push” and “Pull” – share content instantly to/from a single Rx or video wall by just one click
- Video Walls – create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
- Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
- Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
- Support both internal and external authentication – external authentication supports LDAP, Active Directory, RADIUS and TACACS+
- Advanced User Authorization Settings – administrators can set four access modes of permissions on Tx devices for collaboration or to avoid interference among users
- Configurable user and group permissions for access and control of KE devices
- Tx grouping of up to 4 sets of KE transmitters to support multi-display applications
- Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button** * These advanced functions are supported when the KE transmitters are paired with KE receivers and managed by KVM over IP Matrix Manager (CCKM) **The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.
- Supports DisplayPort video resolutions up to 3840 x 2160 @ 30Hz (4:4:4) ; 24-bit color depth
- Supports digital video output
- Compliant with DP 1.2 and HDCP 1.3
- Supports stereo speakers and stereo microphone
- High speed USB Storage Transmission support
- Auto-MDIX – automatically detects cable type
- Built-in 8KV/15KV ESD protection and 2KV surge protection
- Fanless design for silent operations that are energy efficient
- Supports connection via Gigabit Ethernet port (RJ-45) or SFP port for failover
- Support 1Gbps SFP fiber module expansions***up to 10 km
- Power Redundancy – DC Jack + PoE
- Support Power over Ethernet (PoE) function – compliant with the IEEE 802.3at standard
- Rack Mountable – Mounting options: • 2X-021G Dual Rack Mount Kit • 2X-031G Single Rack Mount Kit
- Recommended Network Switches: Below are the network switches that have passed ATEN's stress tests using the KE Series extenders. Our tests streamed content over a network with a resolution of 1920 x 1200 @60Hz (KE69 Series) and 3840 x 2160 @30Hz (KE89, KE99 Series), 24bit color depth at 60 frames per second. • ATEN ES0152 / ES0152P • Cisco Catalyst 2960X / Catalyst 2960XR / Catalyst 3750 • HP Procurve 2920 • H3C S5120 • Huawei S5700 • DLink DGS-1510 Please refer to the FAQ link below on how to select network switches and network switch information collected by ATEN Customer Service Division, where the collected information includes customer's feedback from their actual experience in using and installing the product(s). https://eservice.aten.com/eServiceCx/Common/FAQ/view.do?id=6276 ***The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.
- Centralized management software – KVM over IP Matrix Manager (CCKM) allows users to easily administrator all KE devices with an intuitive web-based GUI
- Dual console operation – controls your system from both the transmitter’s and receiver’s keyboard, monitor, and mouse consoles
- Local console for emergency operation
- OSD (On Screen Display) on the Receiver configures both Tx / Rx devices
- EDID Expert™ – selects optimum EDID settings to prevent video compatibility issue caused by different monitors
- On-screen Preview – allows users to view the video of up to 36 displays on one screen
- Video Compression Level – allows you to increase/decrease the video quality to adjust for appropriate network bandwidth
- CLI – administrators can control all KE devices via RS-232 or Telnet by issuing commands
- RS-232 serial ports – allow you to connect to a serial terminal for TextMenu, CLI, or serial devices such as touch screens and barcode scanners
- Compatible with all KE devices
- Dedicated LAN port for KE direct connections – can be isolated from the corporate network
- Secure data transmission – 128-bit AES encryption to secure all data before it’s transmitted over a network and decrypts the data on the receiver
- Supports industry standard Transport Layer Security (TLS) protocol
- USB Storage Transmission mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
- Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
- Supports Smart Card/CAC Reader

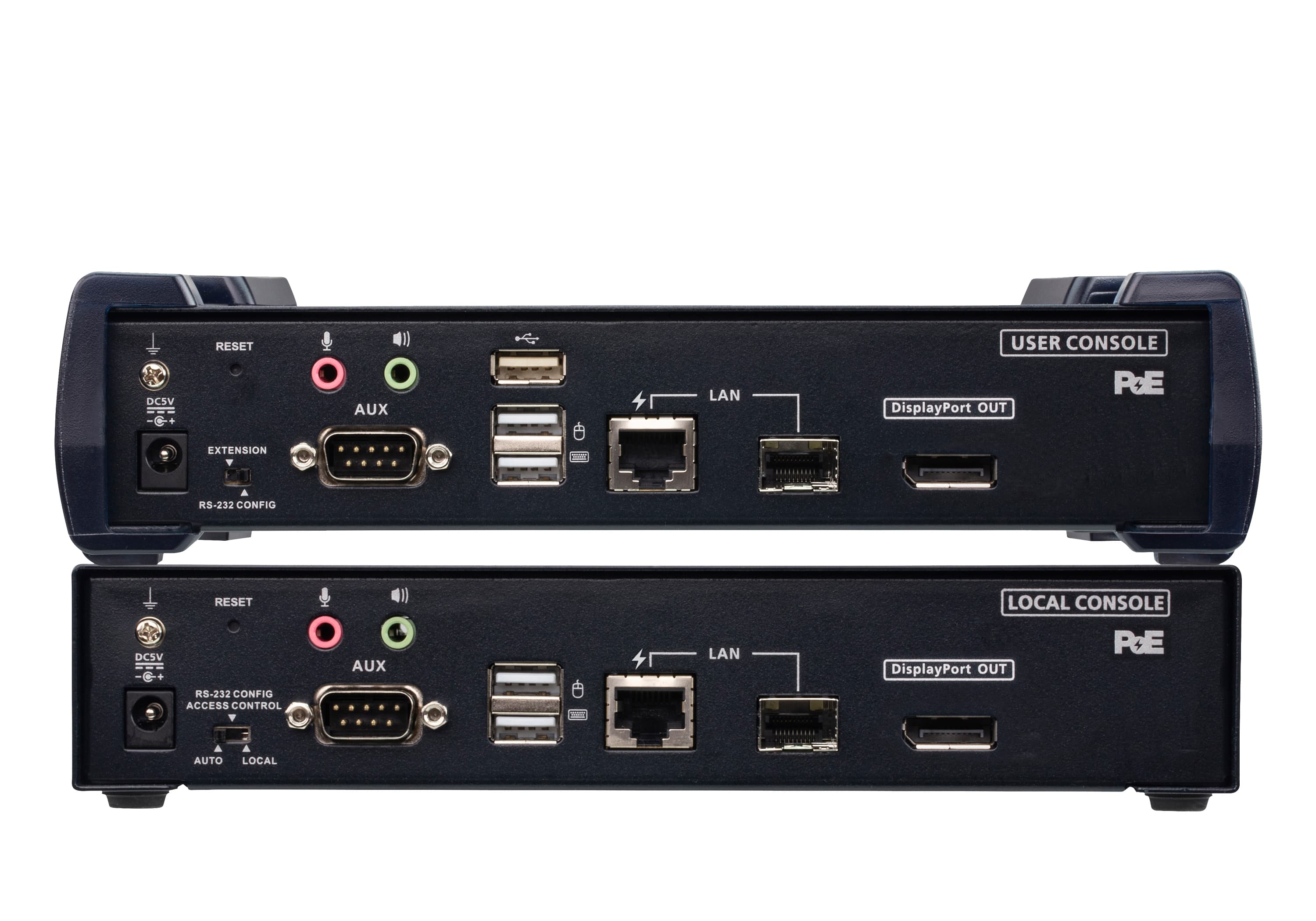

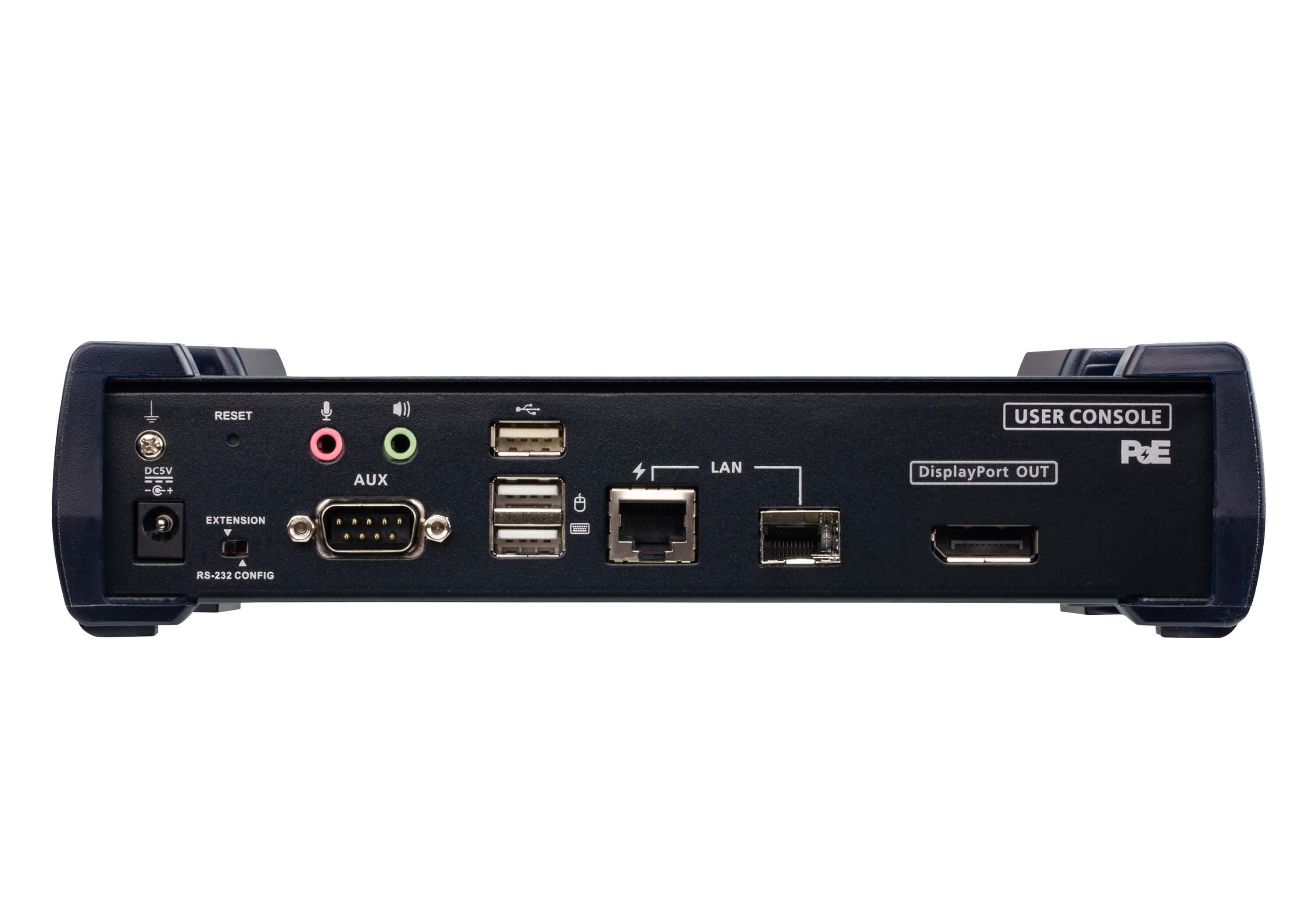

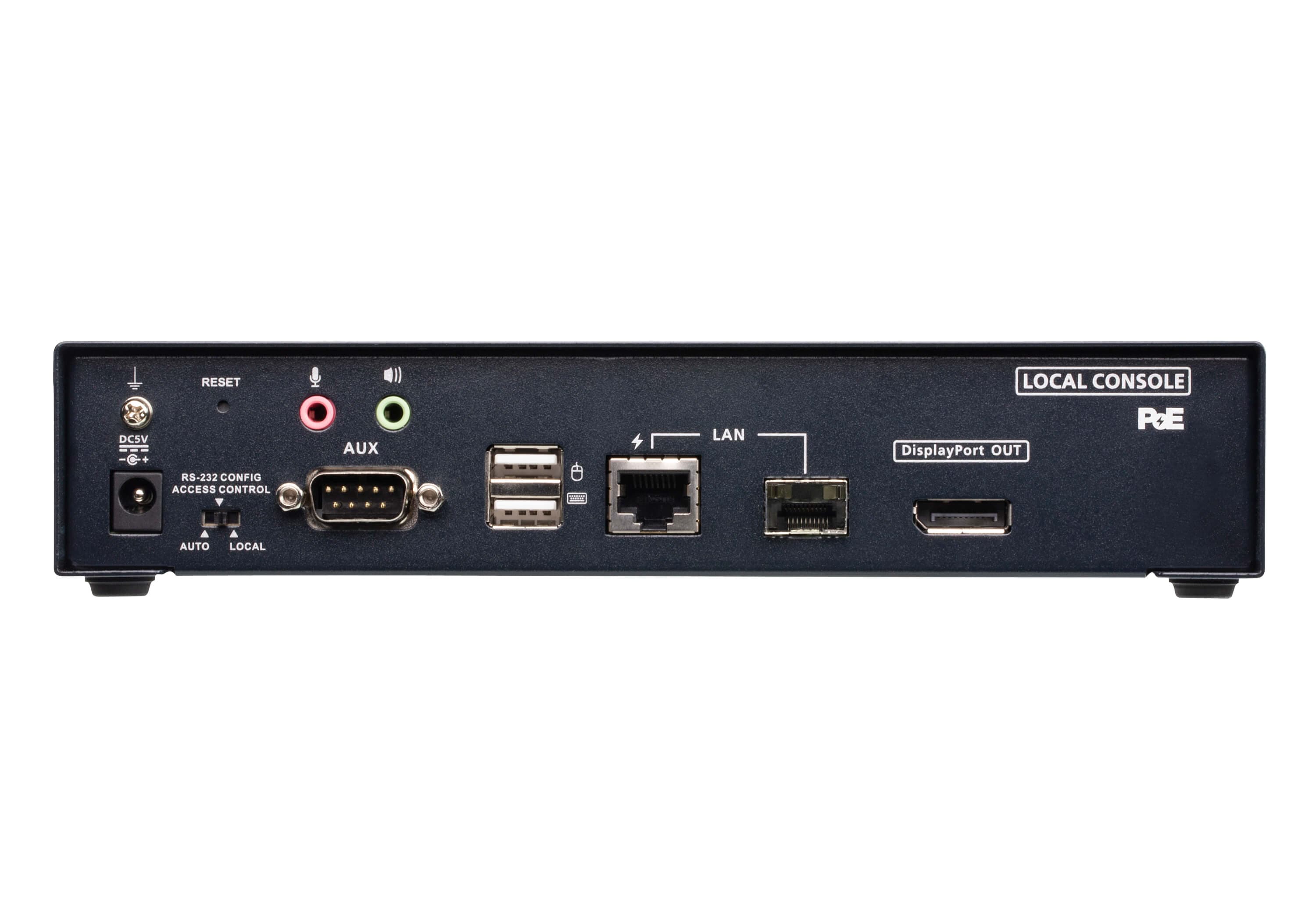

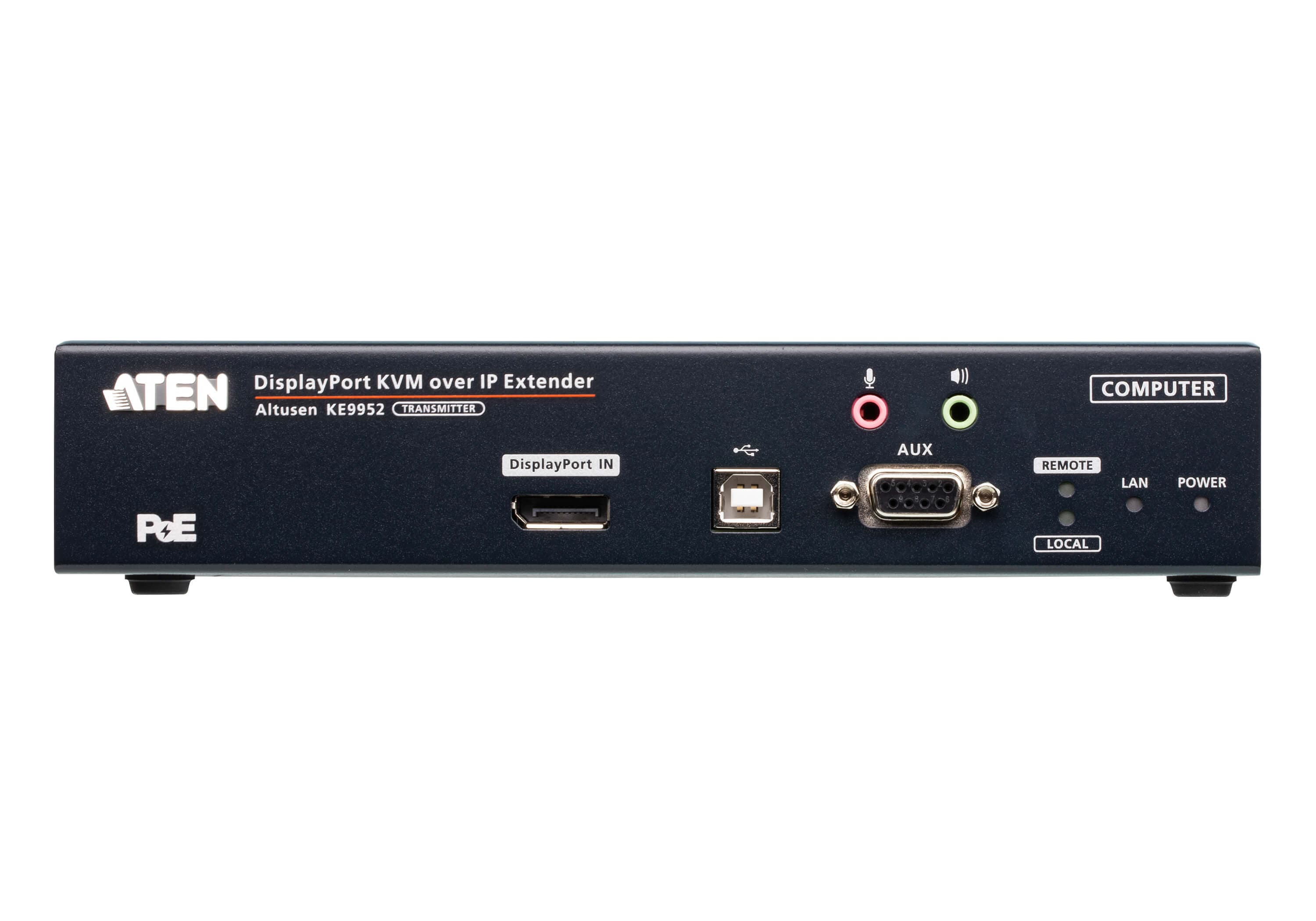

Конектори
- USB порт
- 2 x USB Type A Female (White)
- USB порт
- N/A
- Конзолни портове
- 2 x USB Type A Female (White) 1 x DisplayPort Female (Black) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black)
- Конзолни портове
- 2 x USB Type A Female (White) 1 x DisplayPort Female (Black) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black)
- KVM портове
- N/A
- KVM портове
- 1 x USB Type B Female (White) 1 x DisplayPort Female (Black) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Female (Black)
- Захранване
- 1 x DC Jack (Black)
- Захранване
- 1 x DC Jack (Black)
- LAN портове
- 1 x RJ-45 (Black, PoE) 1 x SFP Slot
- LAN портове
- 1 x RJ-45 (Black, PoE) 1 x SFP Slot

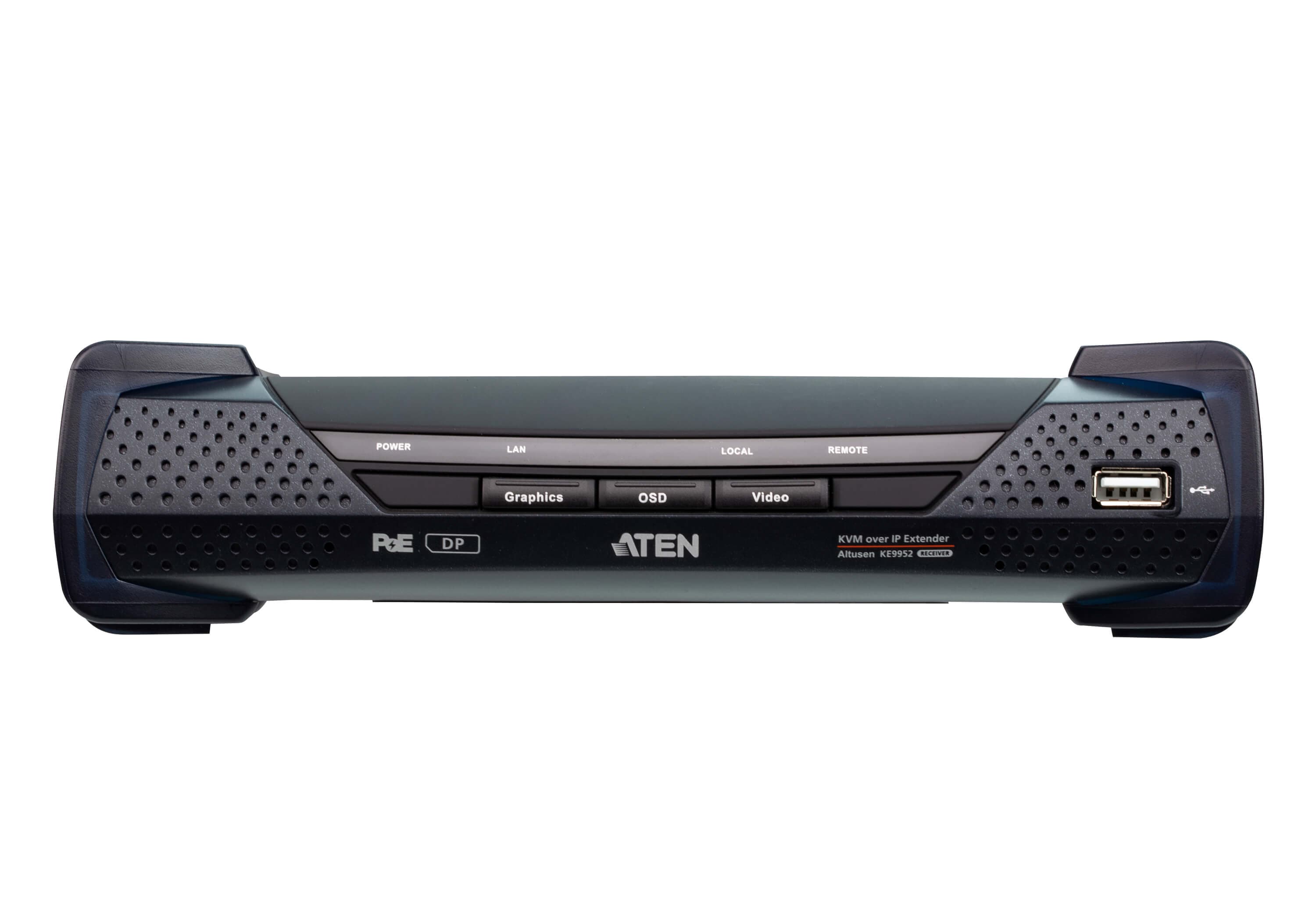

Бутони и превключватели
- OSD
- 1 x Pushbutton
- OSD
- N/A
- Видео
- 1 x Pushbutton
- Видео
- N/A
- Графика
- 1 x Pushbutton
- Графика
- N/A
- Нулиране
- 1 x Semi-recessed Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
Индикатори
- 10/100/1000 Mbps
- 1 (10: Orange / 100: Orange & Green / 1000: Green)
- 10/100/1000 Mbps
- 1 (10: Orange / 100: Orange & Green / 1000: Green)
- Захранване
- 1 (Blue)
- Захранване
- 1 (Blue)
- Локално
- 1 (Green)
- Локално
- 1 (Green)
- Отдалечено
- 1 (Green)
- Отдалечено
- 1 (Green)
Емулация
- Клавиатура / мишка
- USB
- Клавиатура / мишка
- USB
- Консумация
- POE:10.04W:73BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- POE:11.88W:60BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Видео резолюция
- Up to 3840 x 2160 @ 30Hz
- Видео резолюция
- Up to 3840 x 2160 @ 30Hz
Работна среда
- Работна температура
- 0–50°C
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–95% RH, Non-condensing
- Влажност
- 0–95% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 1.27 kg ( 2.8 lb )
- Тегло
- 1.15 kg ( 2.53 lb )
- Размери (Д x Ш x В)
- 22.75 x 17.16 x 5.48 cm (8.96 x 6.76 x 2.16 in.)
- Размери (Д x Ш x В)
- 21.50 x 16.29 x 4.18 cm (8.46 x 6.41 x 1.65 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
