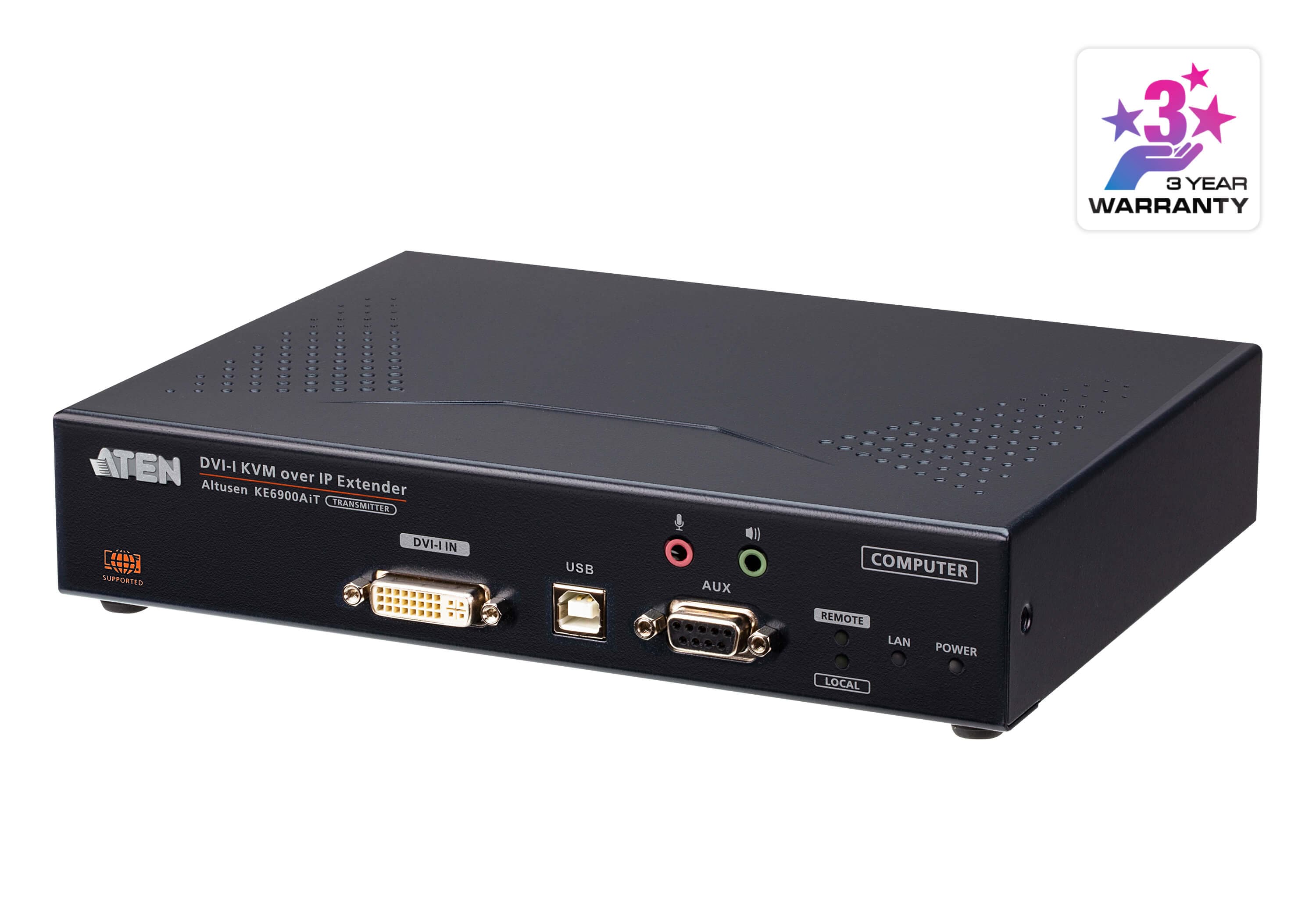

DVI-I Single Display KVM over IP Transmitter with Internet Access

Name: DVI-I Single Display KVM over IP Transmitter with Internet Access
Brand: ATEN
SKU: KE6900AIT

KE6900AIT

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

KVM Over-IP предавател за отдалечен достъп до компютър с DVI-I видео, USB и аудио. Разполага с отделен RJ-45 порт за интернет достъп и SFP слот; превключването между свързани сървъри отнема 0.3 секунди.

Характеристики

ATEN Matrix Link – allows users instant link transmitters and receivers, and perform real-time port and profile switching on an iPad.
Supports recording of remotely-accessed computer operations using CCVSR
Boundless Switching – simply moves the mouse cursor across screen boundaries to switch between different receivers (Rx)
Fast Switching – 0.3-second switching between transmitter-connected servers of any resolution
“Push”and“Pull” – shares content instantly to / from a single Rx or video wall by just one click
Video Walls – creates multiple video walls with up to 12 x 12 (144 displays max.) in each layout
Flexible connections – allows multiple extender and matrix connections for multi-display installations and video wall applications
On-screen Preview (Panel Array™ Mode) – allow users to view the video of up to 36 displays on one screen
Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
Channel connections allow RX devices to connect to multiple TX devices – to stream video, audio, USB and serial sources independently
Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
Internal and external authentication support – supports LDAP, Active Directory, RADIUS and TACACS+ external authentications
Advanced user authorization settings – administrators can set four access modes of permissions on TX devices for collaboration or to avoid interference among users
Video grouping of up to 4 sets of KE series devices to support Multi-Display applications
Configurable user and group permissions for access and control of KVM over IP extenders
Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button2 Note: 1. These advanced functions are supported when the KE transmitters are paired with KE receivers and managed by CCKM. 2. The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.
The housing meets IEC 60945 standards for maritime control room use and has passed environmental tests
Supports power / network failover – dual DC jacks for power redundancy and 1 RJ45 & 1 SFP fiber ports for network failover to ensure constant availability for mission-critical applications
Supports 1Gbps SFP fiber module expansions up to 10 km1
Advance processor provides lossless and zero latency video transmissions up to 1920 x 1200 @ 60Hz; 8-bit RGB (24-bit total color)
Supports digital (DVI) or analog (VGA) video output2
Audio Enabled – supports stereo speakers and microphone
High speed USB Storage Transmission support
Auto-MDIX – automatically detects cable type
Built-in 8KV / 15KV ESD protection and 2KV surge protection
Fanless design for silent operations that are energy efficient
Rack Mountable – Mounting options: • 2X-021G Dual Rack Mount Kit • 2X-031G Single Rack Mount Kit
Includes an industrial-grade power adapter – supports operating temperature of 0-50°C to ensure durability and adaptability under harsh environmental conditions Note: 1. The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information. 2. To convert a DVI to VGA signal, a DVI-I to VGA converter is required.
Integration with ATEN CCVSR Video Session Recording Software
Centralized management software – KVM over IP Matrix Manager (CCKM) allow users to easily administrator all KE devices with an intuitive web-based GUI
Dual console operation – controls the user's system from both the transmitter’s and receiver’s keyboard, monitor, and mouse consoles
OSD (On Screen Display) on the Receiver configures both units
EDID Expert™ – selects optimum EDID settings for smooth power-up and highest quality display
Four selectable access modes for multiple simultaneous access (Exclusive / Occupy / Share / View only mode) – administrators can select access modes of permissions on Tx devices to boost collaboration or to avoid interference among users
Command Line Interface – administrators can control all KVM over IP extenders via RS-232 or TCP / IP using a CLI or 3rd party application
RS-232 serial ports – allow users to connect to a serial terminal for TextMenu, CLI, or serial devices such as touch screens and barcode scanners
Supports Hotkey Commands
Flashing LED and beeping feature help locate and identify devices
Video compression level – allow users to increase / decrease the video quality to adjust for appropriate network bandwidth
Compatible with all KE devices
Dedicated LAN port for KE direct connections – can be isolated from the corporate network
Secure data transmission – AES 128-bit encryption to secure all data before transmitted over a network and decrypts the data on the receiver
Supports industry standard Transport Layer Security (TLS) protocol
USB Storage Transmission mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
Supports USB 2.0 DVD / CD drives, USB mass storage devices, PC hard drives and ISO images
Supports Smart Card / CAC Reader

Конектори

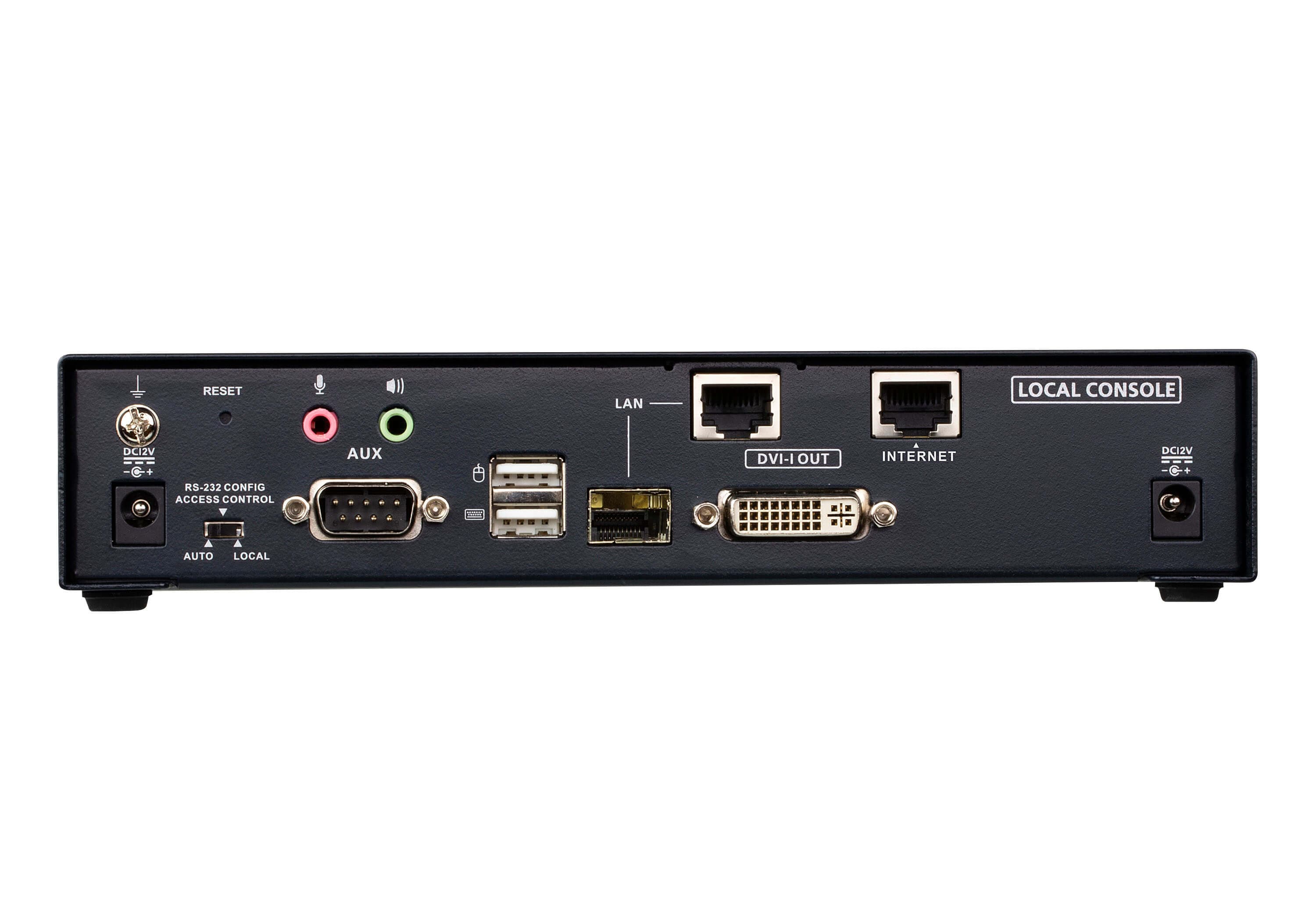

Конзолни портове: 2 x USB Type A Female (White) 1 x DVI-I Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black)

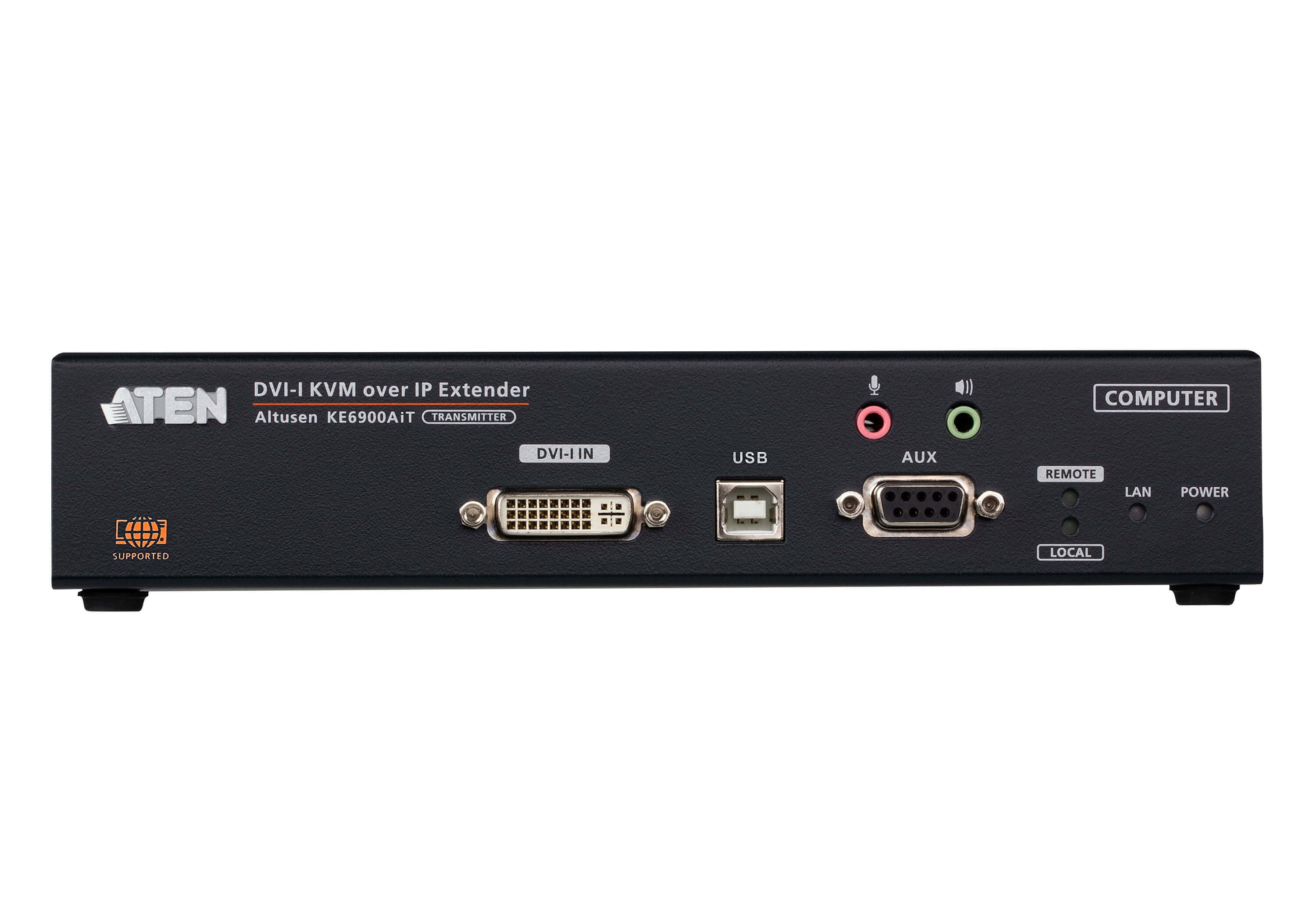

KVM портове: 1 x USB Type B Female (White) 1 x DVI-I Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Female (Black)
Захранване: 2 x DC Jack (Black)
LAN портове: 1 x RJ-45 (Black) 1 x SFP Slot
Интернет портове: 1 x RJ-45 (Black)
USB порт: N/A

Бутони и превключватели

OSD: N/A
Видео: N/A
Графика: N/A
Нулиране: 1 x Semi-recessed Pushbutton
Избор на режим: 1 x Slide Switch (Auto, RS-232 Config/Access Control, Local)

Индикатори

10/100/1000 Mbps: 1 (10: Orange / 100: Orange & Green / 1000: Green)
Захранване: 1 (Blue)
Локално: 1 (Green)
Отдалечено: 1 (Green)

Емулация

Клавиатура / мишка: USB
Консумация: DC12V:12W:60BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Видео резолюция: Up to 1920 x 1200 @ 60Hz
Закъснение: To KE: < 5ms To PC: < 50ms

Работна среда

Работна температура: 0–50°C
Температура на съхранение: -20–60°C
Влажност: 0–95% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 1.16 kg ( 2.56 lb )
Размери (Д x Ш x В): 21.50 x 16.33 x 4.18 cm (8.46 x 6.43 x 1.65 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
