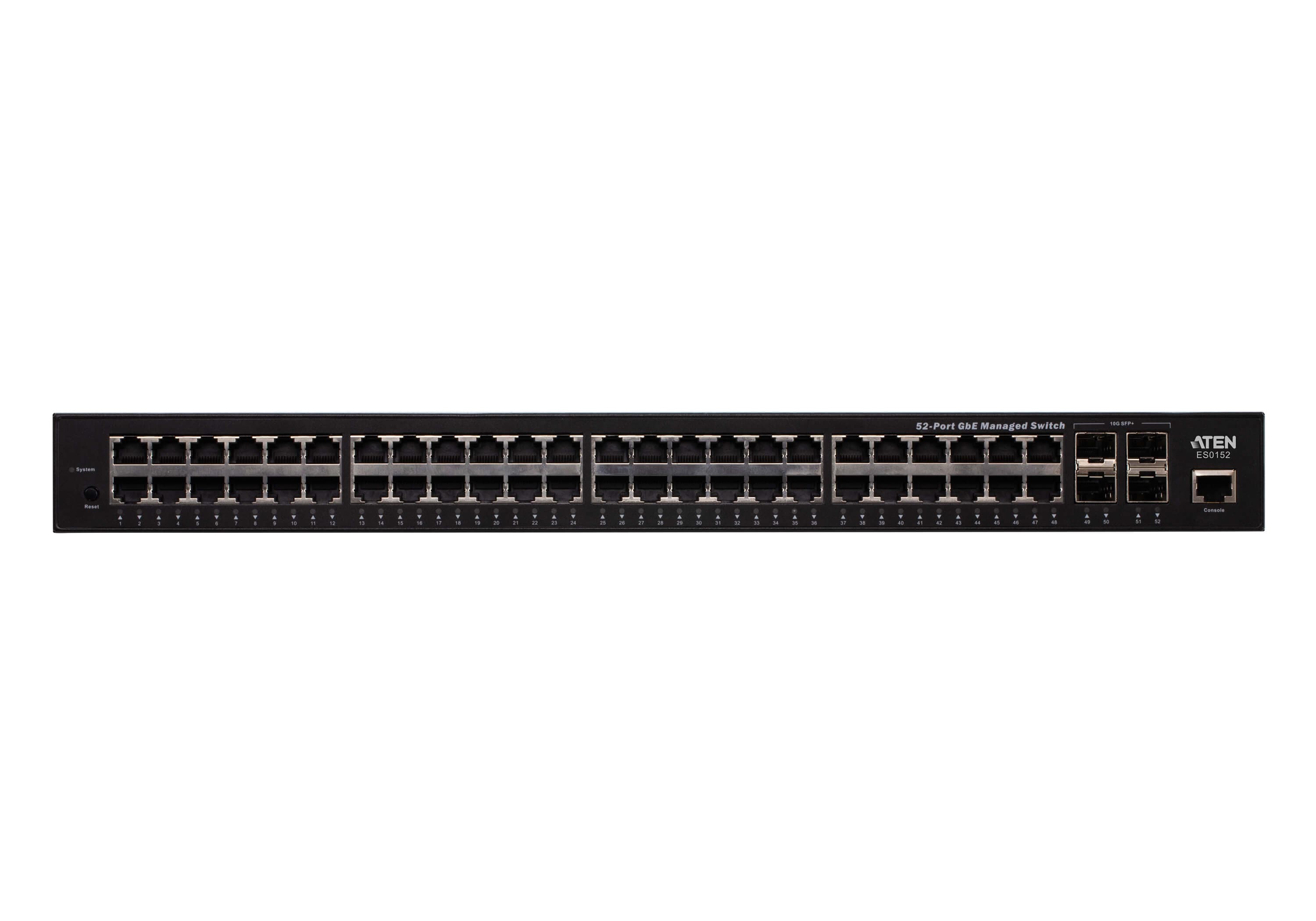

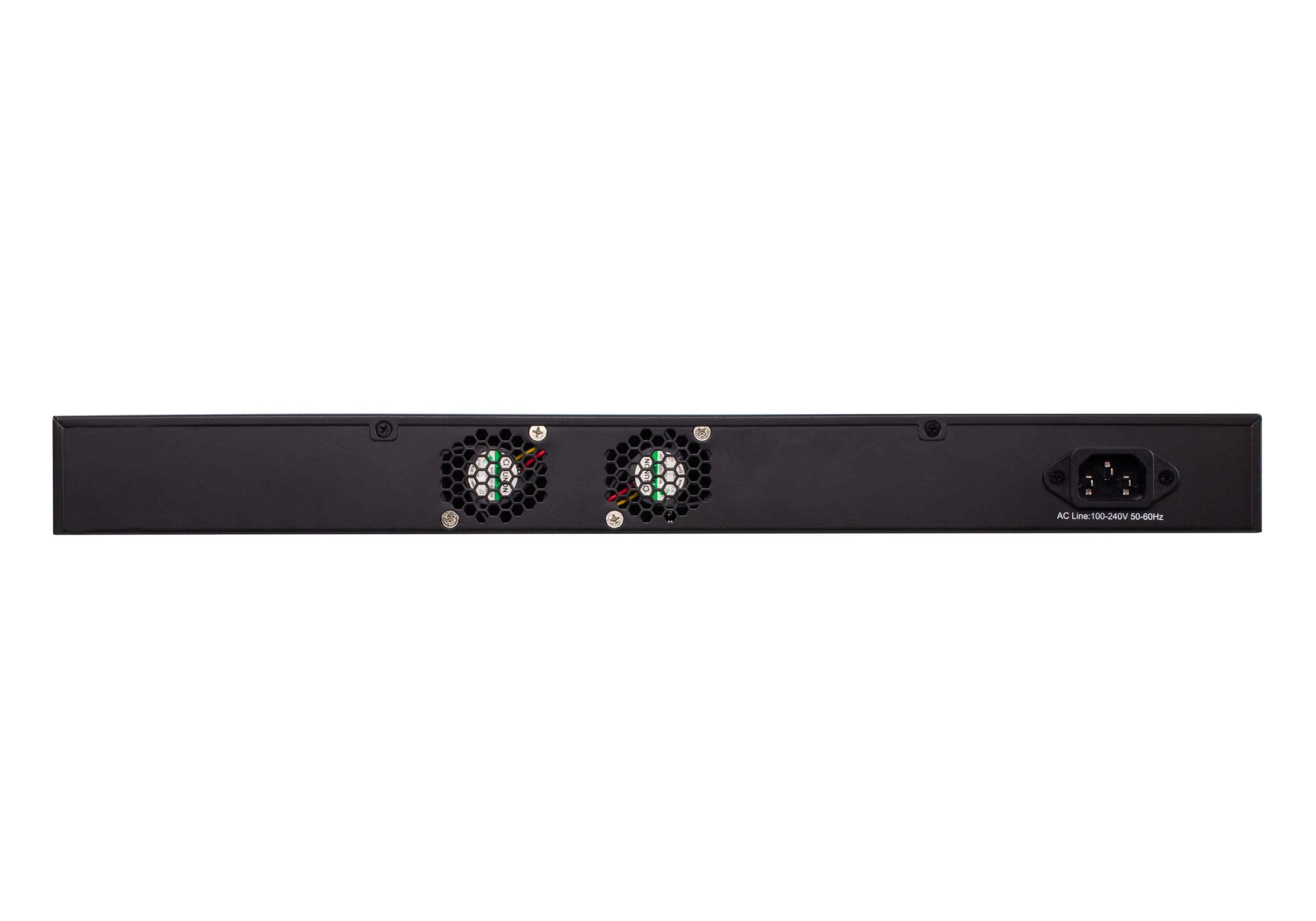

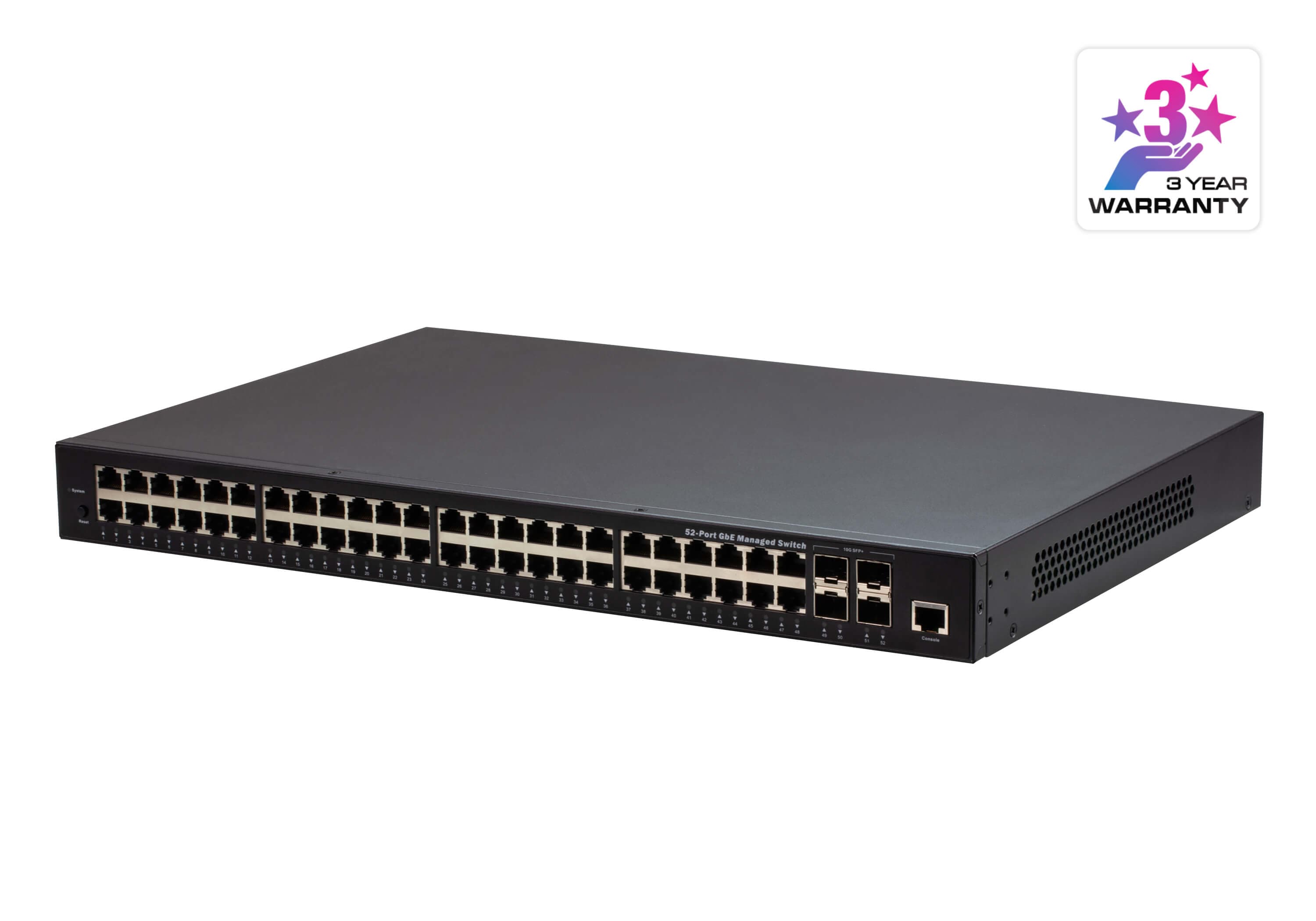

52-Port GbE Managed Switch
ES0152Снет от производство

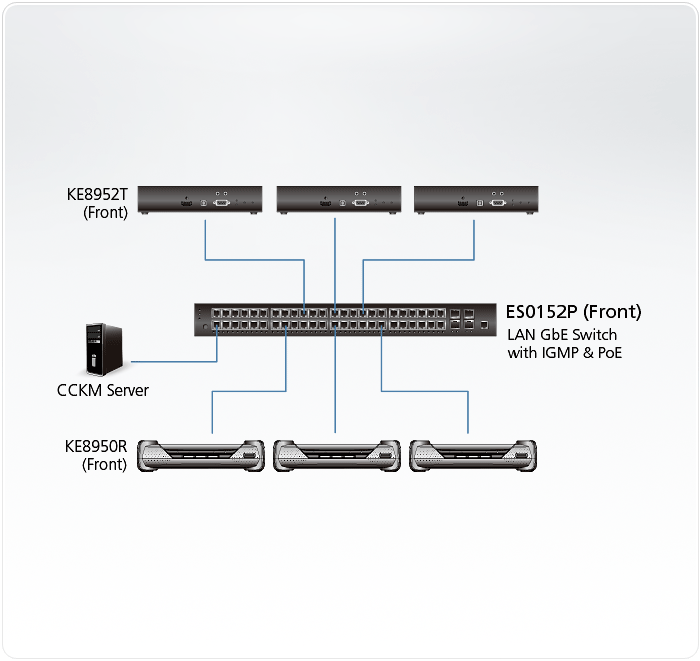

Управляем Gigabit комутатор с 48 RJ-45 порта 10/100/1000 и 4 SFP+ uplink порта, с комутационен капацитет 176 Gbps. Разпознава автоматично устройства от сериите KE/VE89 и работи plug-and-play в KVM Over-IP матрични инсталации.
Характеристики
- Auto detects KE/VE89 series devices
- Plug-and-play without additional settings
- Supports IGMP Snooping Fast Leave
- Supports Flow Control
- Supports IGMP v1/v2/v3 Snooping and IGMP v1/v2 Querier
- Supports 48 Gigabit Ethernet ports and 4 SFP+ uplink ports (10Gbps)
- High-performance Gigabit Ethernet L2 access switch with 176 Gbps switching capacity - significantly improve the responsiveness of applications and file transfer times
- Built in Device Management System (DMS) to provide an overview of all connected KE/VE89 devices for management
- Supports IEEE 802.1w Rapid Spanning Tree Protocol – ensuring a faster recovery from failed links and enhancing overall network stability and reliability
- Comprehensive QoS – allowing the marking, classification, and scheduling of up to four traffic types across the network
- Enhanced Security - Port Security limits the total number of devices using a switch port and protects against MAC flooding attacks
- IPv4/IPv6 Management
Конектори
- RJ-45 10/100/1000 портове
- 48
- SFP+ uplink портове
- 4
- Конзолни портове
- 1 x RJ45
Производителност
- Комутационен капацитет
- 176 Gbps
- Скорост на препращане
- 130.95 Mpps
- Jumbo Frames
- 10240 Bytes
- Макс. входна мощност
- 100-240V AC,50-60Hz
- Консумация
- AC 110V:45.98WBTU/h AC 220V:46.55WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
- Влажност
- 10–90% RH, Non-condensing
Физически характеристики
- Rack пространство
- 19"
- Корпус
- Metal
- Тегло
- 4.20 kg ( 9.25 lb )
- Размери (Д x Ш x В)
- 44.20 x 30.00 x 4.40 cm (17.4 x 11.81 x 1.73 in.)
- Брой в кашон
- 2 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
