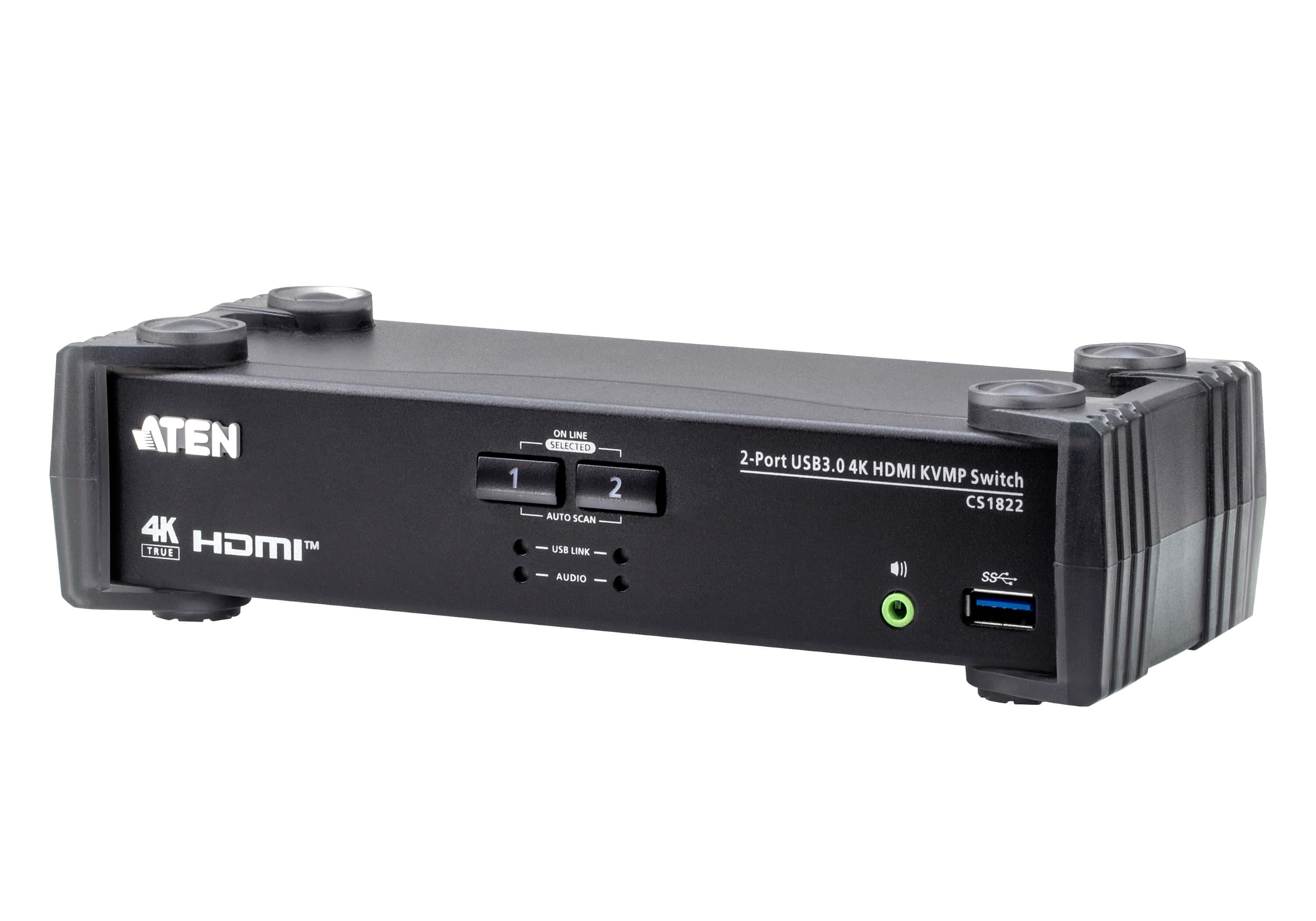

2-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode
CS1822
KVMP комутатор: една USB конзола и HDMI монитор управляват 2 компютъра при до 4096 x 2160 @ 60 Hz, с режим Audio Mixer. Вграден USB 3.1 Gen 1 хъб с до 5 Gbps.
Характеристики
- One USB keyboard/mouse and one HDMI monitor control two computers and share two USB peripherals
- Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
- Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Audio Mixer Modes – mixes up to two audio sources as audio output
- Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
- ATEN default EDID mode – smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
- Independent switching of KVM, USB peripheral, and stereo audio focus2
- HDMI compliant; HDCP compliant
- Supports HD Audio2
- Power on detection
- Auto Scan Mode for monitoring all computers
- Firmware upgradable Note: 1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice. 2. HD audio through HDMI channel cannot be switched independently
Спецификация
- Връзки към компютри
- 2
- Избор на порт
- Hotkey, Pushbutton, Mouse, RS-232 Commands

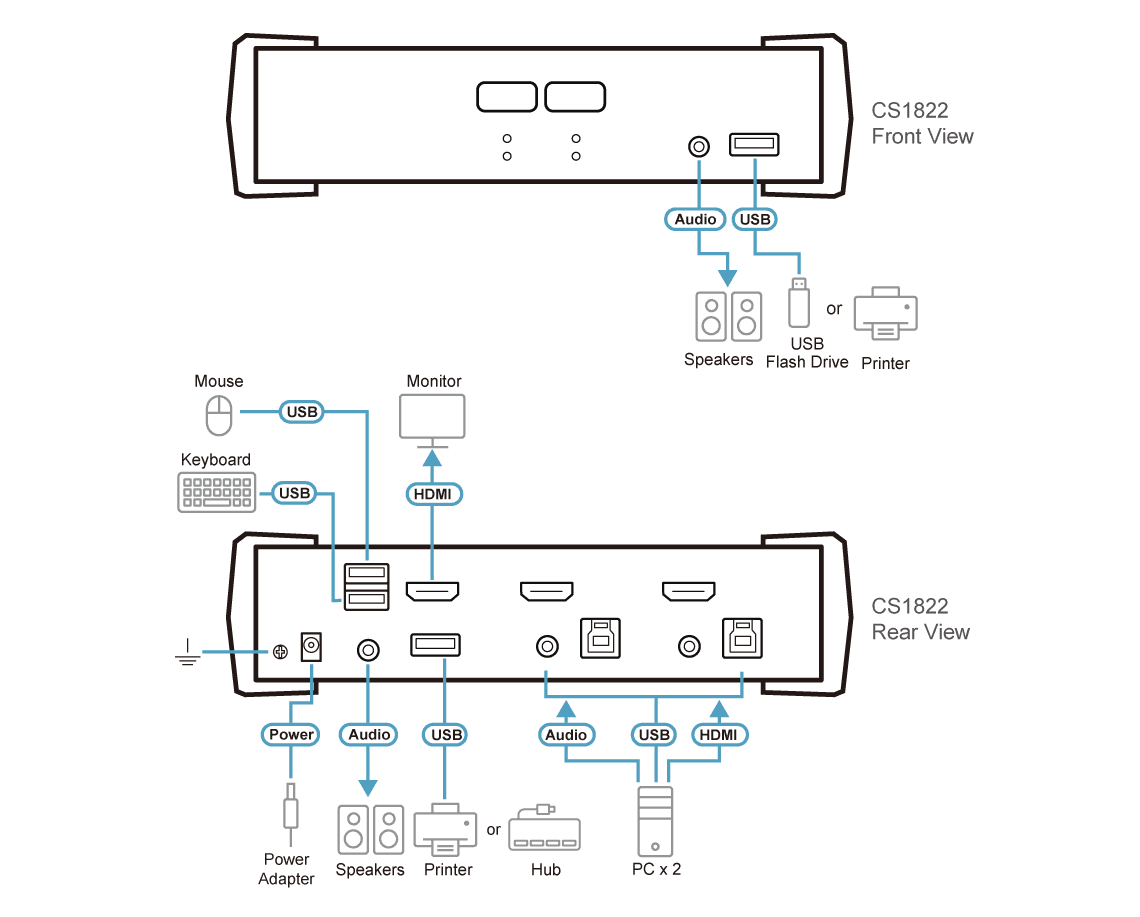

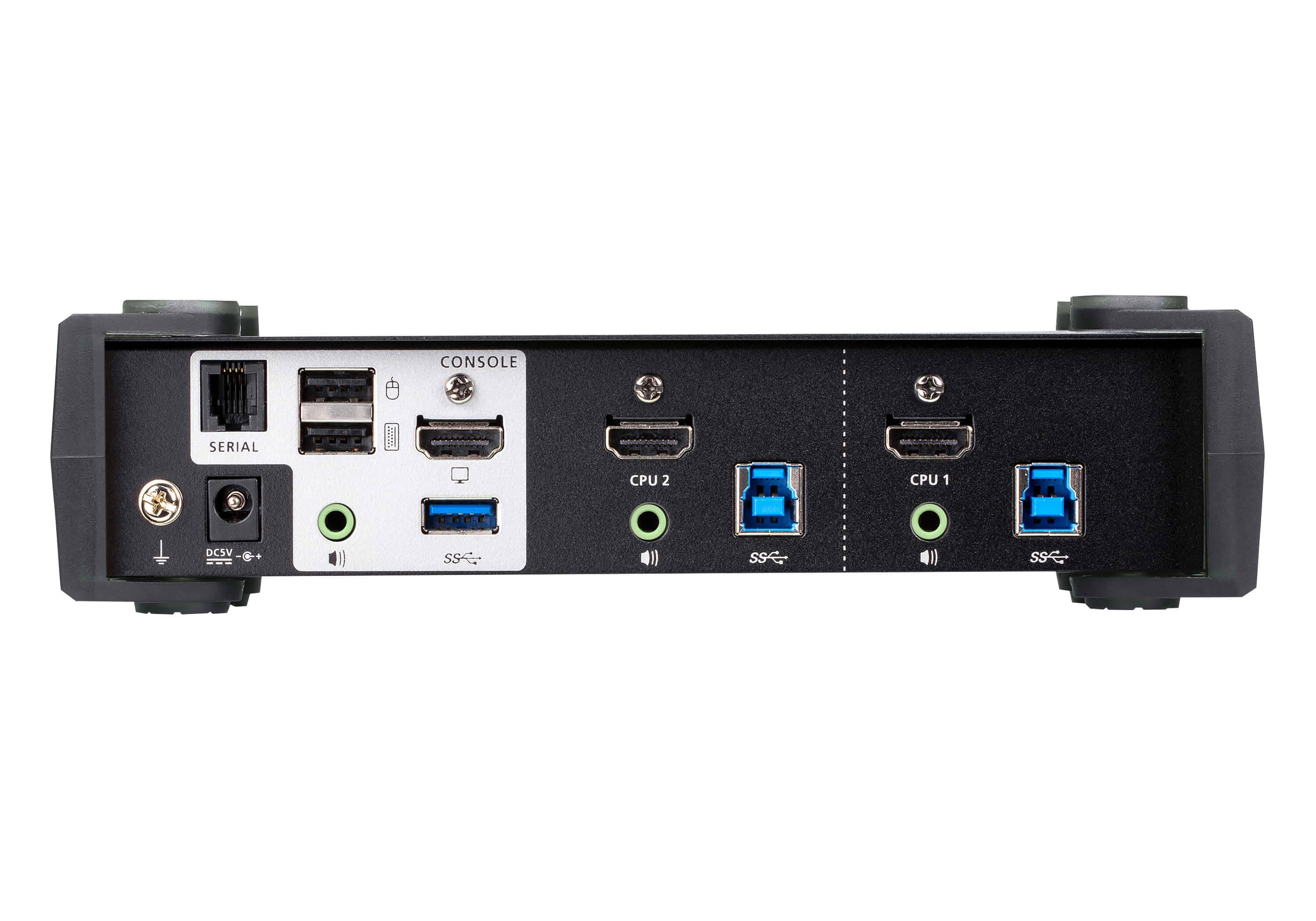

Конектори
- Конзолни портове
- 2 x USB Type A Female 1 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
- KVM портове (компютри)
- 2 x USB3.1 Gen1 Type B Female (Blue) 2 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green)
- Сериен
- 1 x RJ-11 Female
- Захранване
- 1 x DC Jack
- USB хъб
- 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)

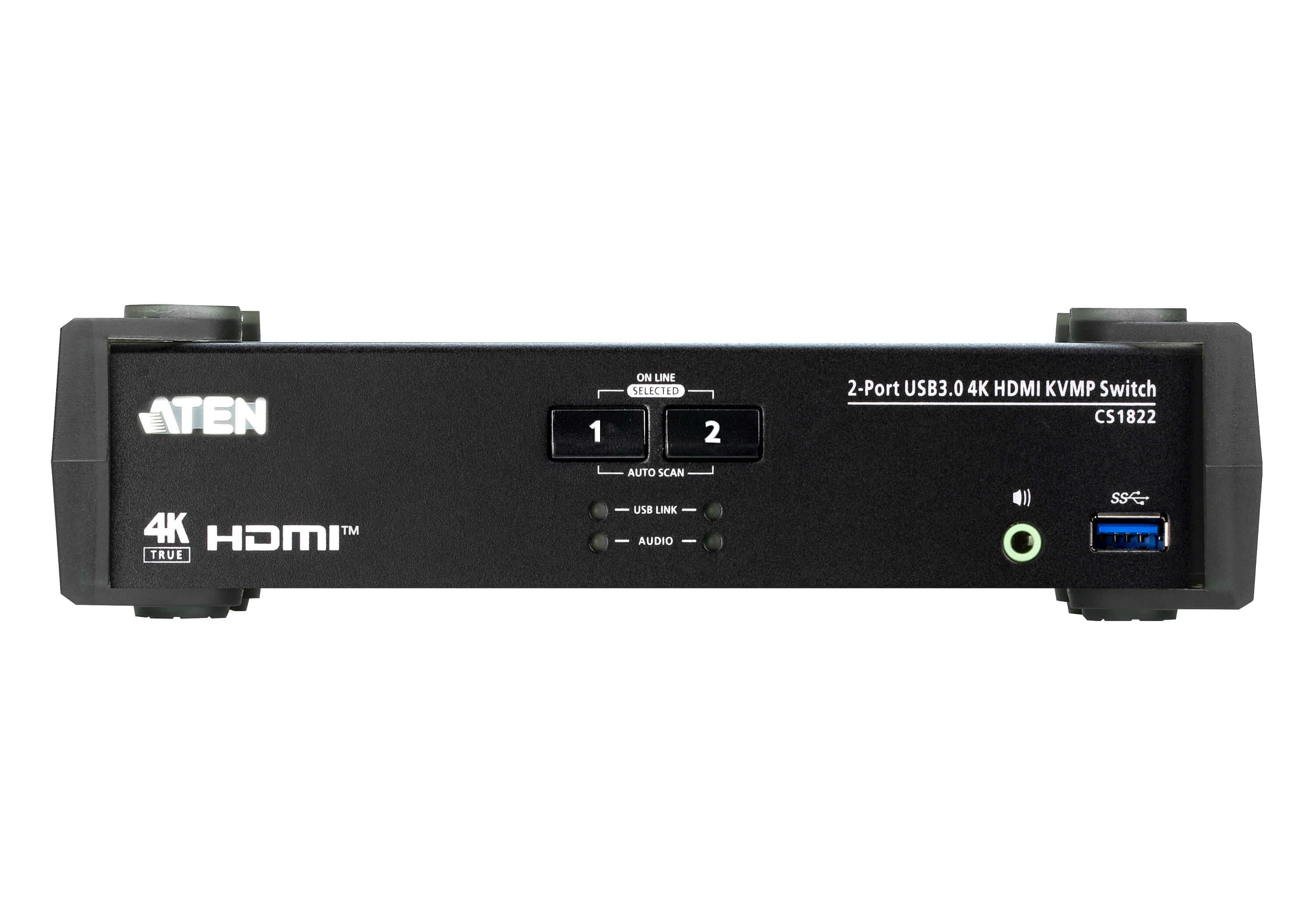

Бутони и превключватели
- Избран
- 2 x Pushbutton
Индикатори
- Онлайн / избран
- 2 (Orange)
- USB връзка
- 2 (Green)
- Аудио
- 2 (Green)
Емулация
- Клавиатура / мишка
- USB
- Видео
- Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
- Интервал на сканиране
- 1-99 Seconds (Default: 5 sec.)
- Консумация
- DC5V:1.78W:50.97BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal, Plastic
- Тегло
- 0.74 kg ( 1.63 lb )
- Размери (Д x Ш x В)
- 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
