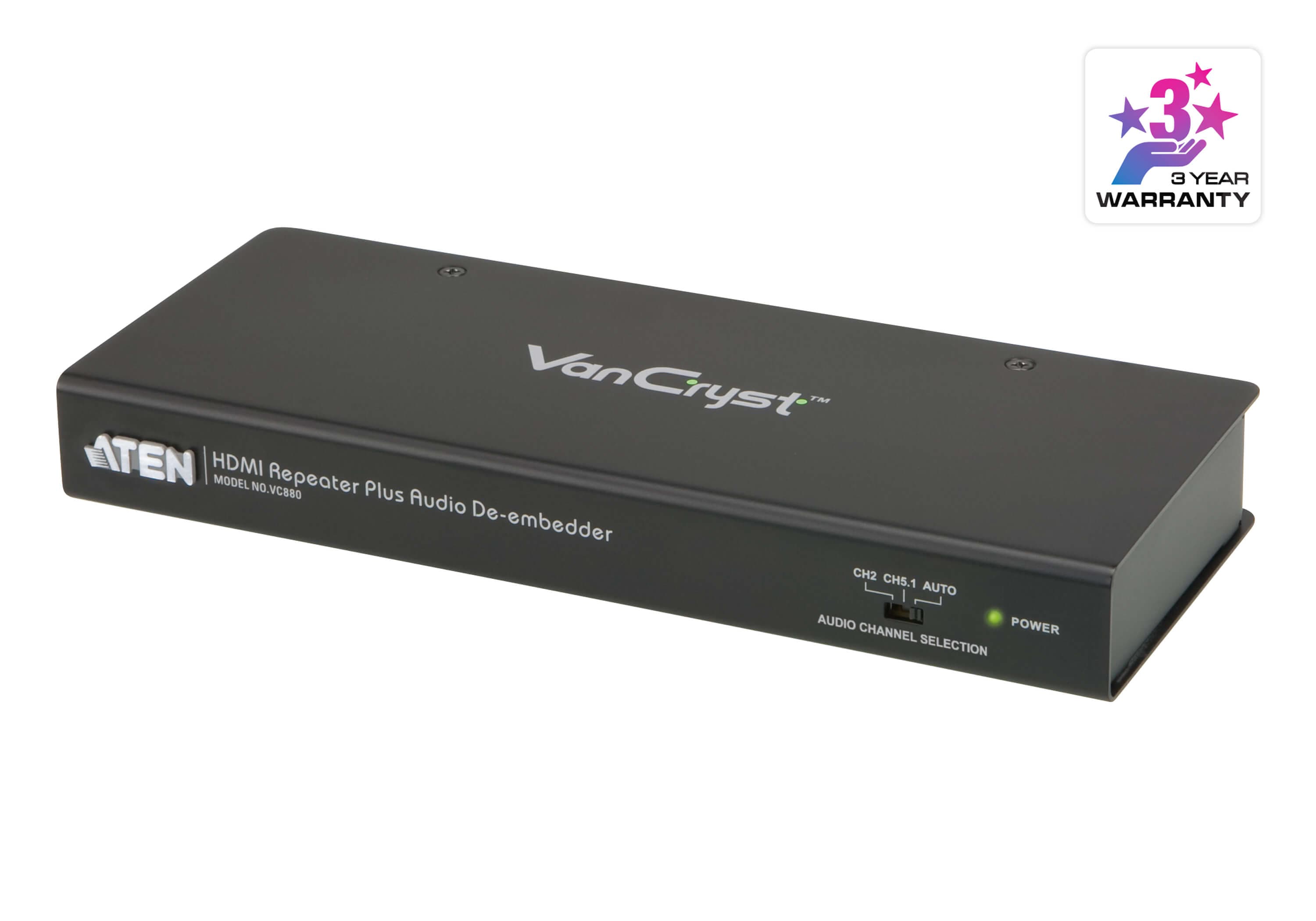

HDMI повторител с извличане на звука — усилва сигнала до 15 m при 1920x1080@60 и извежда аудиото на оптичен/коаксиален цифров или аналогов стерео изход.
Характеристики
- Repeats HDMI input signal up to 15 meters
- Extracts HDMI audio signal and outputs as additional audio source
- Supports optical / coaxial digital audio and analog stereo audio*
- HDCP 1.1 compatible
- Superior Video Quality – up to 1920x1080 (1080p)
- Firmware upgradable

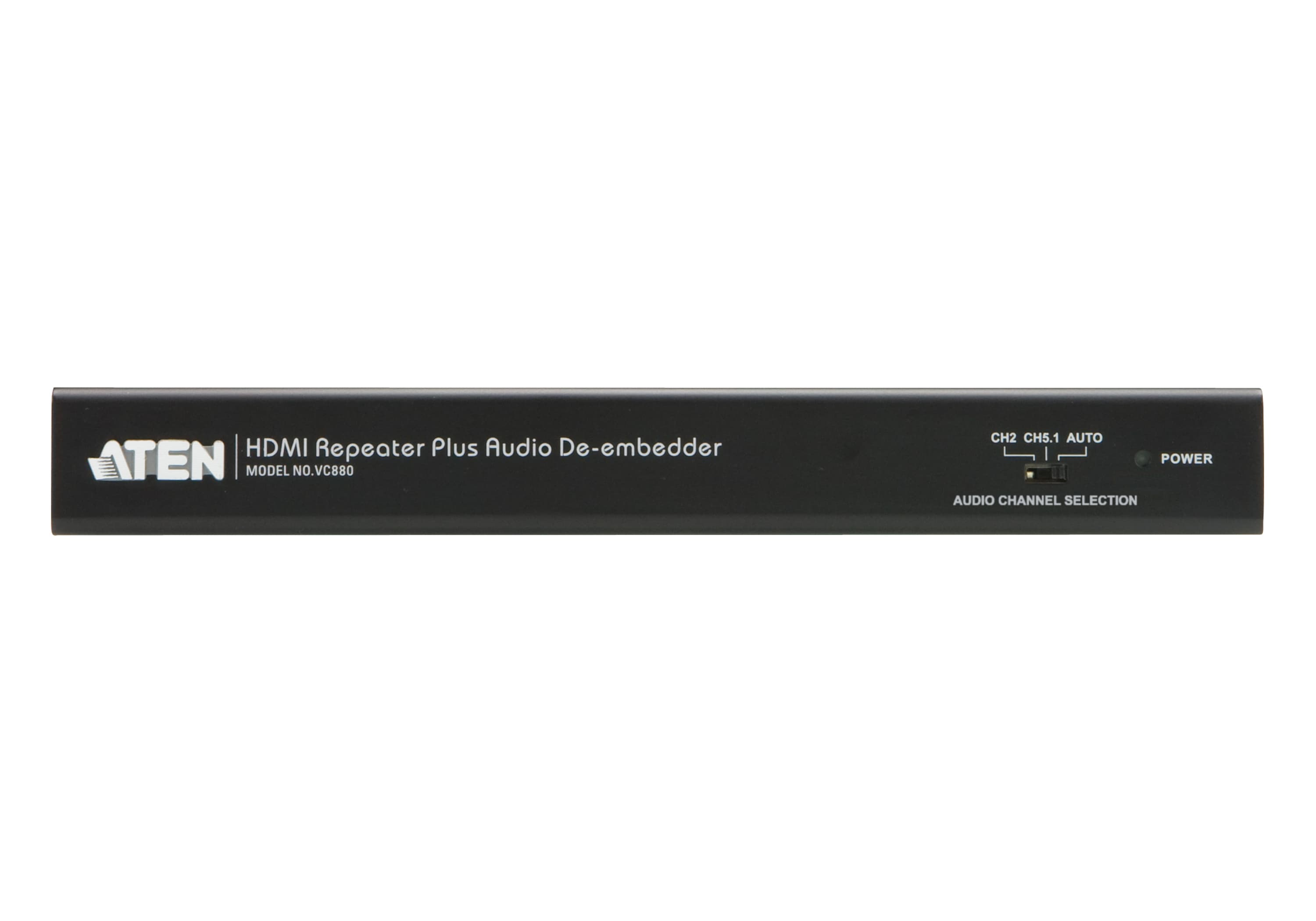

- CH2/CH5.1/Auto mode audio channel selection
- HDMI (3D)
- Supports Dolby True HD and DTS HD Master Audio
- Supports Audio on/off switch for HDMI output
- Expandable to three levels – provides three levels of audio output for one HDMI at distance up to 45 m

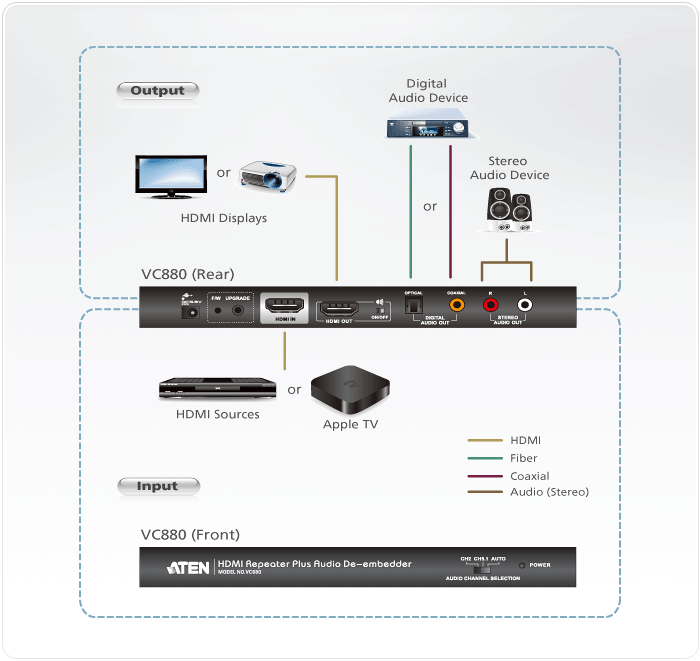

- Integrates with Apple TV for the perfect home entertainment system
- *Supported Audio Input Channels Source audio input channelAudio OutputStereo (LPCM 2)DTS 5.1 Dolby 5.1LPCM 5.1DTS 7.1 Dolby 7.1LPCM 7.1TosLinkStereoDTS 5.1 Dolby 5.12 channel (Front Right & FrontLeft)Non support2 channel (Front Right & FrontLeft)CoaxialStereoDTS 5.1 Dolby 5.12 channel (Front Right & FrontLeft)Non support2 channel (Front Right & FrontLeft)StereoStereoNon support2 channel (Front Right & FrontLeftNon support2 channel (Front Right & FrontLeft)
Видео вход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 3m at 1920*1080@60 (4:4:4)
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 15m at 1920*1080@60 (4:4:4)
Видео
- Макс. скорост на данните
- 6.75 Gps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D, Deep Color) HDCP Compatible
- Макс. резолюция
- Up to 1920 x 1080
Аудио
- Изход

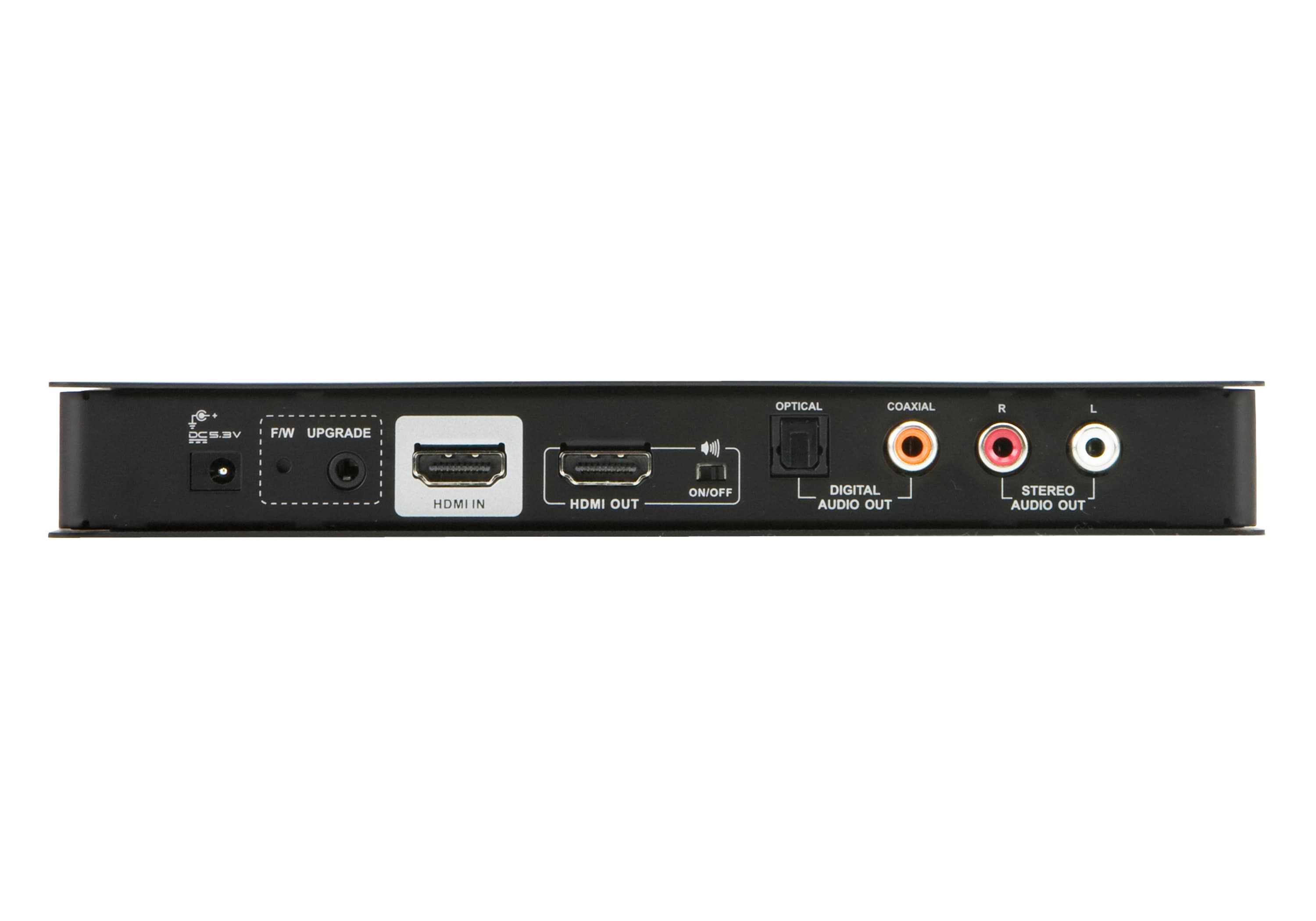

- 1 x HDMI Type A Female (Black); 1 x Toslink (Black); 1 x RCA (Orange); 2 x RCA (Red/White);
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5.3V:2.25W:11BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50 ºC
- Температура на съхранение
- -20 - 60 ºC
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.46 kg ( 1.01 lb )
- Размери (Д x Ш x В)
- 20.00 x 8.20 x 2.50 cm (7.87 x 3.23 x 0.98 in.)
- Брой в кашон
- 20 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
