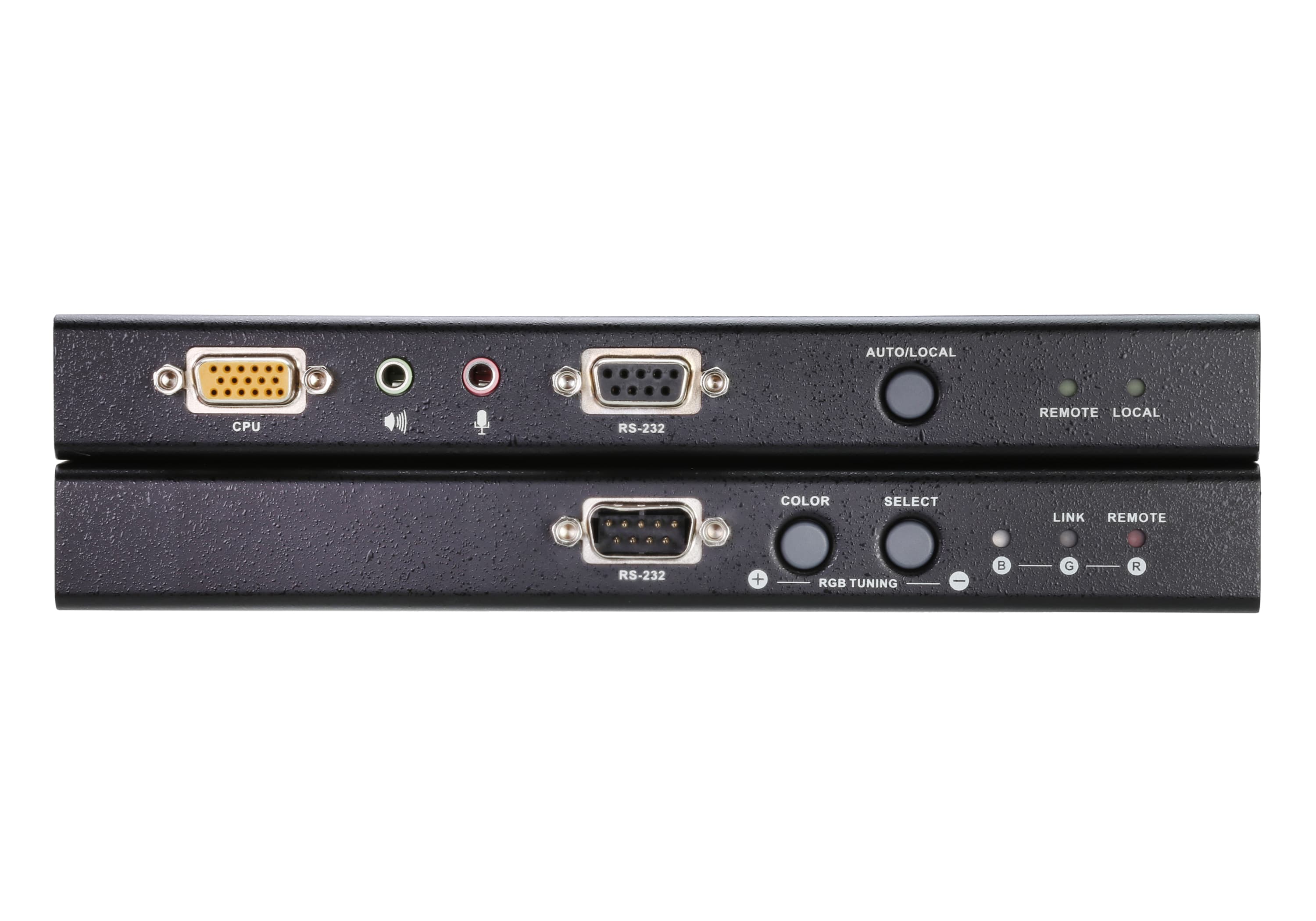

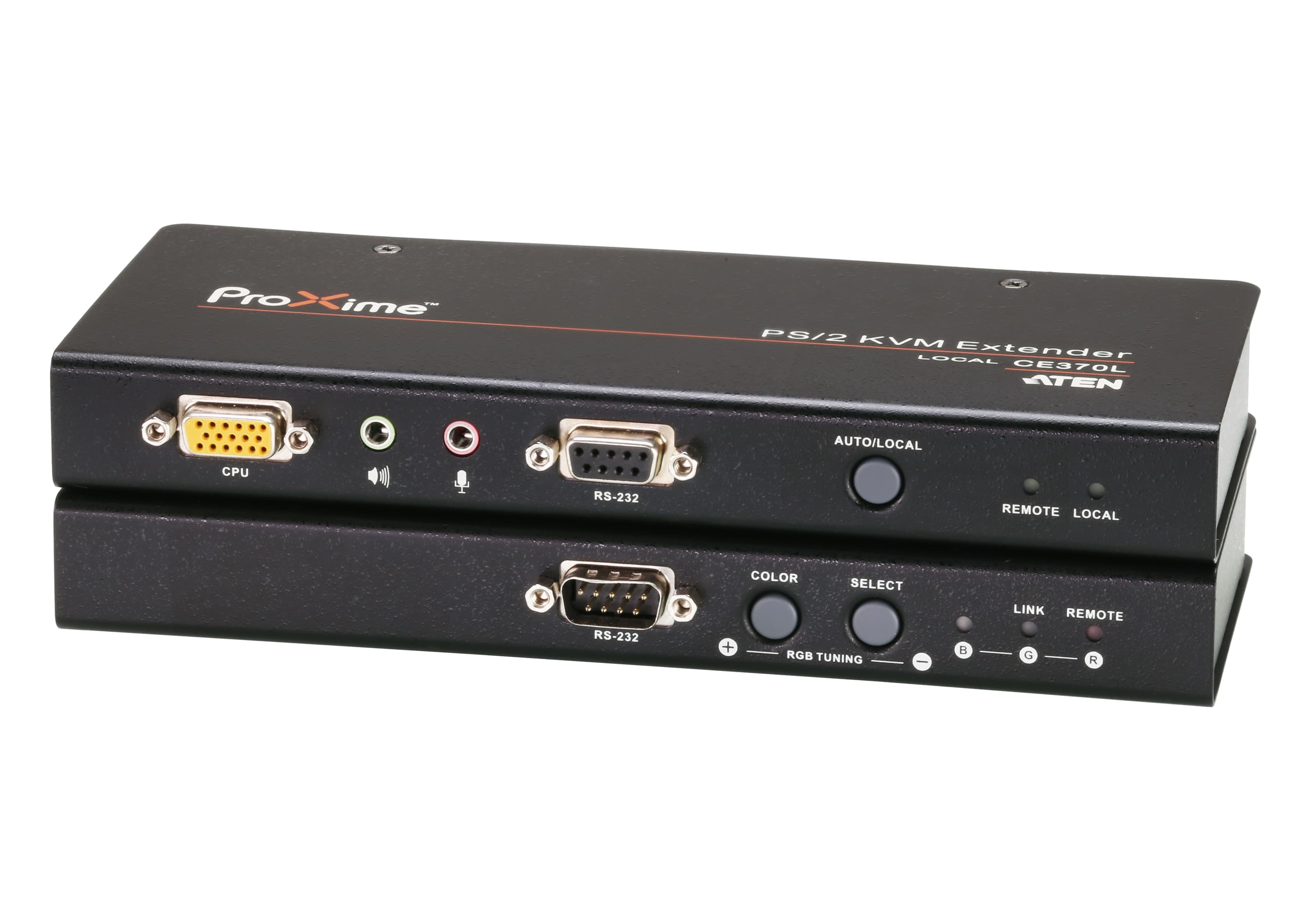

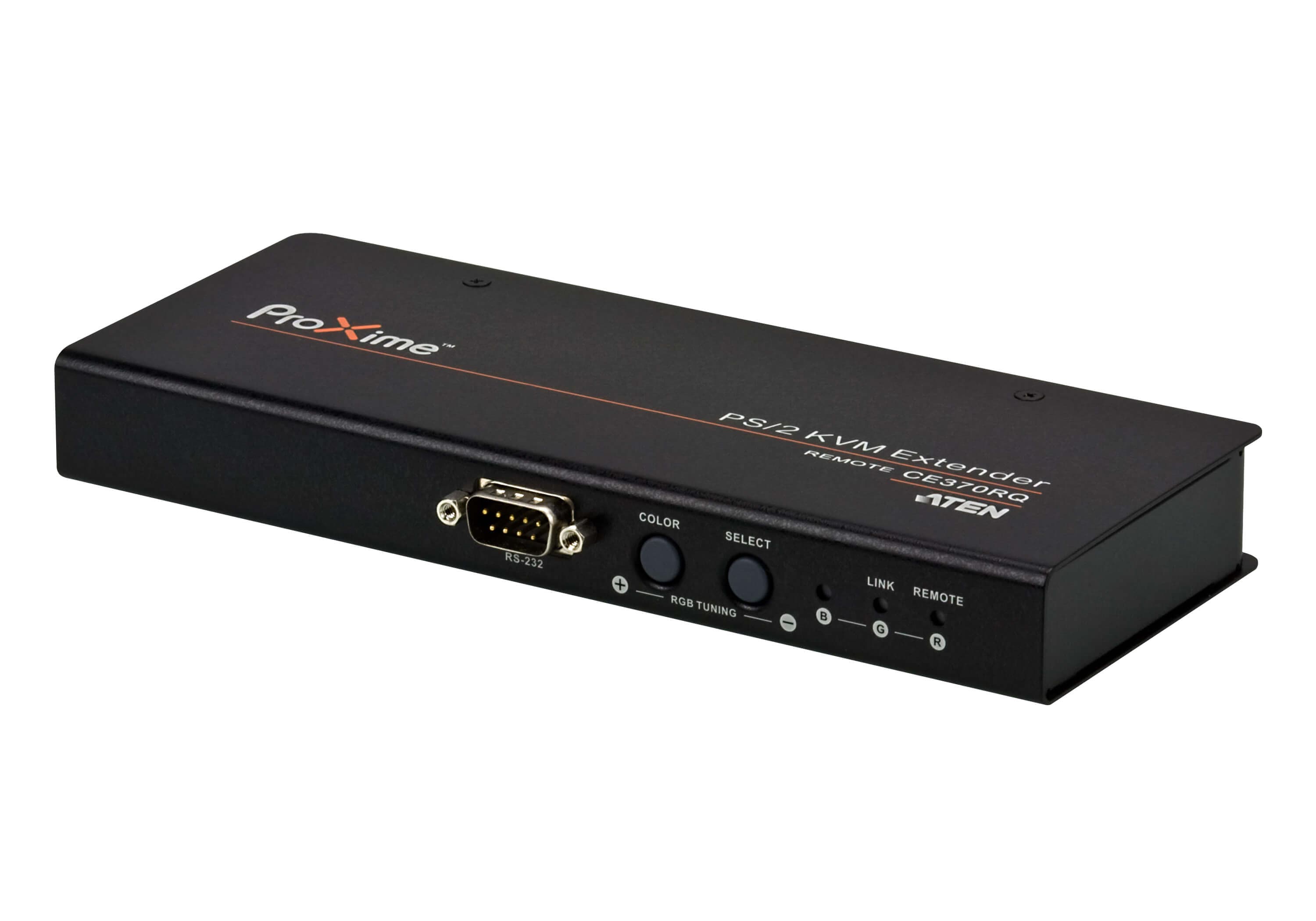

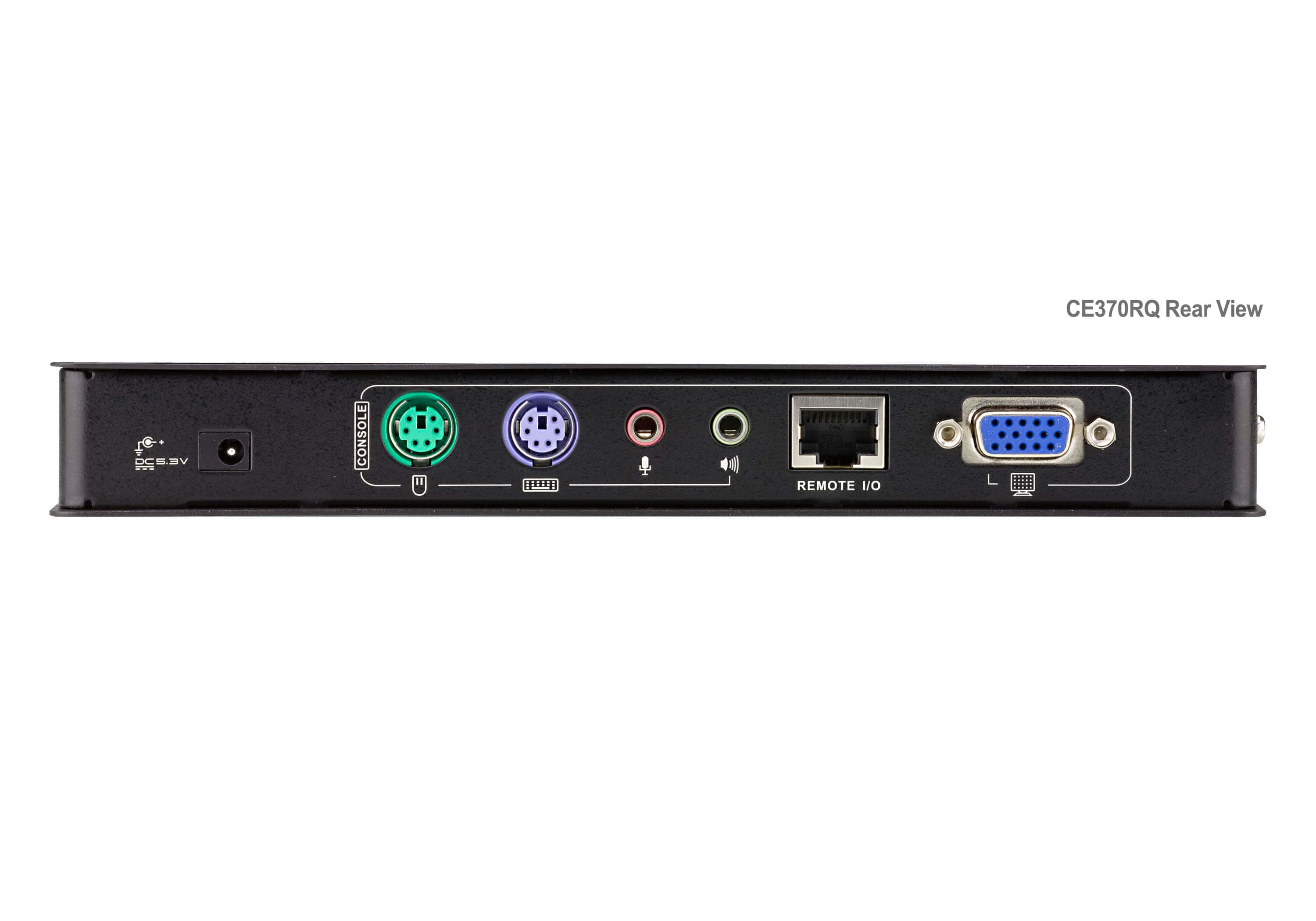

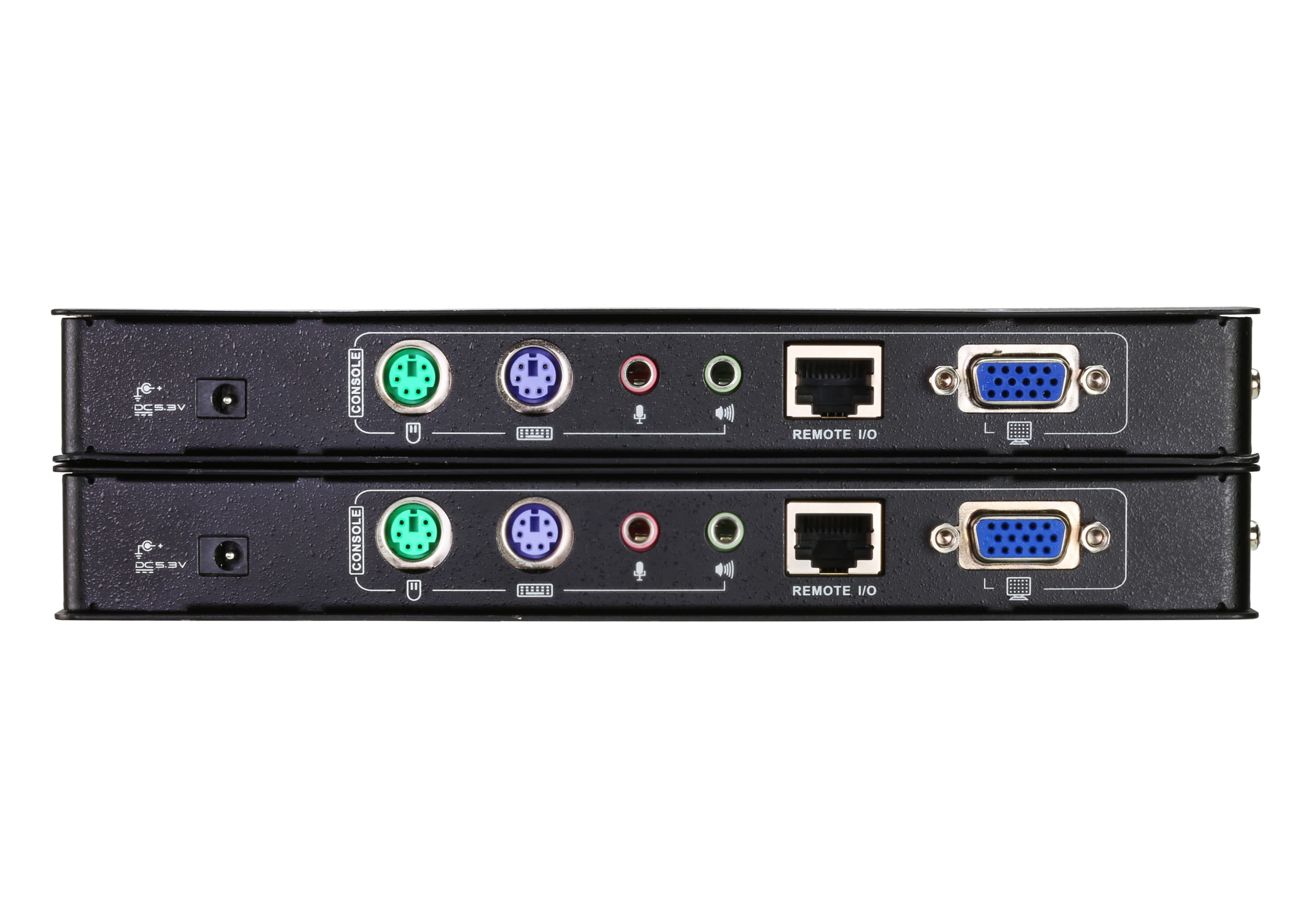

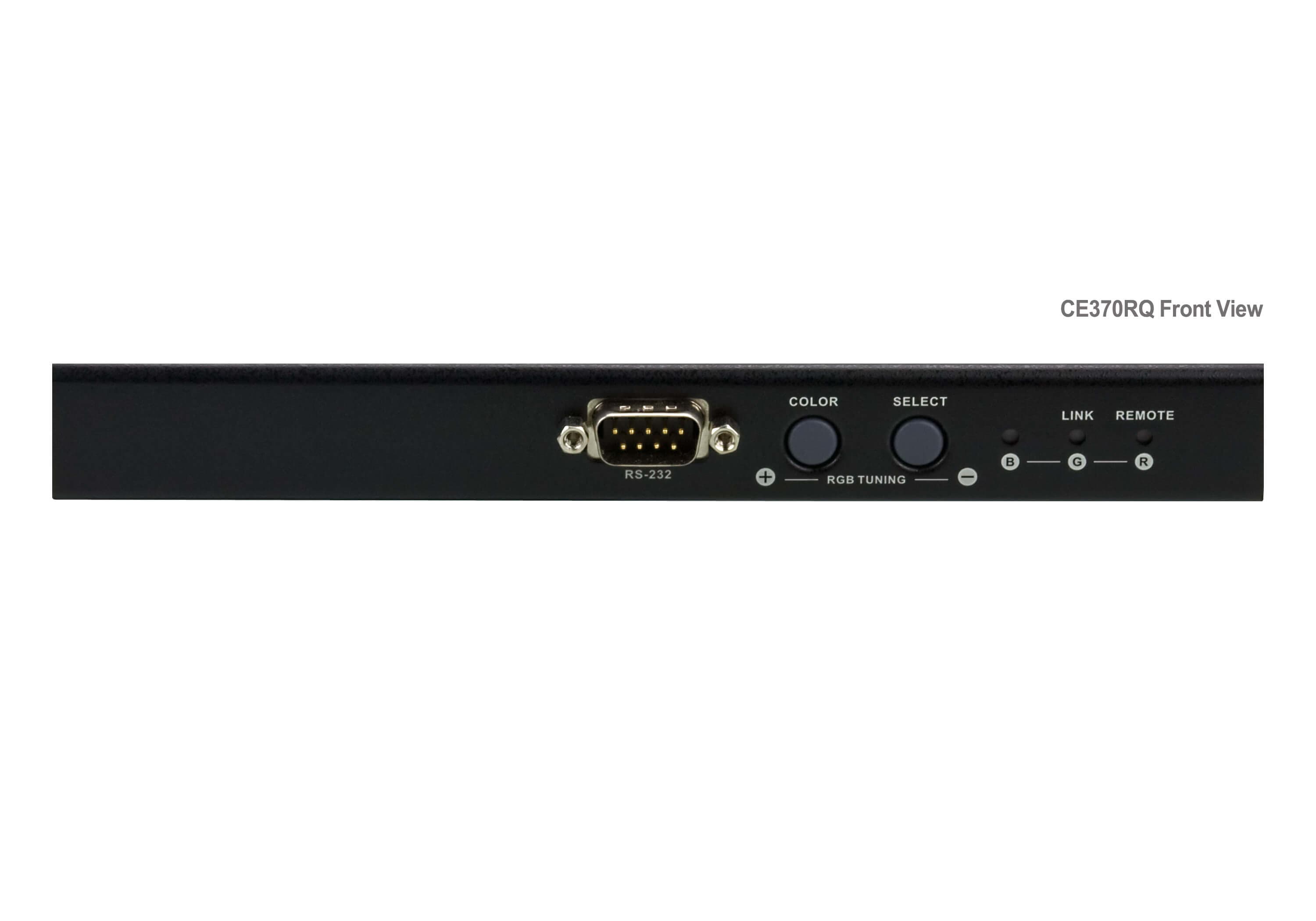

PS/2 VGA/Audio Cat 5 KVM Extender with Deskew (1280 x 1024@300m)

Характеристики

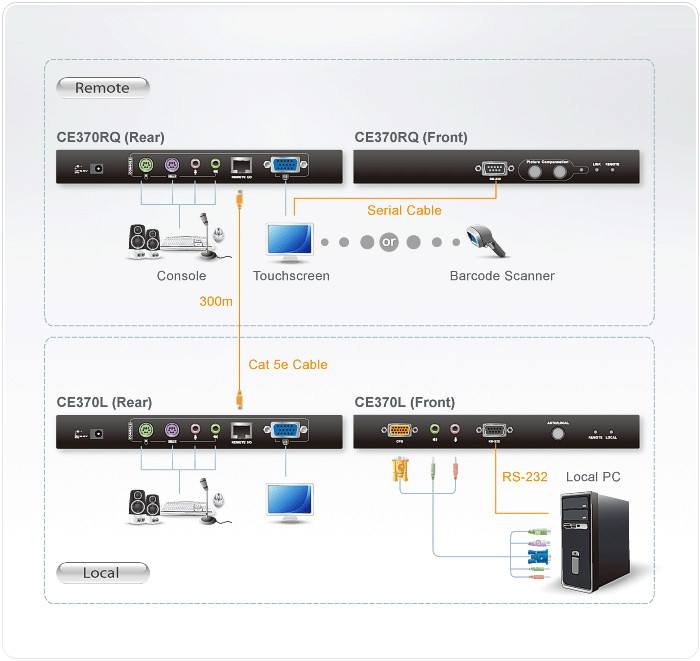

• Local and Remote Units connect at distances up to 300 m using Cat 5e cable
• Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
• On Screen Display - conveniently adjust video quality with the intuitive OSD menu system
• Manually tune the R/G/B settings, store and retrieve
• Adjustable gain control - automatically and manually adjust signal strength to compensate for distance
• Dual console operation - control your system from both the local and remote keyboard, monitor, and mouse consoles
• Built-in ASIC for greater reliability and compatibility
• Auto Signal Compensation (ASC) and storage of settings
• RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps)
• Audio Enabled - supports stereo speakers and microphone
• Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
• Superior video quality - 1920 x 1200@60Hz(150 m), 1280 x 1024@60Hz(300 m)
• Superior Audio - no loss in audio quality at 300 m
• Supports Wide Screen formats *
• Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
• Hot pluggable
• Rack mountable
• Easy to install - no software required - connecting cables to the devices is all it takes * The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.
