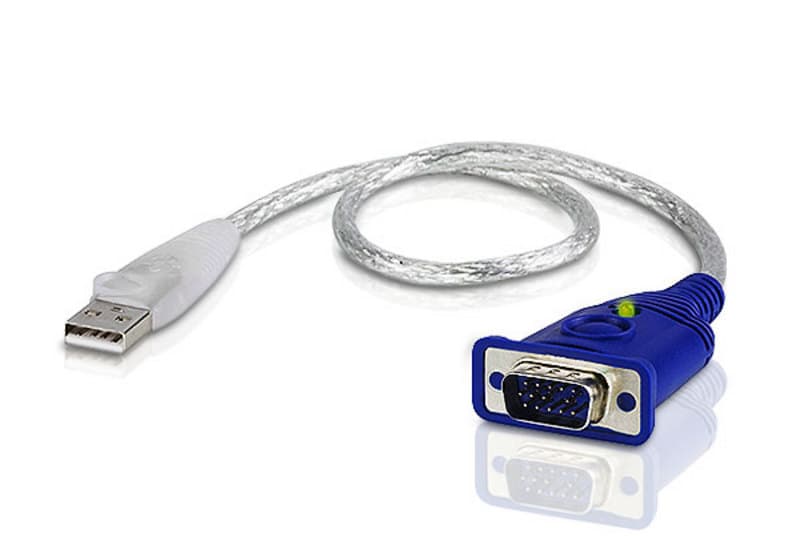

VGA EDID Emulator

2A-130G
Заяви офертаDatasheet PDFБърз старт

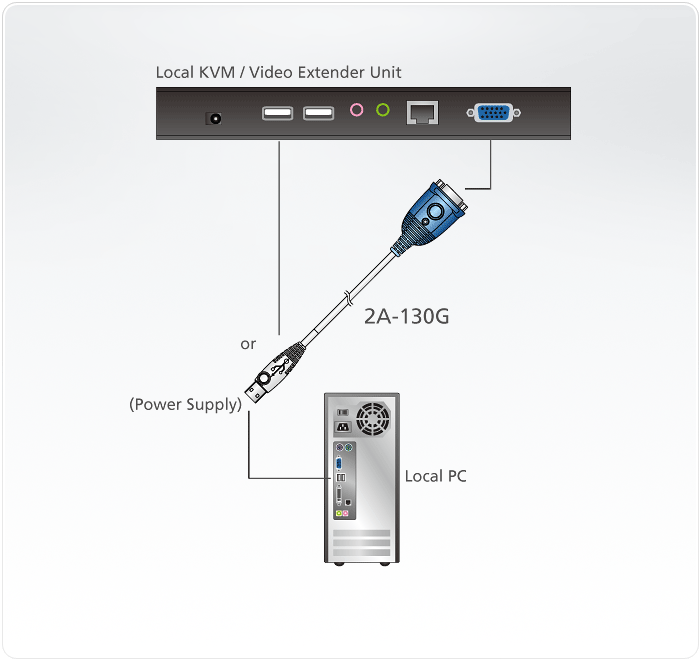

EDID емулатор, който замества монитора при инсталации с KVM или видео удължител без локален дисплей. Подава EDID данни до 1920 x 1200 @ 60 Hz, захранва се по USB.

Характеристики

  • Subsitutes as a monitor at the site where the computer/video source is located
  • EDID built-in - Stores ATEN standard EDID information in device
  • ATEN standard EDID supports all popular resolutions
  • Superior video quality - up to 1920 x 1200@60Hz, 1366 x 768@60Hz
  • USB Powered - No need for an external power adapter
  • No software required - Eliminates incompatibility and installation issues; no need to confi gure
  • Compatible Extenders: CE774, CE775, CE700A, CE750, CE770, CE800B, CE350, CE370, CE250A, CE252, VE150A, VE170, VE200, VE300, VE500
  • Compatible Splitters (Connect to Port 1): VS132A/134A/138A, VS92A/94A/98A, VS82/84/88, VS0116, VS132, VS102, VS1204T, VS1208T, VS1504, VS1508
  • Supported Resolutions

Конектори

Видео
1 x HDB-15 Male (Blue)
Захранване
1 x USB Type A Male

Индикатори

Захранване
1 (Green)
Видео
1920 x 1200@60Hz 1366 x 768@60Hz
Дължина на кабела
0.35 m
Консумация
DC5V:0.1W:1BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура
0-50°C
Температура на съхранение
-20-60°C
Влажност
0-80% RH, Non-condensing

Физически характеристики

Корпус
Plastic
