2-Port USB-C DisplayPort Hybrid Cable KVM Switch

Name: 2-Port USB-C DisplayPort Hybrid Cable KVM Switch
Brand: ATEN
SKU: CS52DP

CS52DP

Request a quote Datasheet PDF Quick start guide CAD drawing

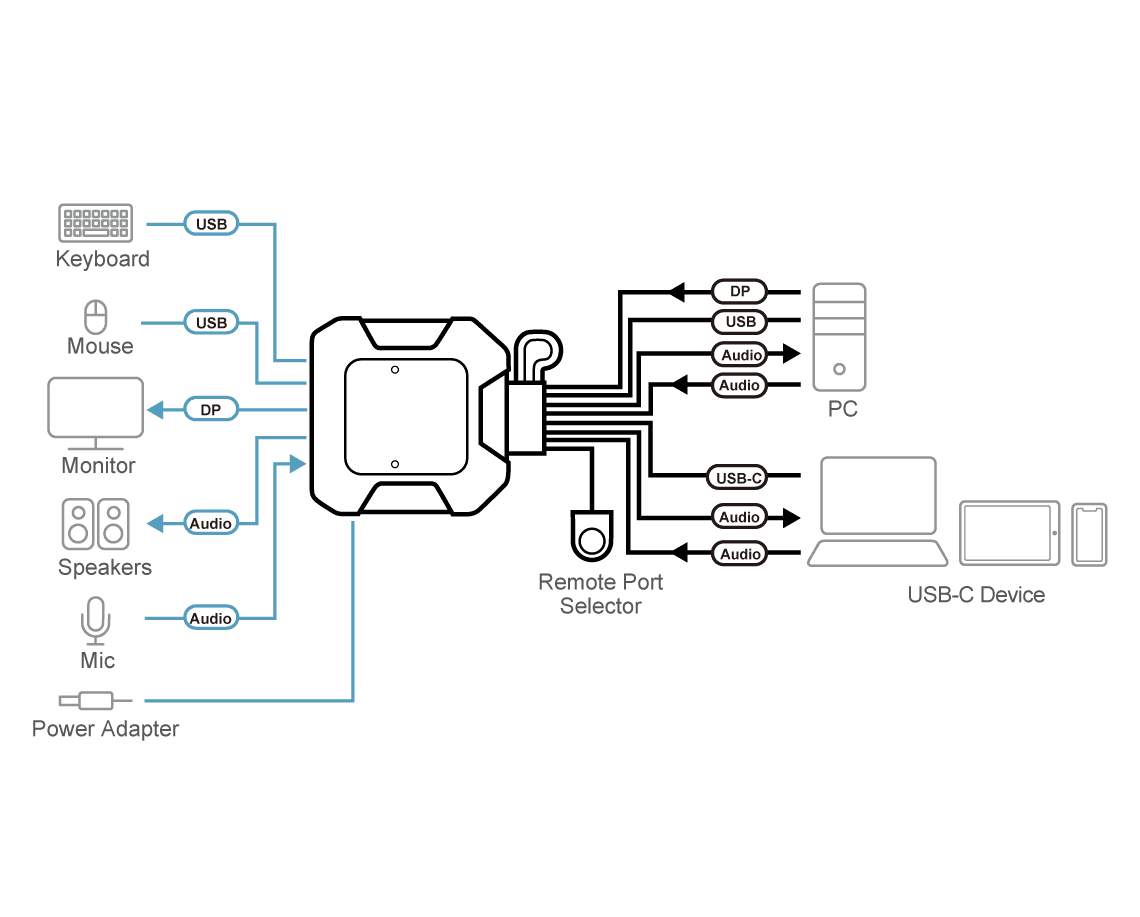

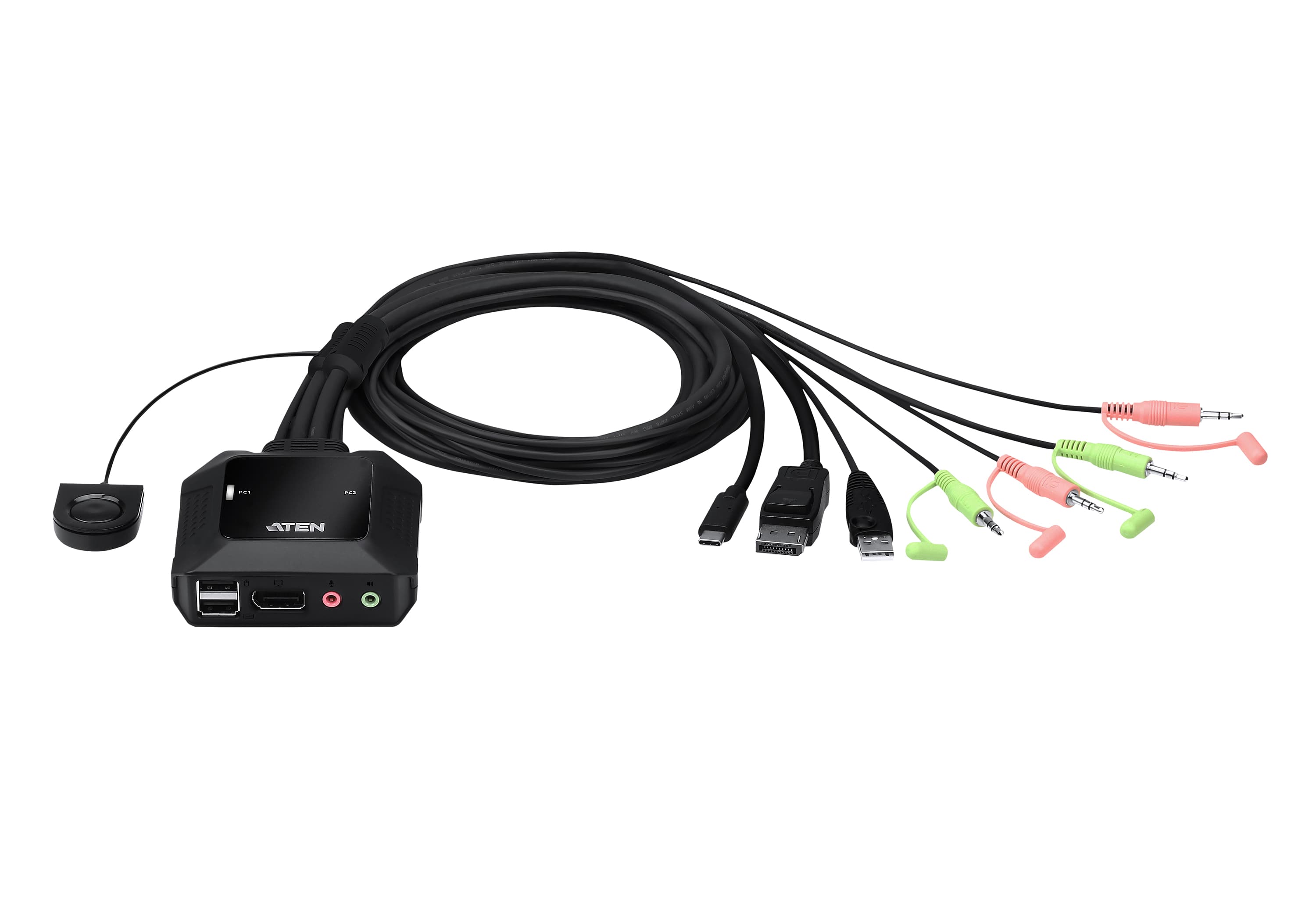

Cable KVM switch where one console controls a USB DisplayPort computer and a USB-C device via DP Alt Mode at up to 4096 x 2160 @ 60 Hz; 1.2 m built-in leads.

Features

One KVM console controls one USB DisplayPort computers and one USB-C device
Superior video quality – up to 4096 x 2160 @ 60 Hz
Computer selection via remote port selector
Supports DisplayPort Alternate Mode (DP Alt Mode) which enables the USB connection to carry DisplayPort signals
DisplayPort 1.2 and HDCP compliant1
Bus-powered – no external power adapter required

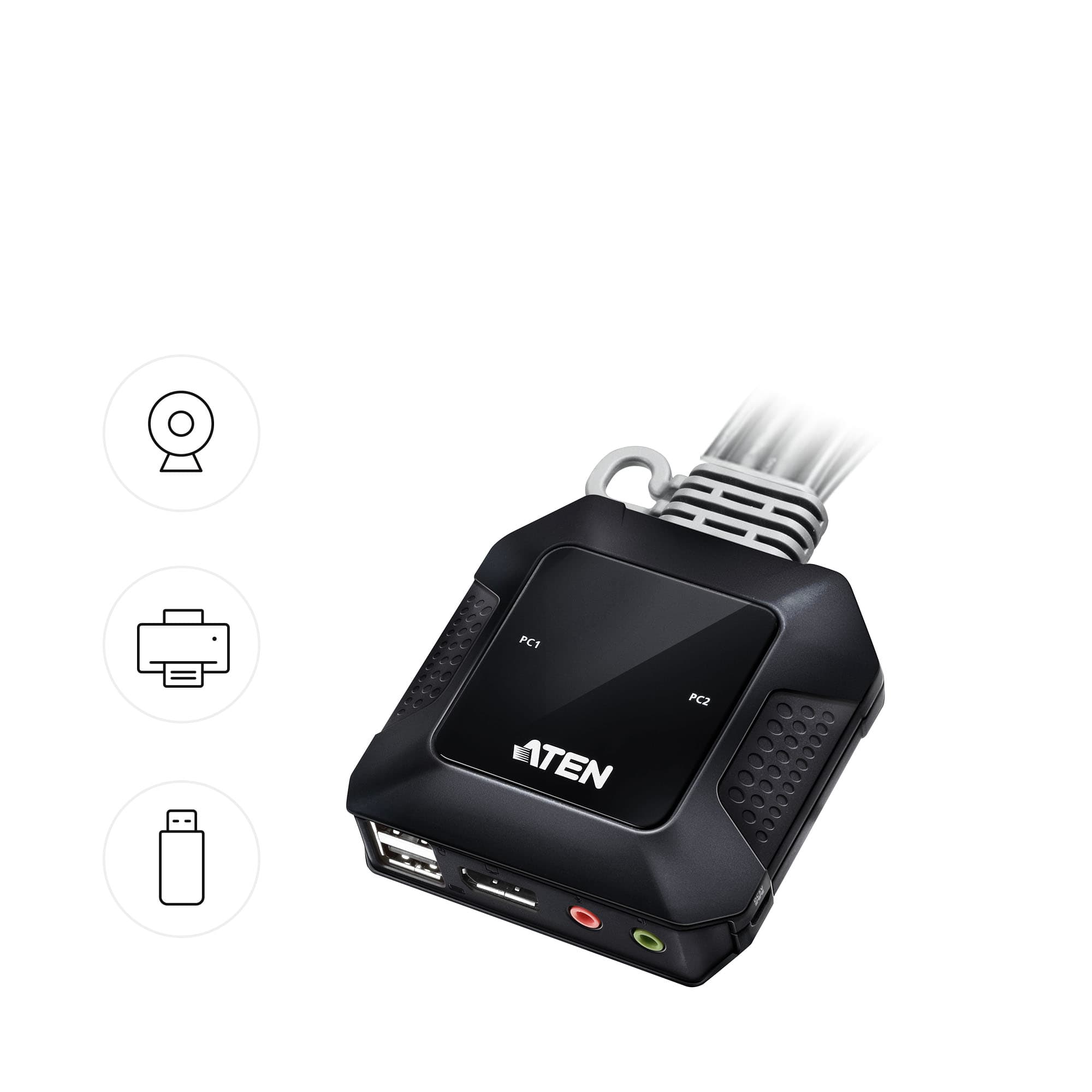

The console USB ports can be used for USB peripheral sharing2
Multiplatform support – Windows, Mac, Linux, Android, and iOS
No software required

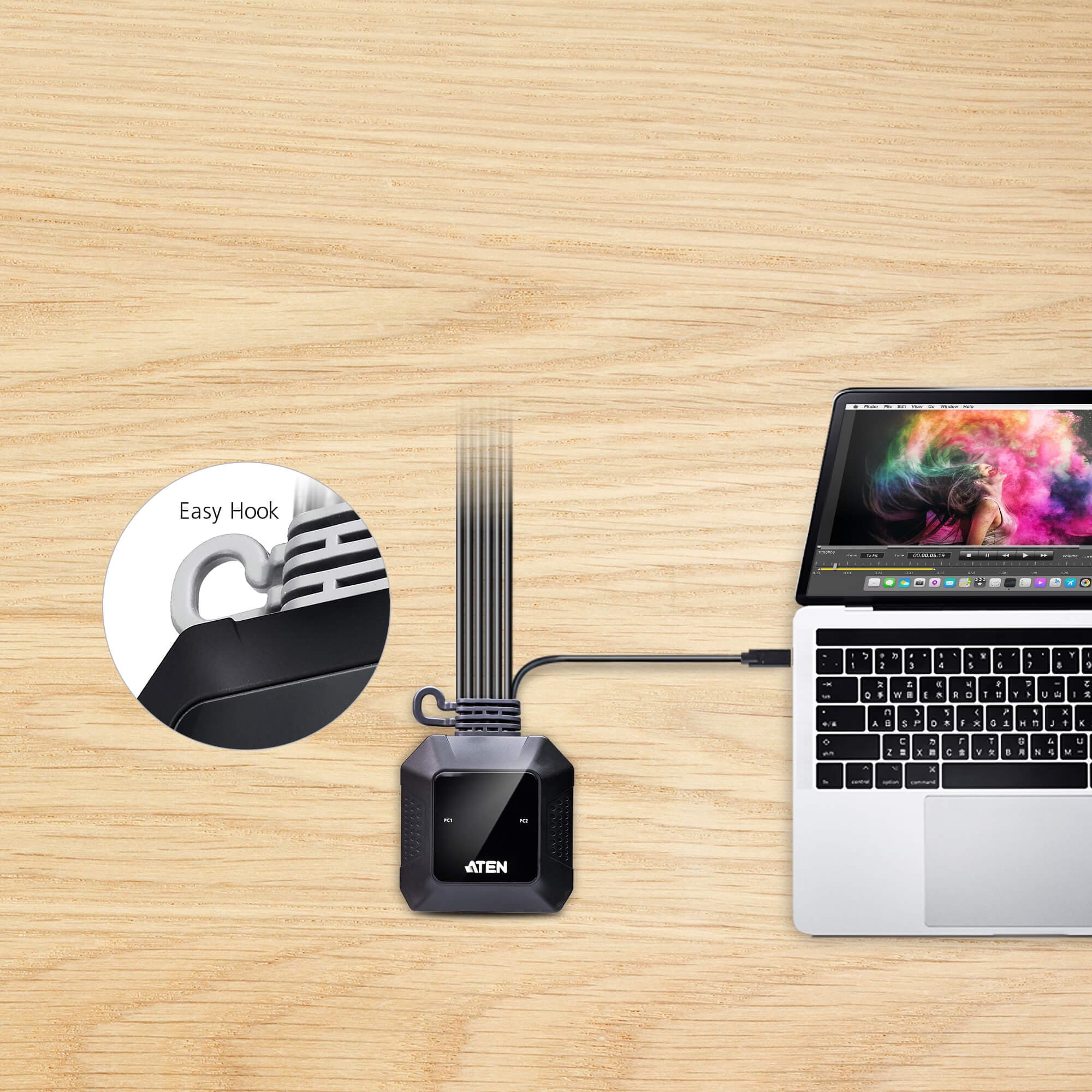

Hook design for space-saving and organized workstation
Supports USB hot-plugging Note: 1. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue. 2. The CS52DP may require an external power supply via the USB Micro-B Power Port. For the USB Micro-B cable connecting to the USB Micro-B Power Port, it requires a separate purchase based on the type of the power supply you use.

Specifications

Computer Connections: 2
Port Selection: Remote Port Selector

Connectors

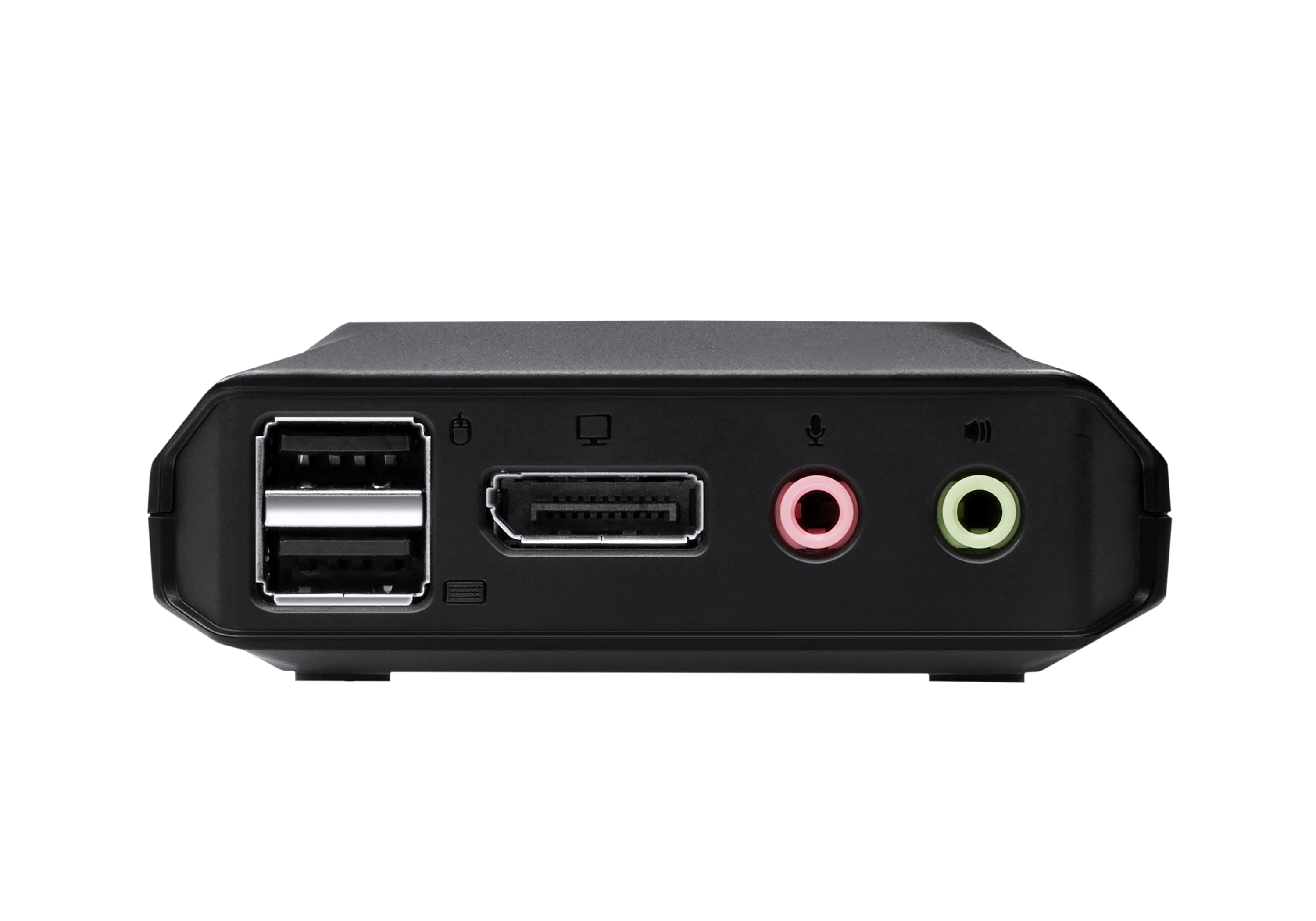

Console Ports: 1 x DisplayPort Female 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)

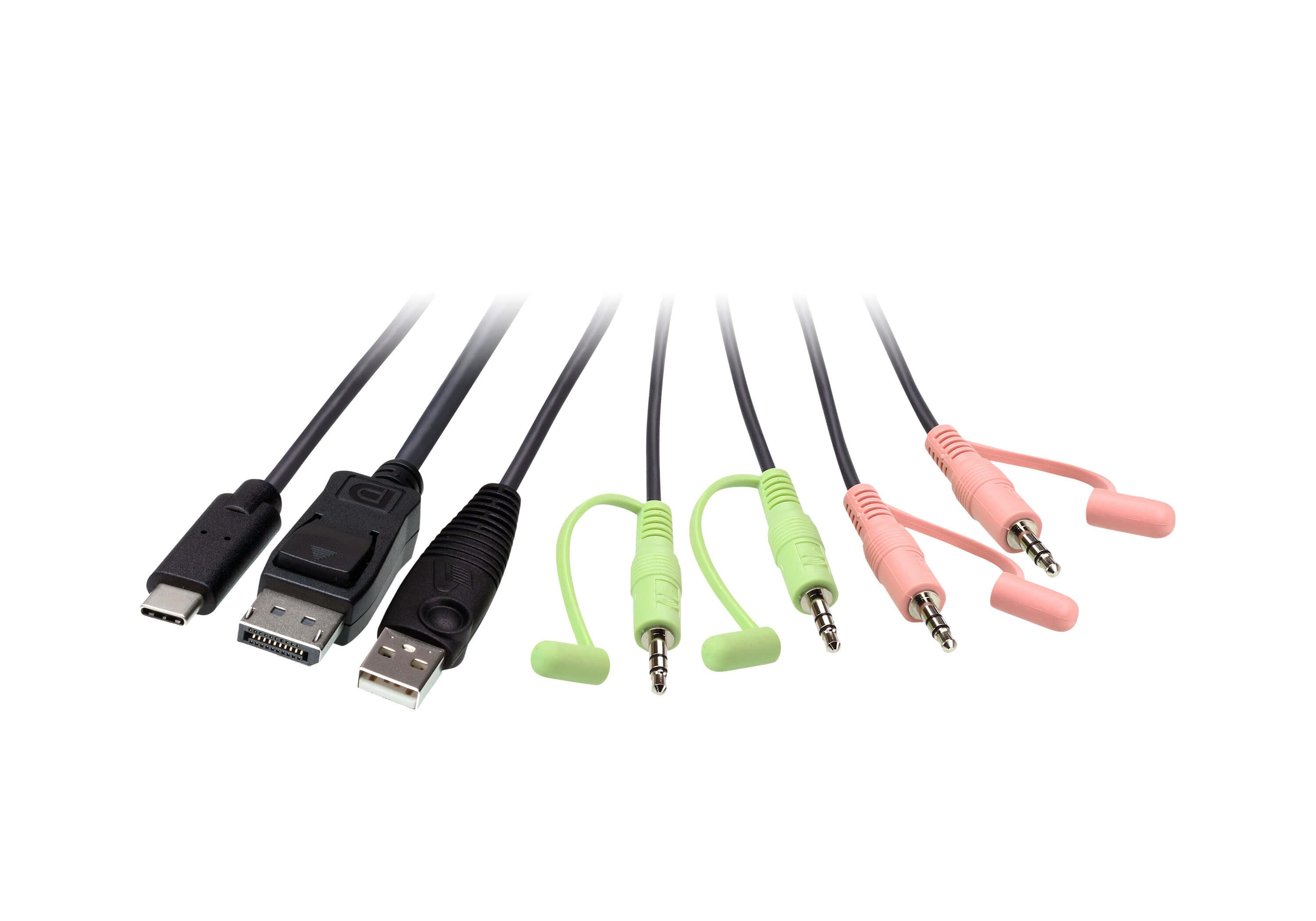

KVM (Computer) Ports: CPU1: 1 x DisplayPort Male 1 x USB Type A Male 1 x 3.5mm Audio Jack Male (Green) 1 x 3.5mm Audio Jack Male (Pink) CPU2: 1 x USB Type C Male 1 x 3.5mm Audio Jack Male (Green) 1 x 3.5mm Audio Jack Male (Pink)

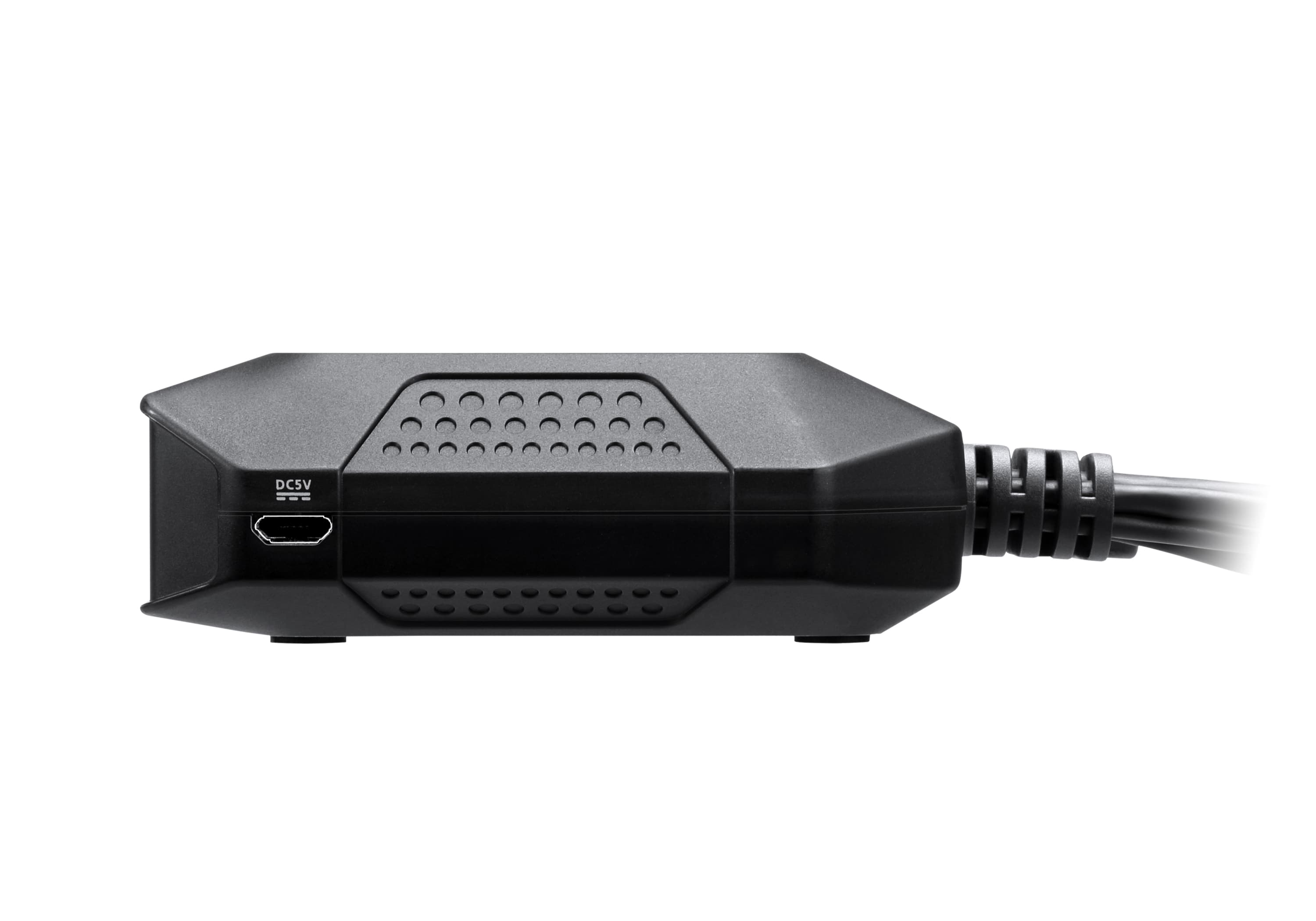

Power (Optional): 1 x USB Micro Type B Female

LEDs

KVM Port (On Line /Selected): 2 (White)

Cable Length

KVM: 2 x 1.2 m
Remote Port Selector: 1.8 m

Emulation

Keyboard / Mouse: N/A
Video: Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Power Consumption: DC5V:0.74W:8BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0 - 50°C
Storage Temperature: -20 - 60°C
Humidity: 0-80% RH, Non-condensing

Physical Properties

Housing: Plastic
Weight: 0.30 kg ( 0.66 lb )
Dimensions (L x W x H): 8.34 x 8.42 x 3.04 cm (3.28 x 3.31 x 1.2 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
