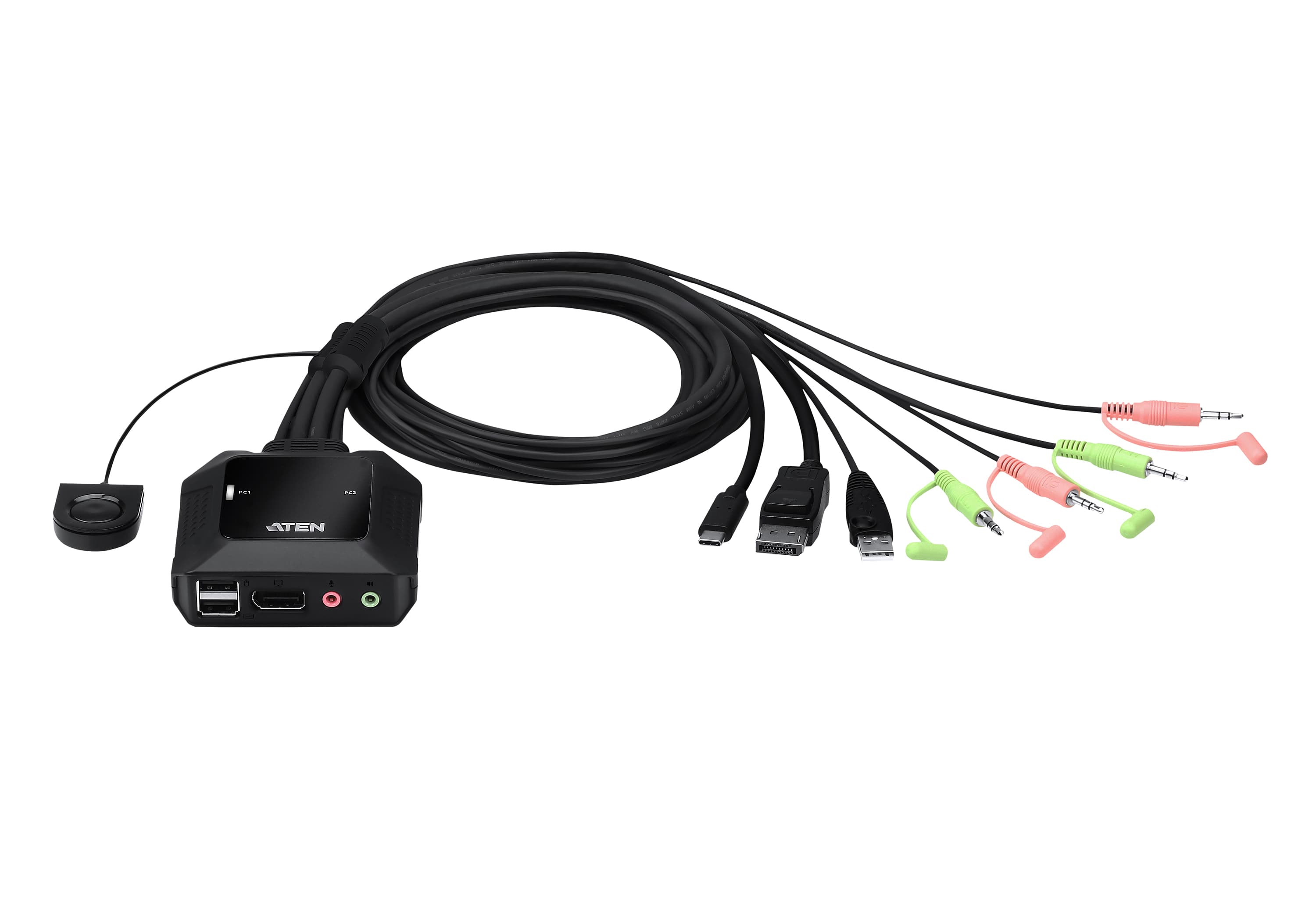

Кабелен KVM превключвател: една конзола управлява DisplayPort компютър и USB-C устройство (DP Alt Mode) при до 4096x2160@60Hz. Вградени кабели 1.2 m и дистанционен бутон за избор.
Характеристики

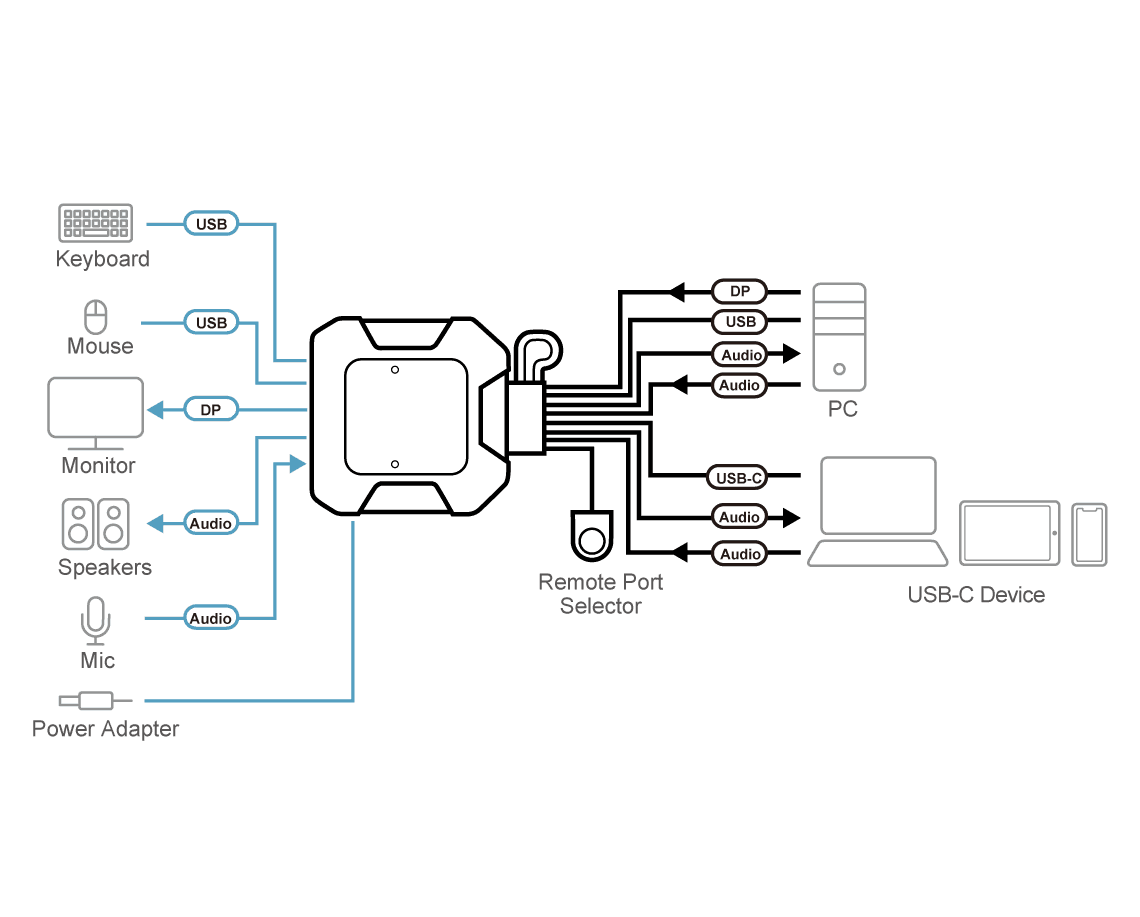

- One KVM console controls one USB DisplayPort computers and one USB-C device
- Superior video quality – up to 4096 x 2160 @ 60 Hz
- Computer selection via remote port selector
- Supports DisplayPort Alternate Mode (DP Alt Mode) which enables the USB connection to carry DisplayPort signals
- DisplayPort 1.2 and HDCP compliant1
- Bus-powered – no external power adapter required

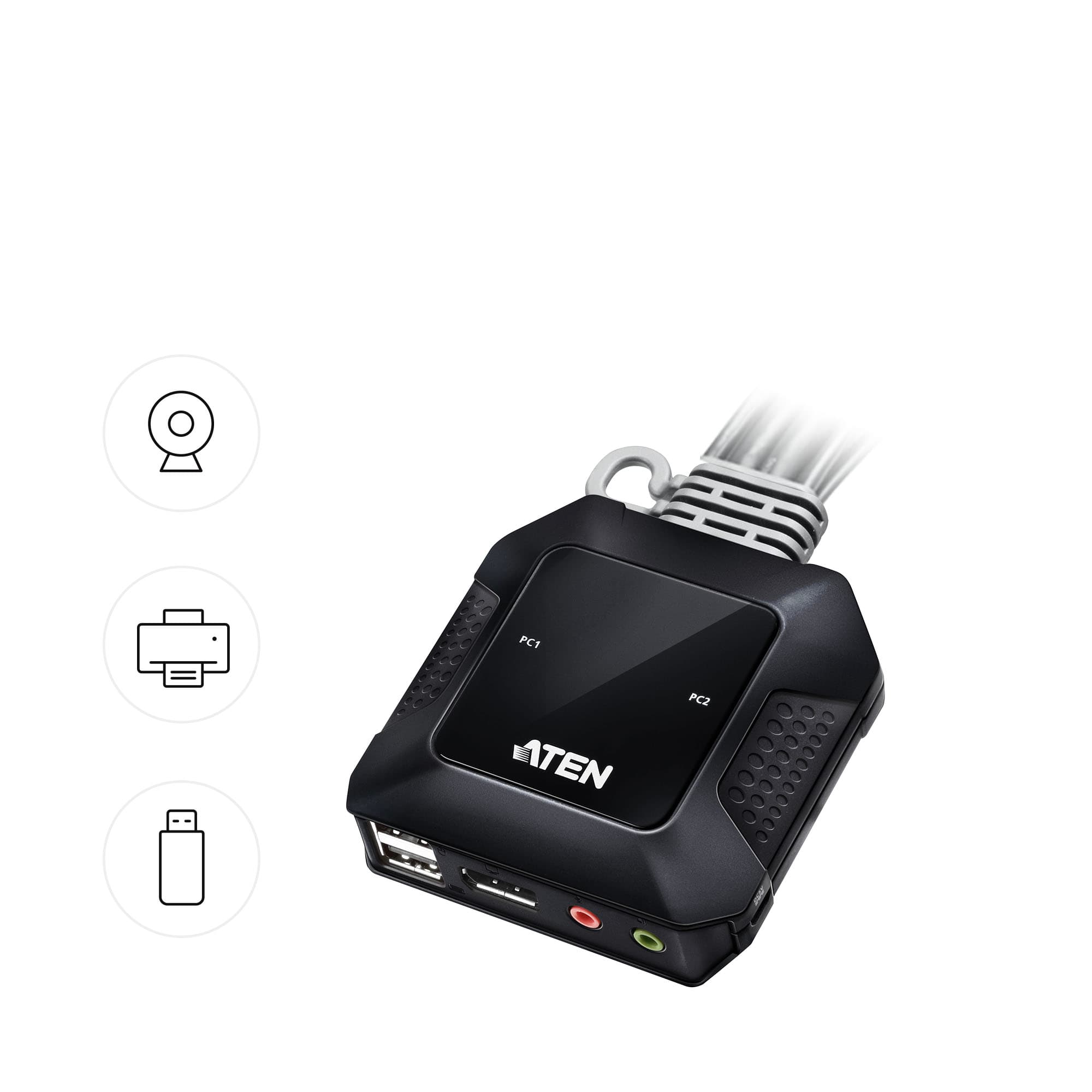

- The console USB ports can be used for USB peripheral sharing2
- Multiplatform support – Windows, Mac, Linux, Android, and iOS
- No software required

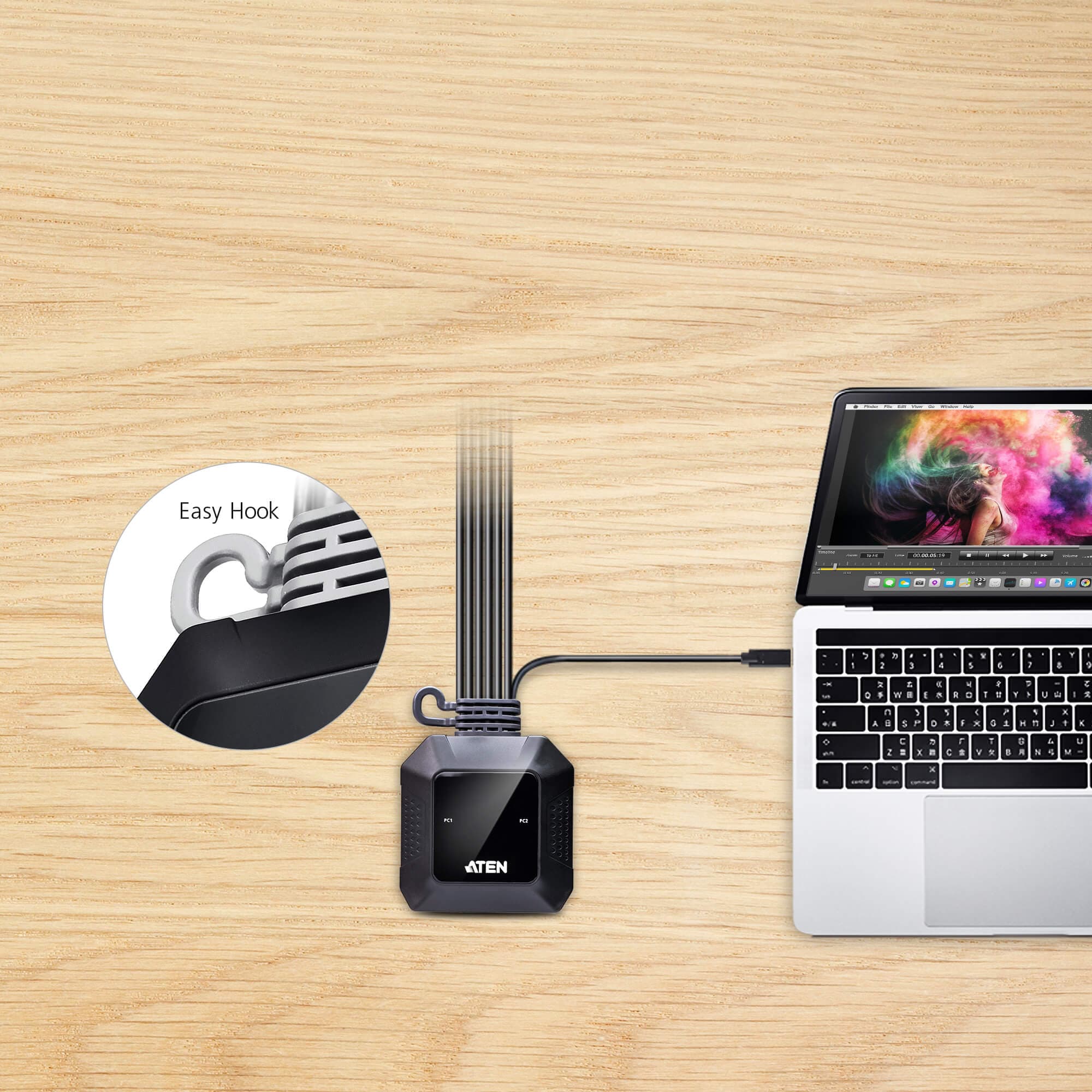

- Hook design for space-saving and organized workstation
- Supports USB hot-plugging Note: 1. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue. 2. The CS52DP may require an external power supply via the USB Micro-B Power Port. For the USB Micro-B cable connecting to the USB Micro-B Power Port, it requires a separate purchase based on the type of the power supply you use.
Спецификация
- Връзки към компютри
- 2
- Избор на порт
- Remote Port Selector
Конектори

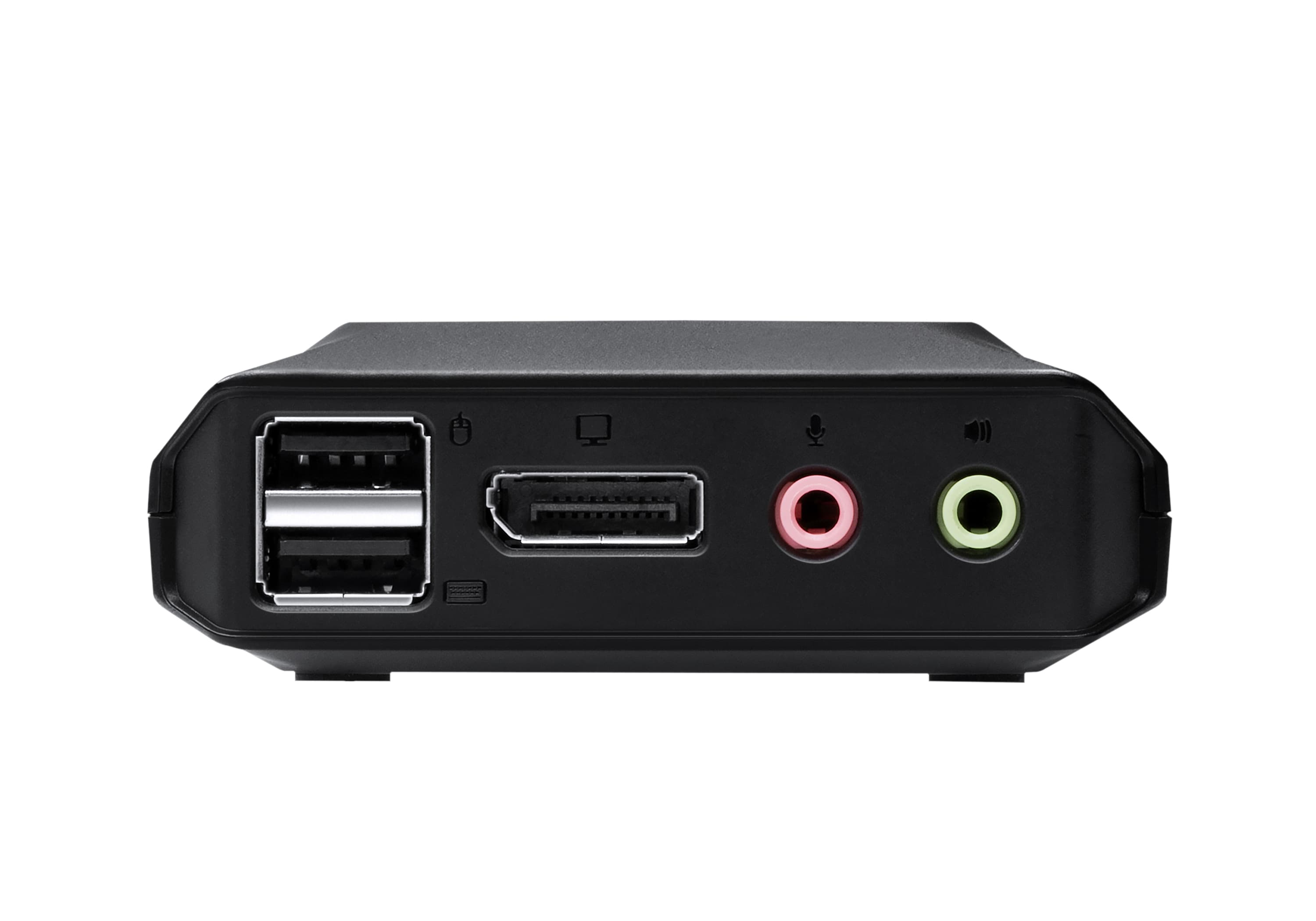

- Конзолни портове
- 1 x DisplayPort Female 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)

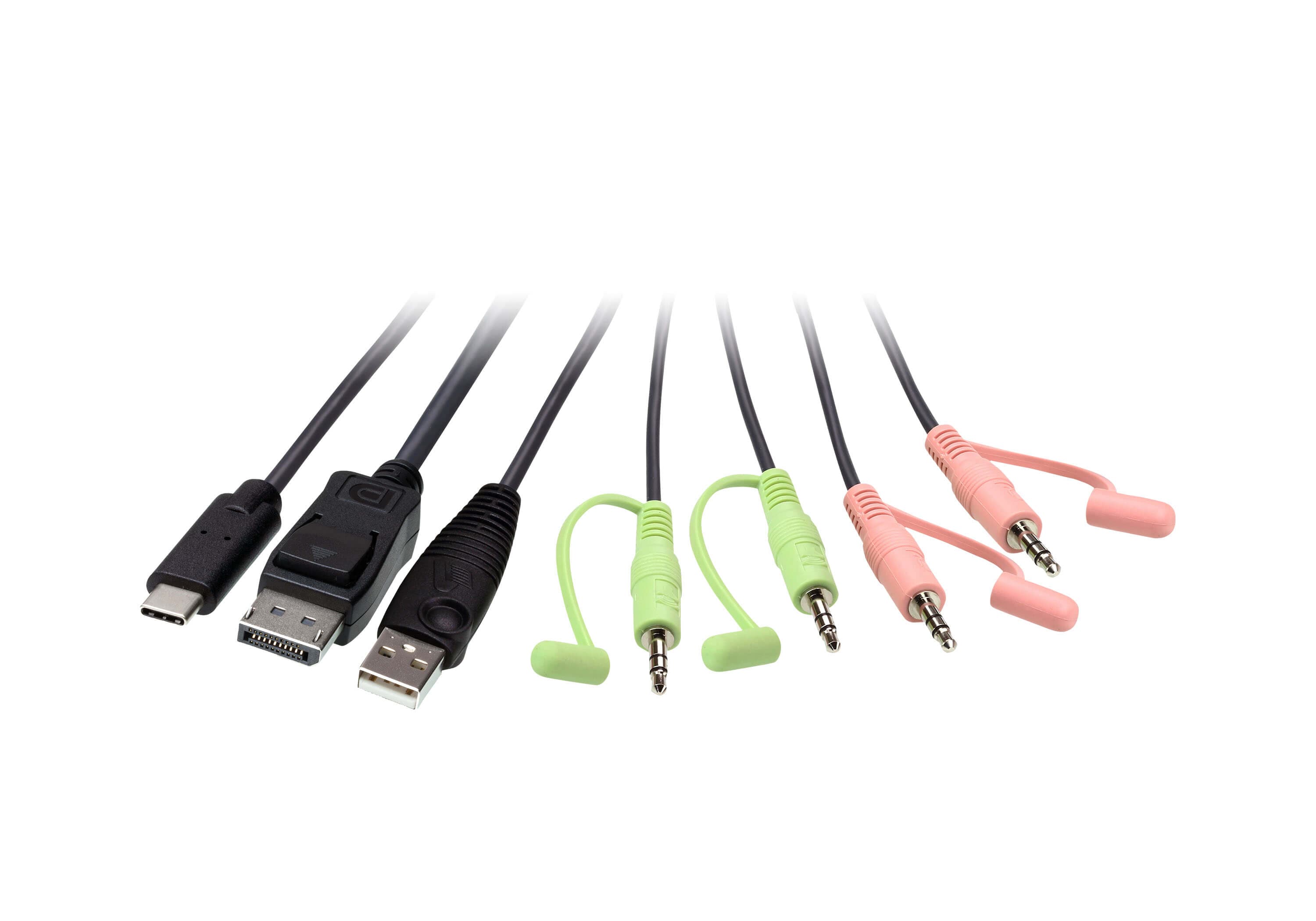

- KVM портове (компютри)
- CPU1: 1 x DisplayPort Male 1 x USB Type A Male 1 x 3.5mm Audio Jack Male (Green) 1 x 3.5mm Audio Jack Male (Pink) CPU2: 1 x USB Type C Male 1 x 3.5mm Audio Jack Male (Green) 1 x 3.5mm Audio Jack Male (Pink)

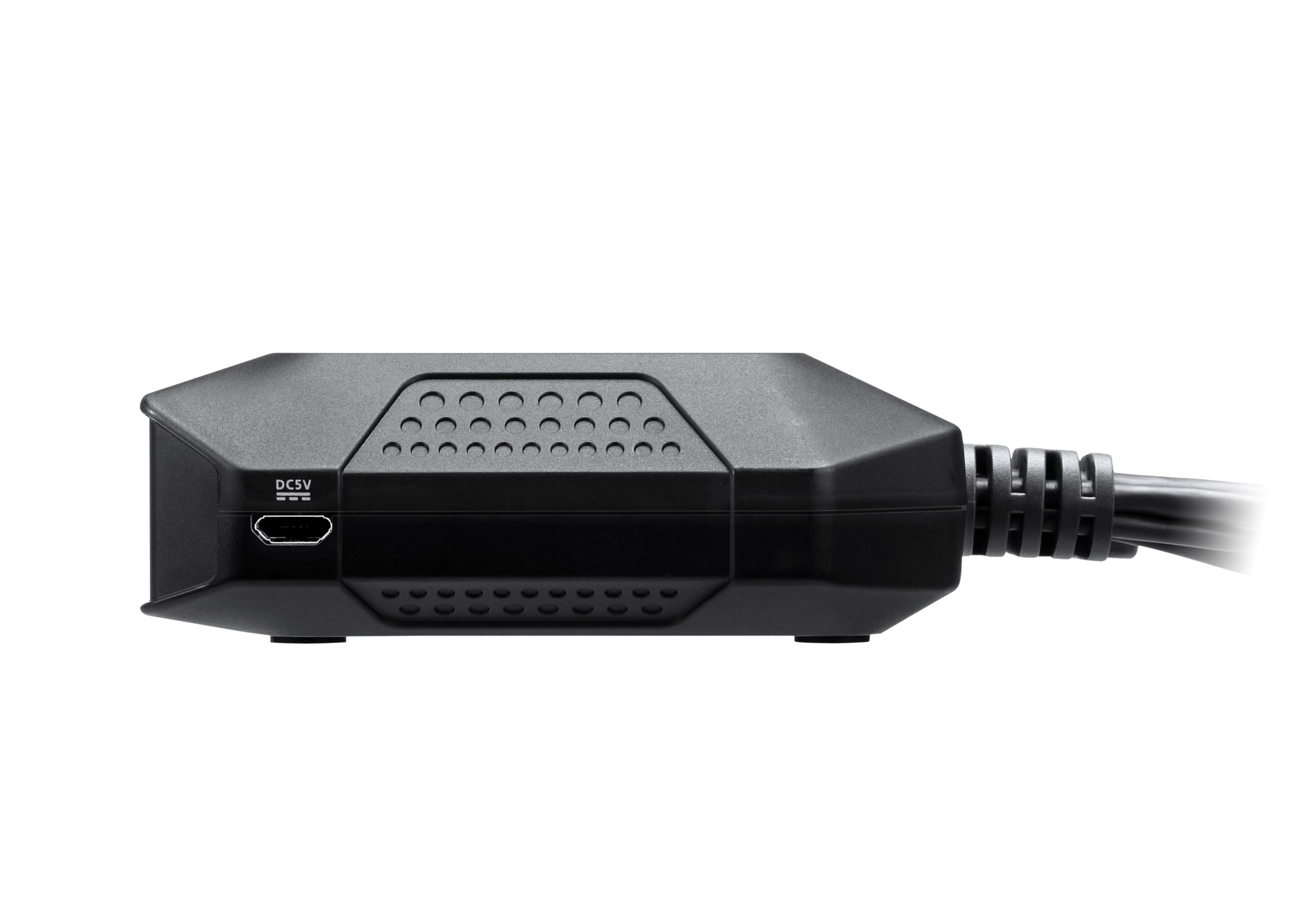

- Захранване (опция)
- 1 x USB Micro Type B Female
Индикатори
- KVM порт (онлайн / избран)
- 2 (White)
Дължина на кабела
- KVM
- 2 x 1.2 m
- Дистанционен избор на порт
- 1.8 m
Емулация
- Клавиатура / мишка
- N/A
- Видео
- Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
- Консумация
- DC5V:0.74W:8BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.30 kg ( 0.66 lb )
- Размери (Д x Ш x В)
- 8.34 x 8.42 x 3.04 cm (3.28 x 3.31 x 1.2 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
