USB VGA Computer Sharing Device

Name: USB VGA Computer Sharing Device
Brand: ATEN
SKU: CS231

CS231

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

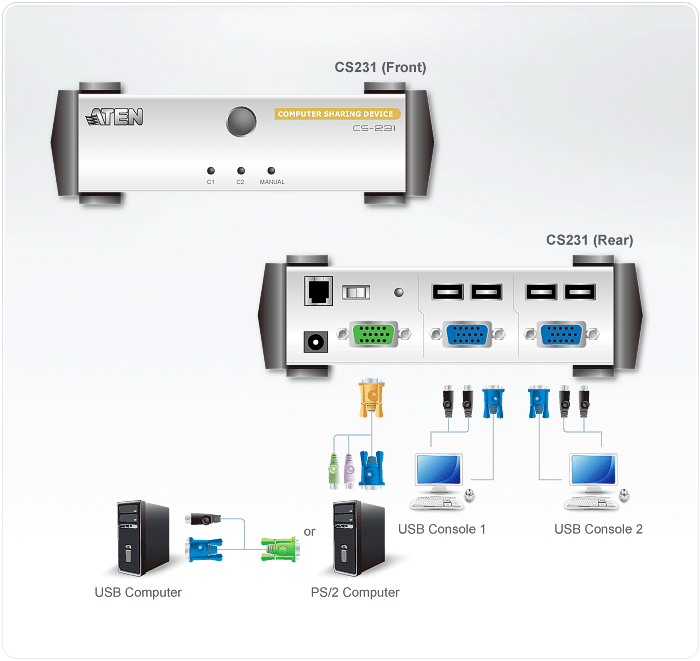

The CS231 is a powerful, micro-processor controlled computer sharing device. It is a multi-user, single-tasking device that enables two users to share the use of a single computer - each

Features

Single computer is shared by two USB consoles.
Supports USB and PS/2 computers.
Multiplatform Support (Windows, Mac, Unix, Linux).
Manual or Auto console selection.
On-Screen-Display informs user when system is in use.
No Software required.
Private Mode for a privileged user.
Screen saver function.
Supports VGA, SVGA Multisync monitors.
Firmware Upgradable.
Multiplatform support: Windows 2000/XP/Vista, Linux, Mac and Unix.

Specifications

Computer Connections: 1
Console Selection: Pushbutton, Hotkey* Note: * Selecting console via hotkey only works in Manual Mode.

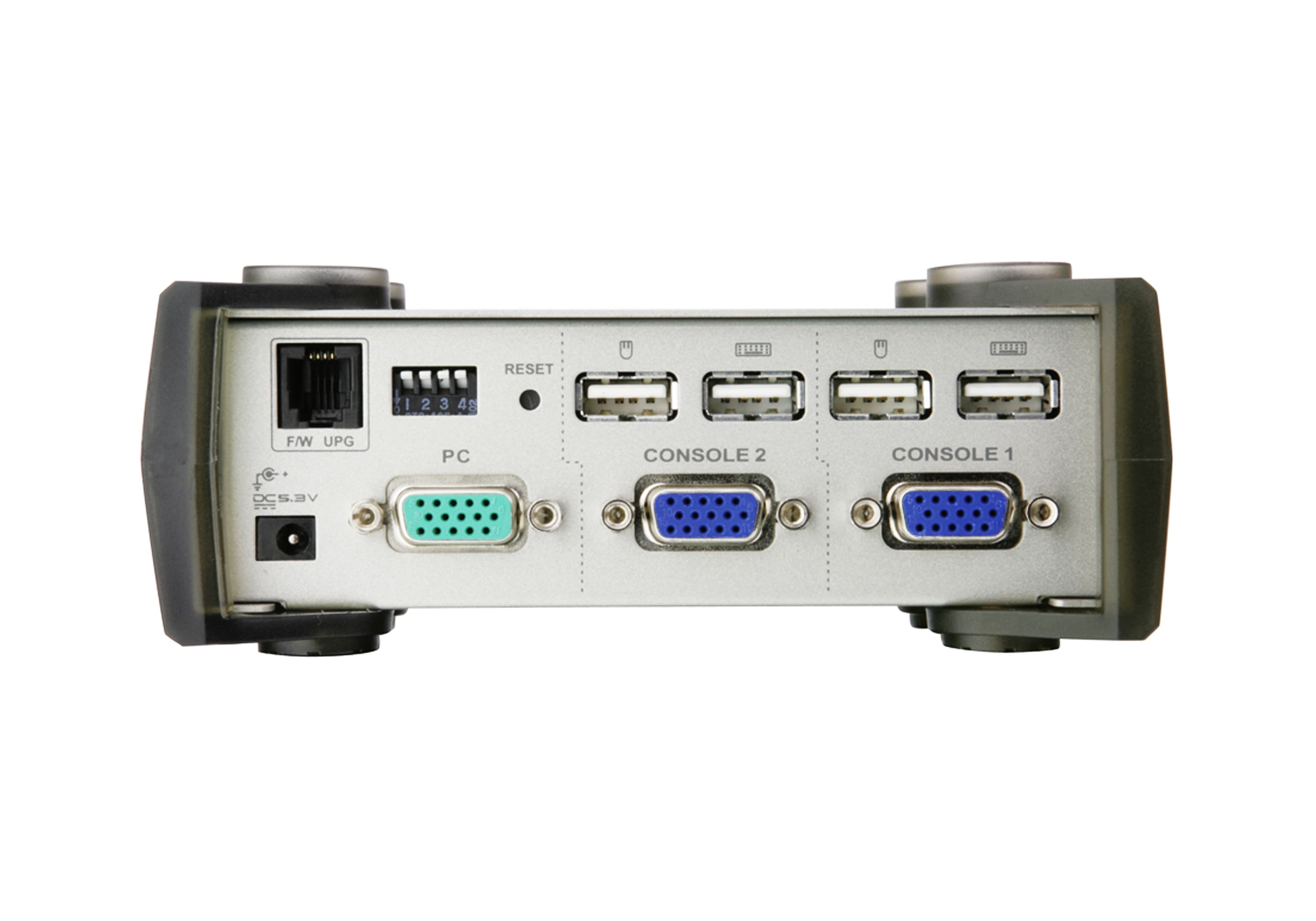

Connectors

Console Ports: 2 x HDB-15 Female (Blue) 4 x USB Type A Female
KVM Ports: 1 x SPHD-15 Female (Green)
Firmware Upgrade: 1 x RJ-11 Female
Power: 1 x DC Jack (Black)

Switches

Mode Selection: 1 x Pushbutton
Reset: 1 x Semi-recessed Pushbutton
DIP: 1 x 4 pin

LEDs

Selected: 2 (Green)
Manual: 1 (Orange)
Video: 1920 x 1440
Power Consumption: DC5.3V:1.6W:16 Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0-50˚C
Storage Temperature: -20-60˚C
Humidity: 0-80% RH, Non-condensing

Physical Properties

Housing: Metal
Weight: 0.56 kg ( 1.23 lb )
Dimensions (L x W x H): 14.00 x 8.80 x 5.55 cm (5.51 x 3.46 x 2.19 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
