Устройство за споделяне, чрез което две USB конзоли ползват един компютър. Поддържа USB и PS/2 компютри; работи под Windows, Mac, Unix и Linux.
Характеристики
- Single computer is shared by two USB consoles.
- Supports USB and PS/2 computers.
- Multiplatform Support (Windows, Mac, Unix, Linux).
- Manual or Auto console selection.
- On-Screen-Display informs user when system is in use.
- No Software required.
- Private Mode for a privileged user.
- Screen saver function.
- Supports VGA, SVGA Multisync monitors.
- Firmware Upgradable.
- Multiplatform support: Windows 2000/XP/Vista, Linux, Mac and Unix.
Спецификация
- Връзки към компютри
- 1
- Избор на конзола
- Pushbutton, Hotkey* Note: * Selecting console via hotkey only works in Manual Mode.

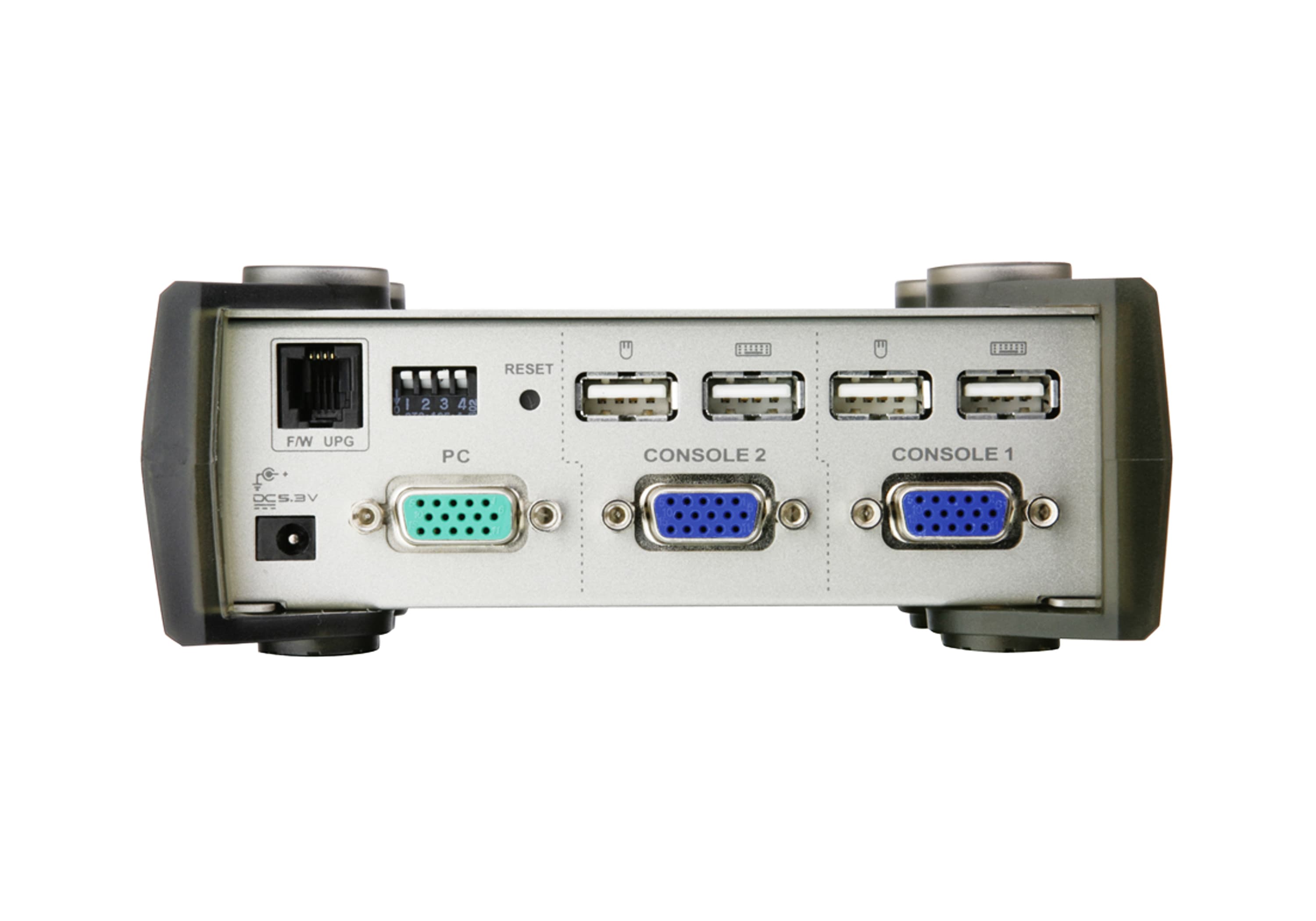

Конектори
- Конзолни портове
- 2 x HDB-15 Female (Blue) 4 x USB Type A Female
- KVM портове
- 1 x SPHD-15 Female (Green)
- Обновяване на фърмуера
- 1 x RJ-11 Female
- Захранване
- 1 x DC Jack (Black)
Бутони и превключватели
- Избор на режим
- 1 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- DIP превключвател
- 1 x 4 pin
Индикатори
- Избран
- 2 (Green)
- Ръчен режим
- 1 (Orange)
- Видео
- 1920 x 1440
- Консумация
- DC5.3V:1.6W:16 Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50˚C
- Температура на съхранение
- -20-60˚C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.56 kg ( 1.23 lb )
- Размери (Д x Ш x В)
- 14.00 x 8.80 x 5.55 cm (5.51 x 3.46 x 2.19 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
