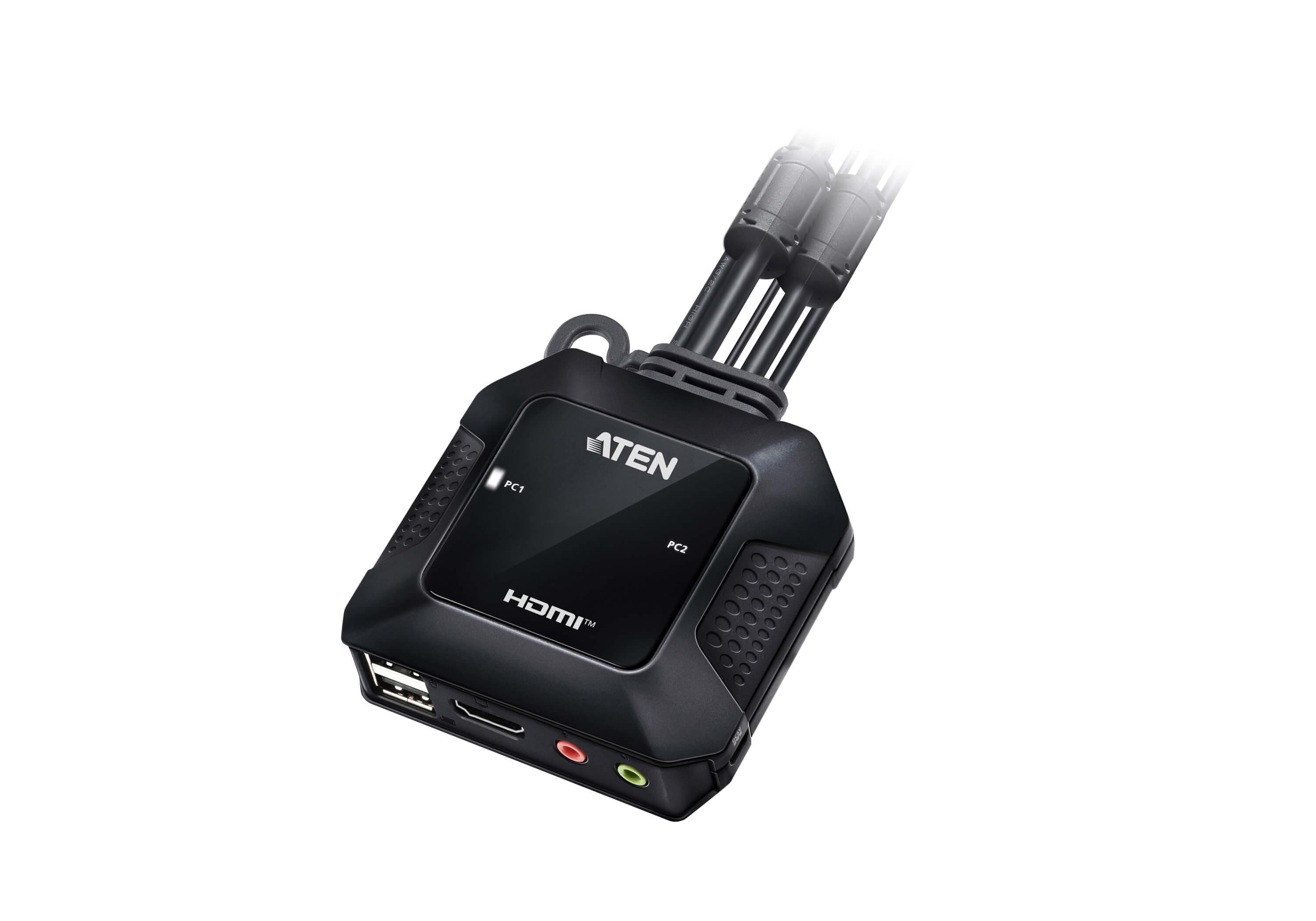

2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector

Name: 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
Brand: ATEN
SKU: CS22H

CS22H

Request a quote Datasheet PDF Quick start guide CAD drawing

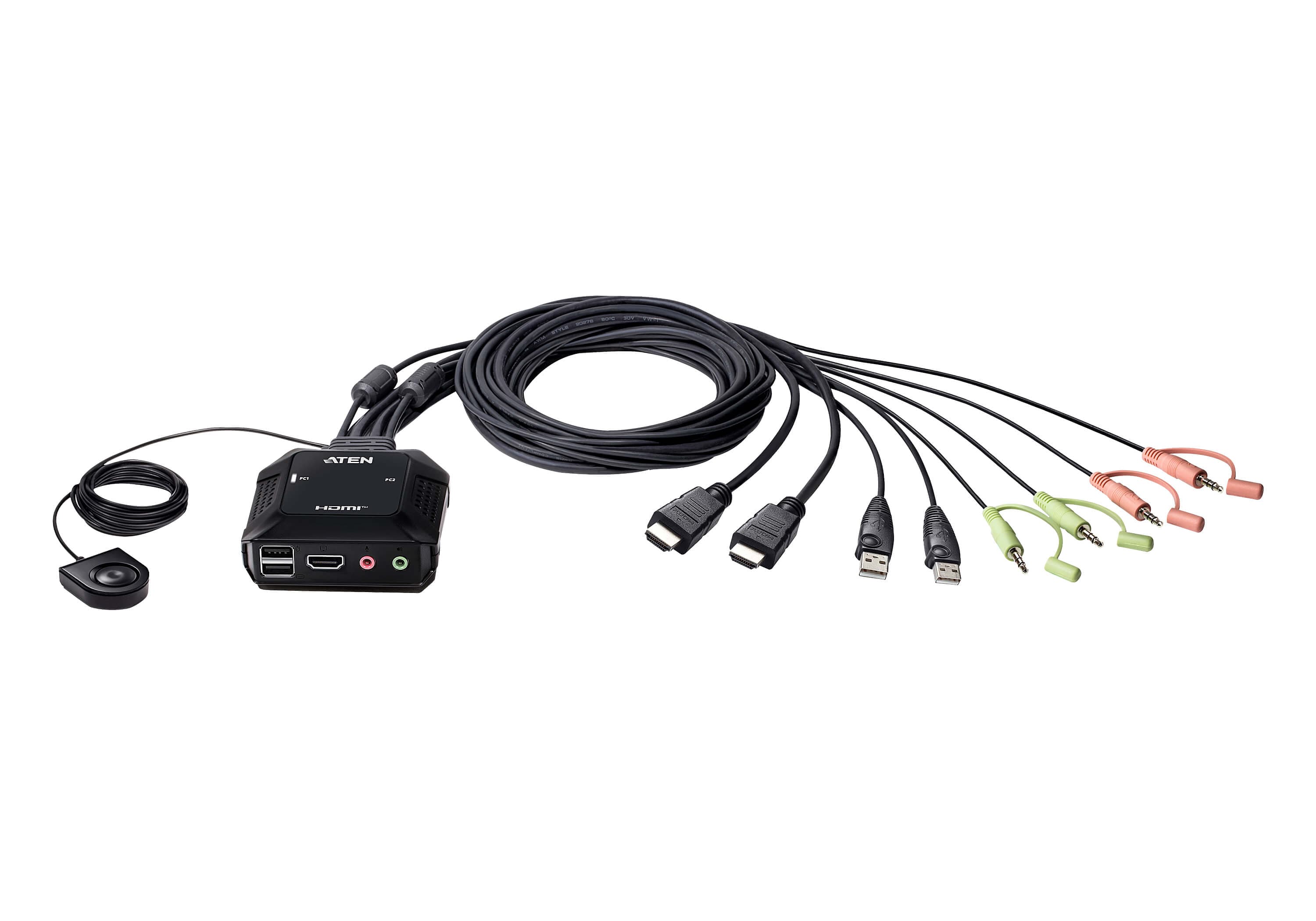

Cable KVM switch controlling two HDMI computers from one console at up to 4K DCI (4096 x 2160 @ 60 Hz) via a wired remote port selector; 1.2 m built-in leads.

Features

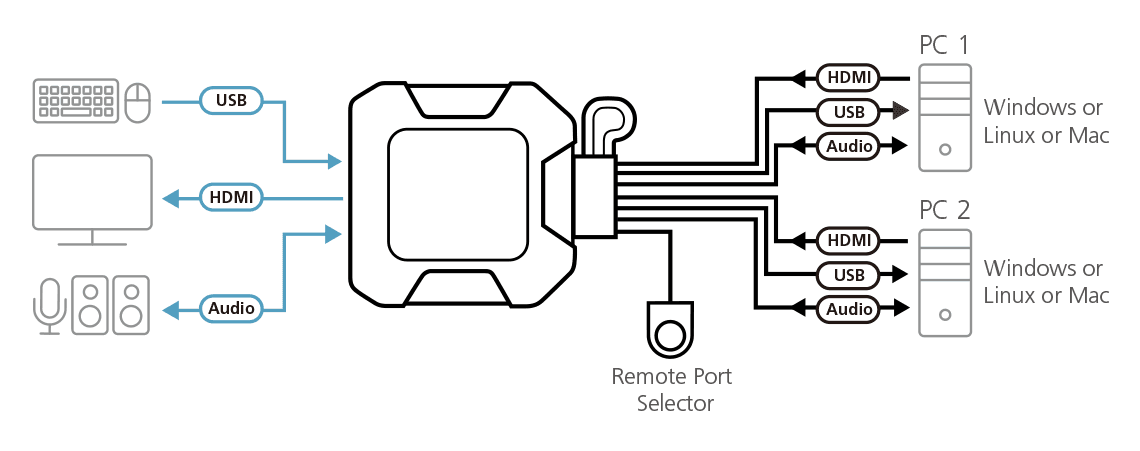

One USB keyboard, mouse and one HDMI monitor control two HDMI computers
Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
Computer selection via remote port selector
HDMI compliant; HDCP compliant
Supports USB hot-plugging

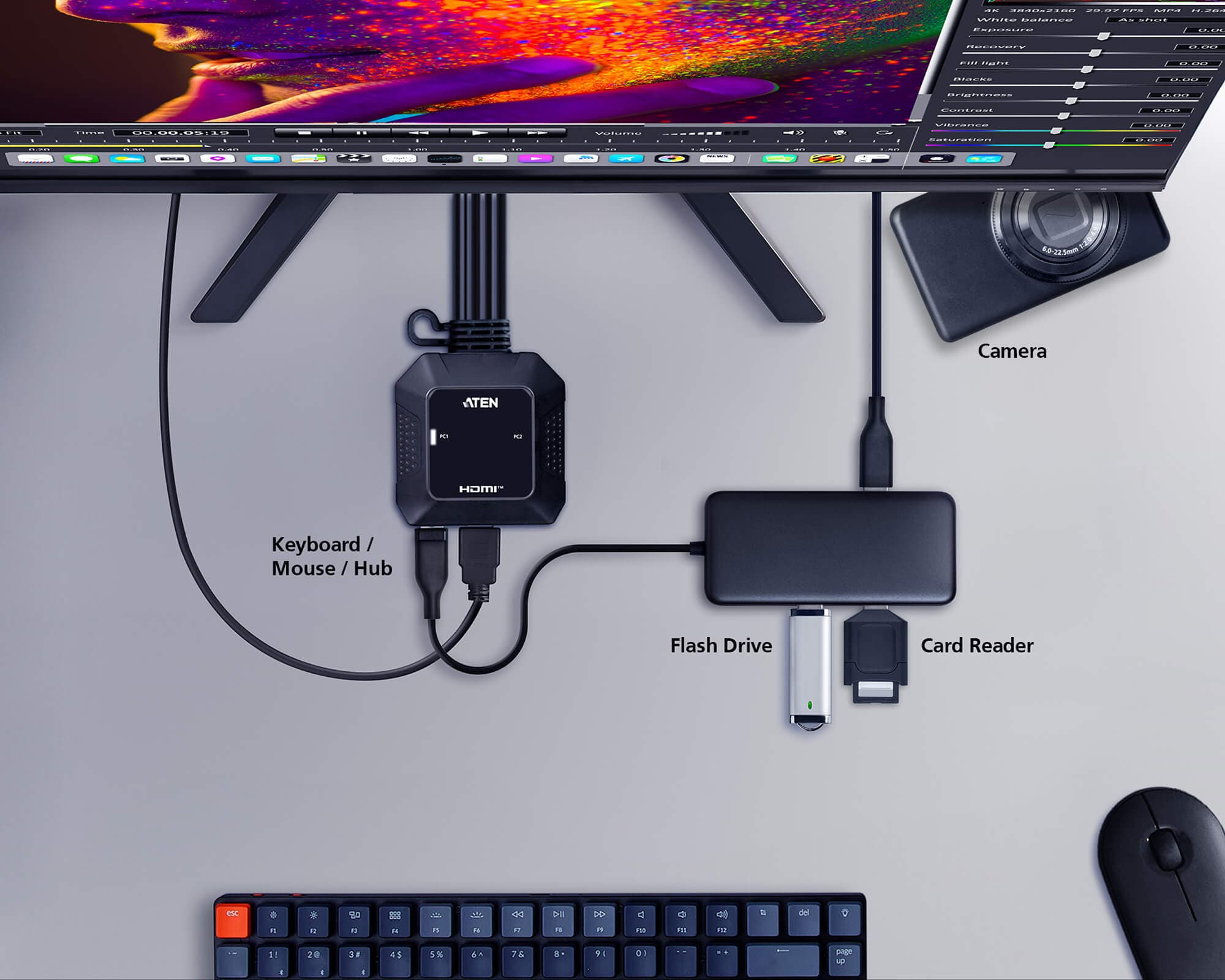

The console USB ports can be used for USB peripheral sharing*
Multiplatform support – Windows, Mac and Linux

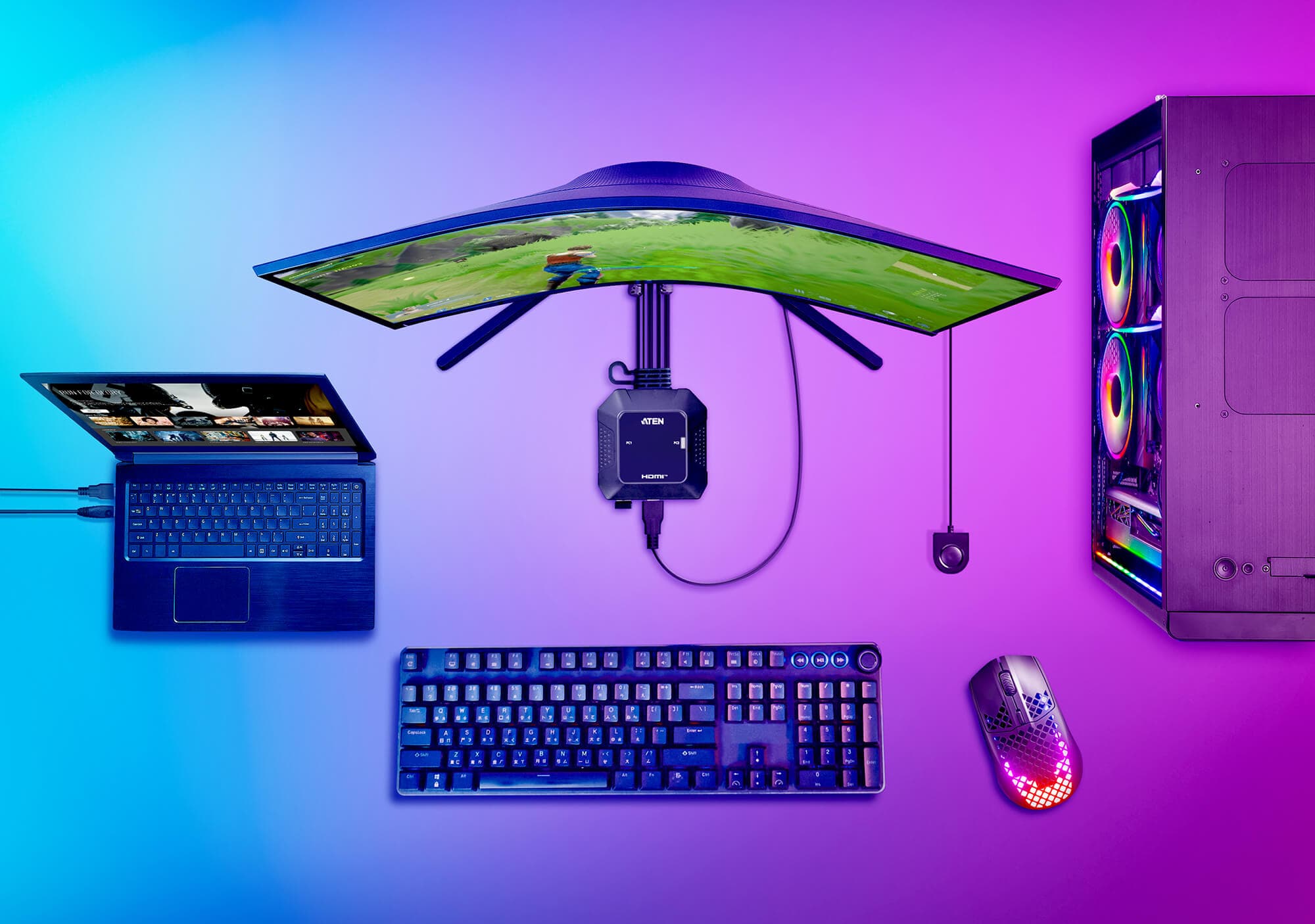

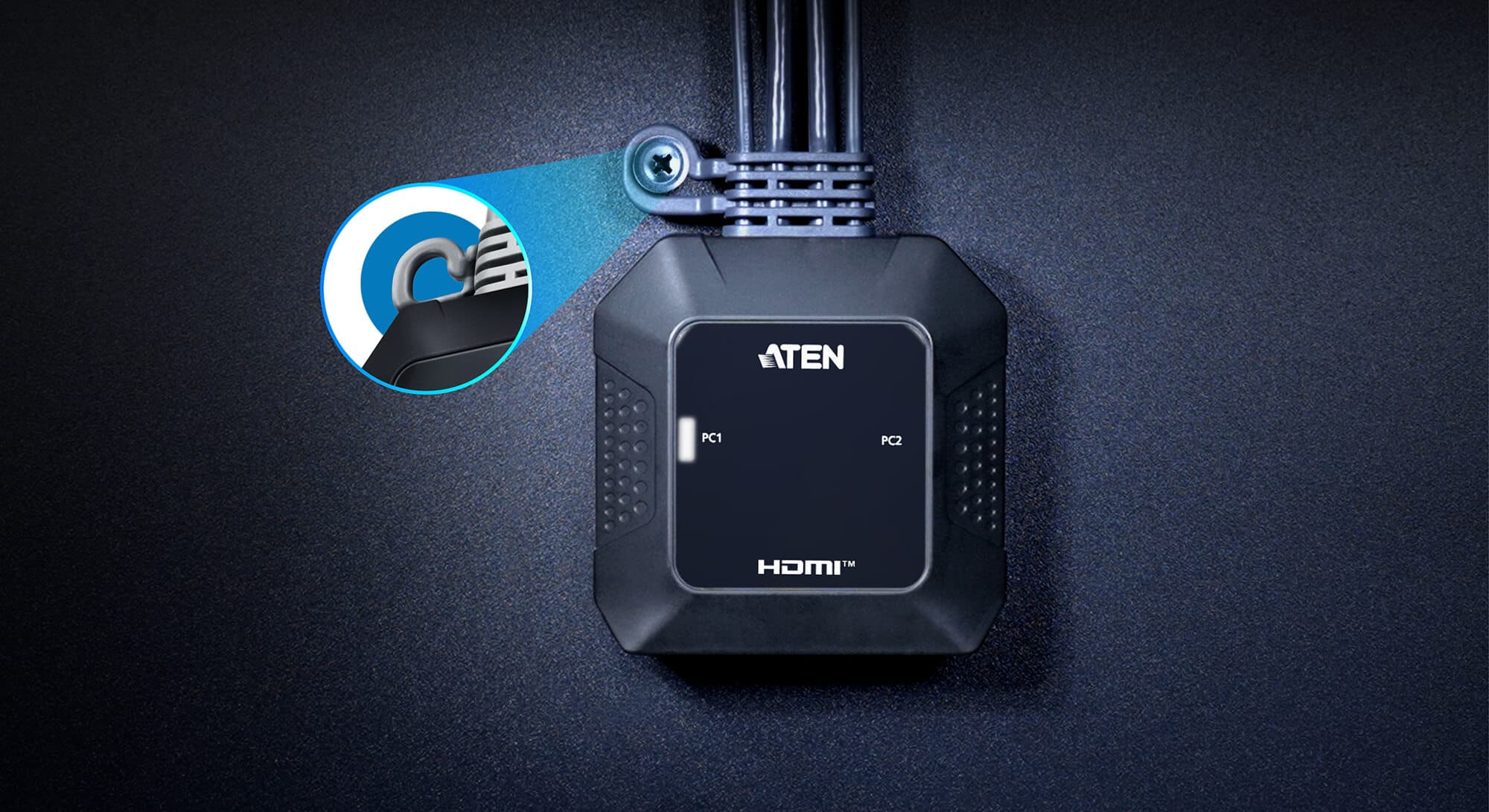

Hook design for space-saving and organized workstation
Plug and play
Bus-powered – no external power adapter required Note: * The CS22H may require an external power supply via the USB Micro-B Power Port. For the USB Micro-B cable connecting to the USB Micro-B Power Port, it requires a separate purchase based on the type of the power supply you use.

Specifications

Computer Connections: 2
Port Selection: Remote Port Selector

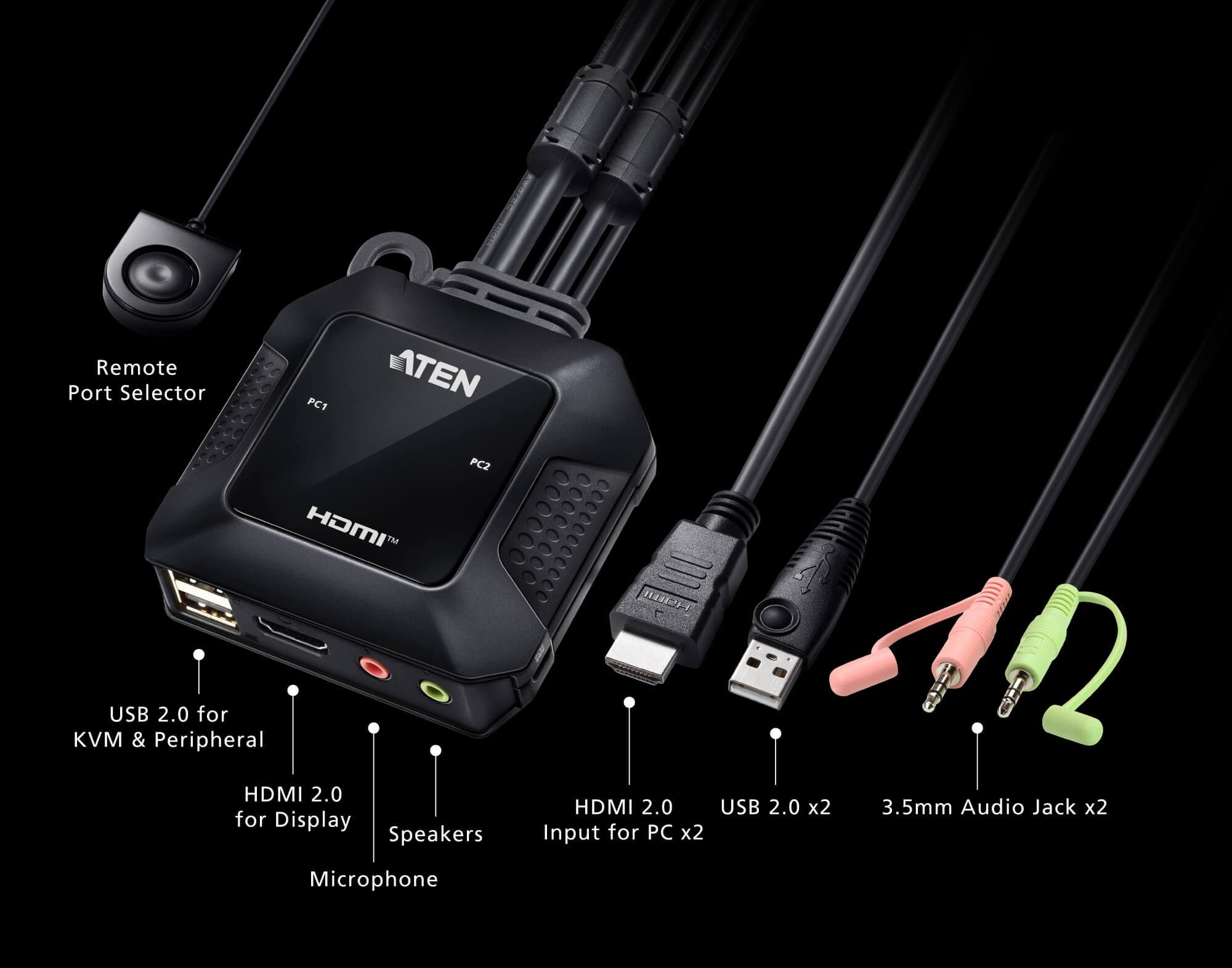

Connectors

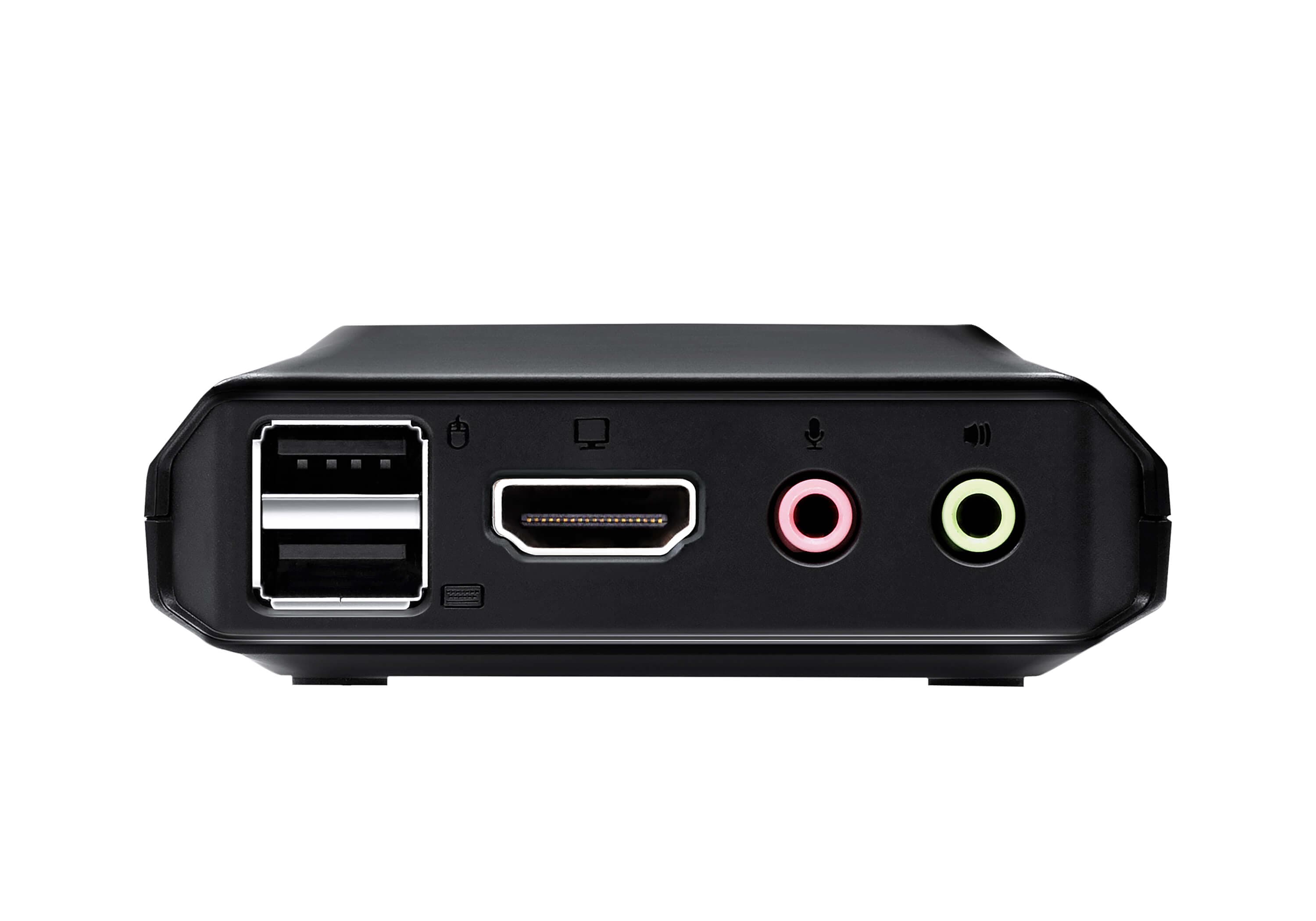

Console Ports: 1 x HDMI Female 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
KVM (Computer) Ports: 2 x HDMI Male 2 x USB Type A Male 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink)
Power (Optional): 1 x USB Micro Type B Female

LEDs

KVM Port (On Line /Selected): 2 (White)

Cable Length

KVM: 2 x 1.2 m
Remote Port Selector: 1.8 m

Emulation

Keyboard / Mouse: N/A
Video: Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Power Consumption: DC5V:1.4W:19BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0 - 50°C
Storage Temperature: -20 - 60°C
Humidity: 0-80% RH, Non-condensing

Physical Properties

Housing: Plastic
Weight: 0.34 kg ( 0.75 lb )
Dimensions (L x W x H): 8.34 x 8.42 x 3.04 cm (3.28 x 3.31 x 1.2 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
