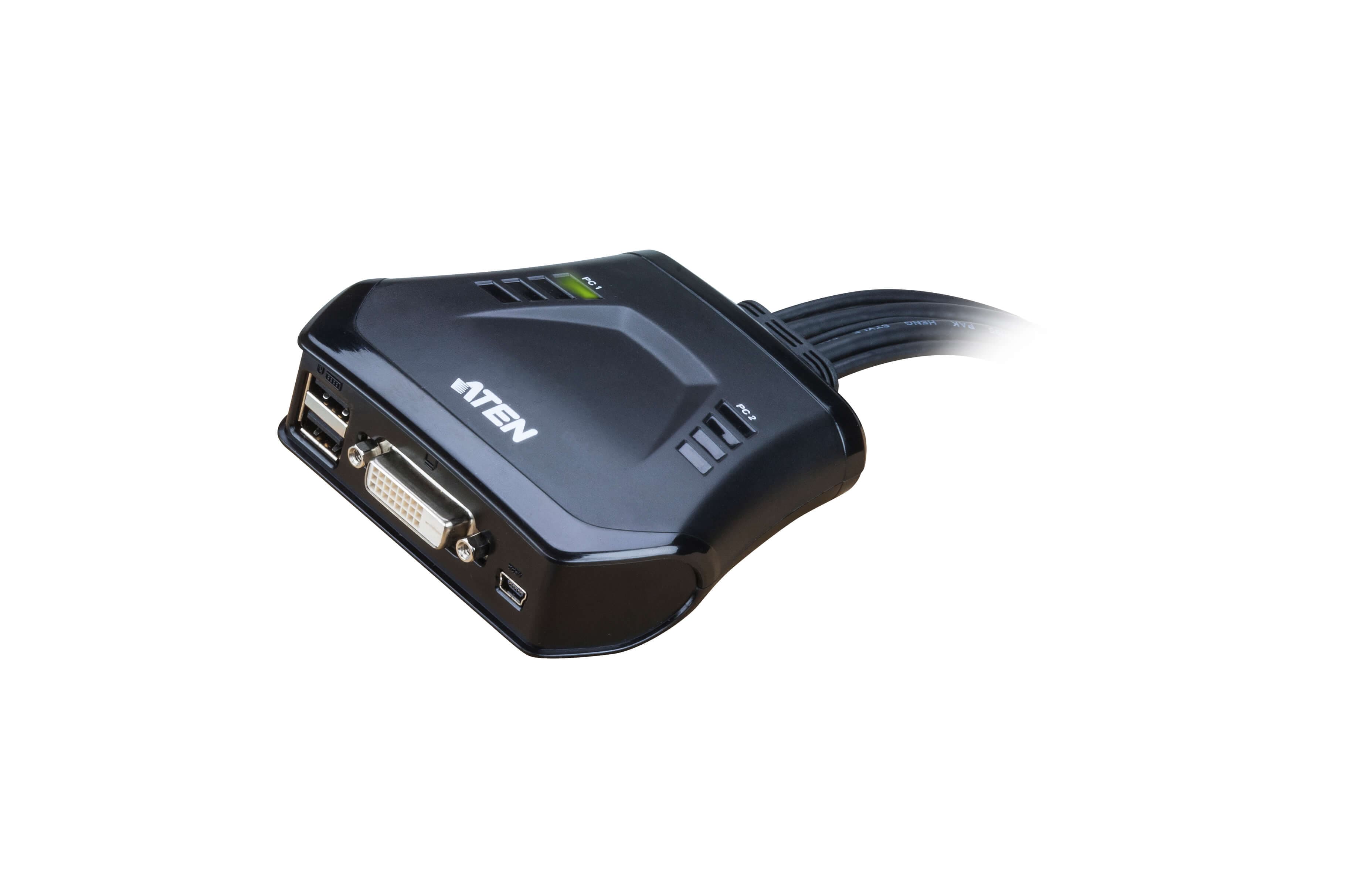

2-Port USB DVI Cable KVM Switch with Remote Port Selector

Name: 2-Port USB DVI Cable KVM Switch with Remote Port Selector
Brand: ATEN
SKU: CS22D

CS22DDiscontinued

Request a quote Datasheet PDF Quick start guide CAD drawing

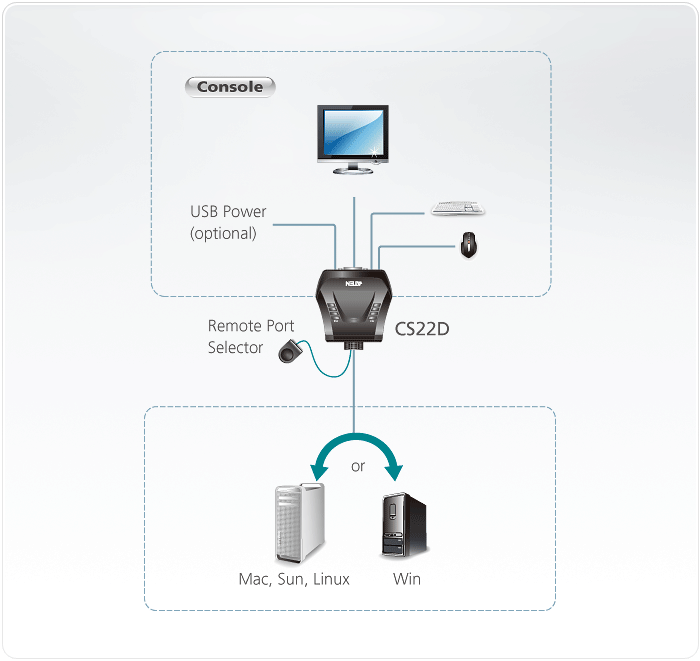

The CS22D 2-Port USB DVI KVM Switch is a control unit that allows access to two computers from a single USB and DVI console (keyboard, video and mouse). With the

Features

One DVI-D video console controls two DVI-D USB interface computers
Computer Selection via Remote Port Selector
OS Support: Windows 2000, Windows XP, Windows Vista, 7, Mac, Sun and Linux
Superior video quality- up to 1920 x 1200@60Hz
Supports USB hot-plugging
Bus-Powered
The console USB ports can be used for USB peripheral sharing1 Note: 1. The CS22D may require an external power supply via a micro USB port.

Specifications

Computer Connections: 2
Port Selection: Remote Port Selector

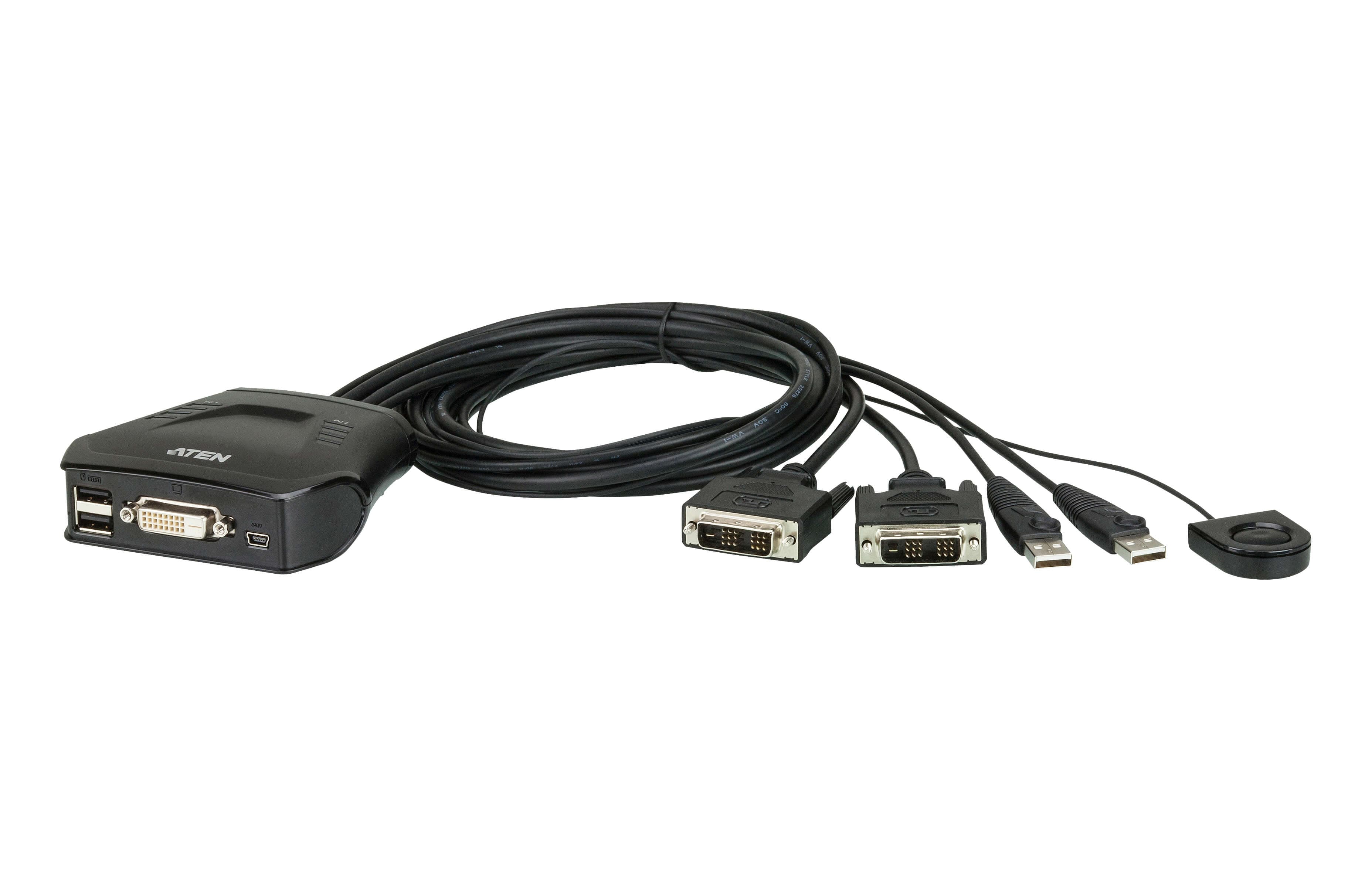

Connectors

Console Ports: 1 x DVI-D Female (White) 2 x USB Type A Female 1 x USB Mini-B Female
KVM Ports: 2 x DVI-D Male (Black) 2 x USB Type A Male

LEDs

Selected: 2 (Green)

Cable Length

KVM: 2 x 1.2 m
Remote Port Selector: 1.8 m
Video Resolution: 1920 x 1200 @ 60 Hz
Power Consumption: DC5V:0.93W:9BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0 - 50˚C
Storage Temperature: -20 - 60˚C
Humidity: 0 - 80% RH, Non-condensing

Physical Properties

Housing: Plastic
Weight: 0.34 kg ( 0.75 lb )
Dimensions (L x W x H): 9.95 x 9.66 x 3.01 cm (3.92 x 3.8 x 1.19 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
