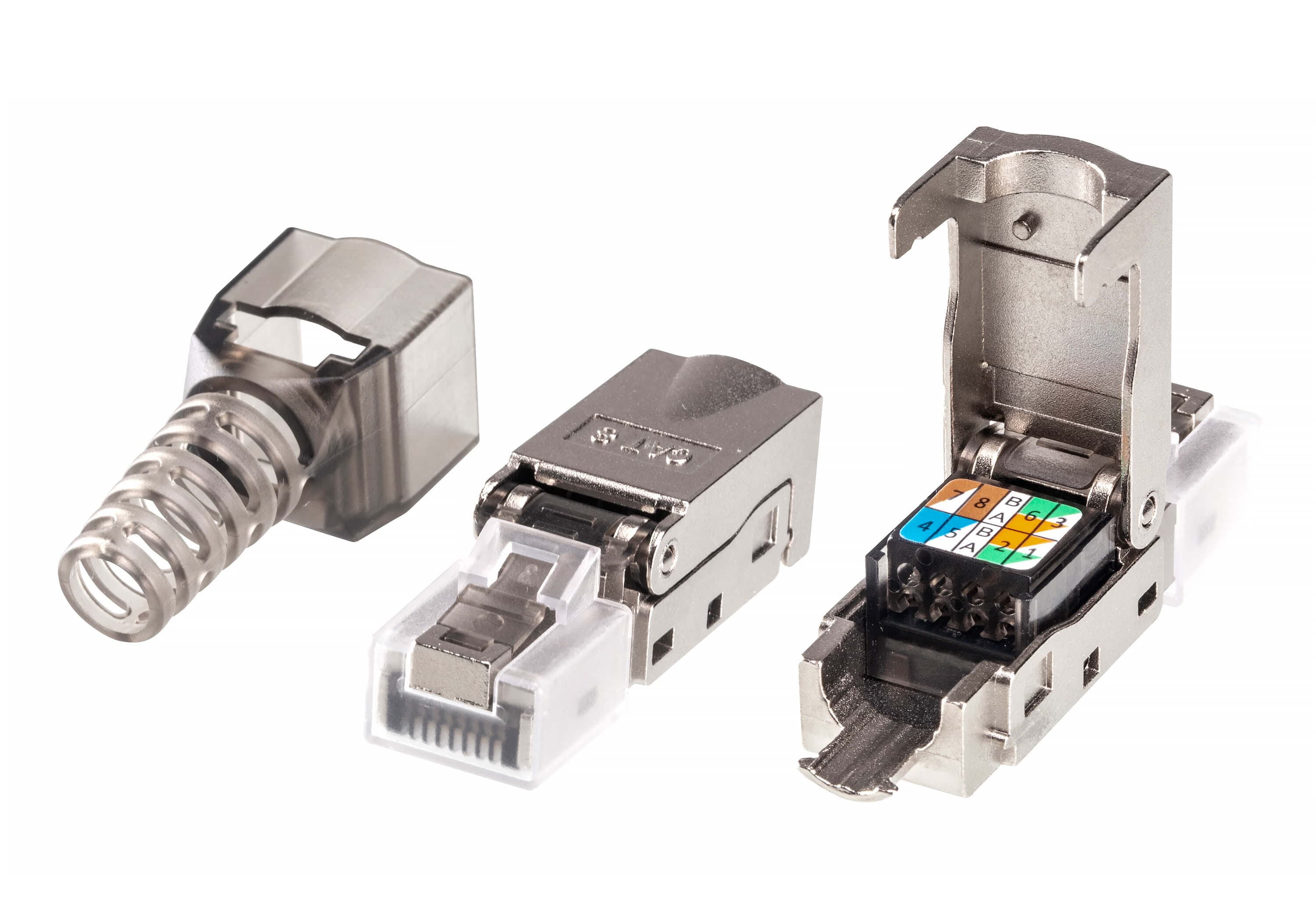

Shielded Cat 6A RJ-45 connector that terminates 22-26 AWG wire without crimping tools, using colour-coded holders; re-installable for reuse and recommended for 2L-29330 Cat 6A cable.
Features
- Metal shielded crystal heads (Cat 6A) and one-piece die-cast RJ-45 connectors offer protection against electromagnetic crosstalk and external interference,ensuring stable data transmission
- No crimping tools are required to install the connector with color-coded cable holders for quick and easy assembly
- Re-installable design enables re-use without compromising performance
- Specifically recommended for use with 2L-29330 Cat 6A cables
- Supports over 10G transfer rate and FCC Part 68 standards compliant
- Suitable for Cat 6A to Cat 8 solid or stranded cables with wire gauges from 22 to 26 AWG, ensuring compatibility with different network environments
- Jack insertion life exceeds 750 mating cycles, ensuring long-term durability.
- Screw-on plastic strain relief boot prevents over-bending for increased reliability
- Materials are RoHS / REACH compliant, ensuring adherence to environmental regulations
Specifications
- Cable Type
- RJ45 complies with FCC part 68 standard, provides termination for 22 ~ 26 AWG wire
Electrical
- DC Resistance
- Max. 0.1Ω
- Insulation resistance
- 500 MΩ
- Contact resistance
- 20 mΩ
- DC Current rating
- 1.5Amps
- Dielectric strength
- Dielectric withstanding voltage 1000V
Environmental
- Operating Temperature
- -40°C- +60°C
Physical Properties
- Material
- Housing: ABS + PC, UL94V-0 Contact: 0.35mm Thickness Phosphor Bronze Gold Plated over Nickel
- Type
- Gun shield: Zinc Alloy, nickel plated
- Weight
- 0.01 kg ( 0.04 lb )
- Dimensions (L x W x H)
- 4.56 x 1.38 x 1.25 cm (1.8 x 0.54 x 0.49 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
