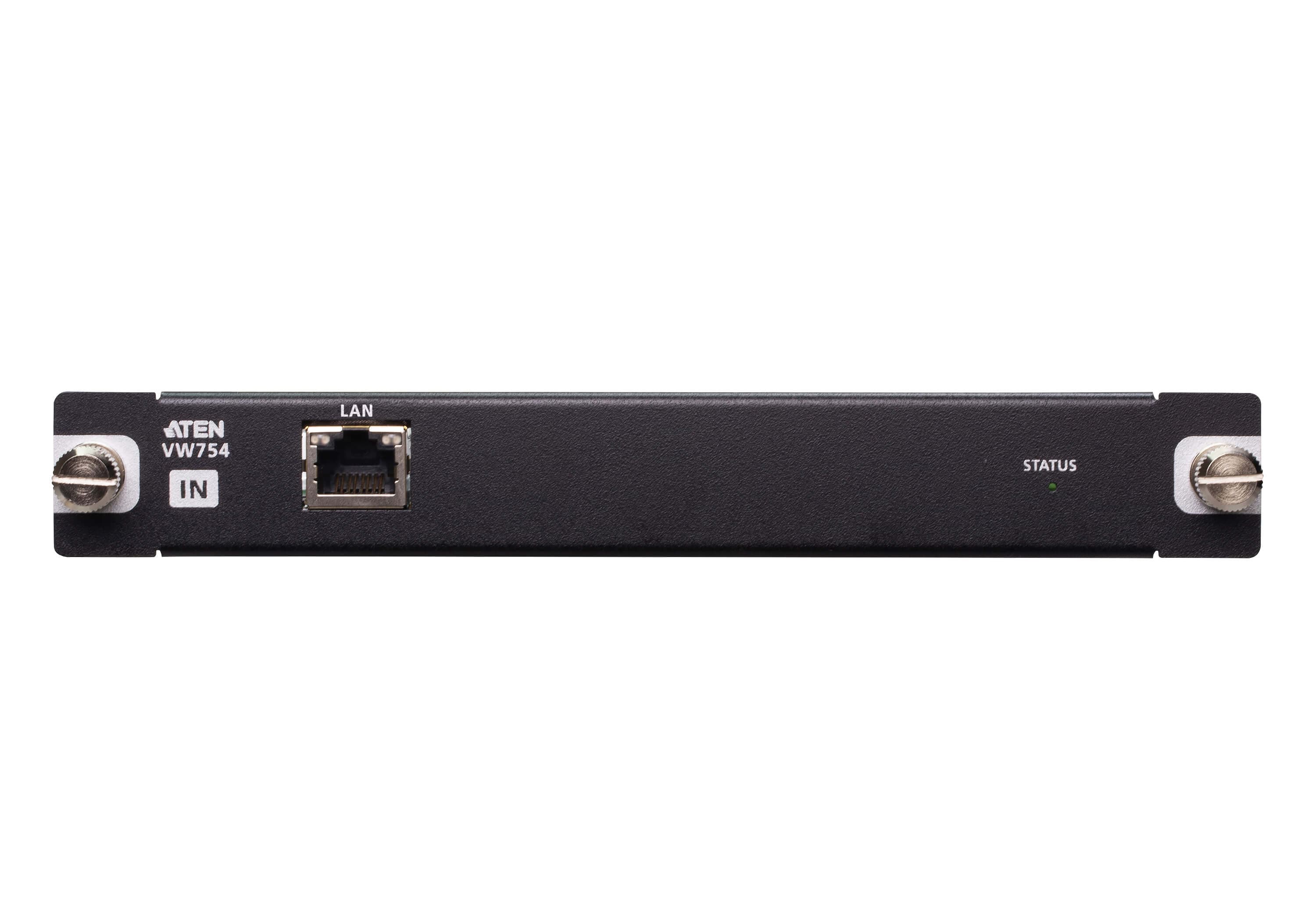

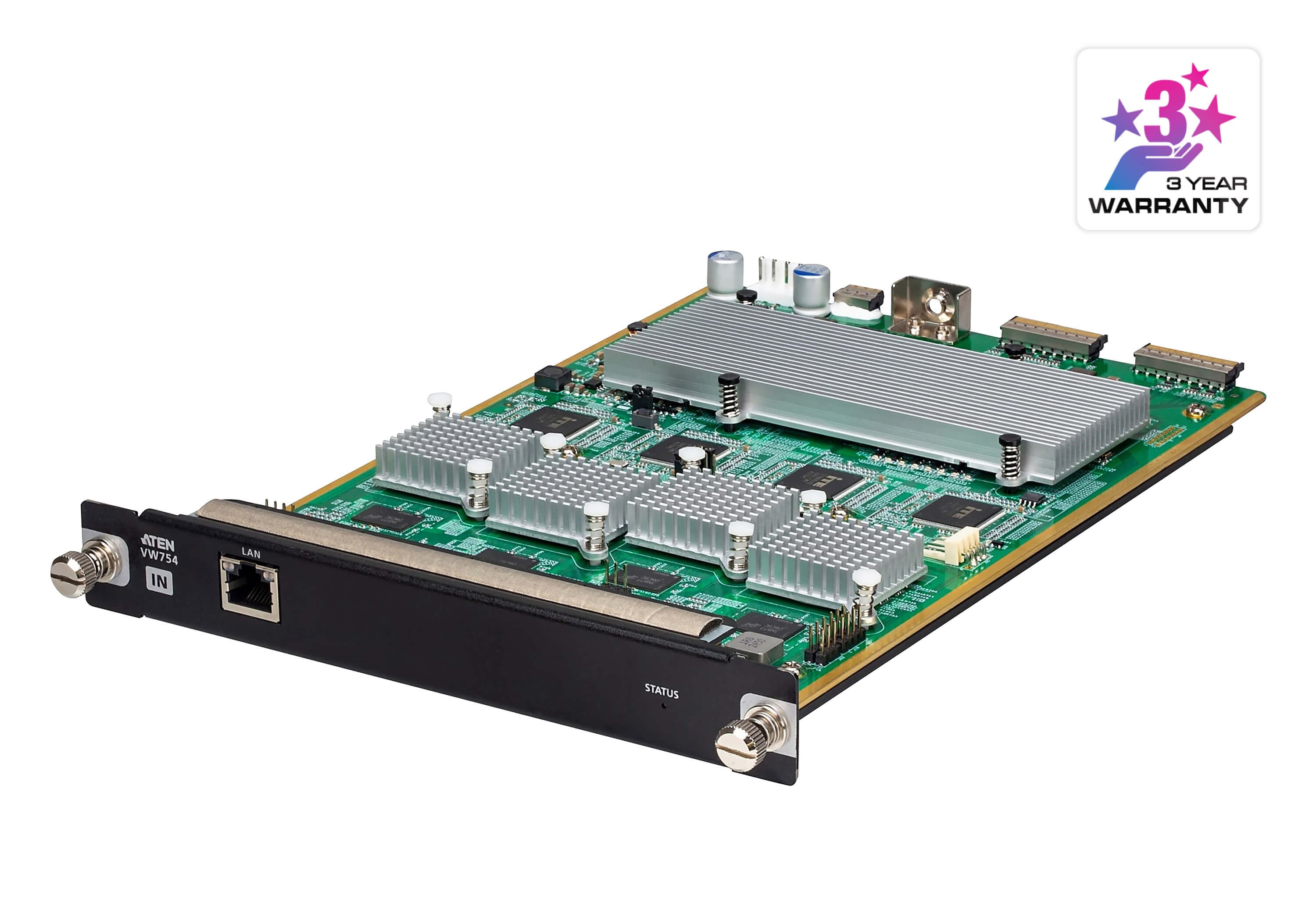

4-Channel 4K H.265 IP Stream Decoder Input Card
VW754
Входна карта, която декодира едновременно 4 H.265/H.264 IP камерни потока при 4K@60Hz или до 64 SD / 36 720p потока; ONVIF съвместима, за видеостенния процесор VW3620.
Характеристики
- Seamlessly decodes 4x H.265/H.264 IP camera streams at UHD 4K@60Hz simultaneously or up to 64 x SD or 36 x 720p streams
- Decoded stream can be independently assigned to any preferred output window on VW3620
- ONVIF Profile S compliant for seamless integration with mainstream IP cameras and NVRs
- Supports RTSP protocol
- Modular design that works with ATEN Modular Video Wall Processors
- Hot-swappable
- Ideal for mission-critical multi-IP camera / multi-source IP deployments such as surveillance control rooms, command centers, transportation sites in military and government environments
Видео вход
- Интерфейси
- 1× RJ45 (10/100/1000 Mbps)
- Видео компресия
- H.265, H.264 over RTSP, Onvif
Видео
- Макс. скорост на данните
- <= 25Mbps
- Макс. резолюция
- 3840x2160@60Hz (4:2:0)
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Консумация
- 26.24W:123BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.83 kg ( 1.83 lb )
- Размери (Д x Ш x В)
- 19.30 x 27.12 x 2.74 cm (7.6 x 10.68 x 1.08 in.)
- Брой в кашон
- 4 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
- Входни резолюции
- 4K@60
