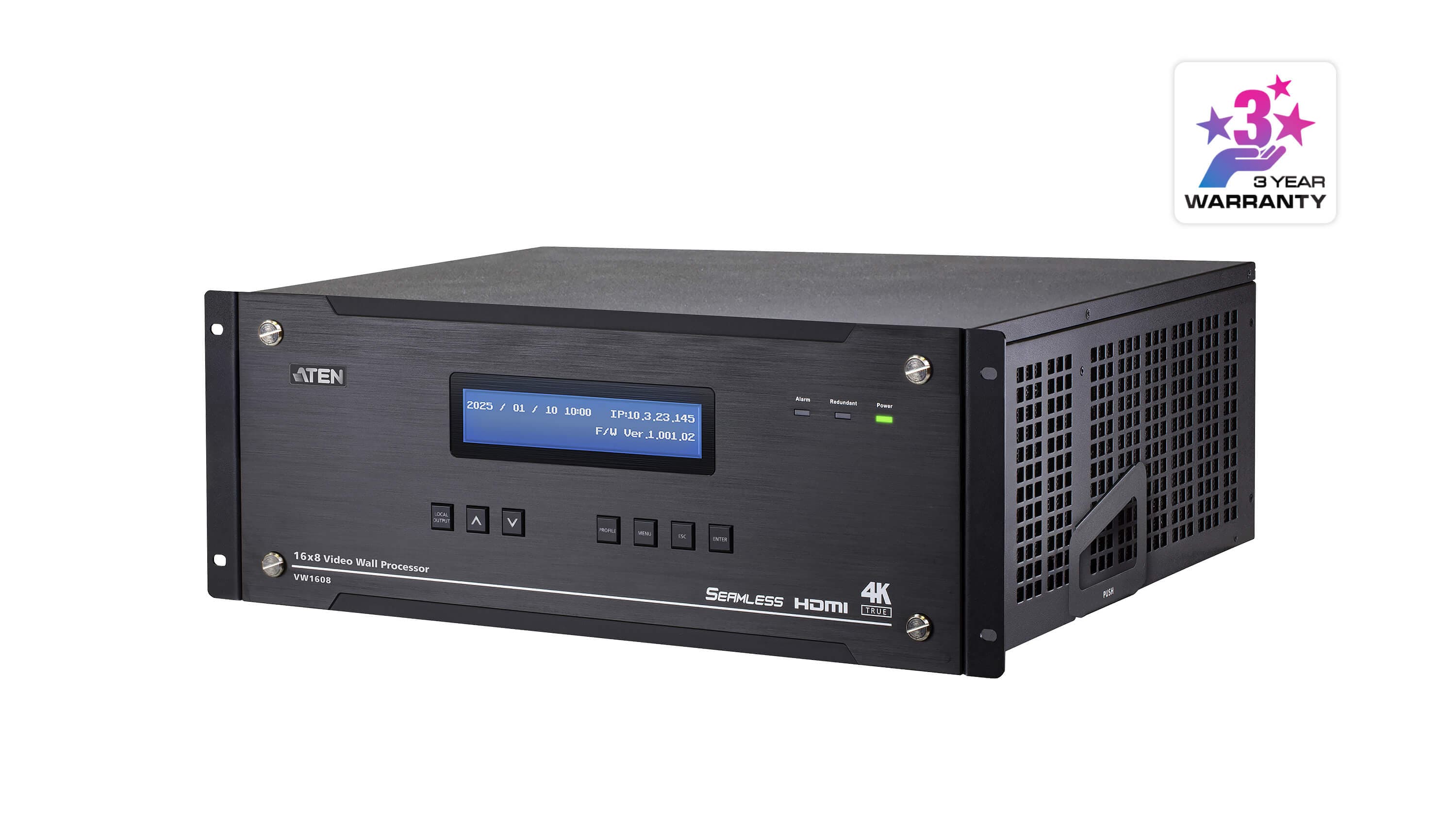

Модулен процесор за видеостени с до 16 HDMI входа и 8 True 4K изхода върху сменяеми платки; за LED стени в малки и средни обекти с критично значение.
Характеристики
- Accepts up to 16 HDMI input ports and 8 HDMI output ports
- Compact, yet competent for LED video walls in small-to-medium sized mission-critical environments

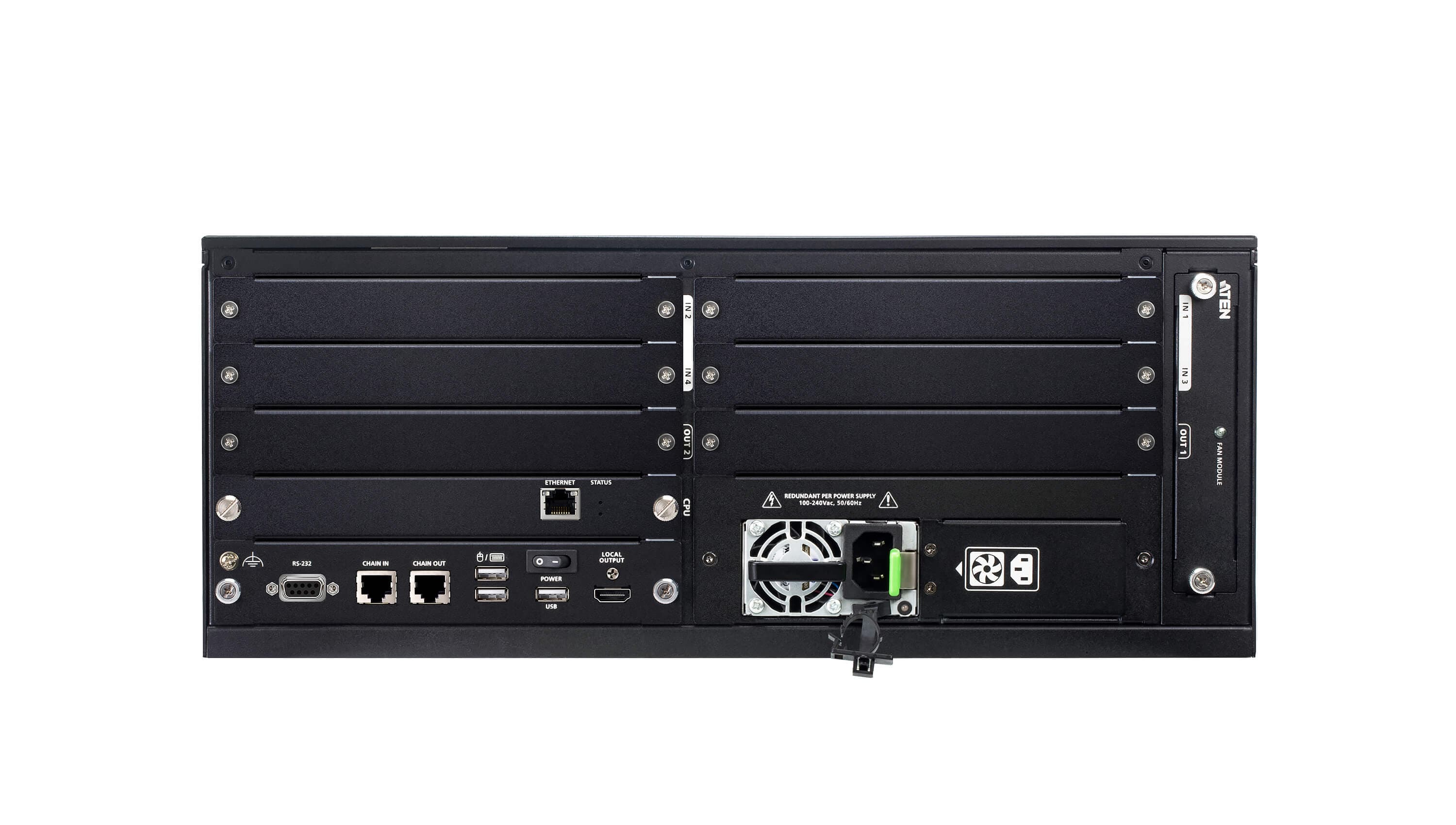

- Modular board compatibility – Contains 7 board slots (4 input card slots, 2 output card slots, and 1 CPU board slot) to support multiple I/O boards for flexible configuration and future expandability
- Superior Visual Quality for Mission-Critical Communications
- FPGA architecture – supports True 4K inputs, near-zero-second seamless source switching, and outputs without delay
- True 4K@60Hz (4:4:4) scalability – supports custom resolutions and enables upscaling of video signals for crystal clear, accurate imagery regardless of the display size or type from LED, LCD, DLP, to other large screens
- Decodes high density H.265 / H.264 IP channels (via VW754) – ideal for surveillance control rooms and real-time monitoring scenarios

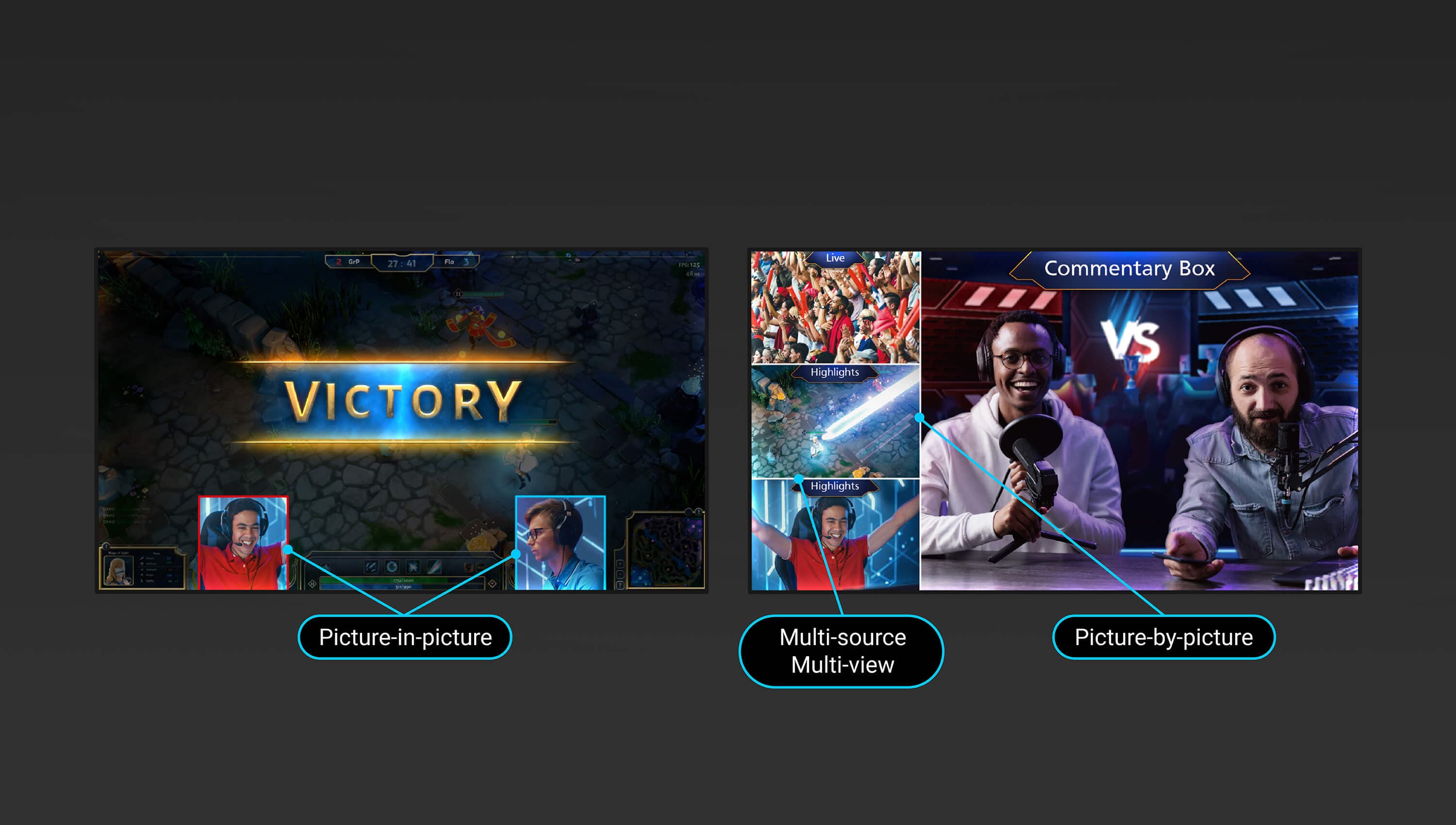

- Advanced video wall engine – allows easy window management via cropping, overlapping, picture-by-picture, picture-in-picture, bezel compensation, and more
- Multi-resolution support – allows mix-and-match of displays of different resolutions

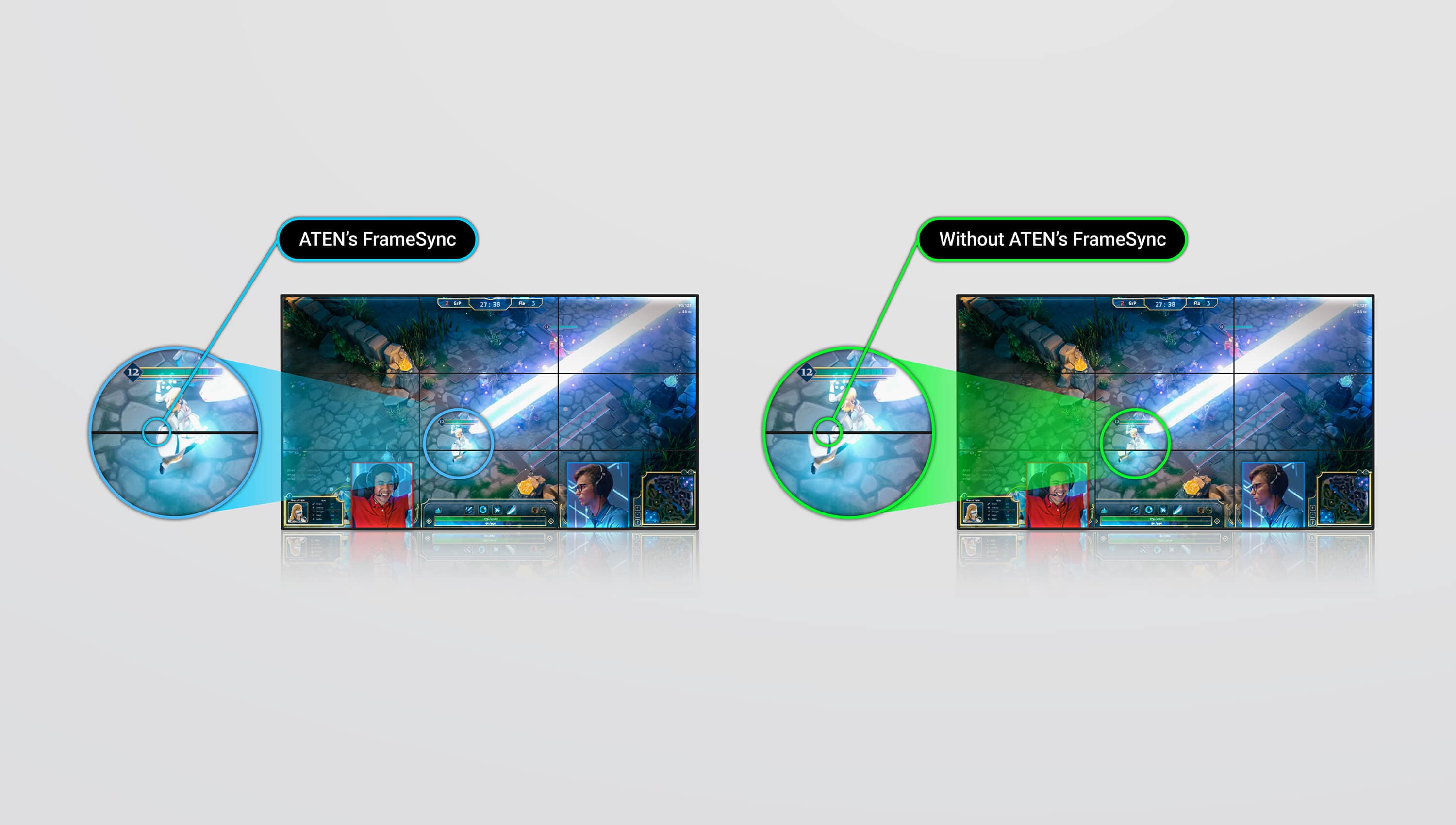

- FrameSync – ensures that all output signals remain synchronized to prevent image tearing and frame mismatch, providing seamless playback across multiple displays
- EDID Expert™ – selects optimum EDID settings for smooth power-up, high quality display and use of the best video resolution across different screens
- Customizable logos / color schemes / calendar / clock / scrolling texts
- Reliable 24/7 Operation
- Backup Mode 2x VW1608s daisy chain – the secondary unit continuously mirrors all system settings and configurations from a primary one in real time and takes control automatically when primary unit malfunction occurs for uninterrupted display performance
- Expansion Mode with 3x VW1608s daisy chain – up to 24 display outputs supported for larger video wall installation with centralized control being conducted by the primary unit while ensuring synchronized video output clocks across all units and consistent, frame-accurate playback without tearing

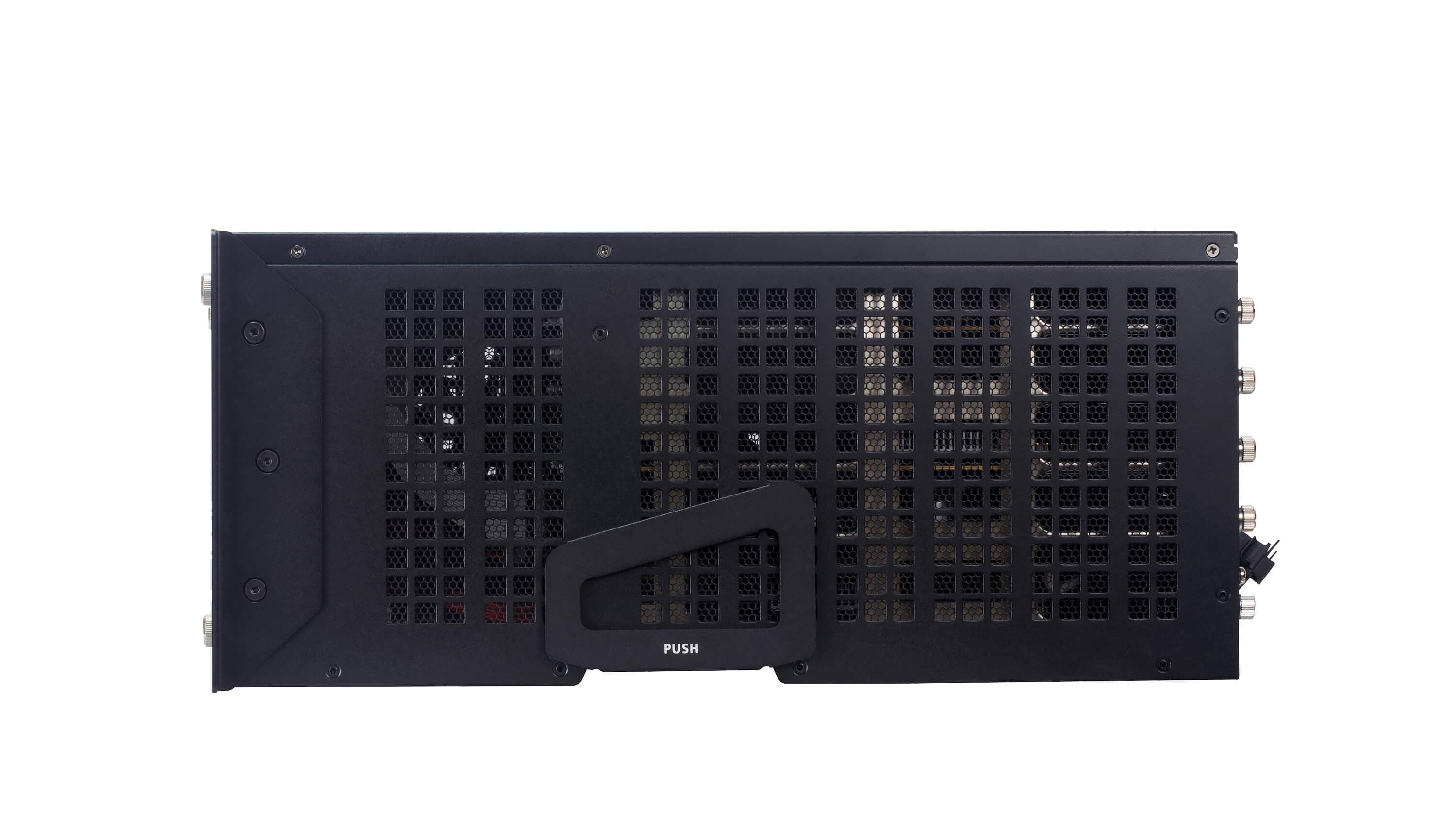

- Optimum component redundancy via a hot-standby CPU control board, dual redundant power boards (2 slots), and hot-swappable I/O boards as well as fan module

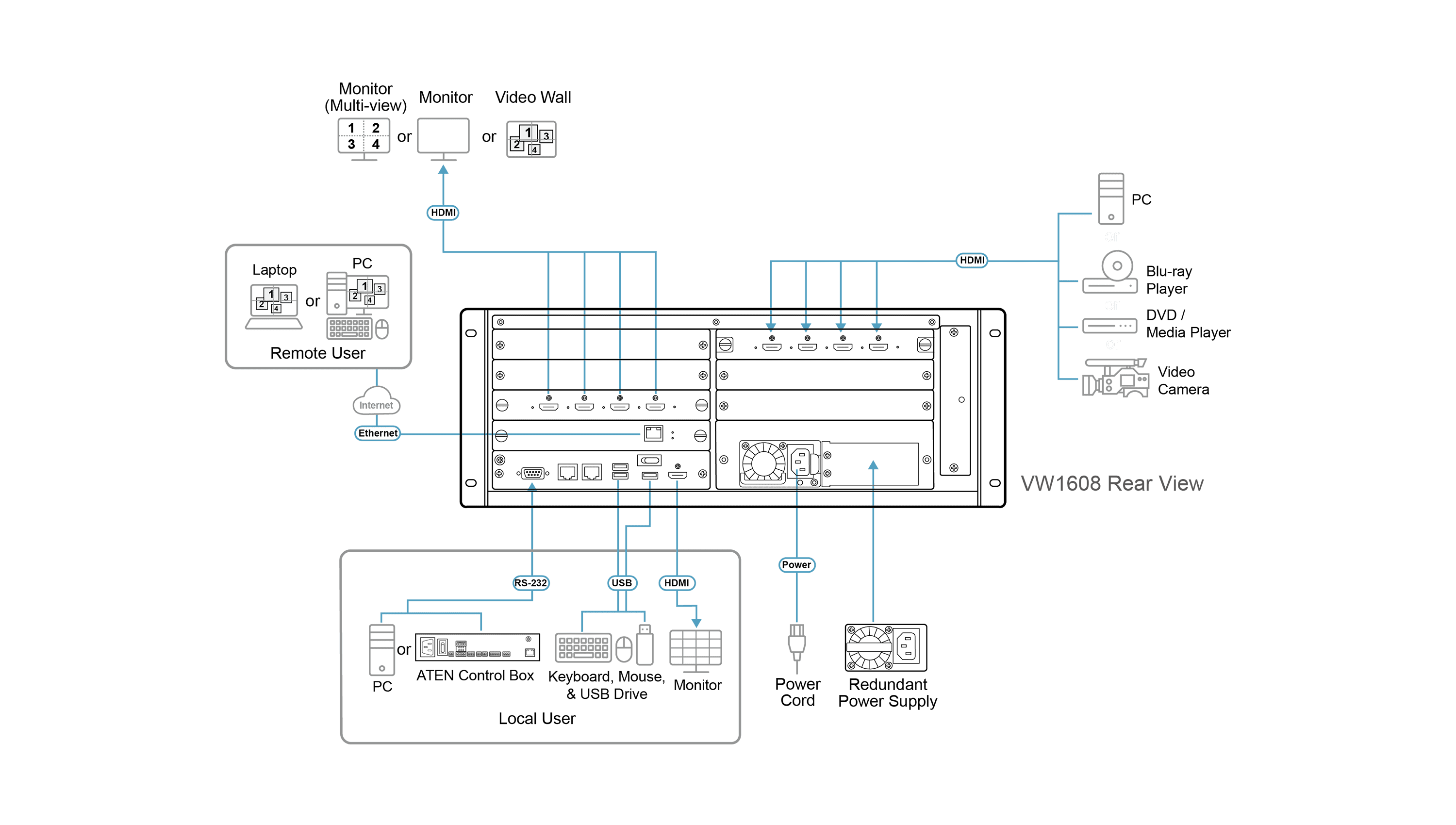

- Direct and Remote Configurations and Control Methods

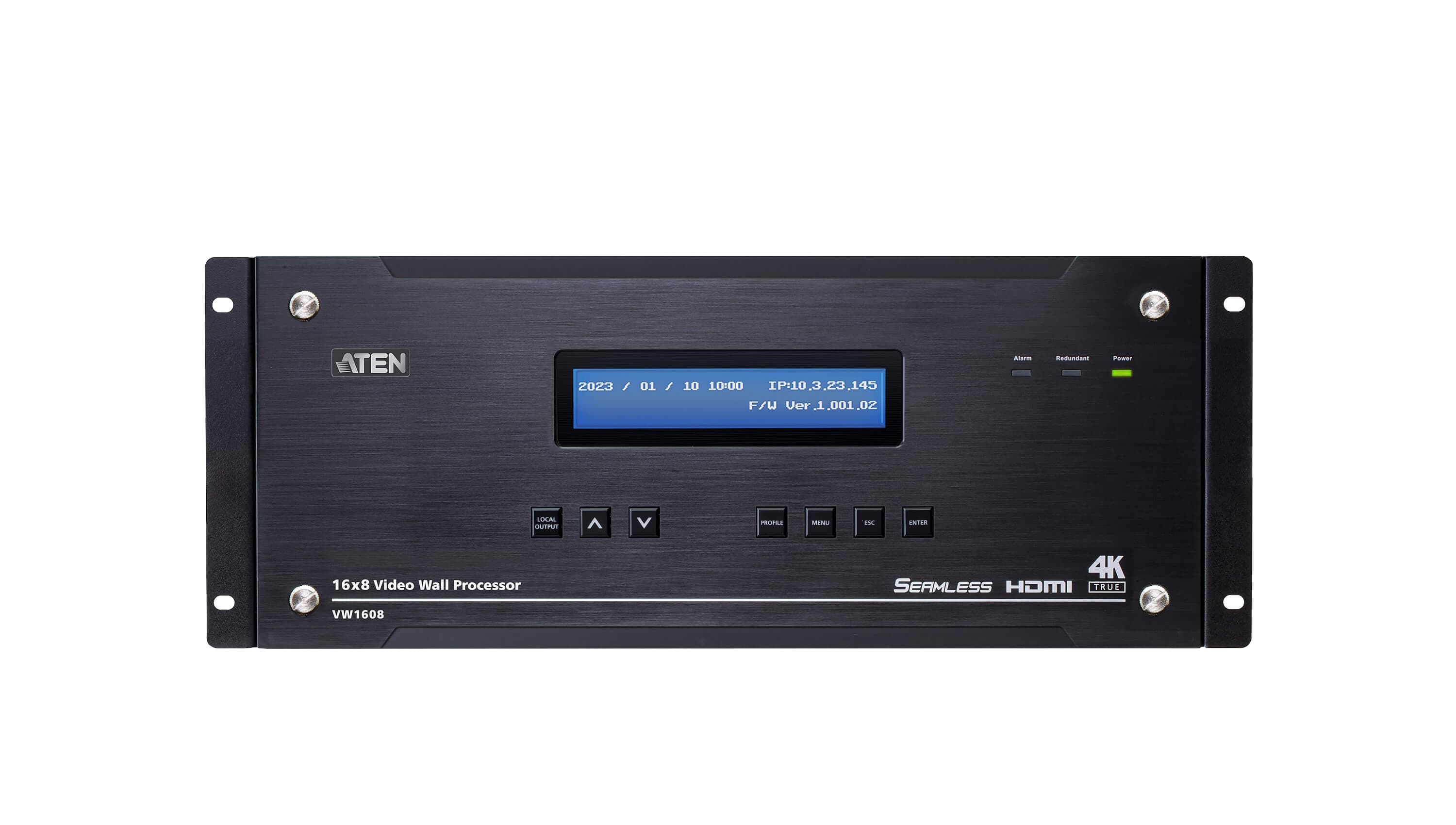

- Direct control via RS-232 / Ethernet and the front panel buttons
- Local HDMI output – monitor input signals and video wall layouts via Single / Array mode at up to 1080p in real-time from one display
- Remote control via web GUI, Telnet, and SSH to preview input signals in real-time and control outputs including content placement and management of up to 4 canvases
- Multiview – source monitoring in 2 x 2 or 4 x 4 layouts from a single display
- Integration with ATEN Control System and the 3rd party devices via RS 232 / Ethernet / RESTful API
- Built-in USB Type-A ports – video wall background image change and firmware upgrade
Спецификация
- Входни платки
- 4 x Slot, up to 16 4K inputs (Note: top 2 Slots can used for Function Board)
- Изходни платки
- 2 x Slot, up to 8 True 4K outputs
Видео вход
- Интерфейси
- Depends on which I/O board is inserted
Видео изход
- Интерфейси
- Local Output: 1x HDMI Type A Female (Black)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd Baud Rate and Protocol: Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
- Ethernet
- Connector: 1 x RJ-45 Female
- USB
- 3 x USB Type A Female (White) Note: Currently the USB ports support storage and firmware upgrade.
- EDID настройки
- EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Комуникация
- Daisy Chain портове
- RJ45 x2
Конектори
- Захранване
- 1 x 3-Prong AC Socket
- Захранване (опция)
- Redundancy, Optional Hot Swap PSU
Захранване
- Макс. входна мощност
- 100-240 VAC; 50-60Hz; 10A
- Консумация
- AC110V:550W:326BTU/h AC220V:550W:324BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Размери (Д x Ш x В)
- 48.20 x 46.61 x 17.67 cm (18.98 x 18.35 x 6.96 in.)
- Тегло
- 11.65 kg ( 25.66 lb )
- Височина (U)
- 4U
- Брой в кашон
- 1 pc
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
