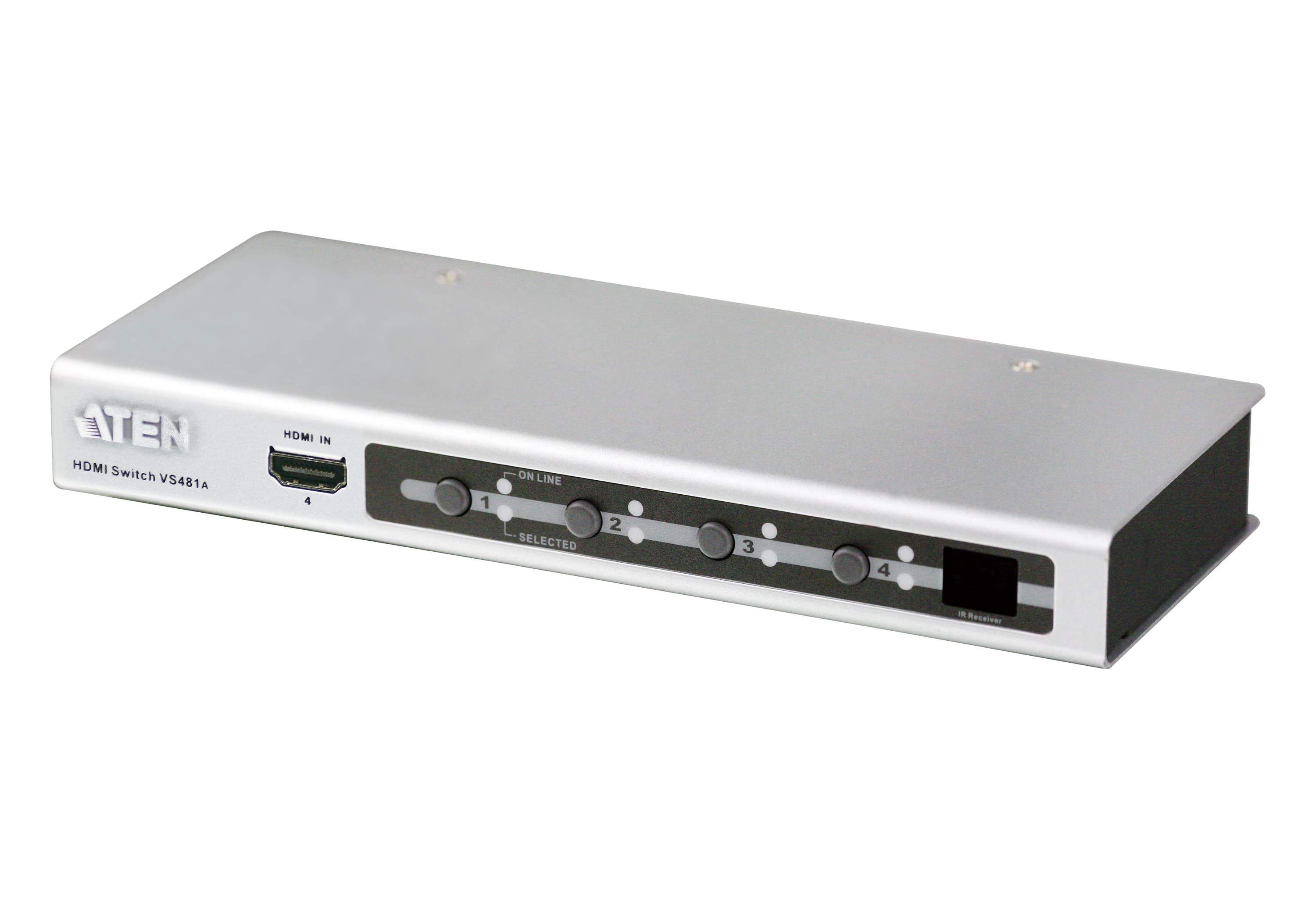

4-Port HDMI Switch
VS481AСнет от производство
HDMI превключвател — свързва 4 източника към един дисплей, с избор чрез дистанционно или бутоните на предния панел. Поддържа 1080p, с изходен кабел до 15 m.
Характеристики

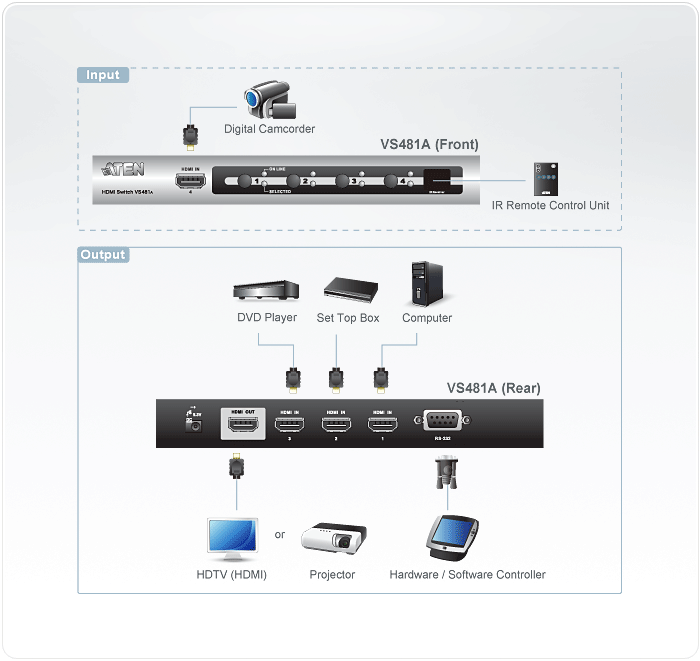

- Allows up to four HDMI A/V source to be connected to one HDMI display

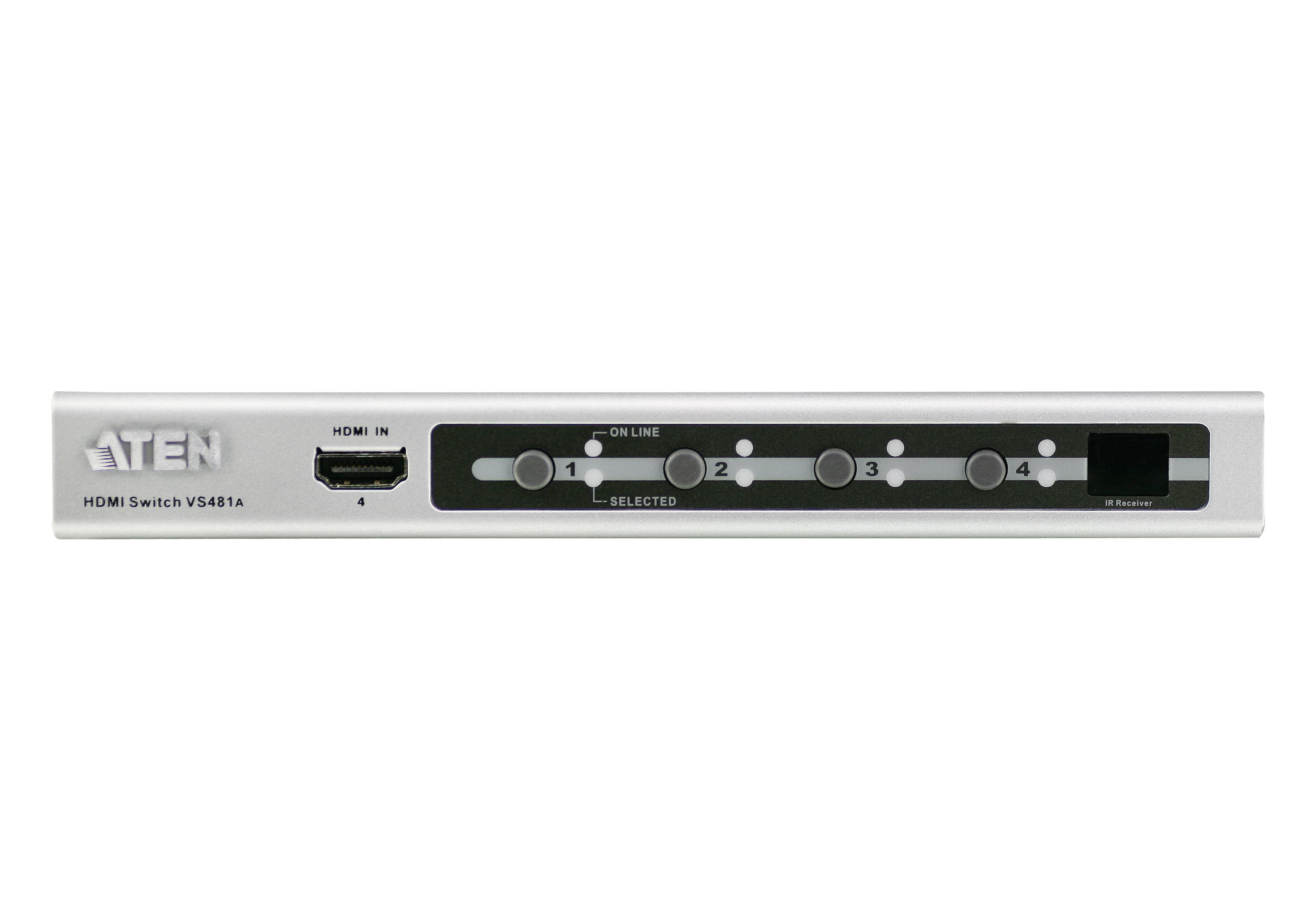

- Toggle between A/V sources using remote control or front panel pushbuttons
- Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200) and WUXGA(1920x1200)
- HDMI (3D, Deep Color)
- Supports Dolby True HD and DTS HD Master Audio
- Up to 60 Hz refresh rate
- Long distance transmission - up to 15m (24 AWG)
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Power On Detection – if one of the HDMI source devices is powered off, the VS481A will automatically switch to the next powered on device
- Plug-and-play - no software installation required
- DDC Compatible
- HDCP 1.4 compliant
- Signaling rates up to 2.25 Gbps in support of 1080p display
- All-metal casing
- LED indication of video source devices
- Easy and affordable way to add four HDMI inputs to your home theater system * Note: The VS481A AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Видео вход
- Интерфейси
- 4 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 3m @1920x1080@60 (4:4:4)

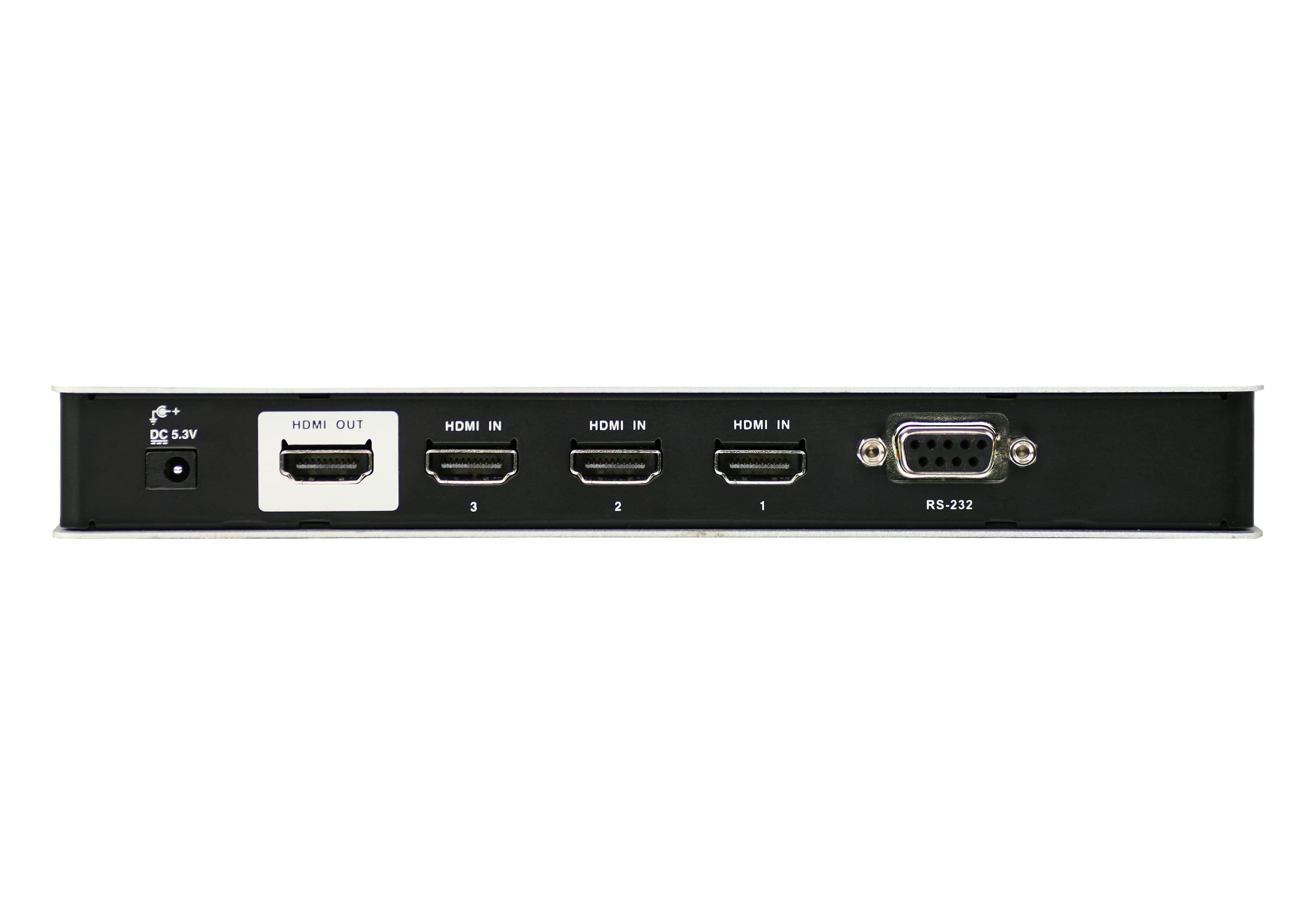

Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 15m @1920x1080@60 (4:4:4)
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D, Deep Color) HDCP Compatible Consumer Electronics Control (CEC)
- Макс. резолюция
- Up to 1080p
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5.3V:1.87W:9BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.47 kg ( 1.04 lb )
- Размери (Д x Ш x В)
- 20.00 x 8.27 x 2.50 cm (7.87 x 3.26 x 0.98 in.)
- Брой в кашон
- 10 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
