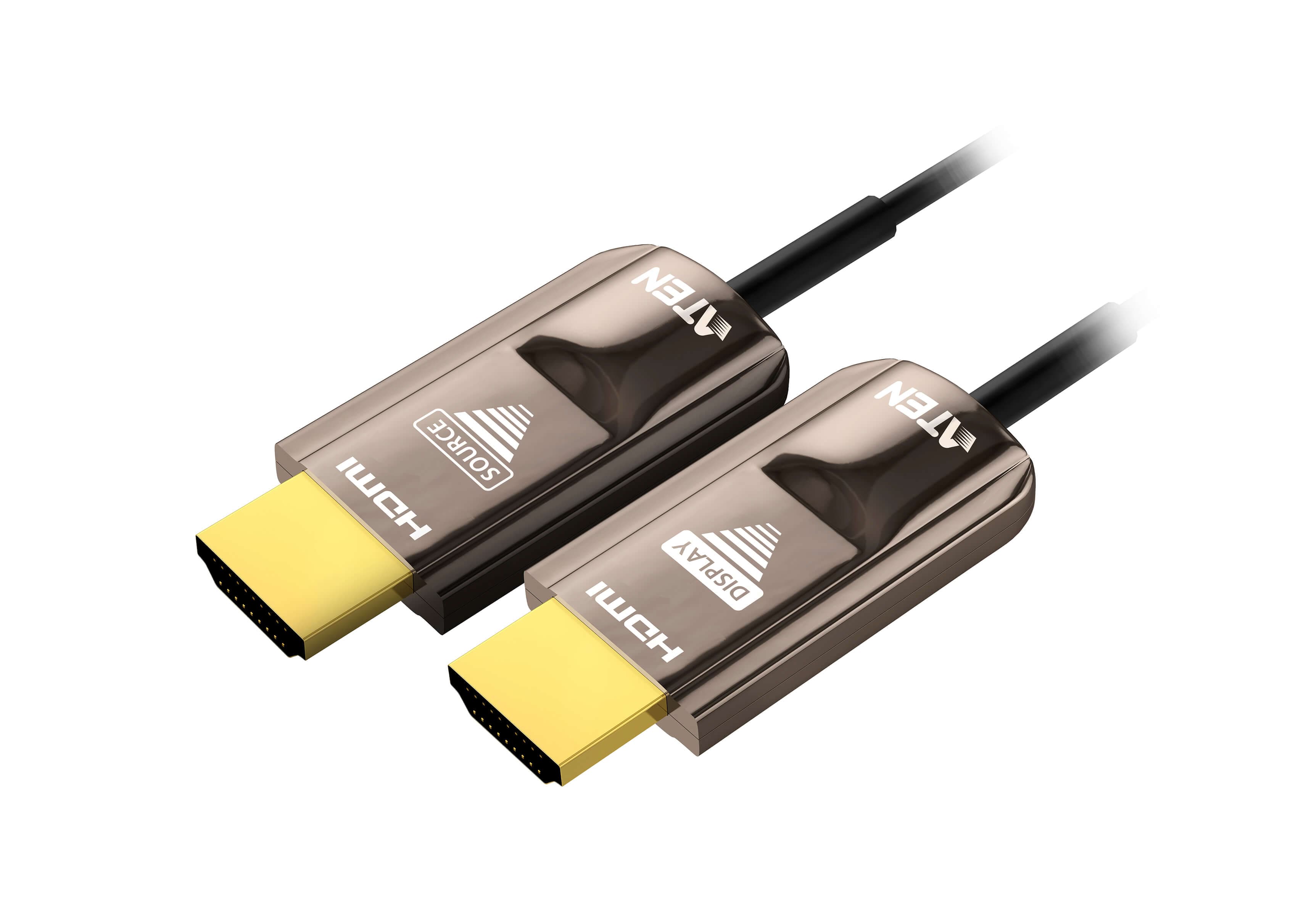

Активен оптичен HDMI кабел 10 m, пренасящ True 4K (4096x2160@60Hz 4:4:4) при 18 Gbps. Хибридна конструкция от оптични влакна и медни проводници с намалени EMI и RFI смущения.
Характеристики
- Supports resolution up to True 4K (4096 x 2160 @ 60Hz 4:4:4)
- HDMI (3D, Deep Color, True 4K, HDR, ARC); HDCP 2.2 compliant

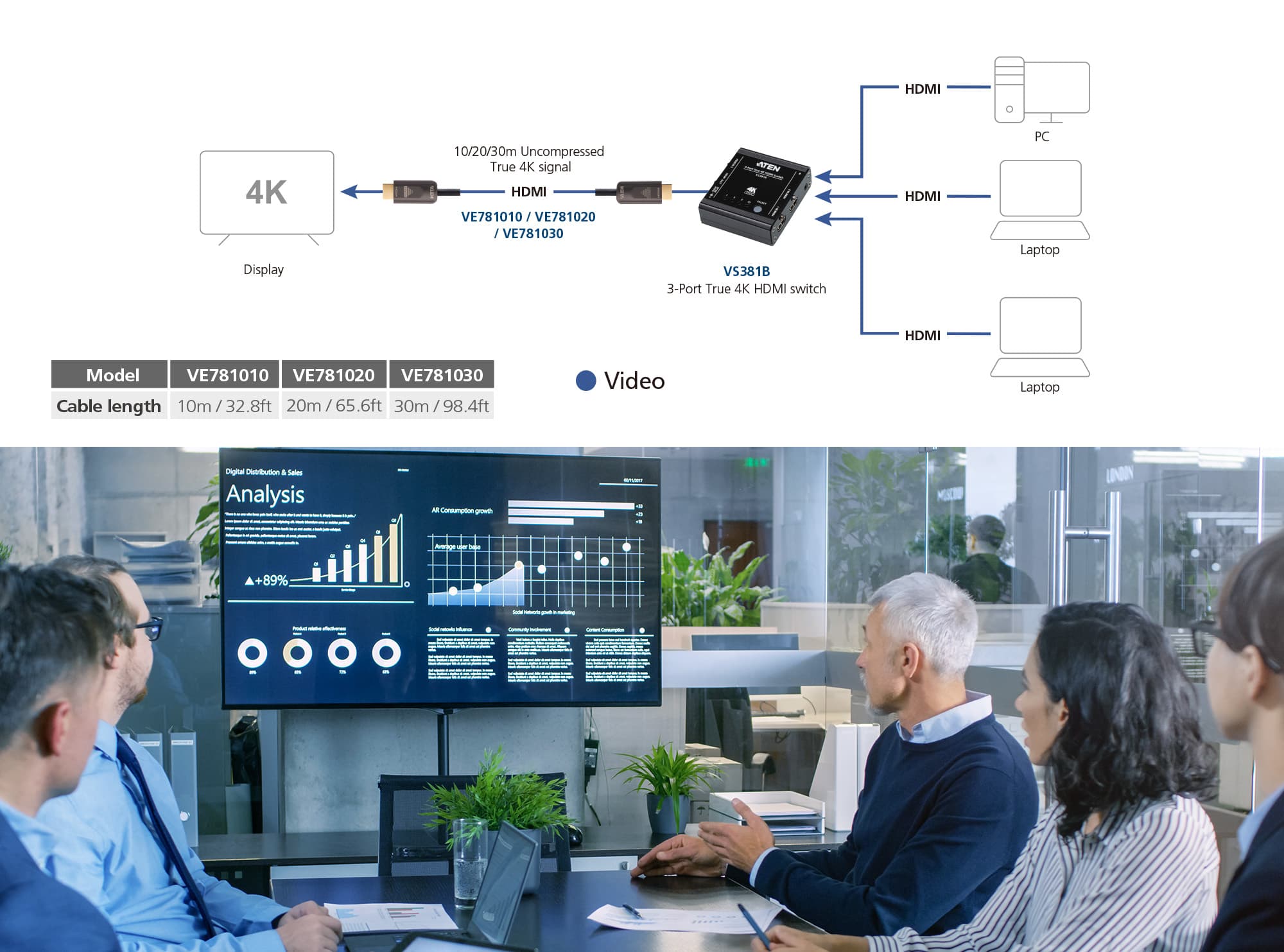

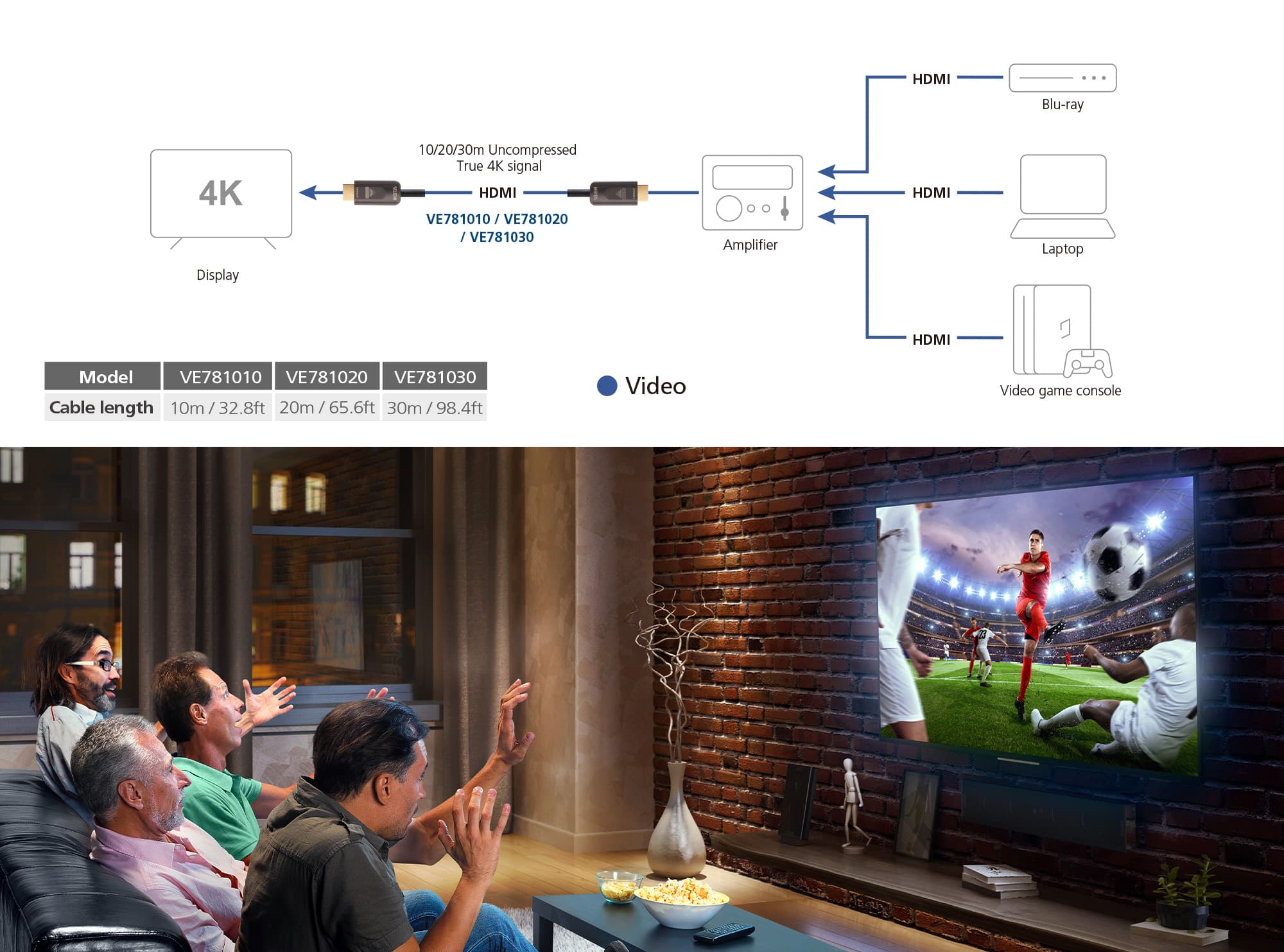

- Extends True 4K signals up to 10 m
- Reduced EMI and RFI for lower noise interference
- High data transfer rate of 18 Gbps
- Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
- Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)
- Plug-and-play
Спецификация
- Дължина на кабела
- 10M / 32.8ft
- Тип кабел
- Hybrid type with optical fiber (OM3) and copper wire
Видео вход
- Интерфейси
- 1 x HDMI 19-pin Type-A Male
Видео изход
- Интерфейси
- 1 x HDMI 19-pin Type-A Male
Видео
- Макс. скорост на данните
- 18 Gbps (6 Gbps per Channel)
- Макс. пикселна честота
- 600 MHz (Max.)
- Макс. резолюция / разстояние
- Up to 4096 x 2160 / 3840 x 2160 @60Hz (4:4:4) / 10M *Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 *Color Depth: 30 / 36 / 48 bit
- Съответствие
- HDMI (3D, Deep Color, 4K, HDR, ARC) HDCP 2.2
Комуникация
- Сигнали
- TMDS / HDCP 2.2 / EDID / CEC
Аудио
- Вход
- PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
- Изход
- PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Проводник
- Конструкция

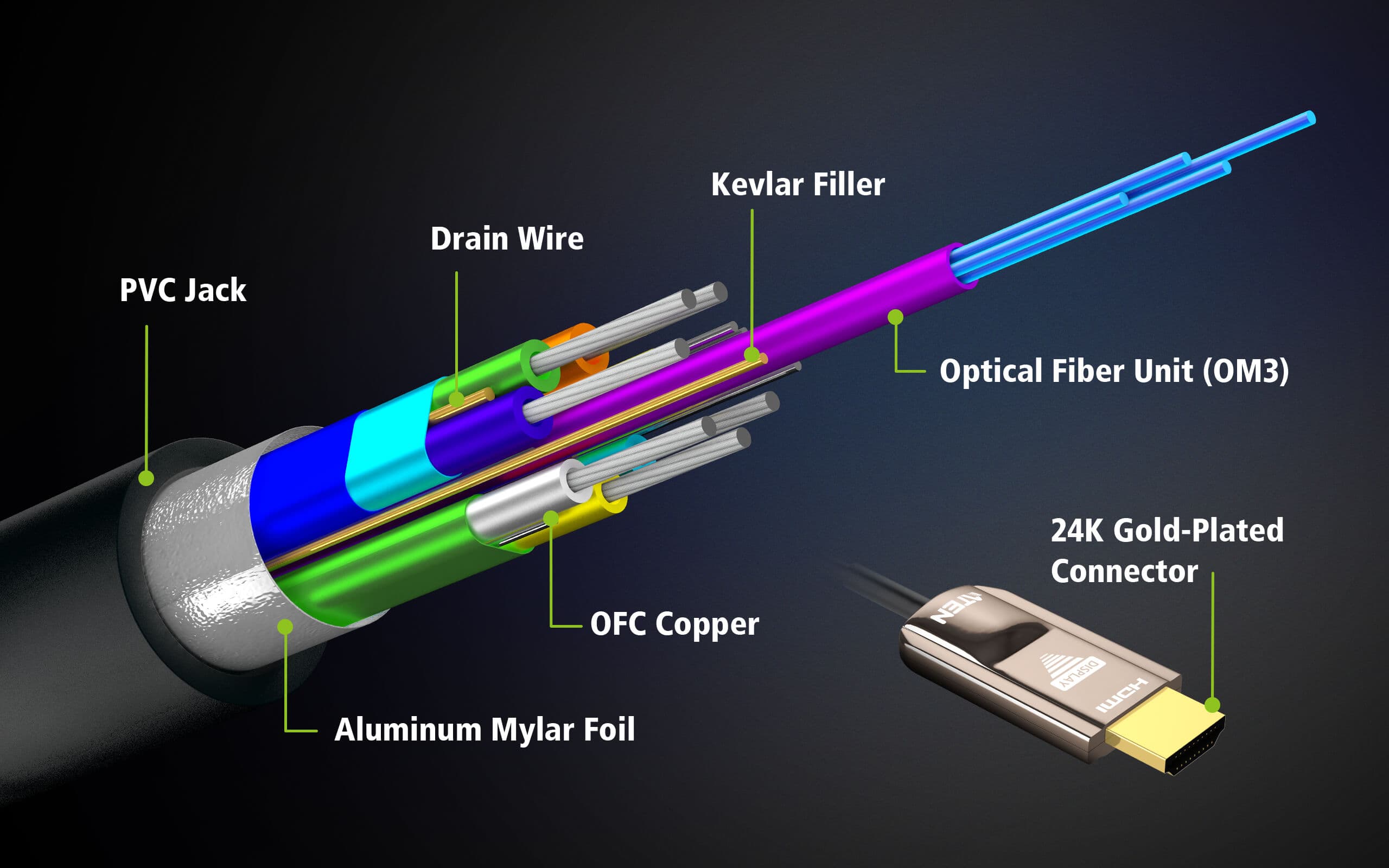

- 7 x Tinned Copper wire strand 4 x OM3 Optical Fiber (50/125um)
- Известяване
- Bend Radius: 20mm (Min.) Compression Load Resistance: Max. 50kg (500N) Cable Filler: Kevlar Cable Marking: ATEN INTERNATIONAL --- HIGH SPEED HDMI HYBRID ACTIVE OPTICAL CABLE 4K@60Hz 18Gbps -- PVC CE EU RoHS EC ZONE/DEVICE * NO external power required
Сертификати
- Сертификати
- Safety and Emission: CE / FCC / RoHS / REACH / UL VW-1 EMC Class-A / Class-B
- Консумация
- DC5.0V:0.25W:0.05ABTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Обвивка
- Материал
- PVC (85P) Color: Black
Работна среда
- Работна температура
- 0°C to 50°C (32℉ to 122℉)
- Температура на съхранение
- -20°C to 70°C (-4℉ to 158℉)
- Влажност
- 0 - 85% RH, Non-Condensing
Физически характеристики
- Корпус
- Connector Case: Zinc Alloy
- Тегло
- 0.35 kg ( 0.77 lb )
- Външен размер на кабела
- 4.5mm (± 0.2mm)
- Брой в кашон
- 5 pcs
