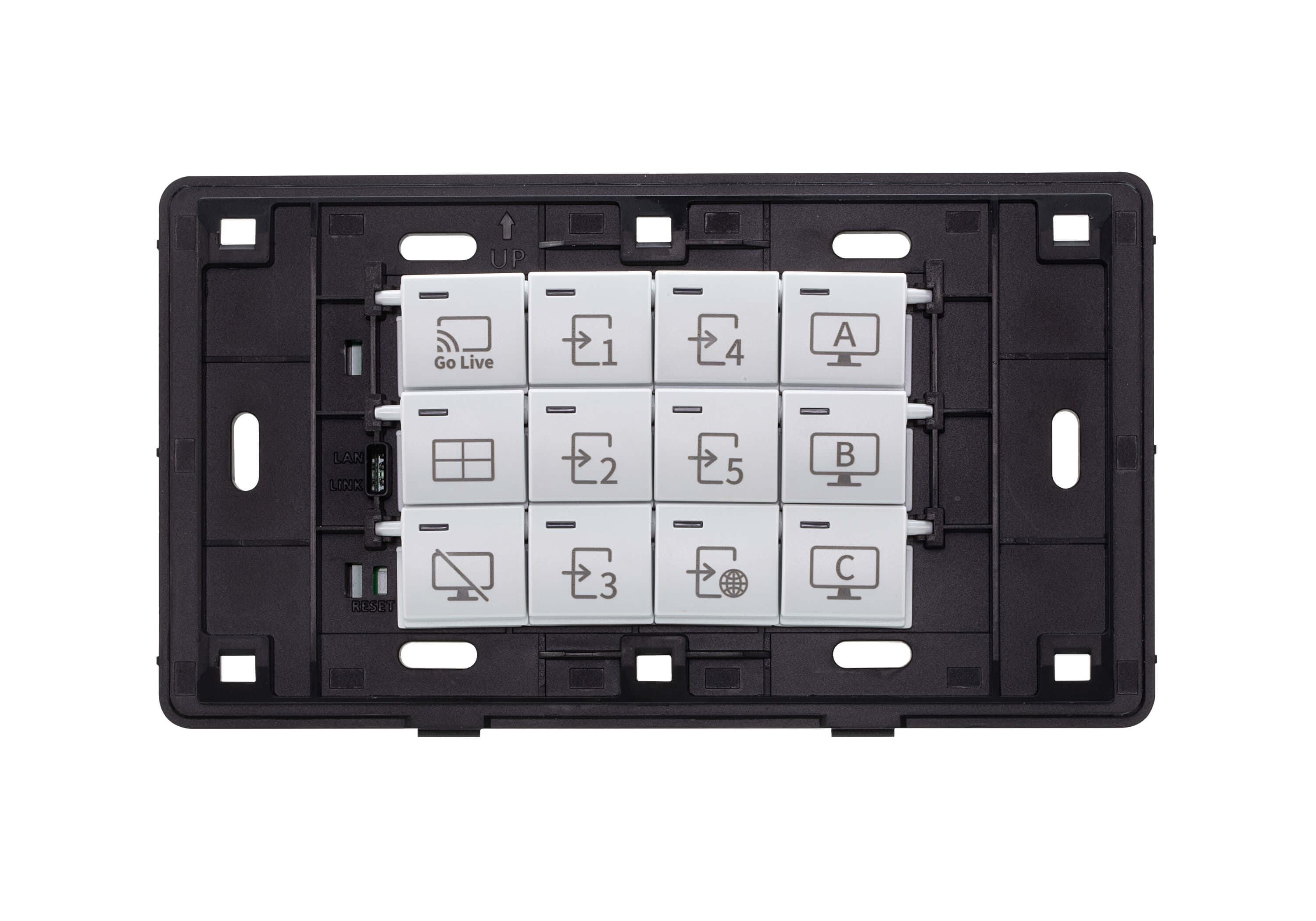

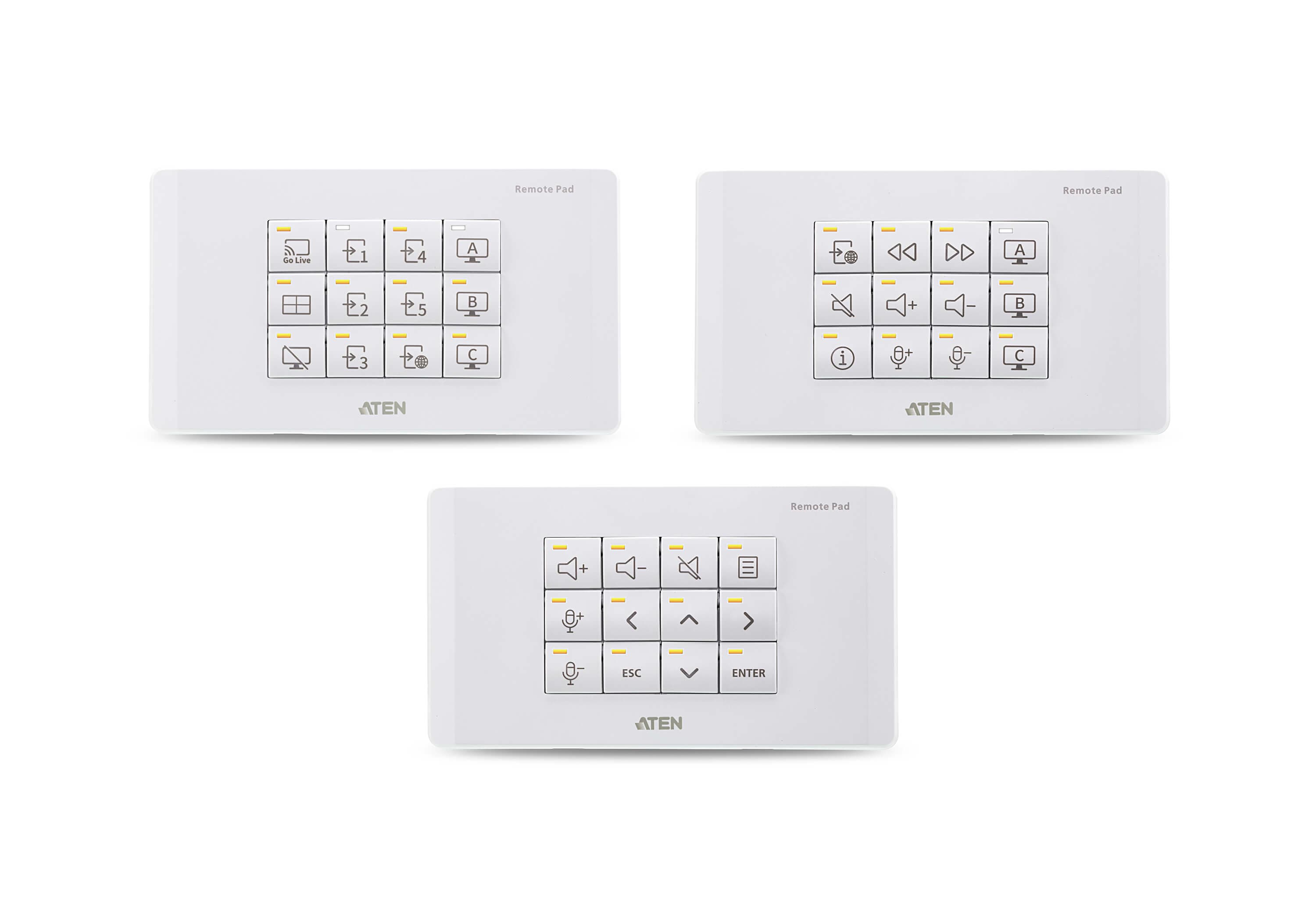

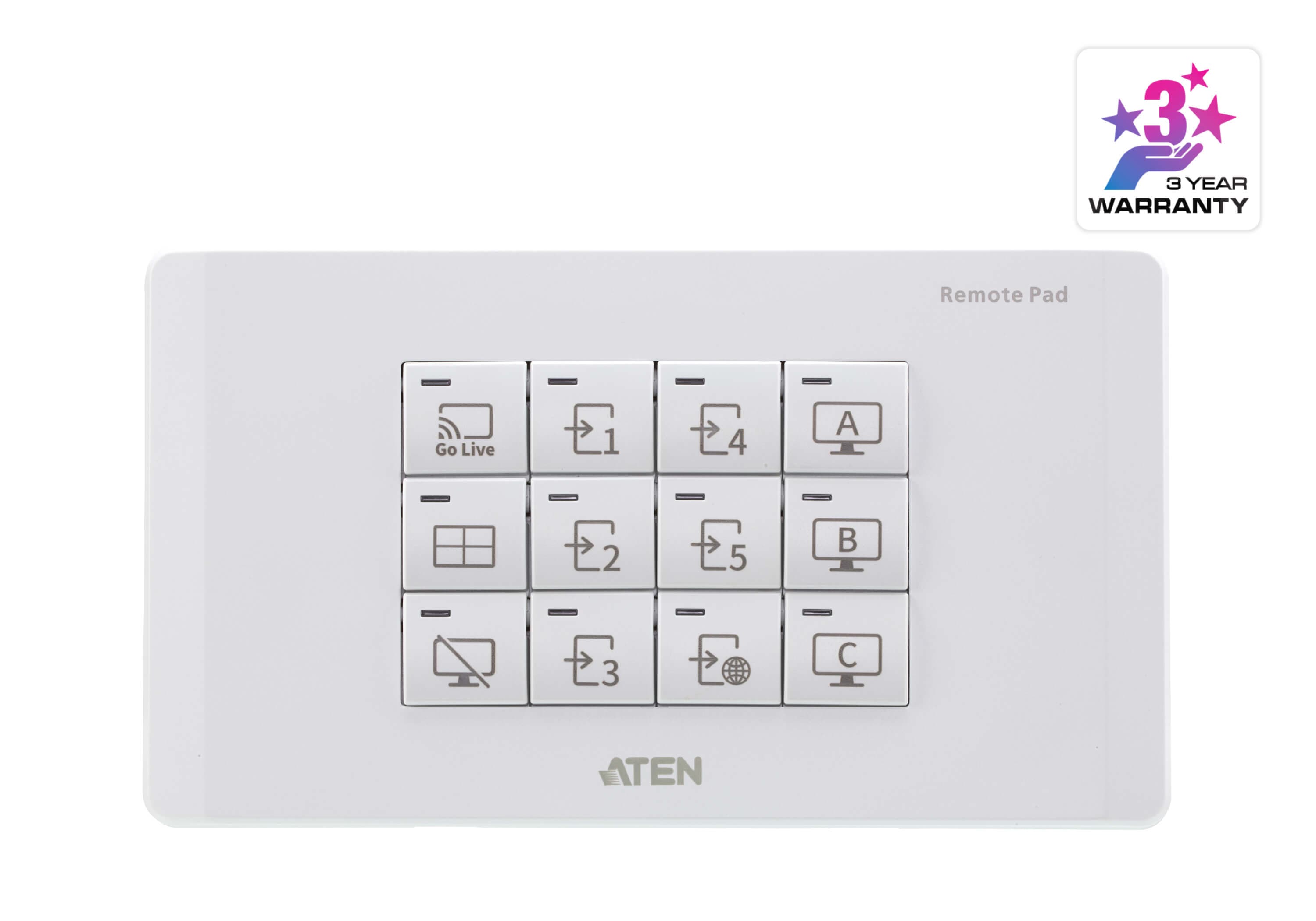

12-Key Network Remote Pad (EU, 2 Gang)
VPK312
Мрежов пулт с 12 гравирани бутона (EU, 2 Gang) за управление на презентационни превключватели ATEN. Сдвоява се през уеб конзолата на превключвателя, а функциите и подредбата на бутоните се персонализират.
Характеристики

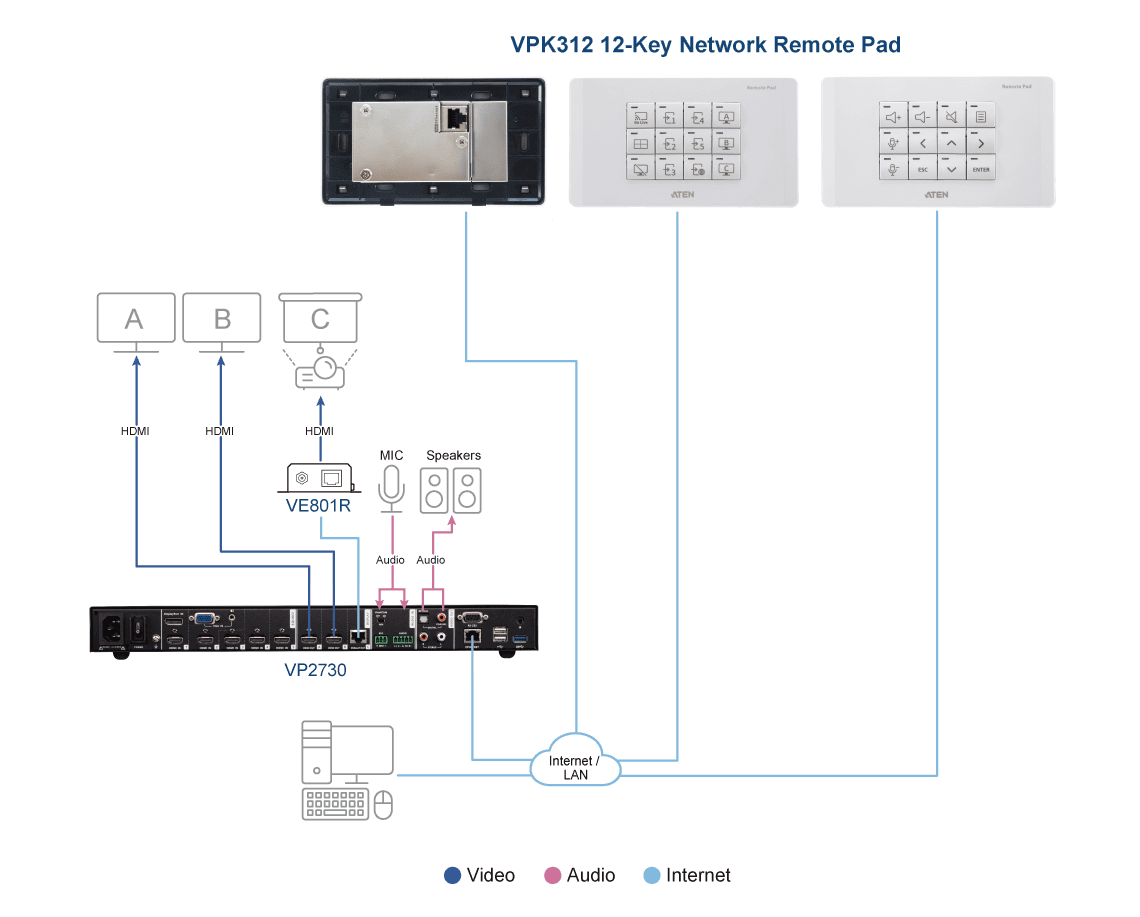

- 12-key Network Remote Pad for ATEN Presentation Switches
- Easy pairing with a Presentation Switch via the host Presentation Switch's web console
- Effortless configuration via the intuitive web GUI
- Fully customizable for the functions and layout of the keys
- Dual-color button LEDs for clear indication and visibility
- Power redundancy supported when both DC power and Power over Ethernet (PoE) are supplied
- Convenient reset of system and network settings using the built-in reset button
- Firmware upgradable
- Engraved buttons for intuitive port indication and operation Note: VPK312K1 provides 29 engraved buttons to support multiple function control with VP2730.
Интерфейси
- Подредба на бутоните
- 12 engraved buttons

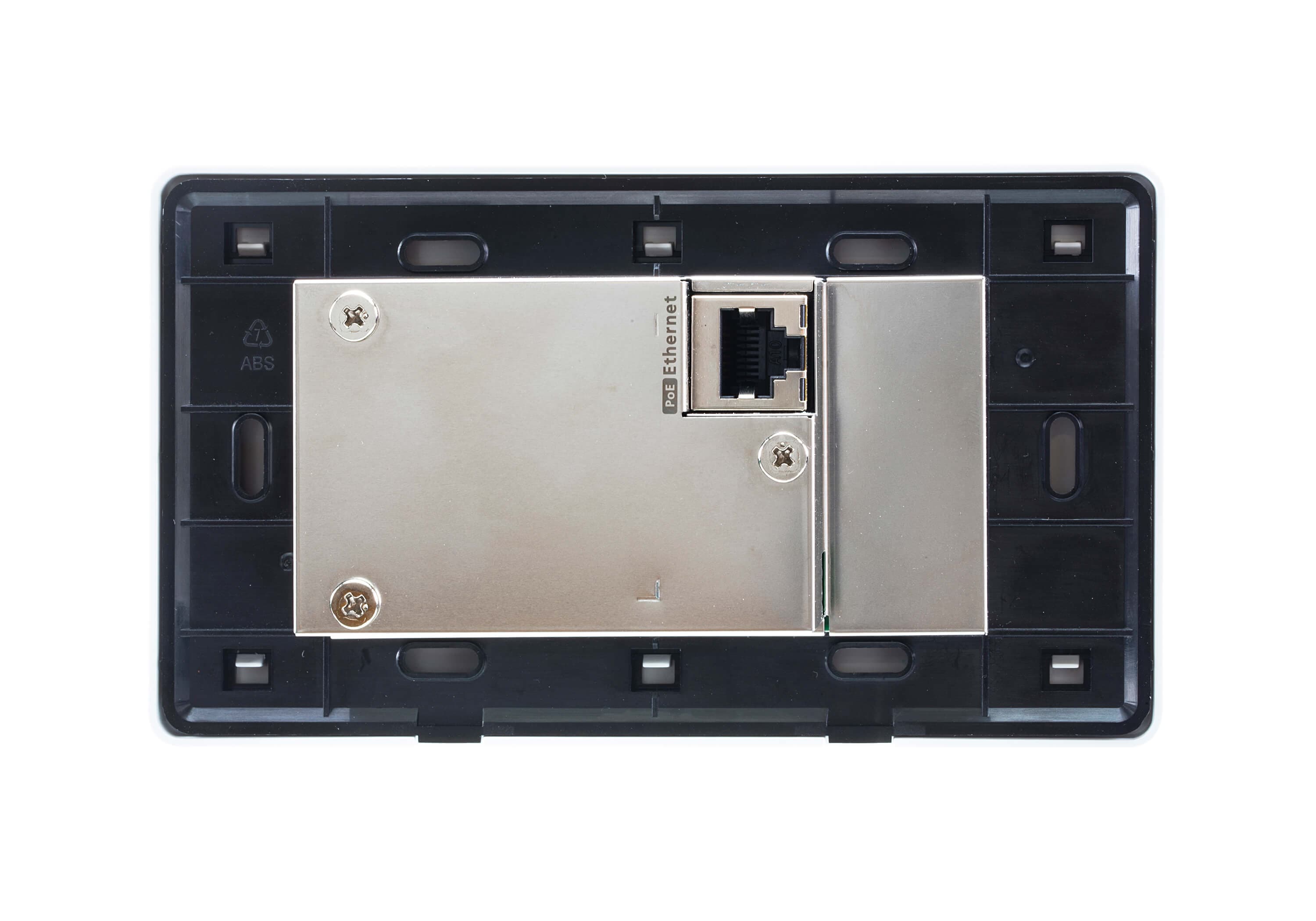

- Ethernet
- • 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: DHCP, HTTP/ HTTPS • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0
- Бутон за нулиране
- 1 x Semi-recessed Pushbutton
- Консумация
- DC5V:0.8W:3BTU/h POE:1W:4BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Конектори

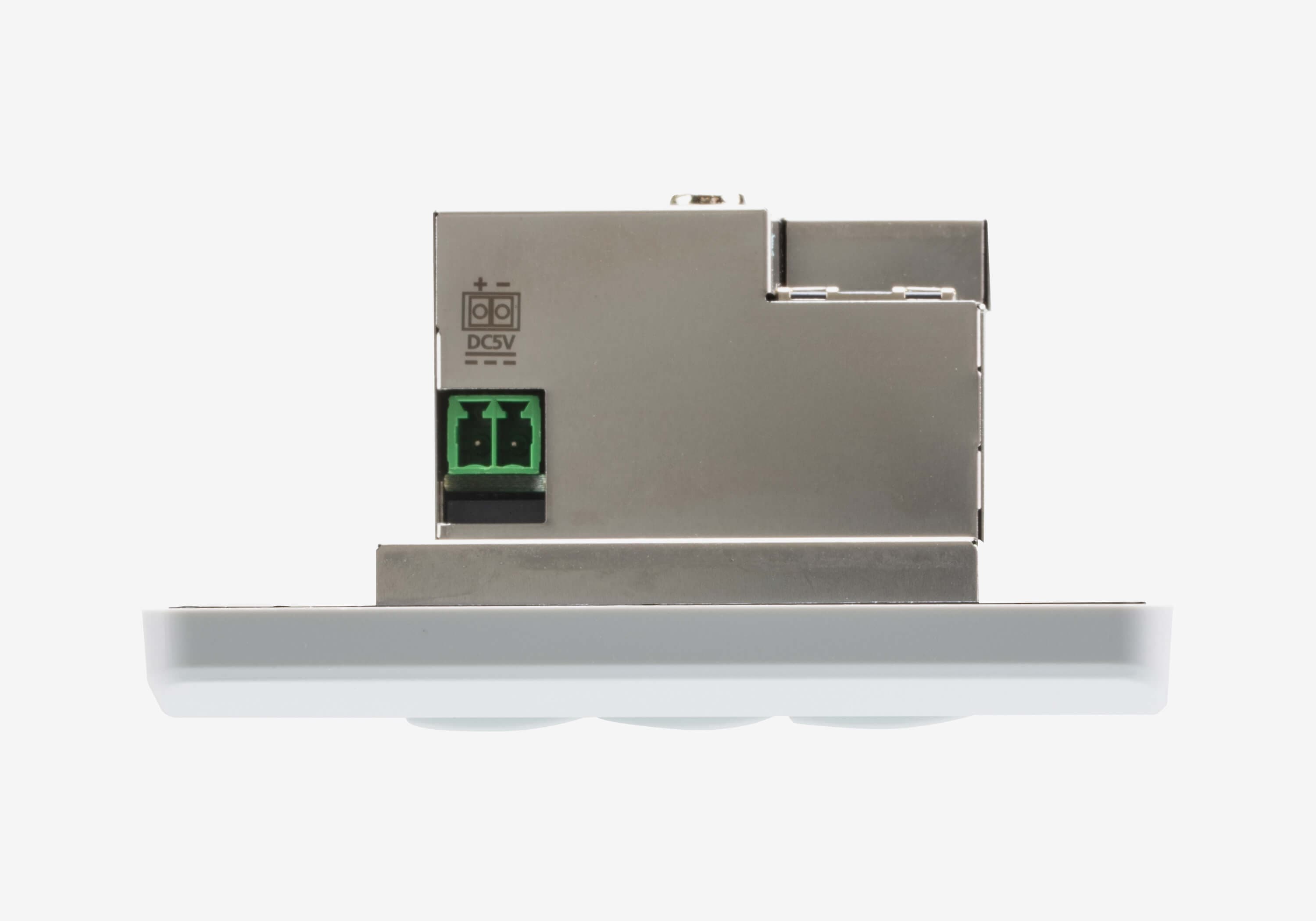

- Захранване
- 2-pole terminal block connector
Работна среда
- Работна температура
- 0 – 40°C
- Температура на съхранение
- –20 – 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.20 kg ( 0.44 lb )
- Размери (Д x Ш x В)
- 8.32 x 14.76 x 4.80 cm (3.28 x 5.81 x 1.89 in.)
- Размери на лицевия панел (Д x Ш x В)
- 8.62 x 15.12 x 0.92 cm (3.39 x 5.95 x 0.36 in.)
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
