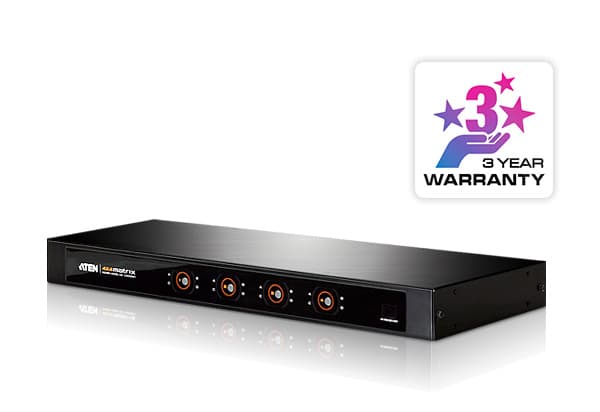

4 x 4 HDMI Matrix Switch
VM0404HСнет от производство

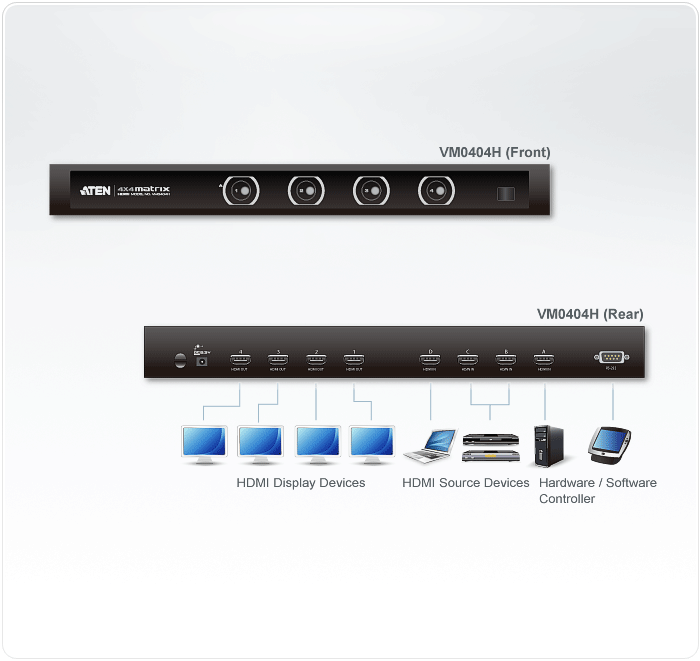

HDMI матричен превключвател, който насочва видео и аудио от четири източника към четири дисплея. Превключване с дистанционно или от предния панел, поддържа до 1080p.
Характеристики
- Connects any of four HDMI sources to any of four HDMI displays
- Toggle between HDMI sources and displays using remote control or front panel pushbuttons
- Superior video quality – HDTV resolutions of 480p, 720p,1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), and WUXGA (1920 x 1200)
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- HDMI (3D, Deep Color)
- Features EDID expert technology to set up different video configurations via different EDID modes
- Supports Dolby True HD and DTS HD Master Audio
- Up to 60 Hz refresh rate
- Built-in bi-directional RS-232 serial remote port for high-end system control *
- Power On Detection – if one HDMI source is powered off, the VM0404H will automatically switch to the next powered-on source
- DDC compatible
- Signaling rates up to 2.25 Gbits in support of 1080p display
- All-metal casing
- Easy and affordable way to add four HDMI inputs to your multiscreen home theater system
- Rack Mountable * Note: The VM0404H AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Видео вход
- Интерфейси
- 4 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 1.8 m
Видео изход
- Интерфейси
- 4 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 15 m
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
- Макс. резолюция
- Up to 1080p
- Макс. разстояние
- Up to 15 m
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- EDID настройки
- EDID Mode: Default / Port1 / Remix
Конектори
- Захранване
- 1 x DC Jack (Black)
- Консумация
- 5.3 VDC, 9W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.86 kg ( 4.1 lb )
- Размери (Д x Ш x В)
- 43.70 x 15.96 x 4.40 cm (17.2 x 6.28 x 1.73 in.)
- Брой в кашон
- 3 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
